Reflective optical proximity distance sensor E18-D80NK NPN 5-80cm
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description

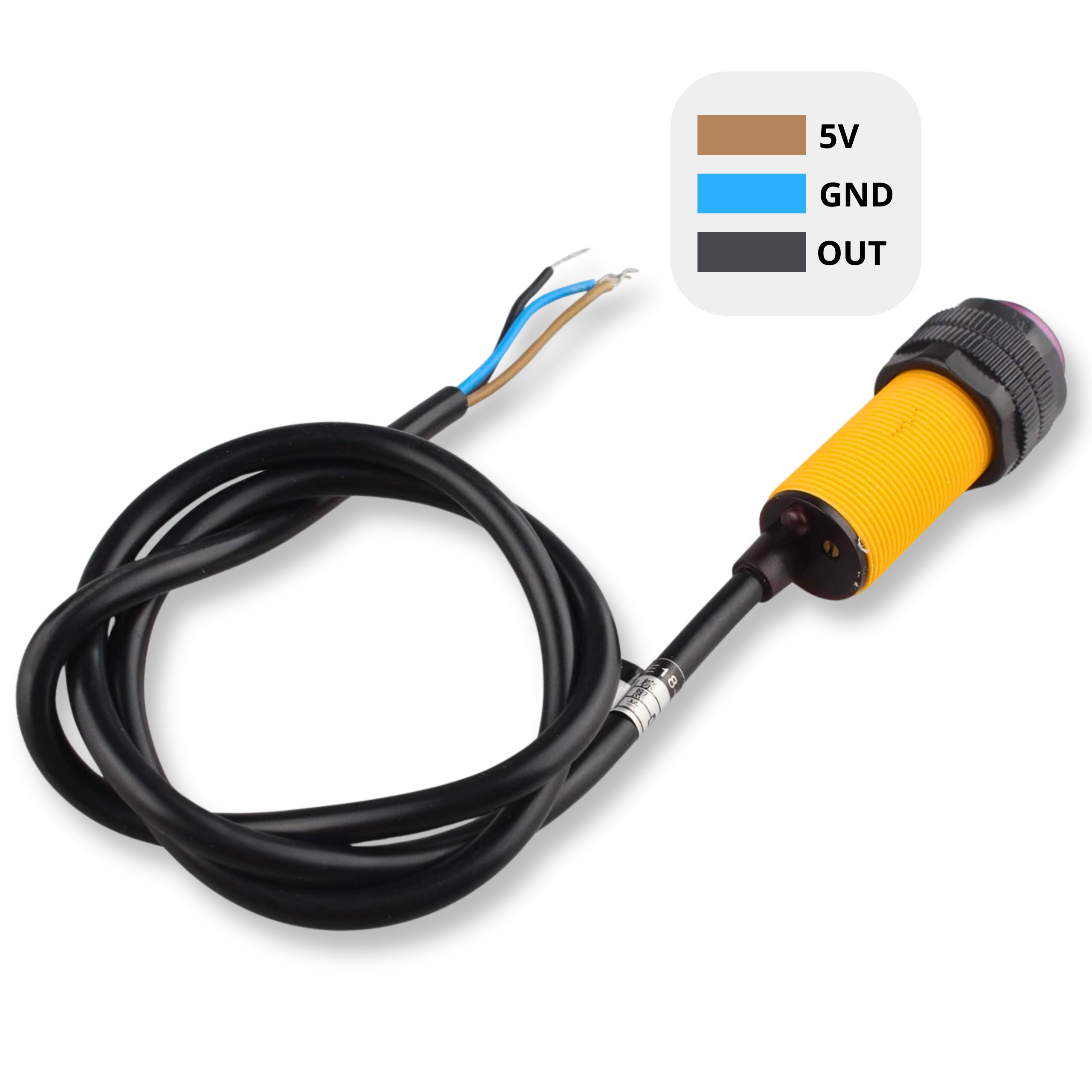

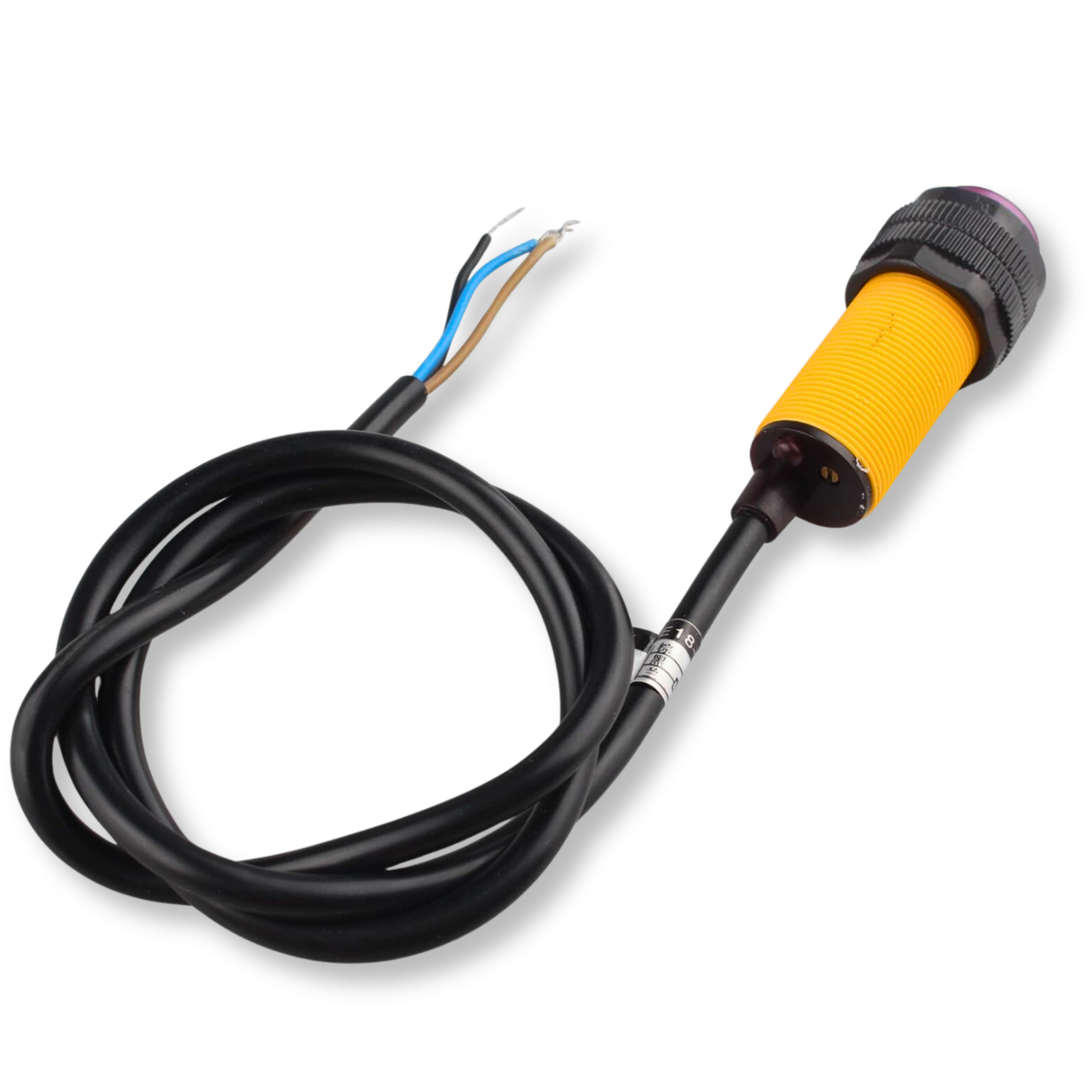

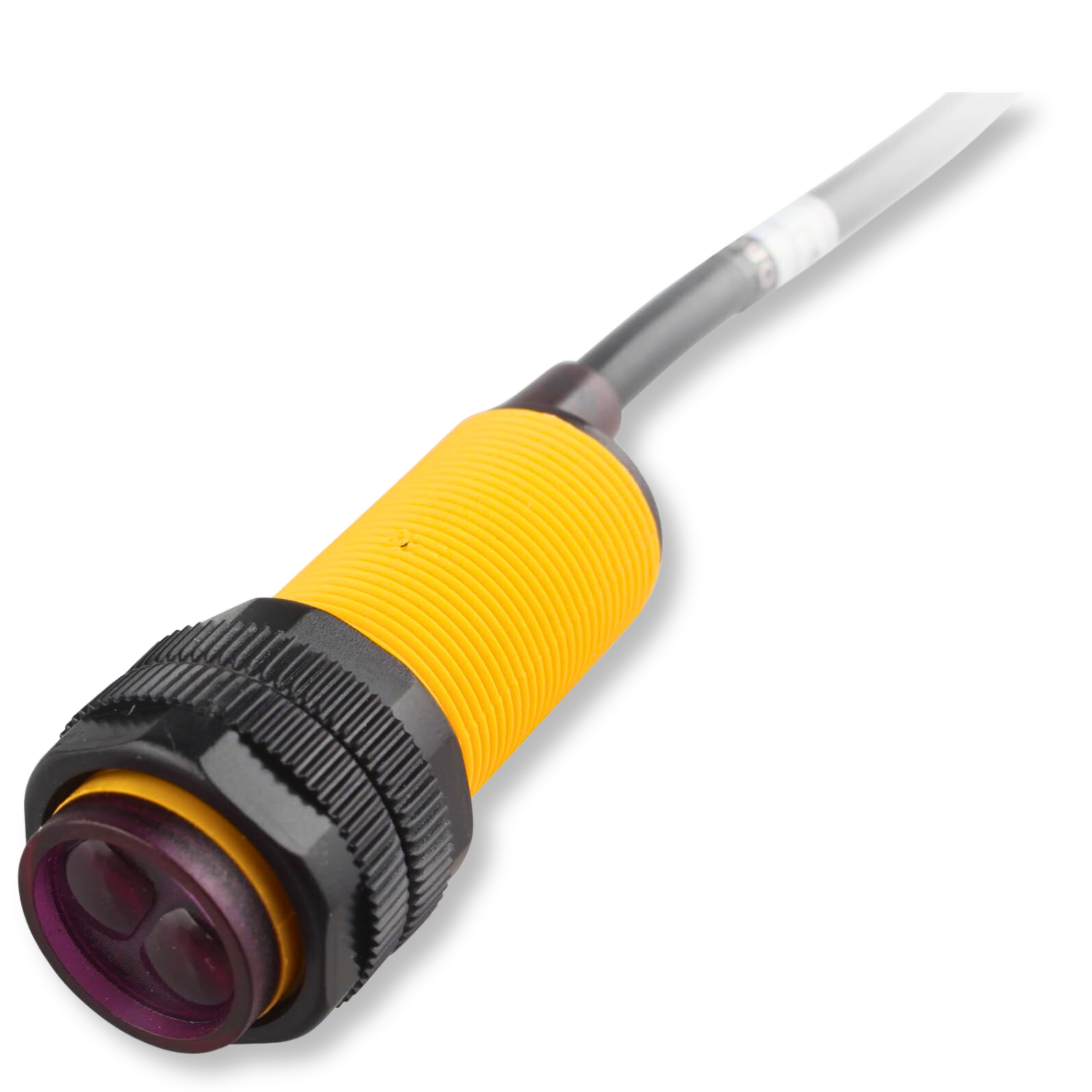

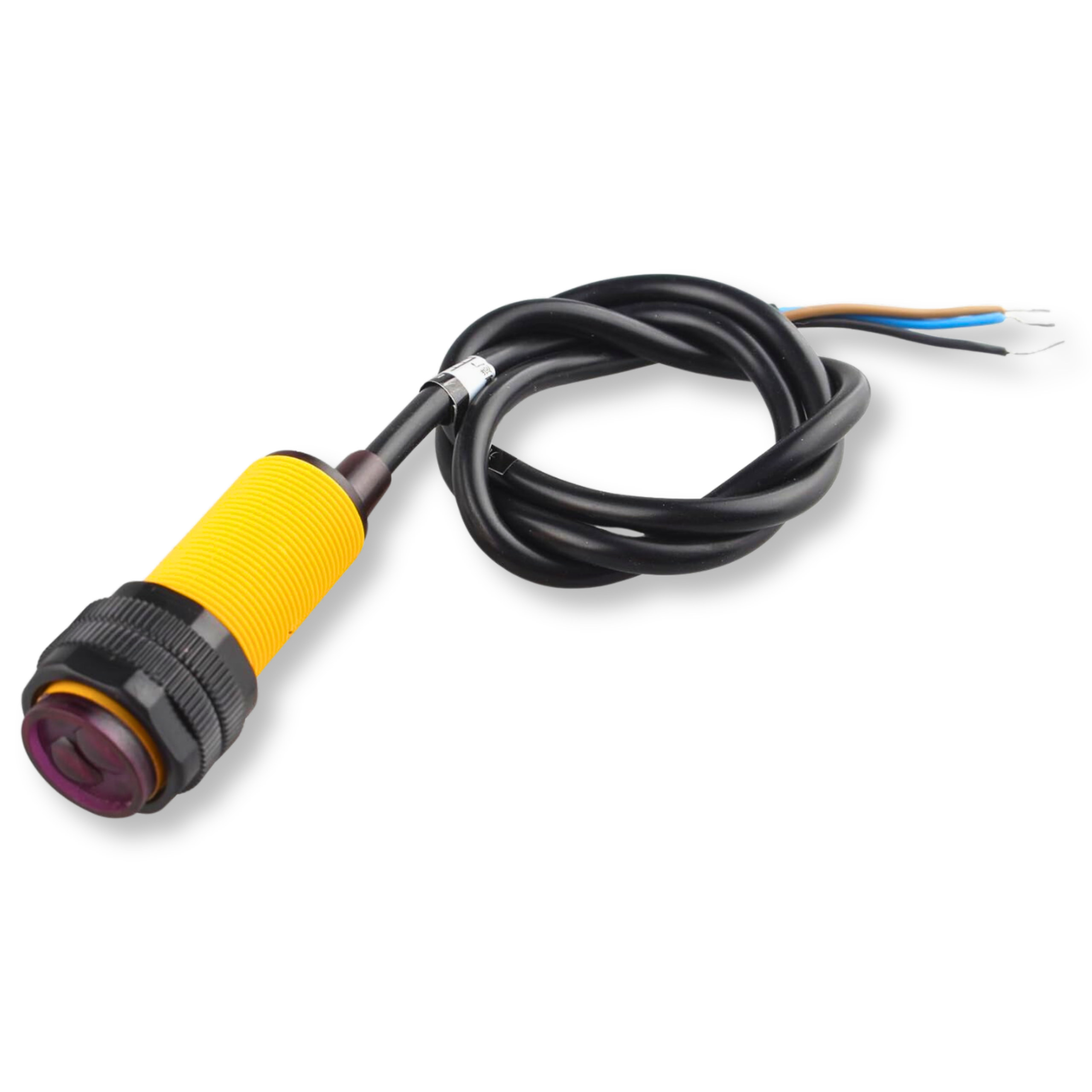

Reflective optical proximity distance sensor E18-D80NK NPN 5-80cm for Arduino, ESP8266, ESP32, Raspberry Pi
The adjustable distance sensor E18-D80NK NPN is an infrared optical sensor that detects objects within an adjustable range of 5 cm to 80 cm. A potentiometer for precise adjustment is located on the back of the sensor. The device is powered by 5V DC and draws less than 100 mA. The sensor indicates object detection with an LED, and its response time is below 2 ms. It has built-in reverse polarity protection and operates over a wide temperature range of -25°C to +55°C. The output signal is digital: a low state means an object is detected, and a high state means no object. The sensor has a diameter of 18 mm, a length of 50 mm, and a cable about 50 cm long.
Key technical specifications
- Supply voltage: 5V DC
- Current draw: <100 mA
- Measuring range: 5cm - 80cm
- Range (detection) adjustment: YES (potentiometer on the back of the sensor)
- Optical detection indication: LED lights up
- Response time: below 2 ms
- Protection: reverse polarity
- Operating temperature: -25°C to +55 °C
- Output signal: digital (Low - object detected, High - no object)
- Diameter: 18 mm
- Sensor length: 50 mm
- Cable length: approx. 50cm
Benefits
- Easy integration: seamless operation with popular microcontroller platforms
- Fast response: response time below 2 ms enables use in dynamic projects
- Convenient adjustment: built-in potentiometer allows quick range tuning to your needs
- Circuit safety: integrated reverse polarity protection protects the module from damage
- Clear indication: built-in LED instantly indicates obstacle detection
Example applications
- Robotics: obstacle avoidance in mobile robots and autonomous vehicles
- Industrial automation: counting items on production lines
- Alarm systems: detecting intruders or movement in defined zones
- Smart home: automatic door or gate opening, or lighting control
- DIY projects: interactive installations and models using proximity sensors
