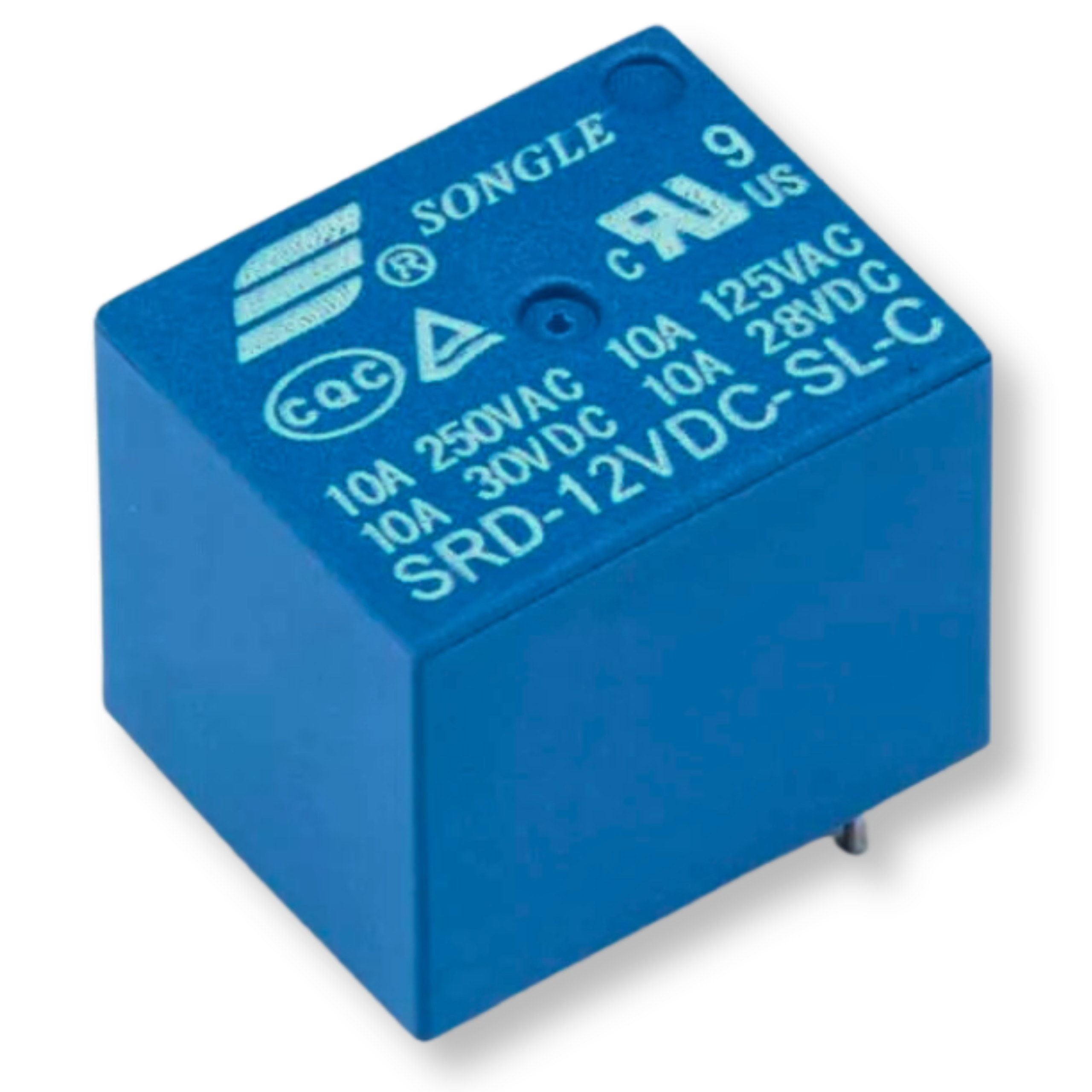

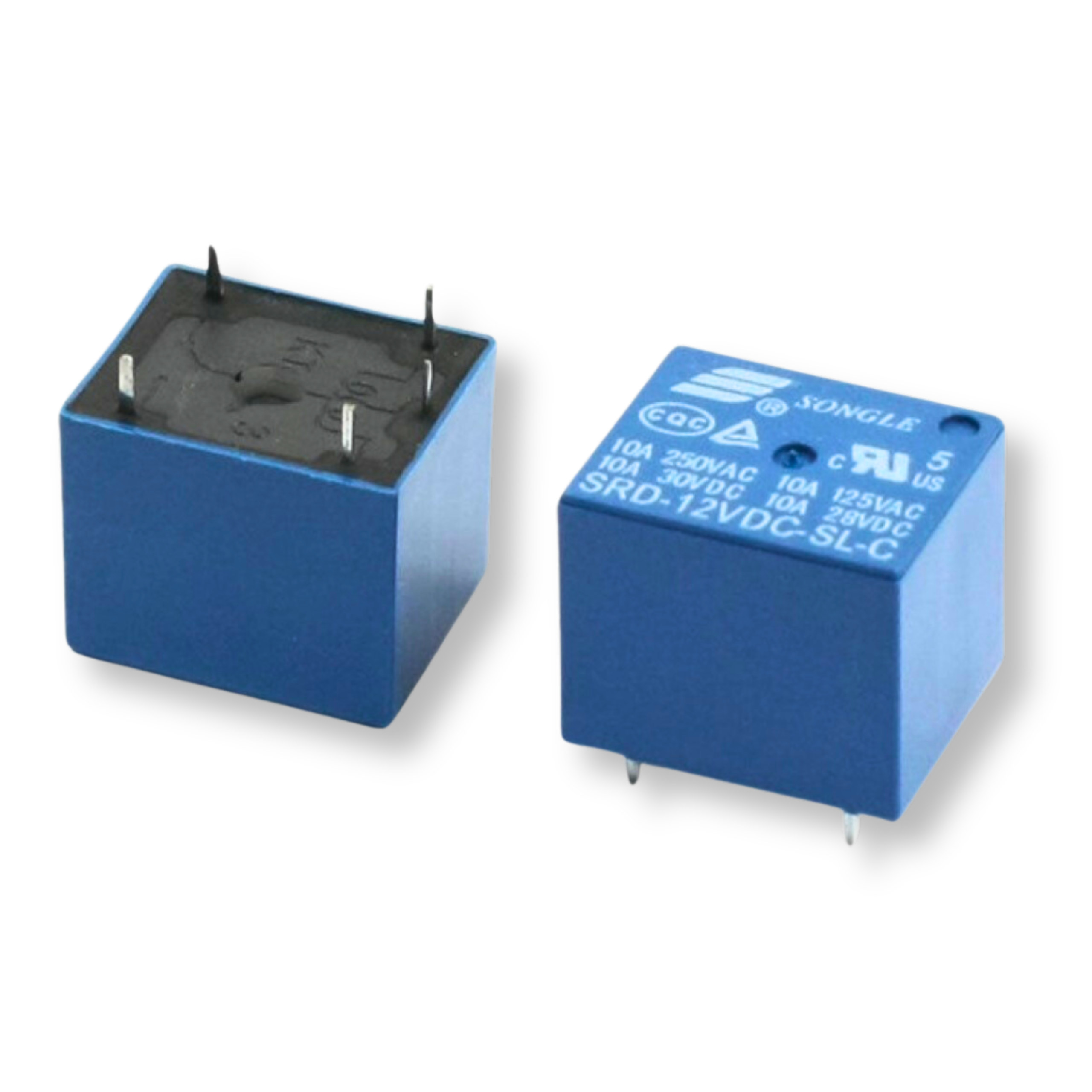

SONGLE SRD-12VDC-SL-C relay 240V 10A, 12V DC actuated, NC/NO contact

SONGLE SRD-12VDC-SL-C relay 240V 10A, 12V DC actuated, NC/NO contact

The SONGLE SRD-12VDC-SL-C relay is a reliable output device for electronic projects built around microcontrollers powered at 12V (ideal for Arduino, Raspberry Pi, ESP8266, and ESP32). It provides COL1, COL2, and COM outputs for safe, efficient switching of circuits with a maximum load of 10A at 250V AC or 30V DC.

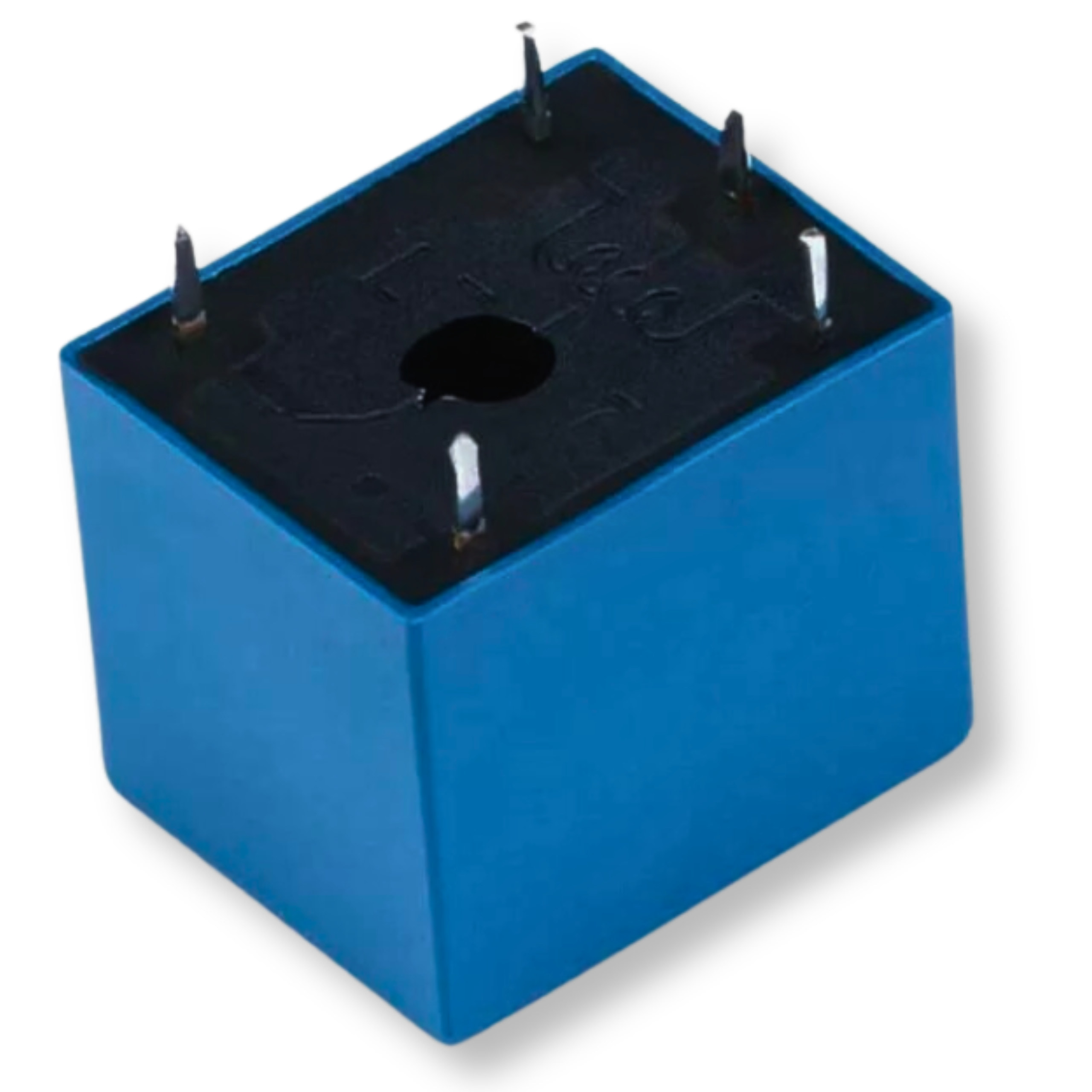

Its compact 19.6 x 15.4 x 15.5 mm footprint integrates easily into professional and hobbyist setups. With 5 pins and a NC/NO changeover contact, it offers stable operation with very low coil power consumption of just 0.36 W. It is an excellent choice for switching electrical and electronic loads with higher current draw.

Key specifications

• Number of pins: 5
• Coil supply voltage: 12V DC
• Coil power consumption: 0.36 W
• Contact configuration: 1 changeover contact NC/NO
• Maximum contact rating: 10A / 250V AC or 10A / 30V DC
• Physical dimensions: 19.6 mm x 15.4 mm x 15.5 mm

Example applications

• Controlling mains 230V lighting from logic-level circuits
• Switching DC and AC motors in automation systems
• Actuator modules in smart home projects
• Galvanic isolation between control circuits and high-power loads
• Signal switching in alarm and access control systems

Benefits

• Versatility - full compatibility with the most popular microcontroller platforms
• Safety - reliable separation between low-voltage and mains circuits
• Energy efficiency - very low power draw by the control coil
• Compact size - small footprint for easy PCB mounting
• High performance - direct switching of loads up to 10A
