ST-Link V2 SWD STM32 and SWIM STM8 ARM Cortex Programmer + Cables

ST-Link V2 SWD STM32 and SWIM STM8 ARM Cortex Programmer

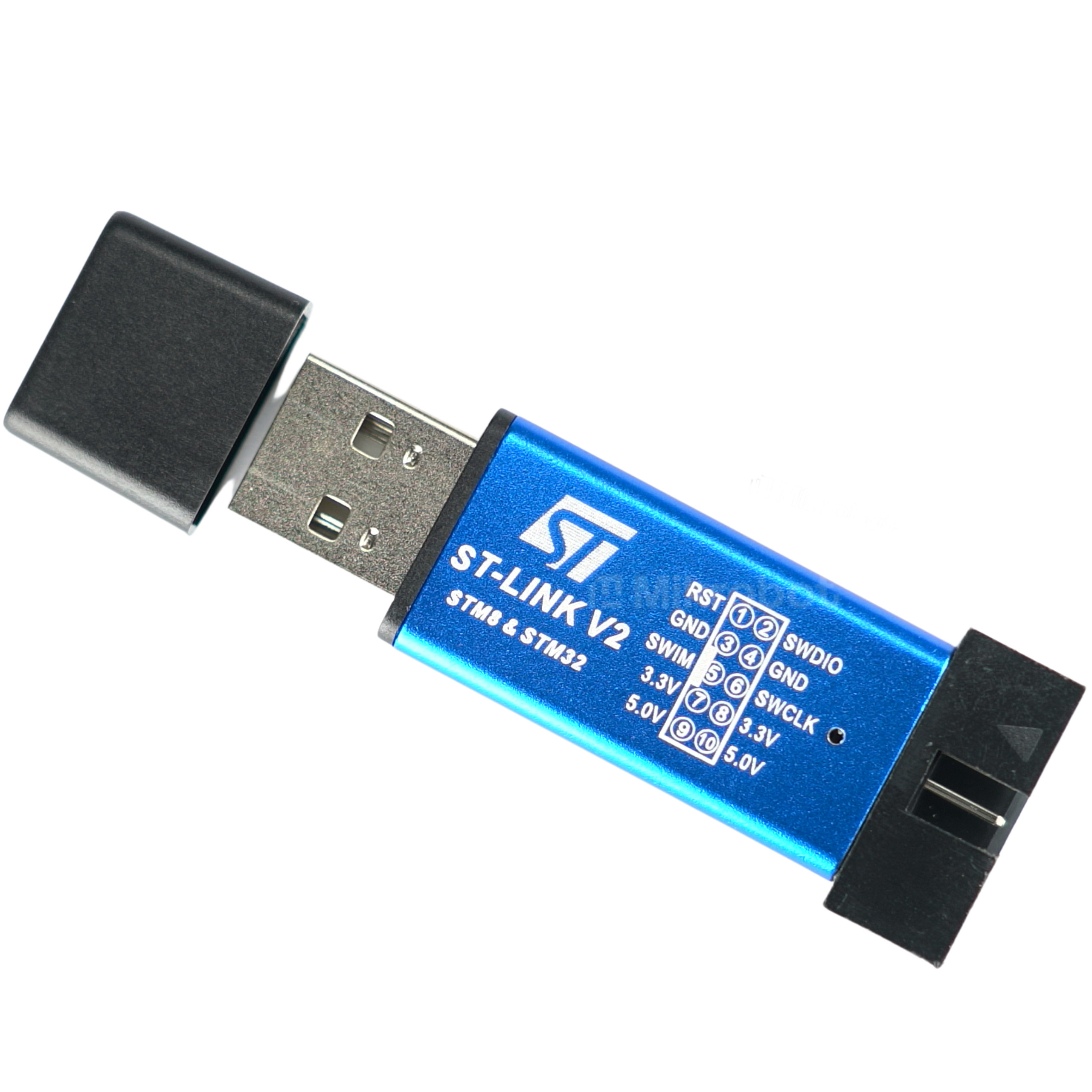

The ST-Link V2 programmer is a professional tool designed for programming STM8 and STM32 family chips based on the ARM Cortex architecture. The device ensures efficient communication with microcontrollers, supporting the dedicated SWD and SWIM interfaces.

Key Technical Features

• Communication with STM32 devices via the SWD interface
• Communication with STM8 devices via the SWIM interface
• Maximum supply current to the target device: 50 mA at 3.3 V

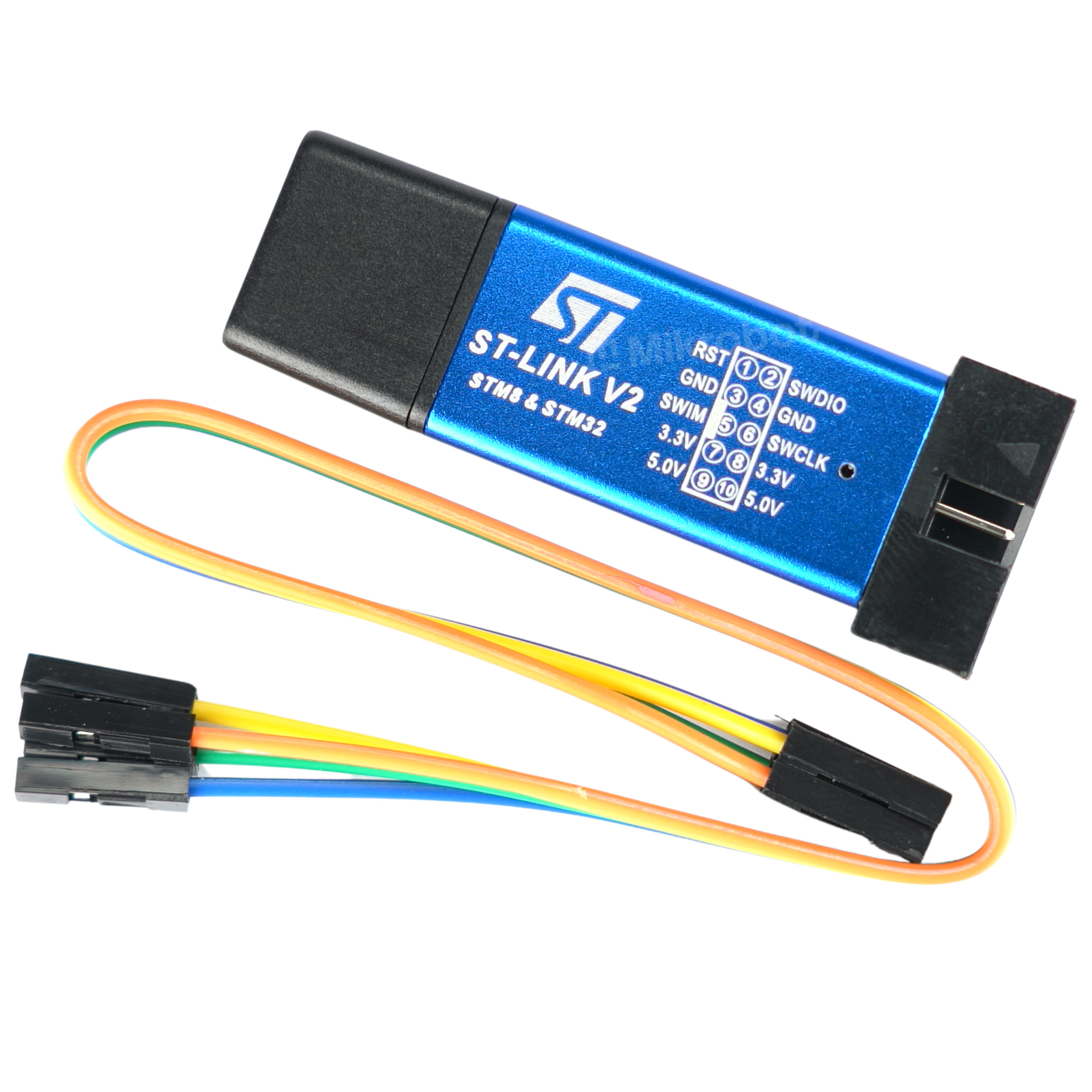

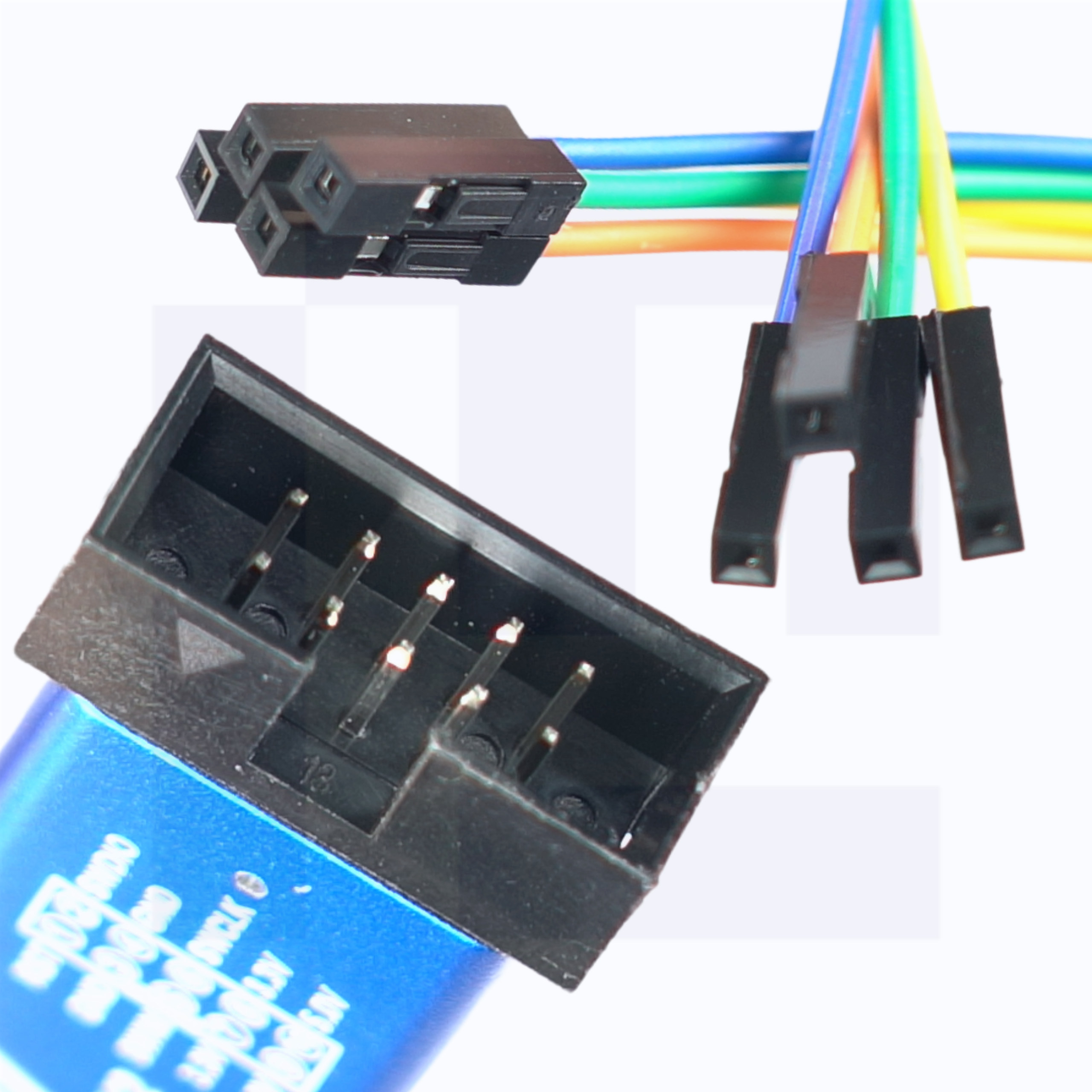

• Includes 4 female-to-female cables for quick connections
• Not compatible with STM32CubeProgrammer software

Supported development environments

The programmer is compatible with many popular tools, including:

• ST-LINK Utility versions 2.0, 4.2.1, and later
• STVD and later
• STVP 3.2.3 and later
• IAR EWARM V6.20 and later
• IAR EWSTM8 version 1.30 and later
• KEIL RVMDK V4.21 and later

Example Applications

• Programming STM32 microcontrollers in electronic projects
• Programming STM8 chips
• Debugging applications based on the ARM Cortex architecture
• Prototyping and testing embedded systems
• Maintenance and software updates for modules with ST microcontrollers

Benefits

• Versatility—supports two popular microcontroller families (STM8 and STM32) with a single programmer
• Convenient connection—included female-to-female cables allow you to start working with the target system immediately
• Extensive software support—compatibility with the most popular development environments, such as KEIL and IAR
• Operational safety—stable 3.3V power supply to circuits with a current capacity of up to 50mA
• Ease of use—dedicated SWD and SWIM interfaces facilitate efficient and trouble-free communication

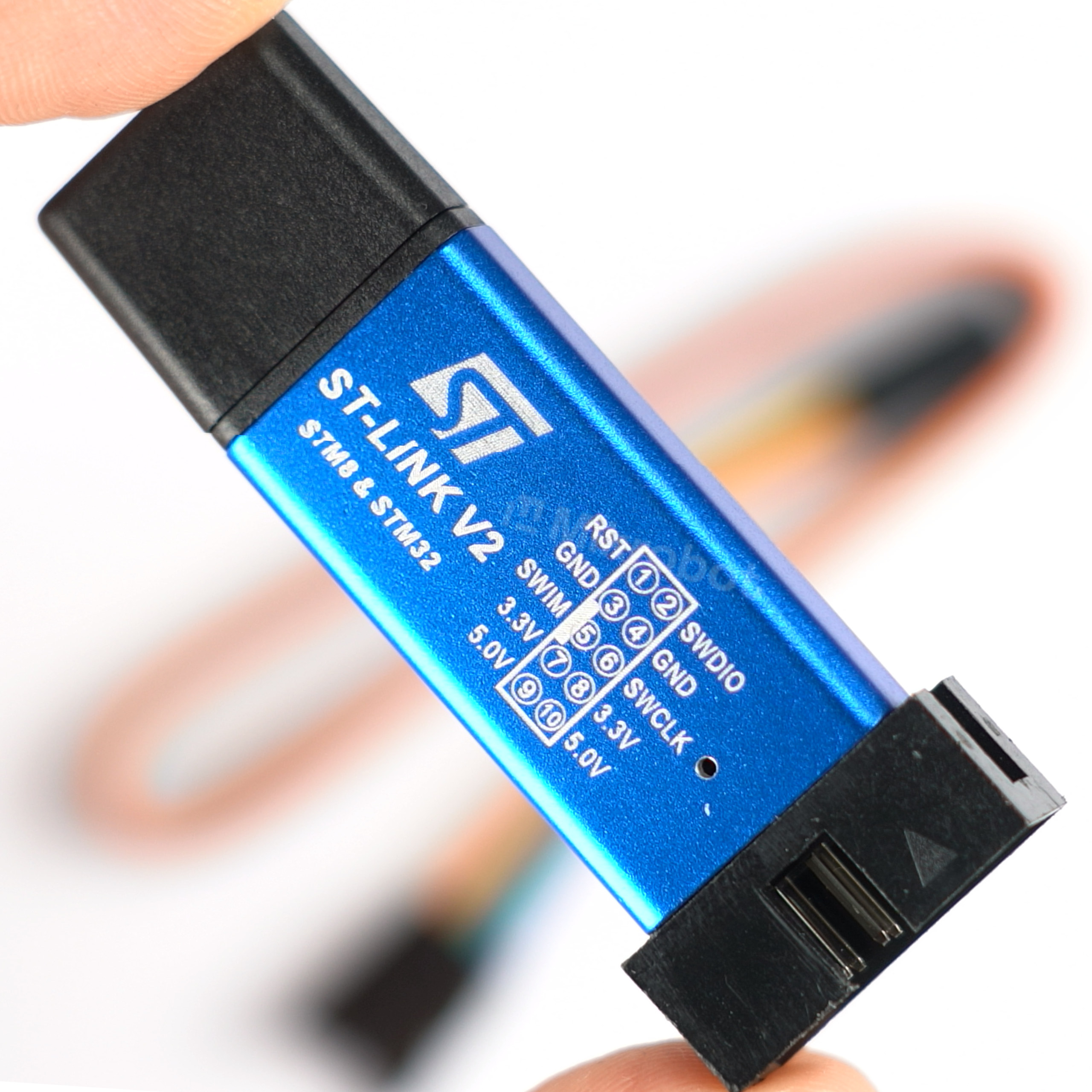

Note: In rare cases, the color or pin placement on the programmer’s housing may change. In such situations, always refer to the diagram printed directly on the device’s housing, which provides precise information about the correct pin layout.
