SX1308 DC-DC Step-Up 2-28V 2A - Voltage Boost Converter
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description

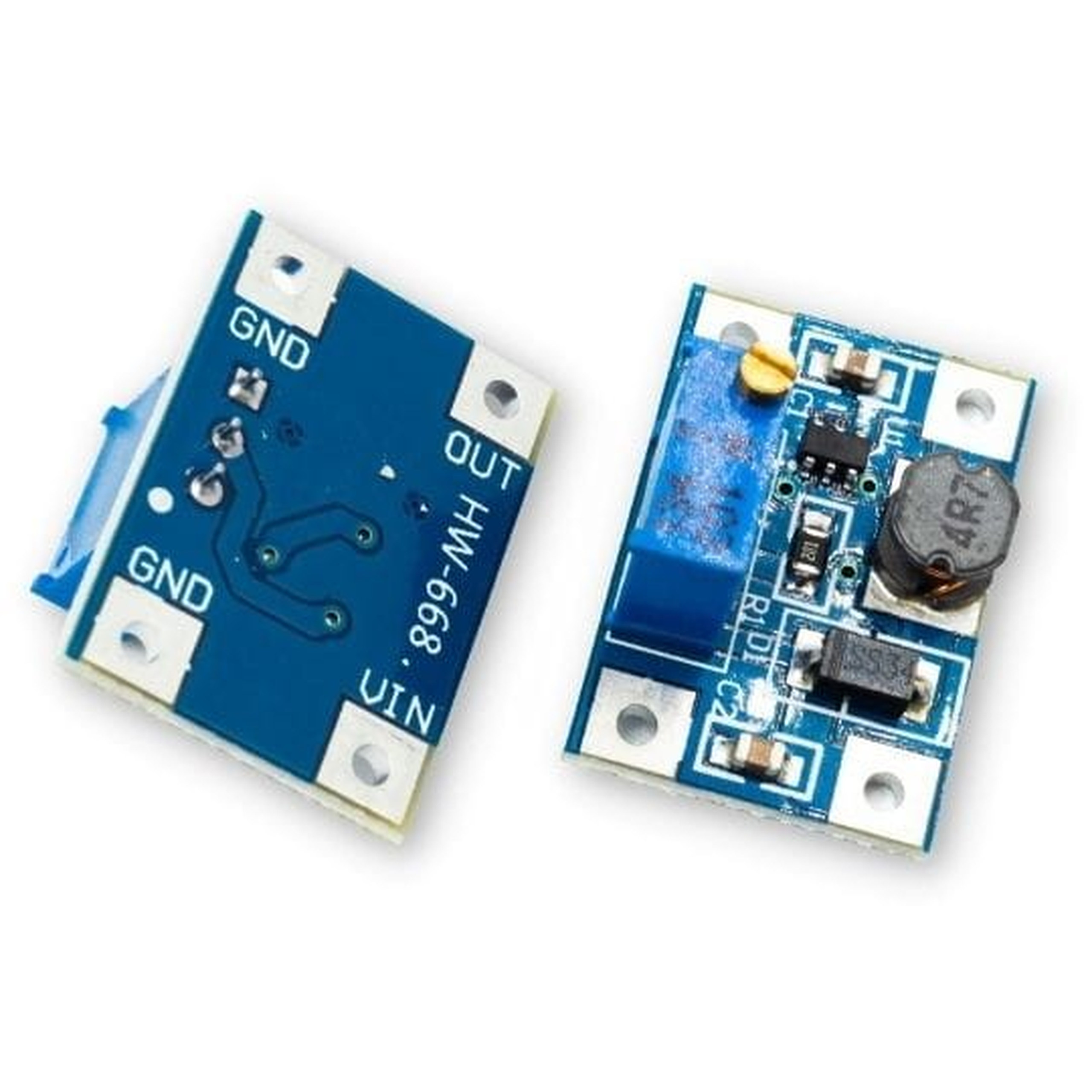

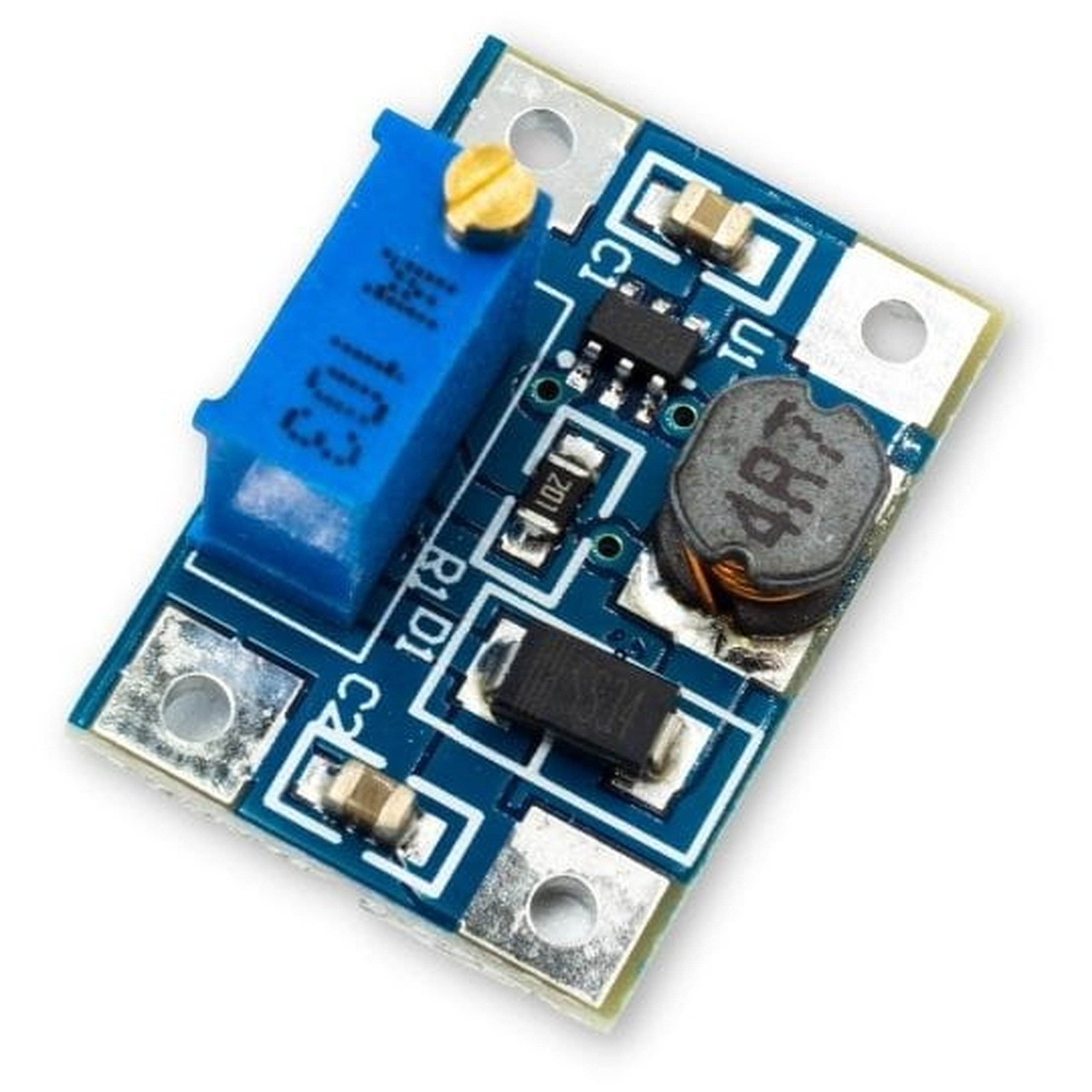

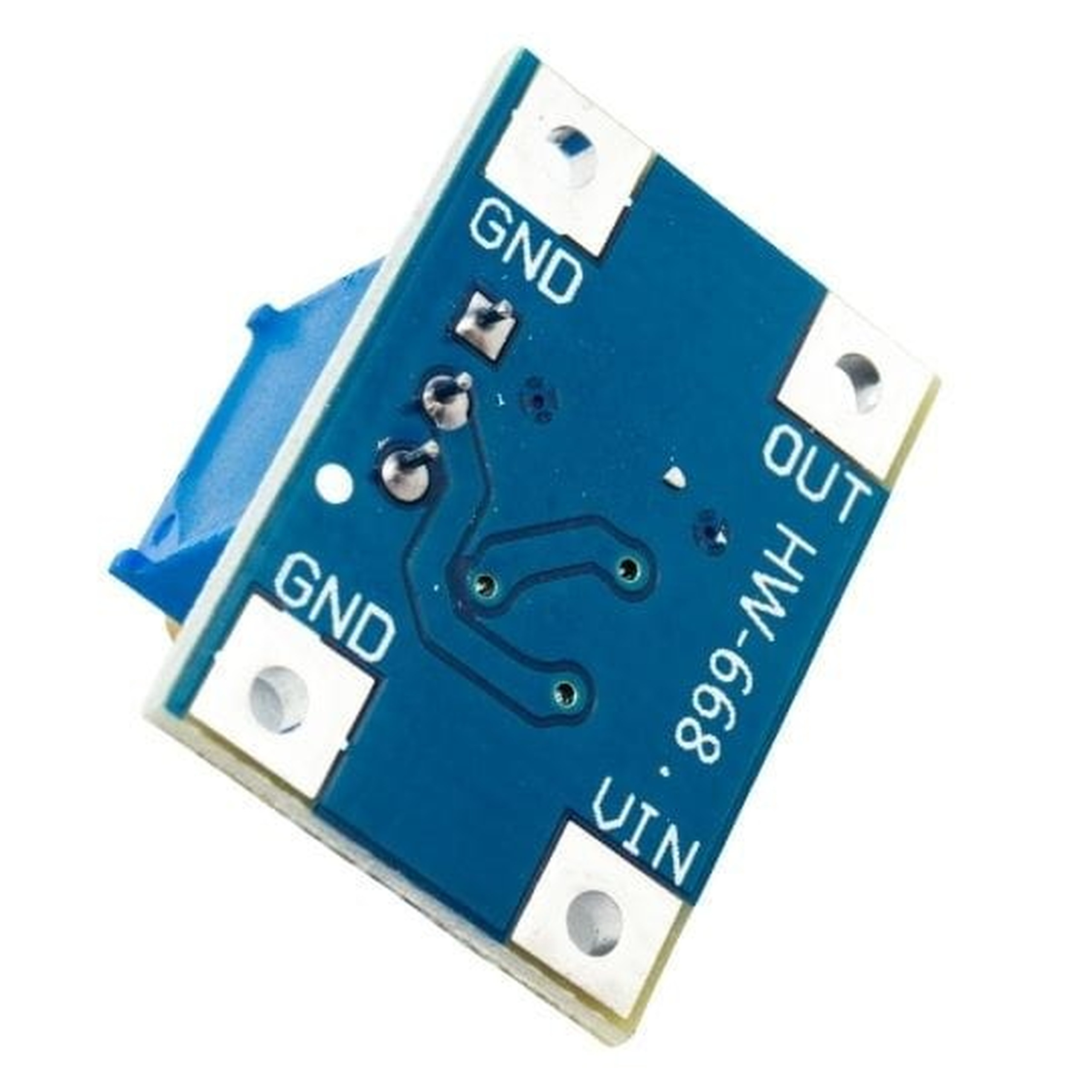

Product description: SX1308 DC-DC Step-Up Converter
The SX1308 step-up converter lets you raise the input voltage from 2V to 24V to an output voltage in the range of 2V to 28V, with a maximum current of up to 2A. Convenient voltage adjustment is provided by a built-in potentiometer. It is a practical solution for powering various devices - ideal for ESP8266, ESP32, Arduino, and Raspberry Pi.
The module is a functional replacement for popular LM2577 and XL6009 converters.
Key technical specifications
- Input voltage: 2 - 24V
- Output voltage: 2 - 28V (adjustable)
- Converter IC: SX1308
- Continuous output current: 2A
- Peak output current: 3A
- Efficiency: Min 95%
- Frequency: 1200 kHz
- Operating temperature: -5 - 55 °C
- Dimensions: 16.5 x 13.5 mm
Example applications
- Powering logic circuits from lower-voltage cells
- Boosting voltage in portable electronic projects
- Powering modules that require higher voltage
- Building mobile backup power supplies
- Powering lighting from battery power
Benefits
- Compact size for installation in small devices
- High efficiency of at least 95%
- Smooth adjustment of output voltage via potentiometer
- Wide range of supported input and output voltages
- High operating frequency for stable performance
