Self Reset Ring 16mm blue LED backlit 12-24V metal switch
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description

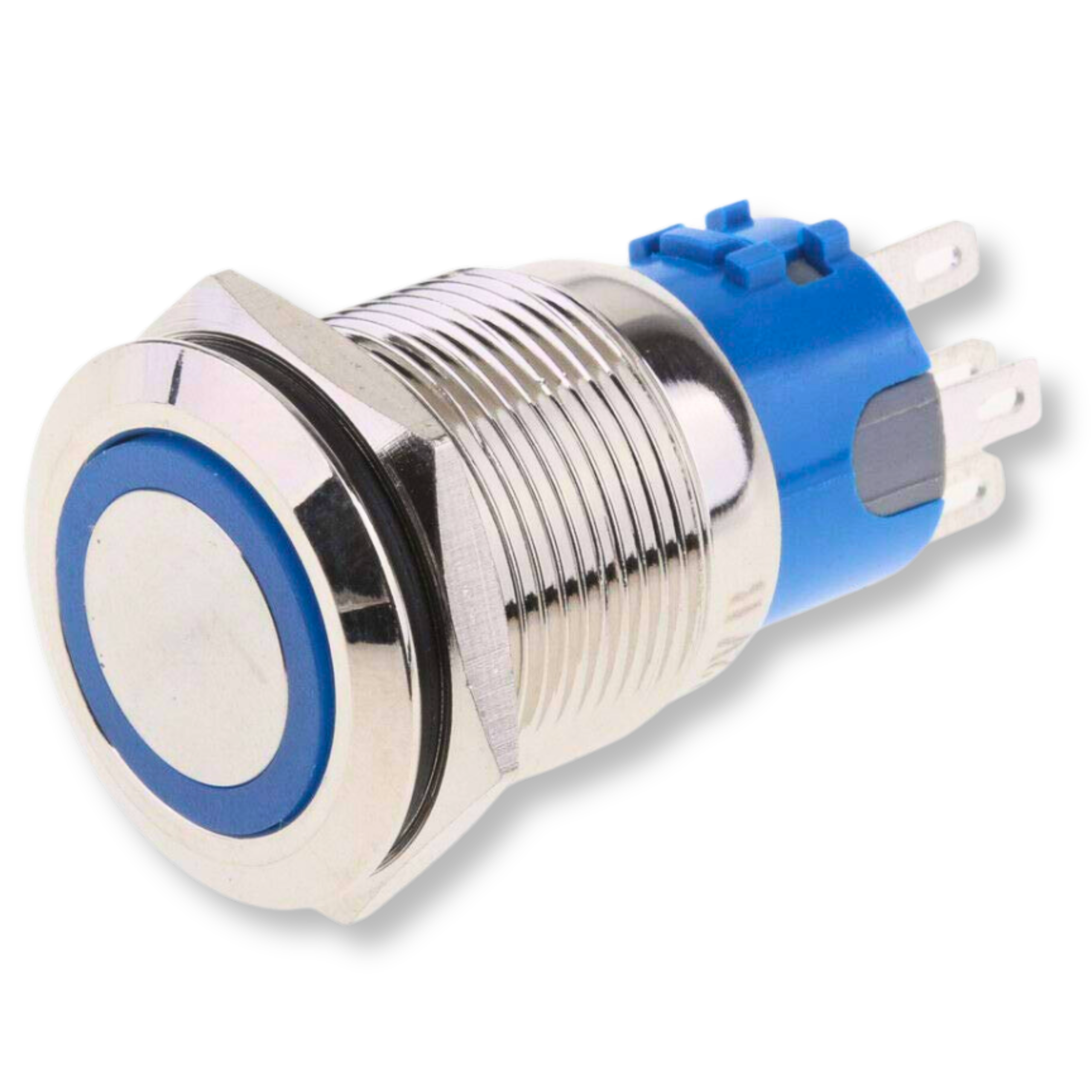

The 12V-24V Metal Self Reset Switch with LED illumination is a reliable and robust item, ideal for a wide range of installations. The blue self reset (monostable) switch features an illuminated LED ring, which not only makes it easy to locate in the dark, but also gives an aesthetically pleasing appearance. The product is made of high-quality brushed stainless steel, which ensures corrosion resistance and a long service life.
Its installation is simple thanks to the fi16mm mounting thread diameter, and the rubber gasket included further protects it from external factors. The product is resistant to mechanical damage and vandalism, making it ideal for use in public areas and demanding environments.
Specifications:
- Switch type: Monostable (Self Reset).
- Operating mode: ON-OFF
- Voltage: 12V-24V
- Illumination colour: Blue (illuminated ring)
- Material: Brushed stainless steel
- Mounting thread diameter: 16 mm
- Key diameter: 13 mm
- Number of pins: 5 pins (2.8 mm x 7 mm)
- Electrical life: 50,000 cycles
- Mechanical life: 500,000 cycles
- Operating temperature: -20ºC to +55ºC
- Dimensions: 18 mm x 35 mm
- Protection: Rubber gasket included
- Vandal-resistant: Yes
