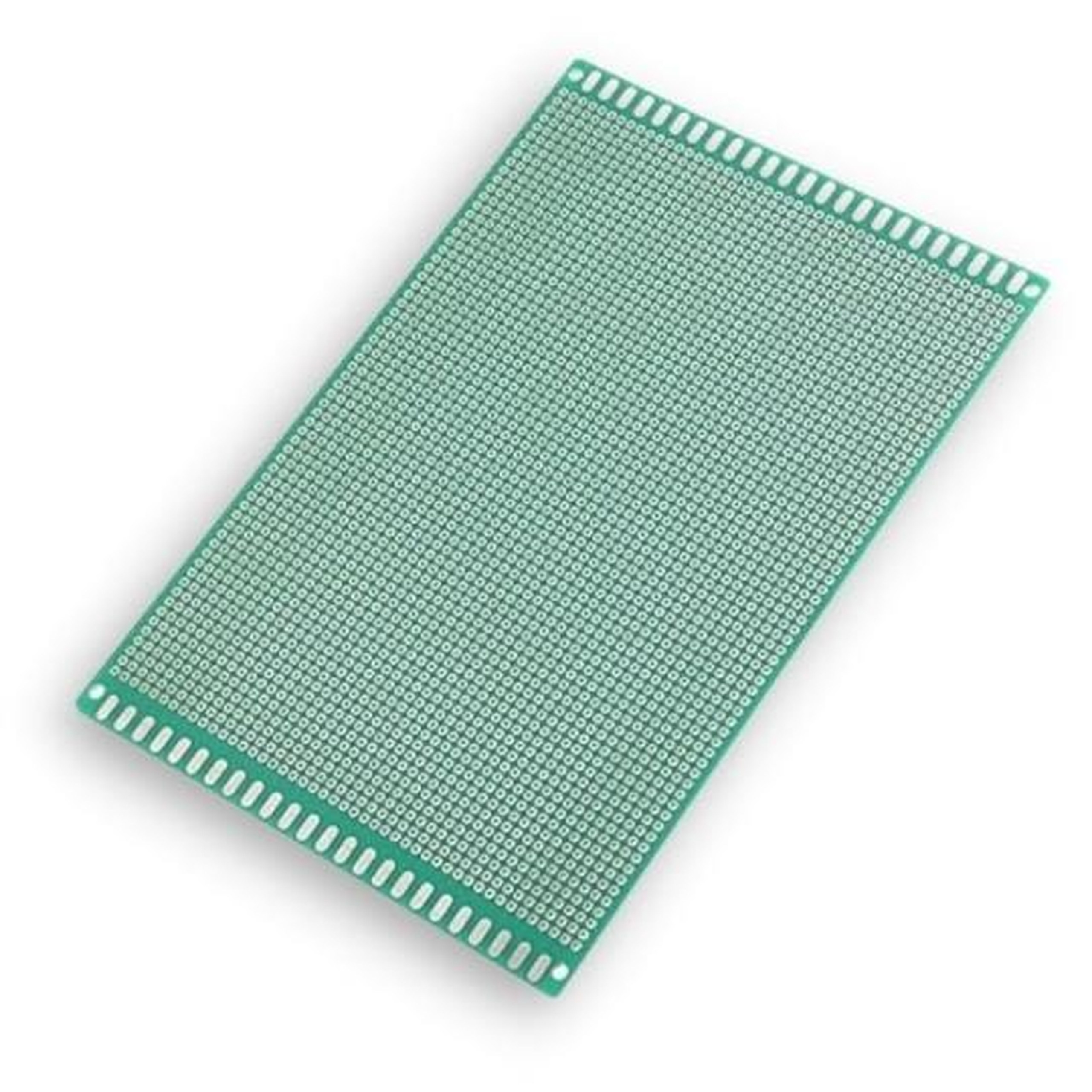

Single-sided prototype PCB board 18×30 cm, 8307 holes, 2.54 mm pitch.

18×30 cm single-sided prototype PCB

A universal, single-sided board made of durable 1.6 mm thick laminate. It allows easy mounting and removal of various electronic circuits without designing or ordering a dedicated PCB. It is an ideal solution for building electrical circuits and prototypes with through-hole components. It works very well for projects using platforms such as Arduino, Raspberry Pi, ESP8266, and ESP32.

Key technical specifications

• Type: Universal single-sided board
• Dimensions: 180 × 300 mm
• Laminate thickness: 1.6 mm
• Number of holes: 8307 solder pads
• Pitch: 2.54 mm
• Color: Green

Benefits

• Time savings - no need to etch or order dedicated printed circuit boards
• Freedom to modify - easy mounting, removal, and corrections in the circuit you are building
• Large working area - dimensions of 180 × 300 mm allow very large projects
• Versatility - standard 2.54 mm pitch suits most electronic components
• Durability - solid 1.6 mm laminate provides mechanical stability for the whole assembly

Example applications

• Building and testing electronic prototypes before mass production
• Educational projects and learning to solder through-hole components
• Creating expansion modules for popular microcontrollers
• Building custom power supplies and controllers
• Repairing and modifying existing electronic devices
