Stepper motor kit 28BYJ-48 5V driver XH-05 ULN2003 for Arduino

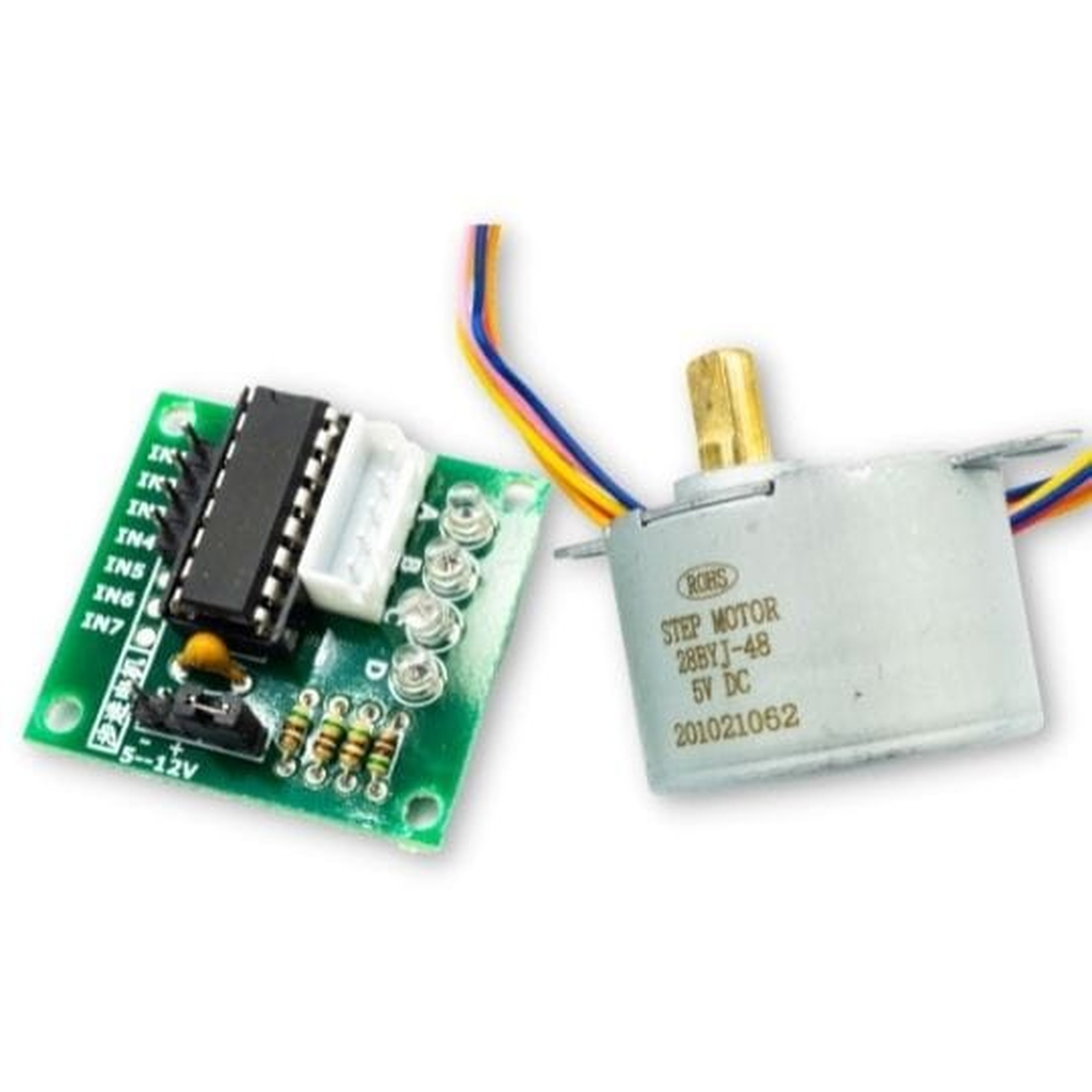

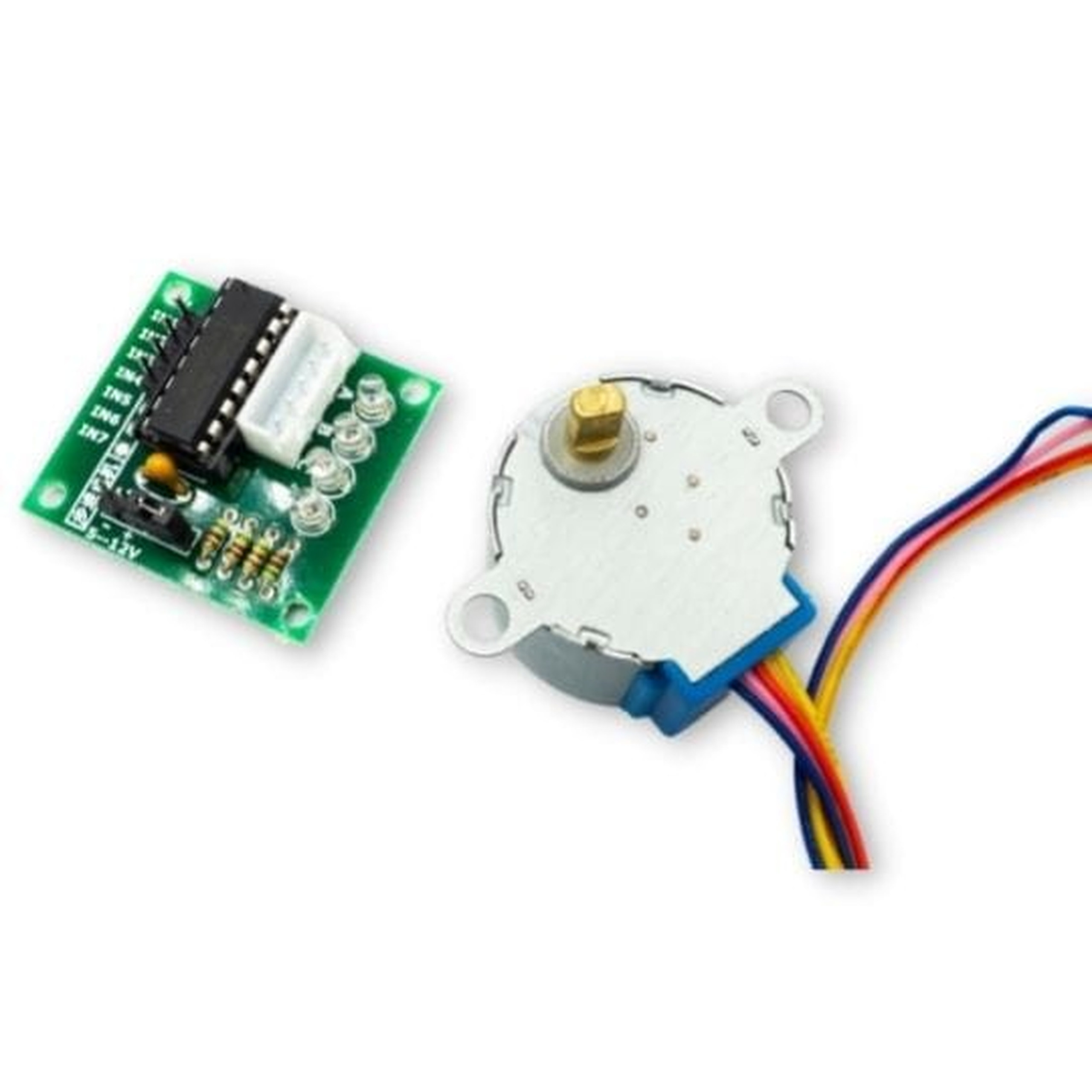

28BYJ-48 5V Stepper Motor and ULN2003 Arduino

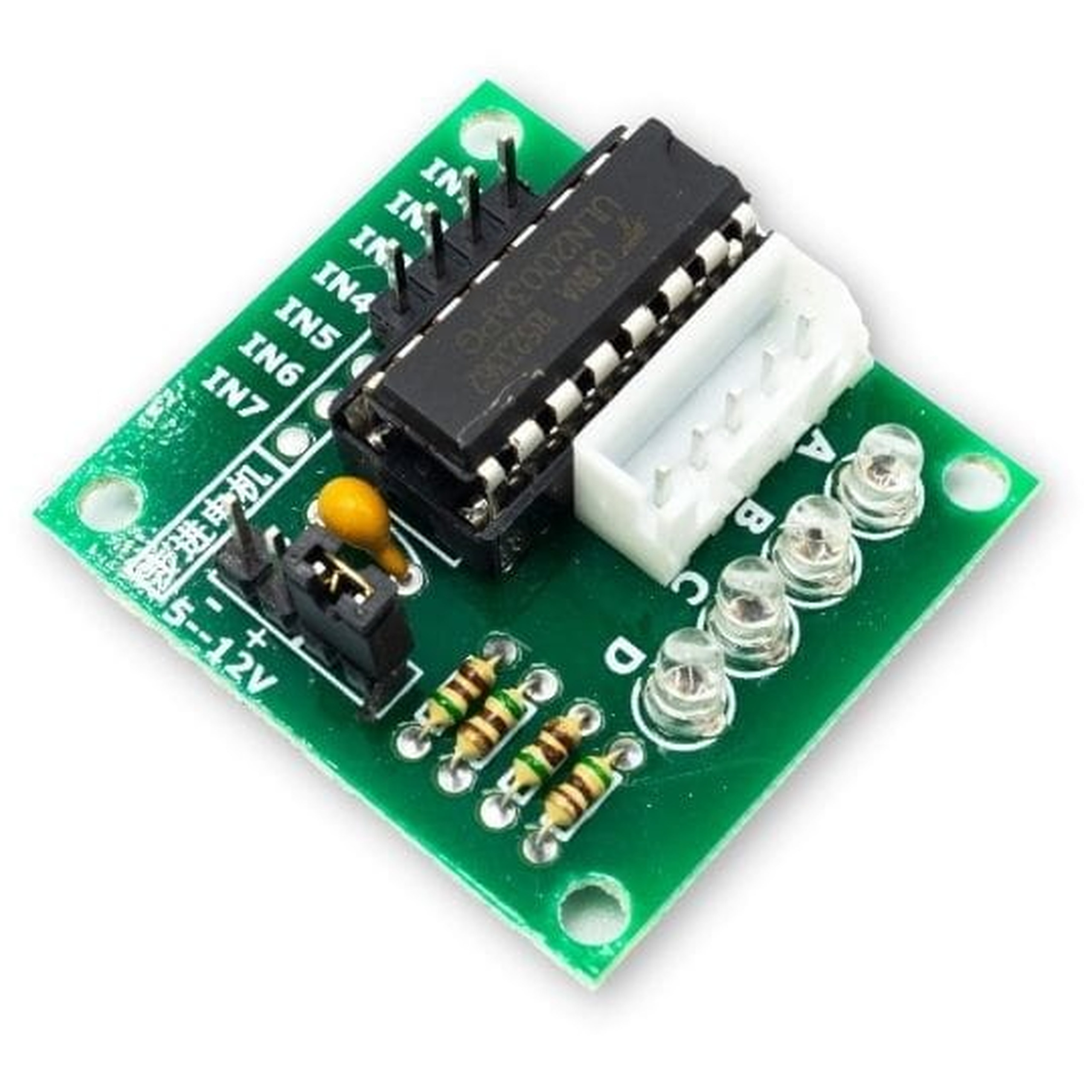

The 28BYJ-48 stepper motor compatible with the Arduino platform has a built-in 64:1 gear. The set includes a dedicated ULN2003 control board. Connecting the motor to the controller is done using a five-wire XH-05 connector, which guarantees easy and quick installation. The set is powered by 5V. It is a proven solution for beginner DIYers and automation and robotics enthusiasts.

Key technical features

Motor specification:

• Number of phases: 4
• Power supply: 5V
• Number of steps per full revolution: 64
• Torque: 34 mNm
• Dimensions: 28 x 21 mm

Controller specification:

• Supply voltage: 5 - 12V
• Maximum current: 0.5A
• Dimensions: 32 x 35 mm
• Connector: adapted to the 28BYJ-48 motor
• Signaling: LEDs indicating operation

Example applications

• Building simple robots and educational vehicles
• Creating home automation mechanisms
• Projects based on Arduino microcontrollers
• Construction of low-power positioning systems
• Prototyping mechatronic devices

Benefits

• Ready-to-use motor set with controller
• Simple connection thanks to the dedicated XH-05 connector
• Built-in gear increasing the precision of movement
• Visual control of the system operation using built-in LEDs
• Seamless compatibility with popular microcontroller platforms
