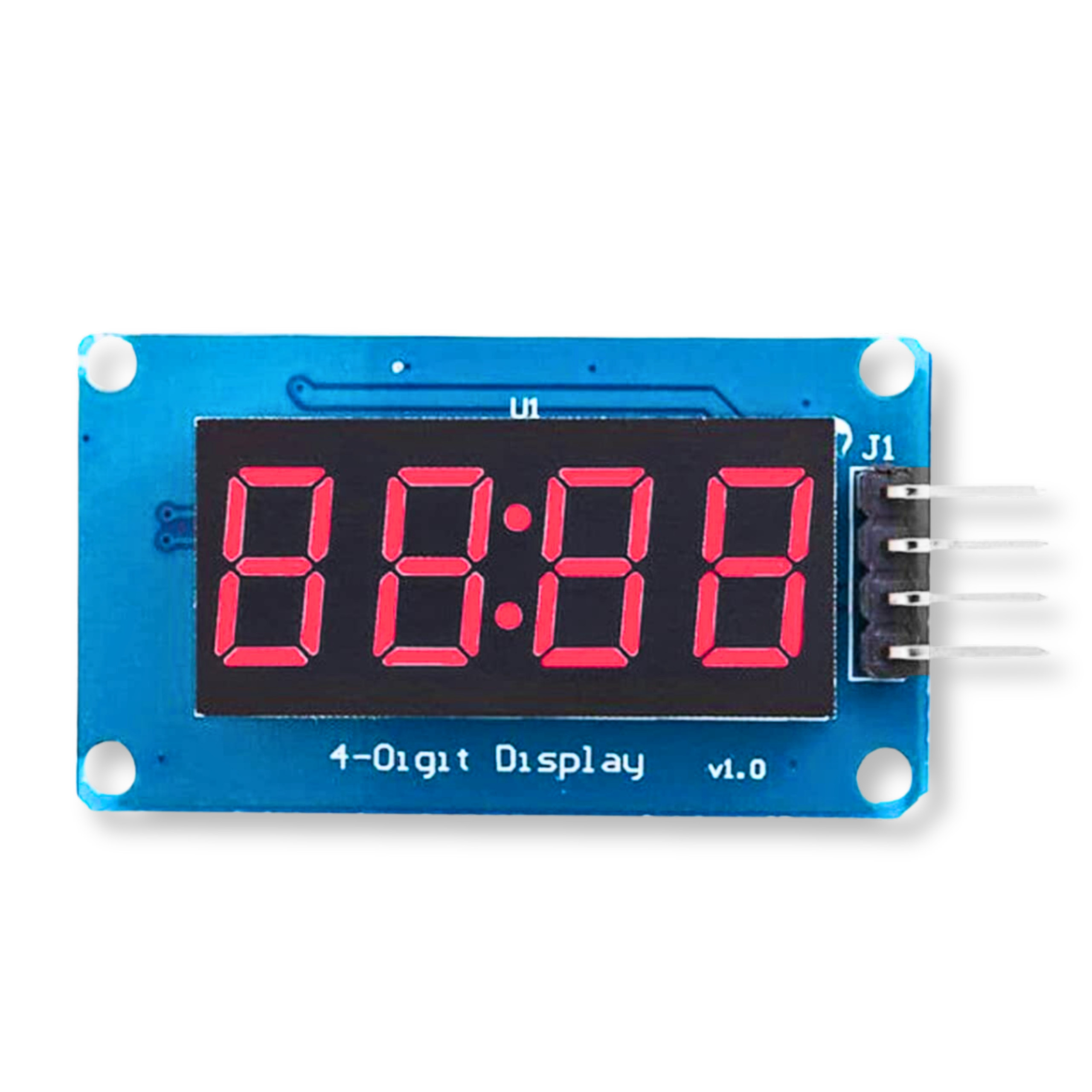

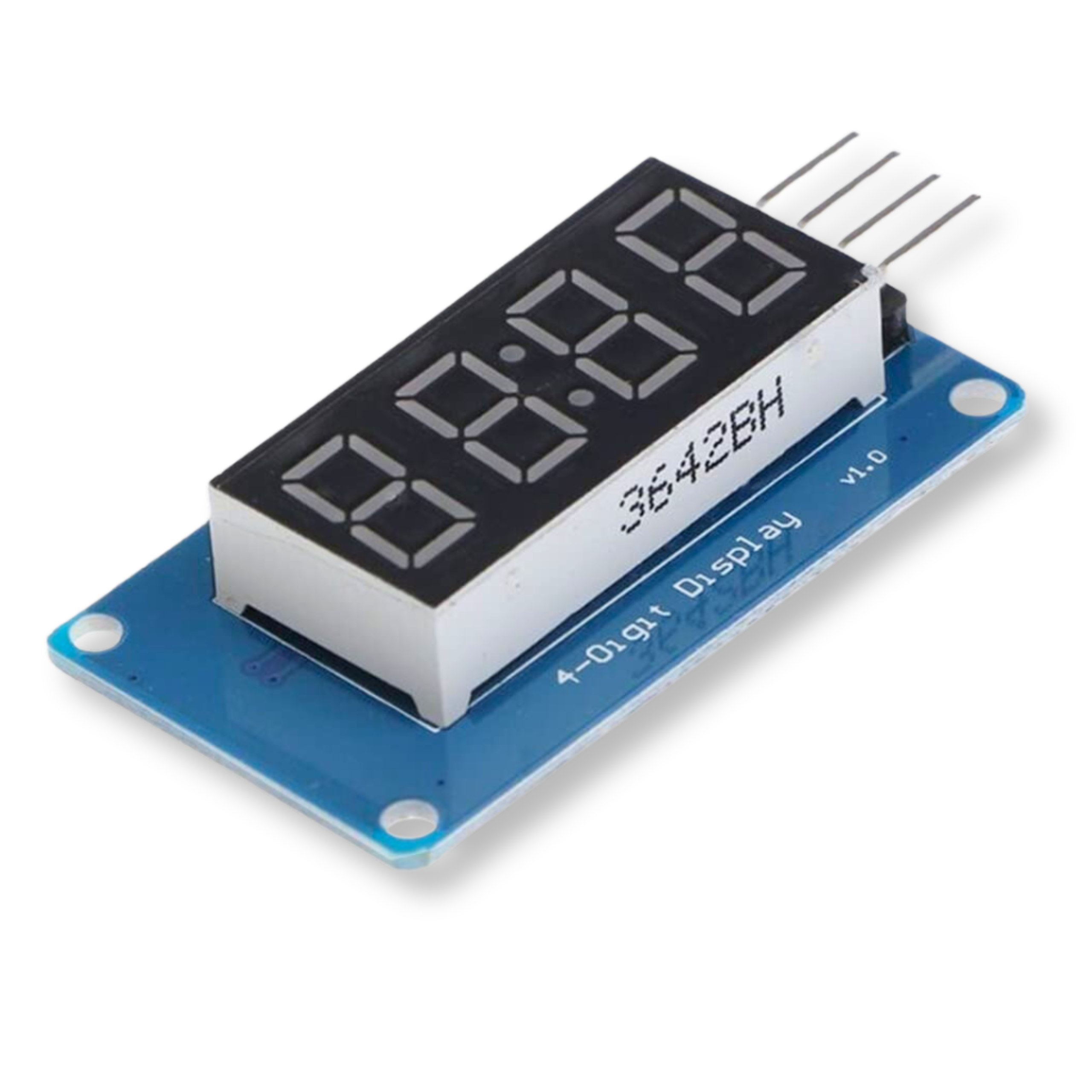

TM1637 display module for LED clock build - 4-digit 7-segment 3-5 V

Product description: TM1637 display module

4-digit LED display with built-in TM1637 driver greatly simplifies controlling a 7-segment screen. Thanks to the integrated chip, full control of the module requires only four pins: CLK, DIO, VCC and GND. This allows convenient display of various information such as current time, speed, pressure, and many other parameters. The module is fully compatible with popular microcontroller platforms: for Arduino, for ESP8266, for ESP32, and for Raspberry Pi.

Key technical specifications

• Driver: TM1637
• Supply voltage: 3V - 5V
• Digit height: 0.36 inch
• Current draw: 25mA
• Display type: 7-segment, 4 digits
• Backlight colour: Red
• Brightness adjustment: Yes
• Dimensions: 42 x 24 x 11 mm
• Pinout: CLK, DIO, VCC, GND

Example applications

• Building digital clocks and stationary alarm clocks
• Temperature, humidity or pressure indicators in weather stations
• Displaying results, time or scores in simple electronic games
• Presenting sensor measurement data in IoT projects
• Information panels in home automation devices

Main benefits

• Easy to use - communication requires only two signal pins (CLK and DIO)
• Wide compatibility - works seamlessly with systems powered at 3V and 5V
• High readability - clear red digits ensure excellent visibility
• Compact dimensions - small module size makes mounting in DIY project enclosures easy
• Flexibility - brightness adjustment lets you adapt the screen to ambient lighting conditions
