TTP226 capacitive touch keyboard with 8 buttons for Arduino
Availability:
brak towaru
Rating:
0
0
Vendor:
OEM
Description

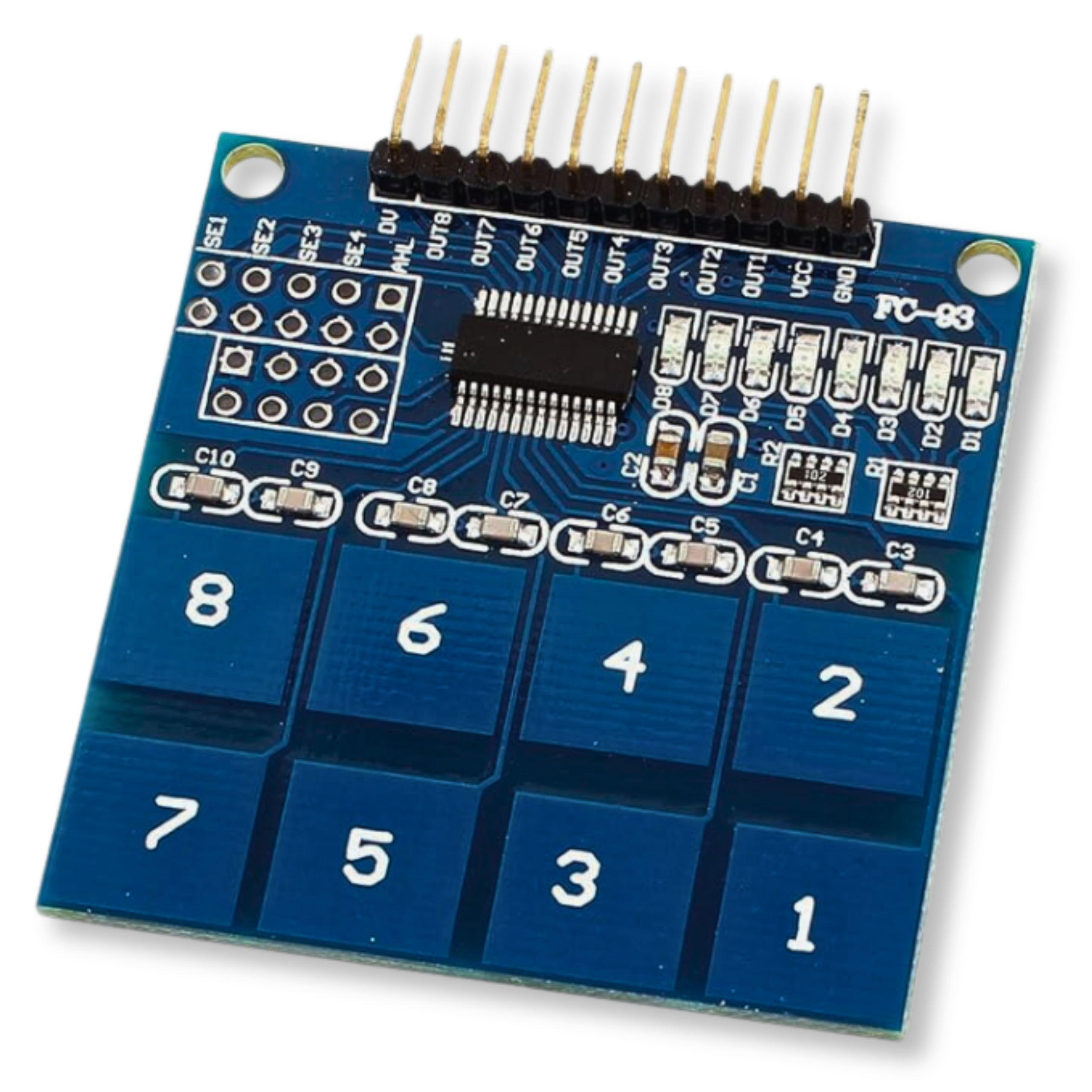

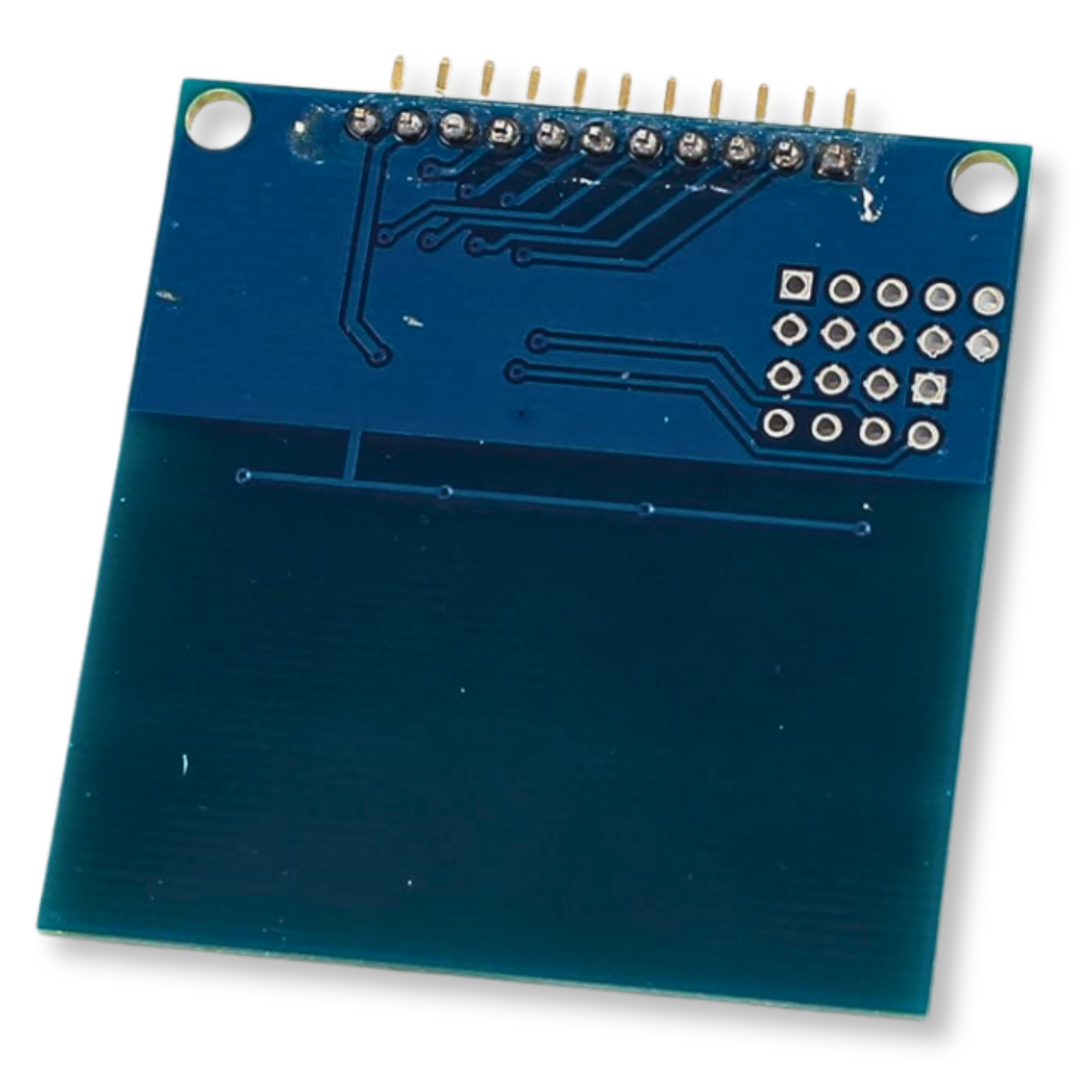

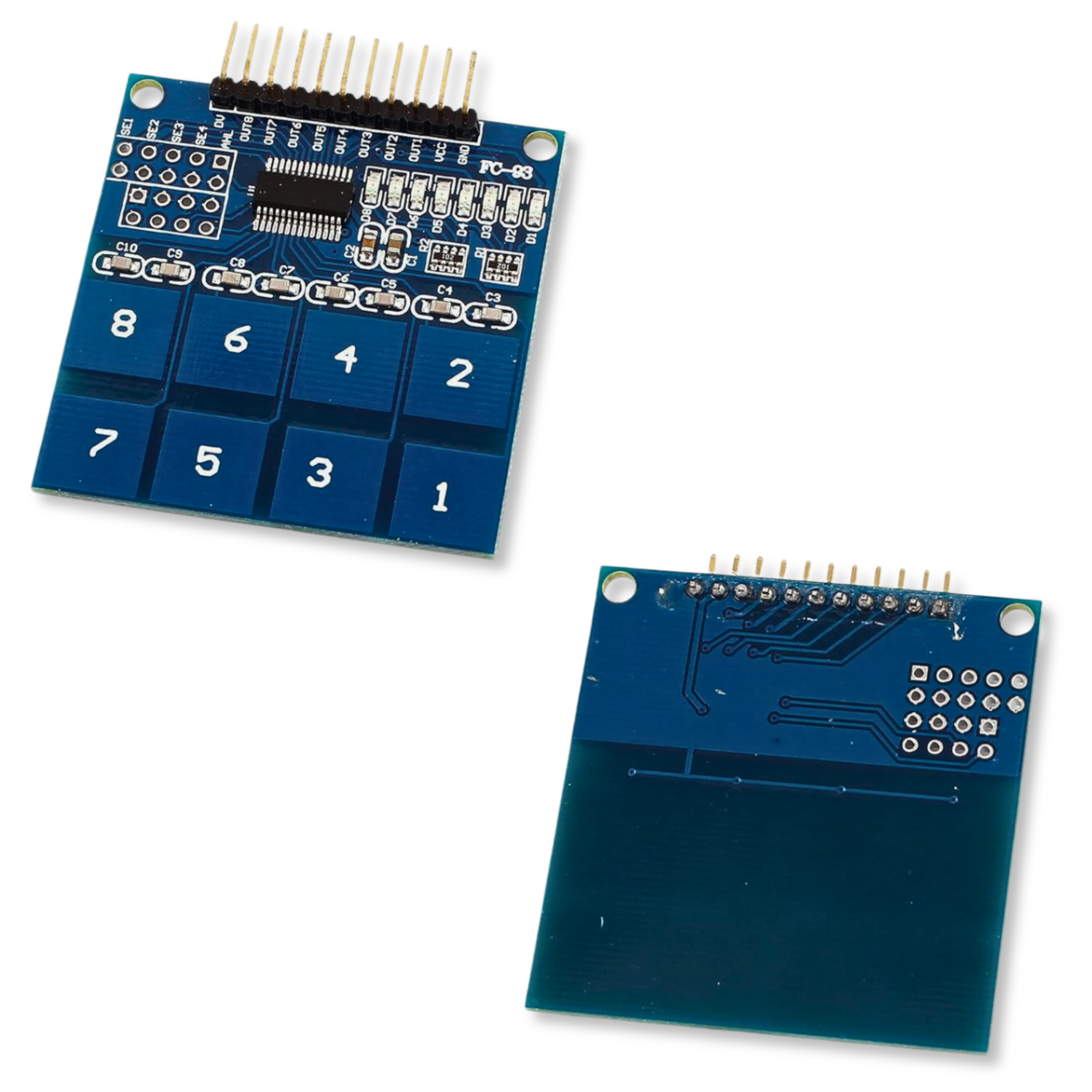

Keypad module with 8 touch buttons, based on the TTP226 chip. The board has a connector with output signals and LEDs indicating the status of each button. The keypad allows standard buttons to be replaced with their touch-sensitive counterparts, which works well for devices requiring a simple user interface.
Specification:
- Number of buttons: 8
- Power supply: 2.4 ÷ 5.5 V DC
- Layout: TTP226
- Response time: 100 ms in fast mode, 200 ms in reduced power mode
- LED as a touch signal
- Plate dimensions: 49 x 47 mm
- Goldpins for self-soldering on the board
