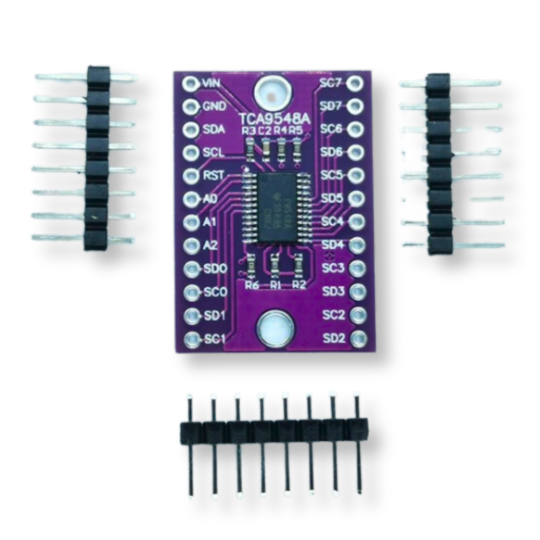

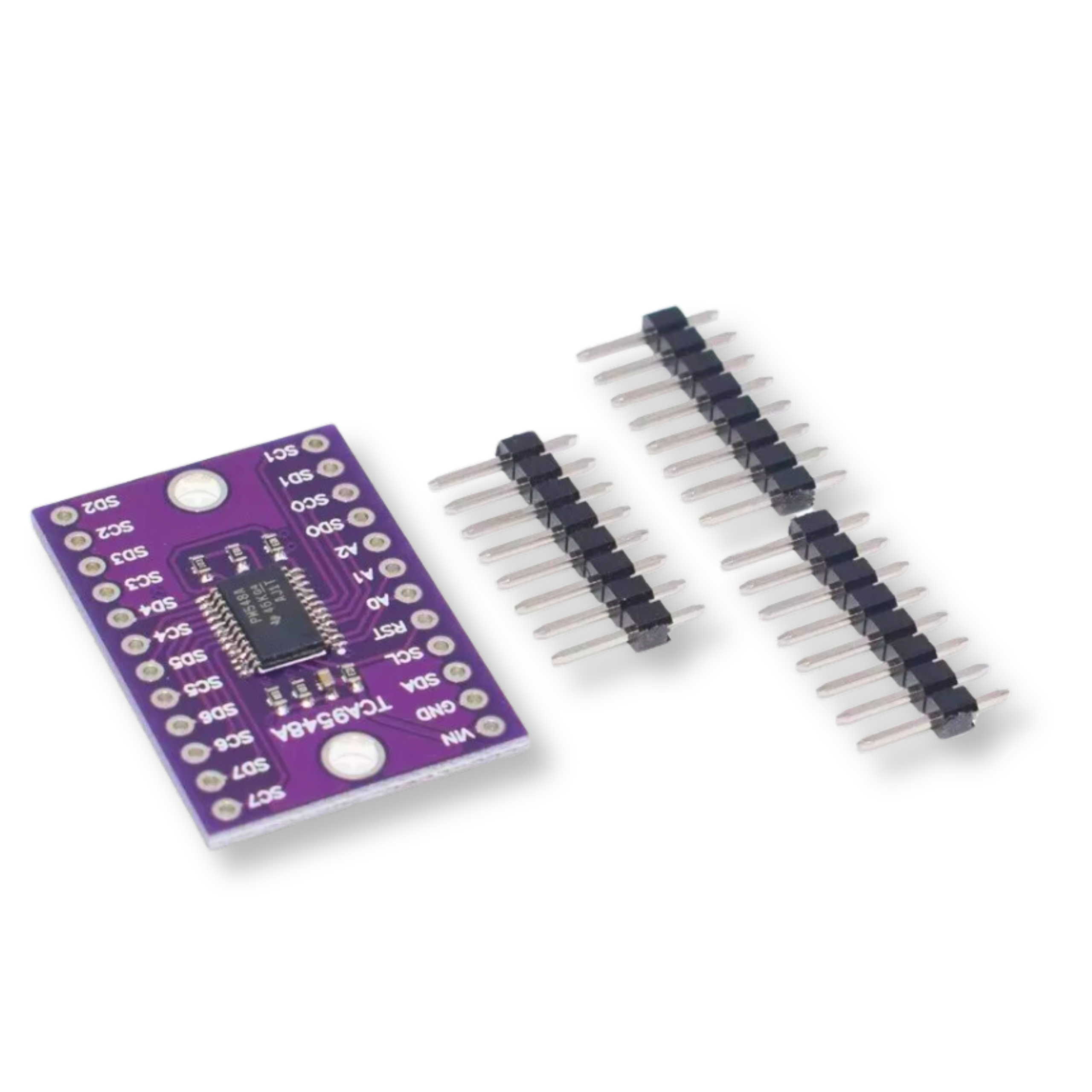

The TCA9548A multiplexer module allows the connection of 8 separate I2C buses

Availability: brak towaru
Price: €2.04
incl. 23% TAX, excl. shipping costs
2.04
quantity pcs

product unavailable

add to wish list
Rating: 0
Vendor: OEM

Description

The TCA9548A multiplexer module is an advanced device that allows a single I2C interface to be expanded to eight independent digital buses. Each bus has its own dedicated SDx (data line) and SCx (clock line) pins, allowing multiple I2C devices to be connected simultaneously and seamlessly to a single microcontroller.

Key features:

  • Extended functionality: Up to 8 separate I2C buses can be connected, significantly increasing the connectivity of the system.
  • Independent communication lines: Each bus is equipped with separate data and clock lines to ensure stable and conflict-free communication.
  • Variable output bus address: Enables easy integration into a variety of systems by being able to change the output address of the I2C bus.
  • Voltage compatibility: Operates over a voltage range of 3 V to 5 V, allowing flexible power supply and interoperability with different platforms.

Application: The module is ideal for applications in advanced electronics projects where multiple I2C devices such as sensors, displays or other communication modules need to be managed simultaneously. It is an invaluable tool for engineers and hobbyists looking for a way to extend their microcontroller systems without compromising on performance and signal stability.

This TCA9548A multiplexer module is the perfect solution for anyone who needs to increase the number of I2C ports in their design, while maintaining high quality and reliable communication.

Specification:

  • Supply voltage: 3 V to 5 V
  • Multiplexer: TCA9548A
  • Input communication: I2C bus
  • Switching capability of 8 separate I2C buses
  • Lead-in pattern: 2.54 mm
  • Plate dimensions: 31 x 18 x 3 mm
  • Set of 3 goldpin strips complete for self-soldering.
