TowerPro MG-996R Servo 4.8-6V 55g 9.4 kg·cm metal gearbox 30 cm cable

TowerPro MG-996R Servo

The TowerPro MG-996R servo is an improved version of the popular MG-995 model. The unit features a robust metal gearbox and an optimized control circuit, delivering higher precision and reliable operation. Its advanced design ensures shock resistance. Maximum torque is 11 kg·cm at 6.0 V supply. The servo offers a rotation range of up to 180° and exceptional response speed. It is ideal for demanding applications such as RC models, robotics, and automation. The module is intended for use with ESP8266, ESP32, Arduino, and Raspberry Pi.

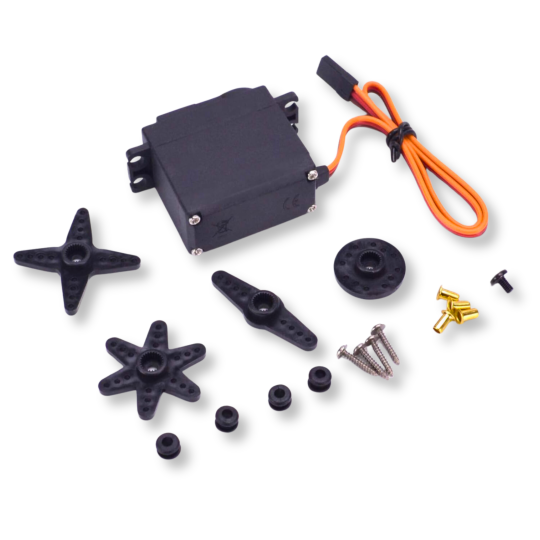

The servo has a 30 cm cable terminated with a standard 3-pin “S” connector, which makes wiring much easier. The kit also includes essential accessories: horns, washers, and screws, ready for immediate installation.

Key specifications

• Supply voltage: 4.8 V - 6.0 V
• Operating current: 500 mA
• Rotation angle: 0° - 180°
• Speed (4.8 V): 0.17 s/60°
• Torque (4.8 V): 9 kg·cm
• Speed (6.0 V): 0.14 s/60°
• Torque (6.0 V): 11 kg·cm
• Operating temperature range: 0 °C - 55 °C
• Cable length: 30 cm
• Weight: 55 g
• Dimensions: 38 mm × 19 mm × 40 mm

Example applications

1. Robotic arms and manipulators - precise motion control in advanced robotics projects.
2. Mechanical grippers - reliable lifting and moving of parts thanks to high torque.
3. Radio-controlled (RC) models - control of flaps, steering, or throttle in aircraft, cars, and boats.
4. Home automation - mechanisms for opening doors and windows and automatic curtain control.
5. Irrigation systems - reliable valve control in smart building installations.

Benefits

• Higher precision and reliability - achieved through an optimized control circuit.
• Shock resistance - provided by a solid metal gearbox and advanced construction.
• High force and speed - torque up to 11 kg·cm and exceptional response speed.
• Wide range of motion - rotation up to 180° for flexible project requirements.
• Ready to use - easy connection with an “S” connector cable and a full set of mounting accessories included.
