Two-channel TB6612FNG 15V/1.2A PWM motor controller up to 100KHz + goldpins

Availability: brak towaru
Price: €2.84
incl. 23% TAX, excl. shipping costs
2.84
quantity pcs

product unavailable

add to wish list
Rating: 0
Vendor: OEM

Description

The TB6612FNG dual-channel DC motor controller module is a powerful and reliable solution for controlling motors in a wide range of projects. With its supply voltage range of 2.7 V to 15 V and the ability to handle a continuous current per channel of 1.2 A, this controller is ideal for robotics, automation and other electronic applications.

Technical specifications:

  • Motor power supply (VMOT): 2.7 V to 15 V
  • Power supply to logic circuit (VCC): 2.7 V to 5.5 V
  • Maximum output current: 3.2 A per channel
  • Continuous output current: 1.2 A per channel
  • Maximum PWM frequency: 100 kHz
  • Thermal protection: Built-in thermal cut-off circuit
  • Voltage protection: Filter capacitors on both supply lines and protection against reverse current from motors

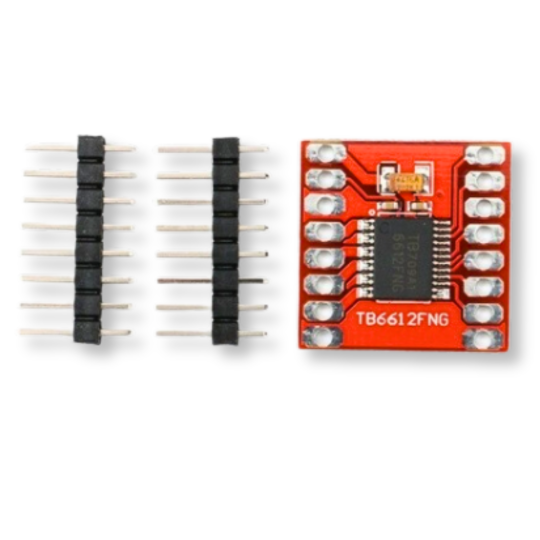

Additional information: The kit includes 2 goldpin strips for self-soldering, allowing easy integration with other components in your project.

Application: The TB6612FNG controller is an excellent choice for automation and robotics system designers who need a reliable and efficient motor control component. With advanced protection features and power supply flexibility, this module provides high performance and safety in a variety of applications.
