USB Type A female socket adapter, 4-pin PCB connector, USB-A 2.54 mm pitch
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description

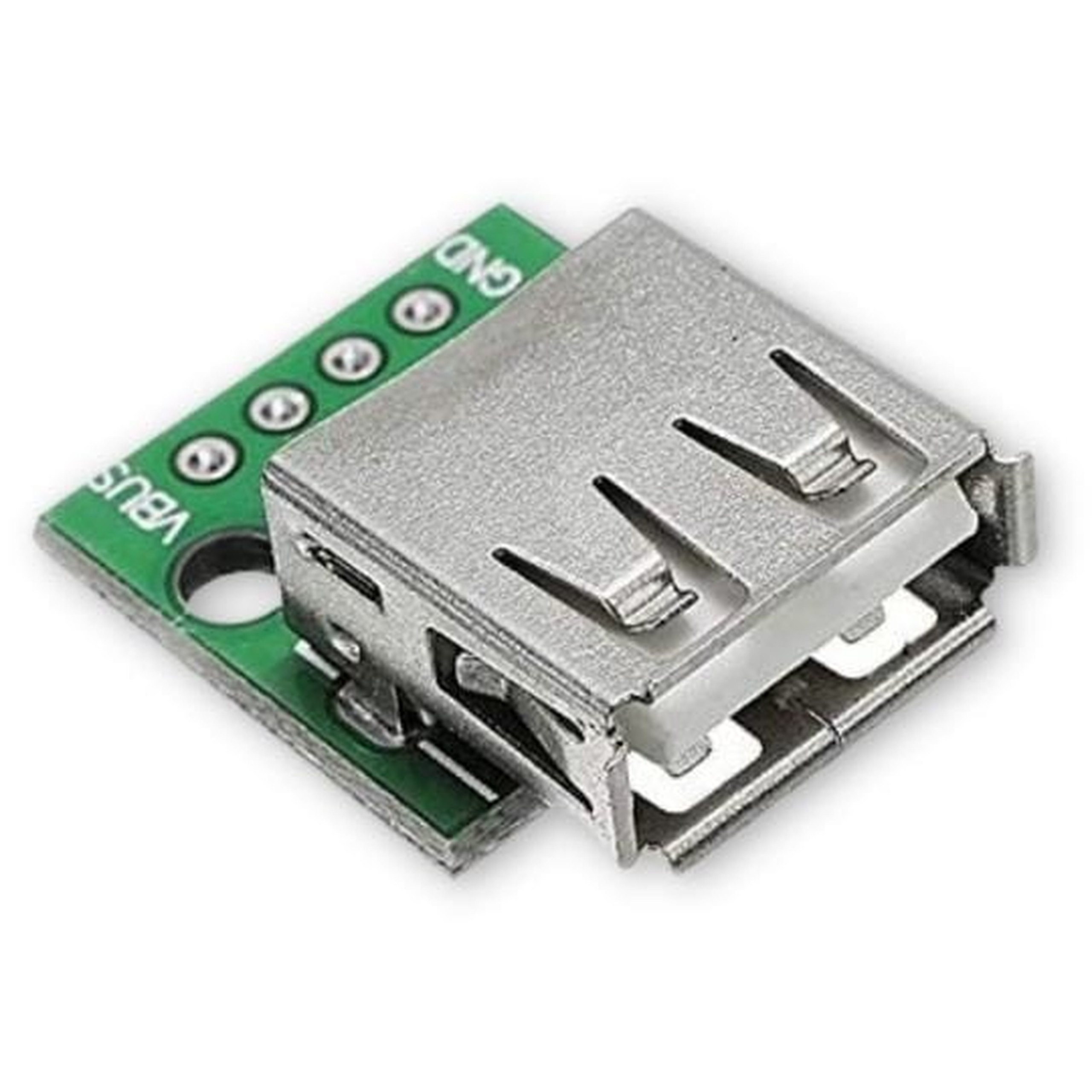

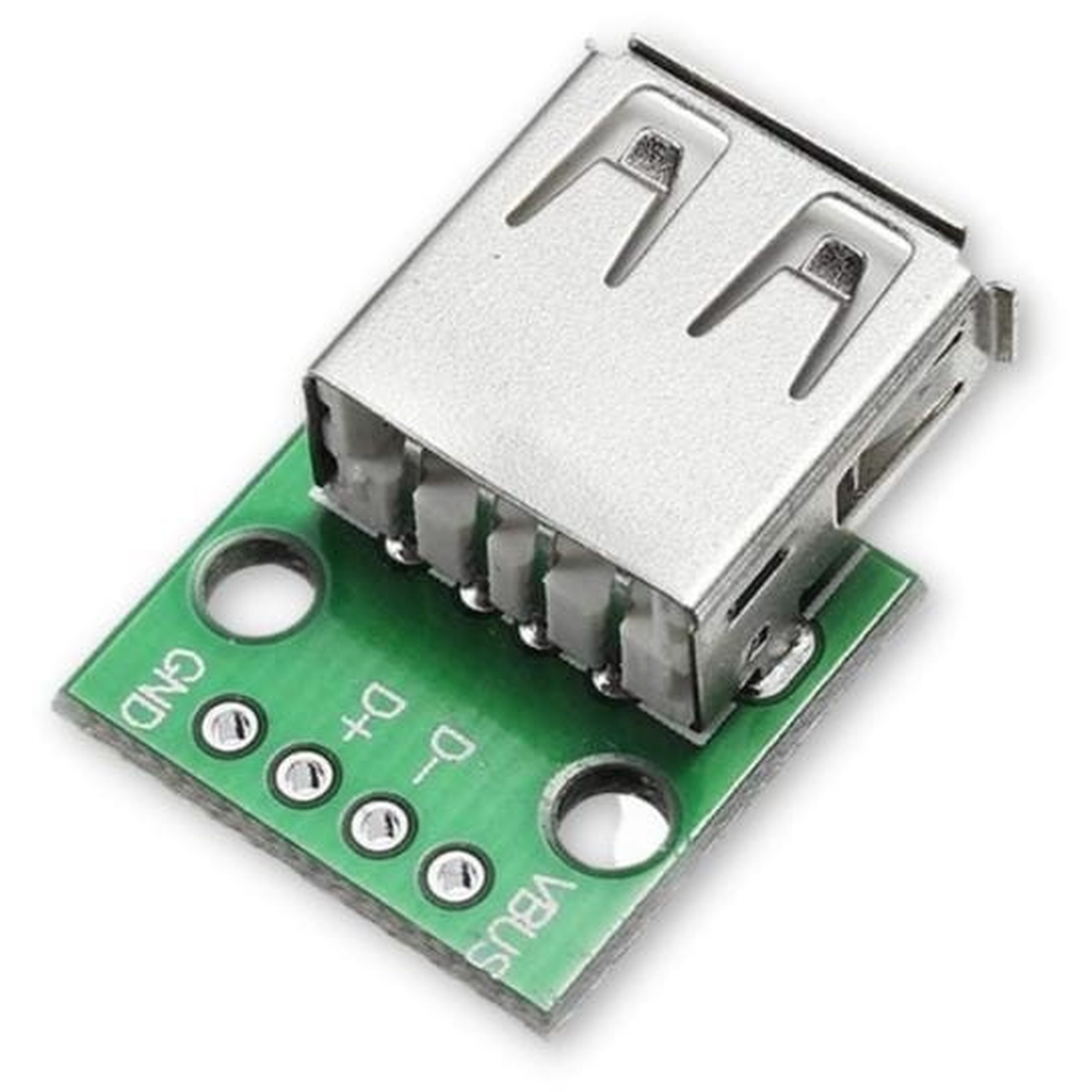

USB adapter breakout - female USB type A socket on PCB
A module with a soldered USB-A 2.0 4-pin female socket on a PCB. It has pins on a standard 2.54 mm pitch, making it ideal for prototyping on universal breadboards. The module is an excellent addition to microcontroller-based projects - ideal for Arduino, for ESP8266, for ESP32, and for Raspberry Pi.
Key technical specifications
- Connector type: female USB-A 2.0
- Pinout: 4 pins (VBUS-5V, GND, D+, D-)
- Pin pitch: 2.54 mm
- Mounting hole spacing: 12 mm
- Module dimensions (without socket): 17 mm × 17.4 mm × 3.5 mm
- Overall dimensions (with socket): 17 mm × 23 mm × 10.5 mm
Example applications
- Powering electronic circuits with 5 V from a USB port.
- Building custom USB cables and adapters.
- Prototyping data transmission circuits on breadboards.
- Routing a USB connector to the enclosure of a custom device.
- Repairing damaged cables and connectors in peripheral devices.
Benefits
- Quick and convenient connection of power and data lines.
- Compatibility with standard breadboards thanks to 2.54 mm pitch.
- Easy mechanical mounting thanks to two dedicated holes in the board.
- Clearly labeled pins for correct wiring.
- Versatile for hobby and professional projects.
