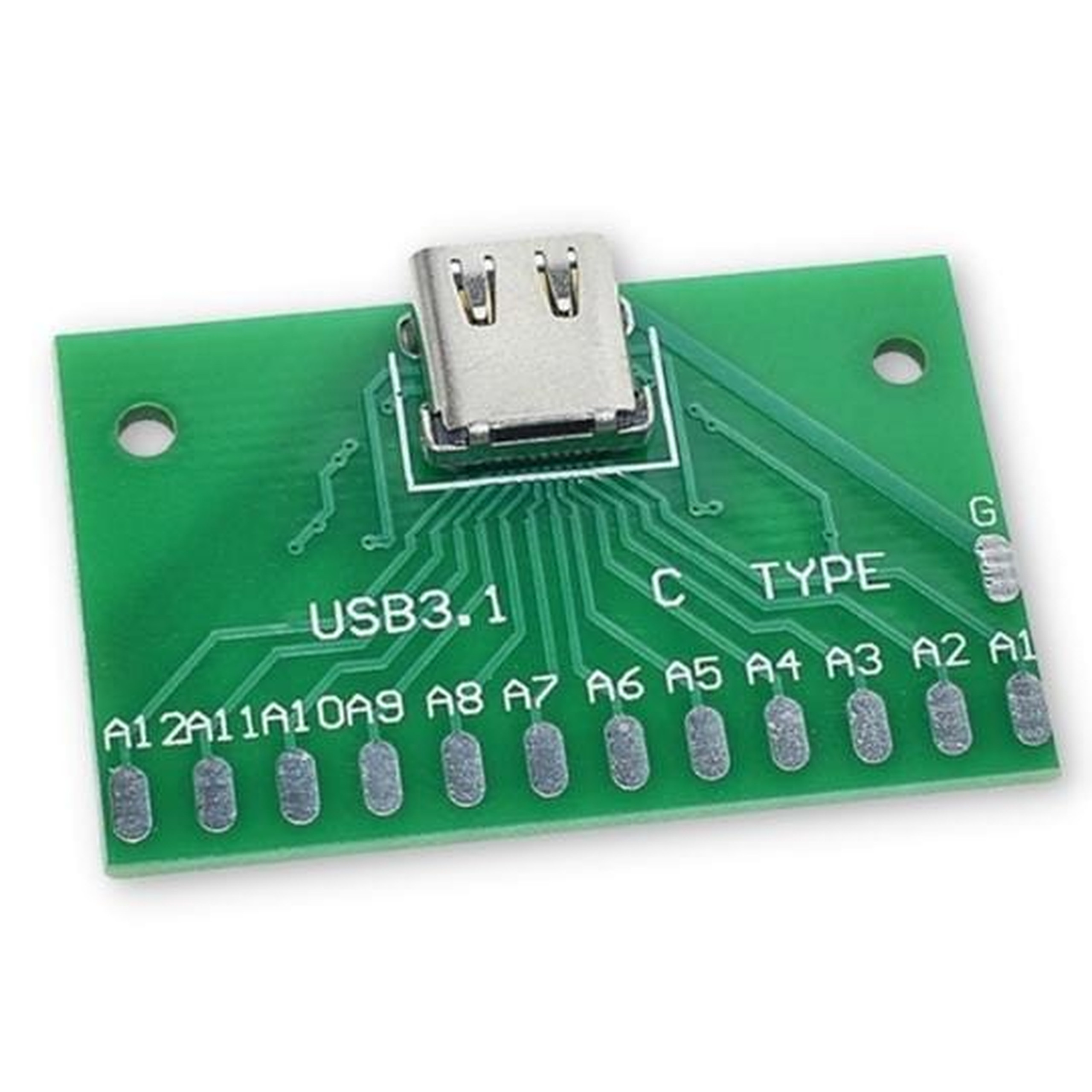

USB Type-C 3.1 24-pin PCB female USB-C socket adapter

Adapter breakout USB Type C 3.1 24-pin PCB socket

USB 3.1 Type C PCB adapter is a modern module that provides fast data transfer at speeds up to 10 Gbps. Compliant with the USB 3.1 standard and equipped with a female Type C connector, it ensures efficient and stable connection in electronic projects. The module is an excellent solution for prototyping devices based on microcontrollers, including for ESP8266, for ESP32, for Arduino, and for Raspberry Pi.

Key technical specifications

• Standard: USB 3.1
• Socket type: USB-C (female)
• Throughput: up to 10 Gbps

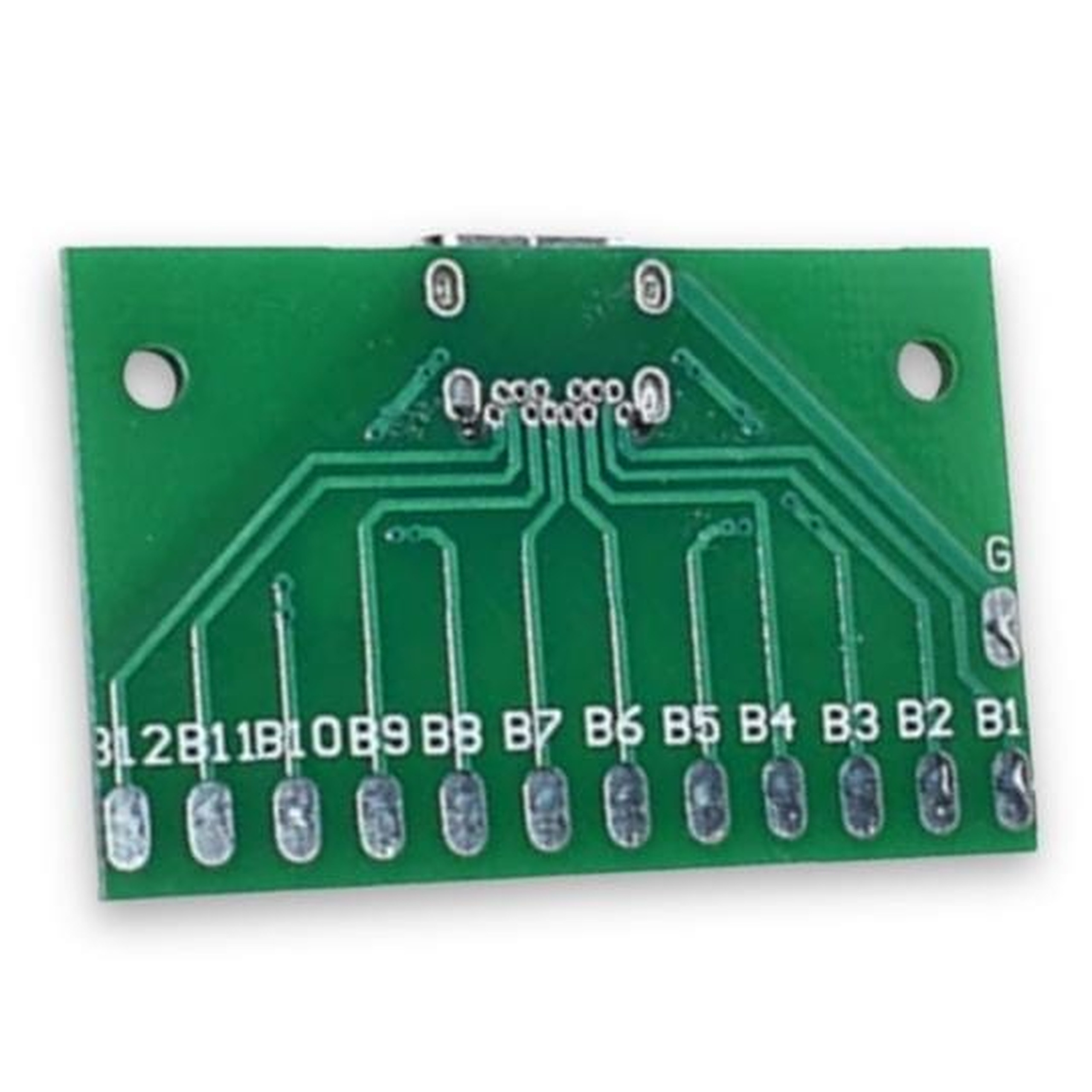

• Number of solder pads: 24 pins brought out to the board
• PCB dimensions: 41 x 26 mm

Example applications

• Building custom cables and communication adapters
• Powering and programming ESP32 and Arduino boards
• Modifying and repairing devices equipped with USB ports
• Prototyping high-speed data transfer interfaces
• Integrating a modern power connector in DIY projects

Benefits

• Fast transfer: Support for speeds up to 10 Gbps enables lightning-fast data exchange.
• Versatility: The USB-C connector is now the standard on most modern devices.
• Easy assembly: Bringing all 24 pins out to solder pads makes wiring easier.
• Compact size: The small 41 x 26 mm footprint allows installation in small enclosures.
• Broad compatibility: Ideal for use with popular microcontroller platforms.
