USB-UART converter RS232 TTL FT232RL FTDI module 1m cable for programming

USB-UART converter RS232 TTL FT232RL FTDI module for Arduino, ESP8266, ESP32, Raspberry Pi

The USB-UART (RS232 TTL) FT232RL FTDI converter module is a reliable tool for communicating with devices equipped with a serial interface. Thanks to the use of an FTDI chip clone, the module offers broad compatibility with Windows operating systems (XP, Vista, 7, 10 - in both 32-bit and 64-bit versions). It supports USB 1.1 and USB 2.0 standards. The kit includes an integrated 1m cable for convenient use and flexibility when connecting boards.

Key technical features

• Chip type: FTDI clone
• Communication interface: USB to UART TTL cable

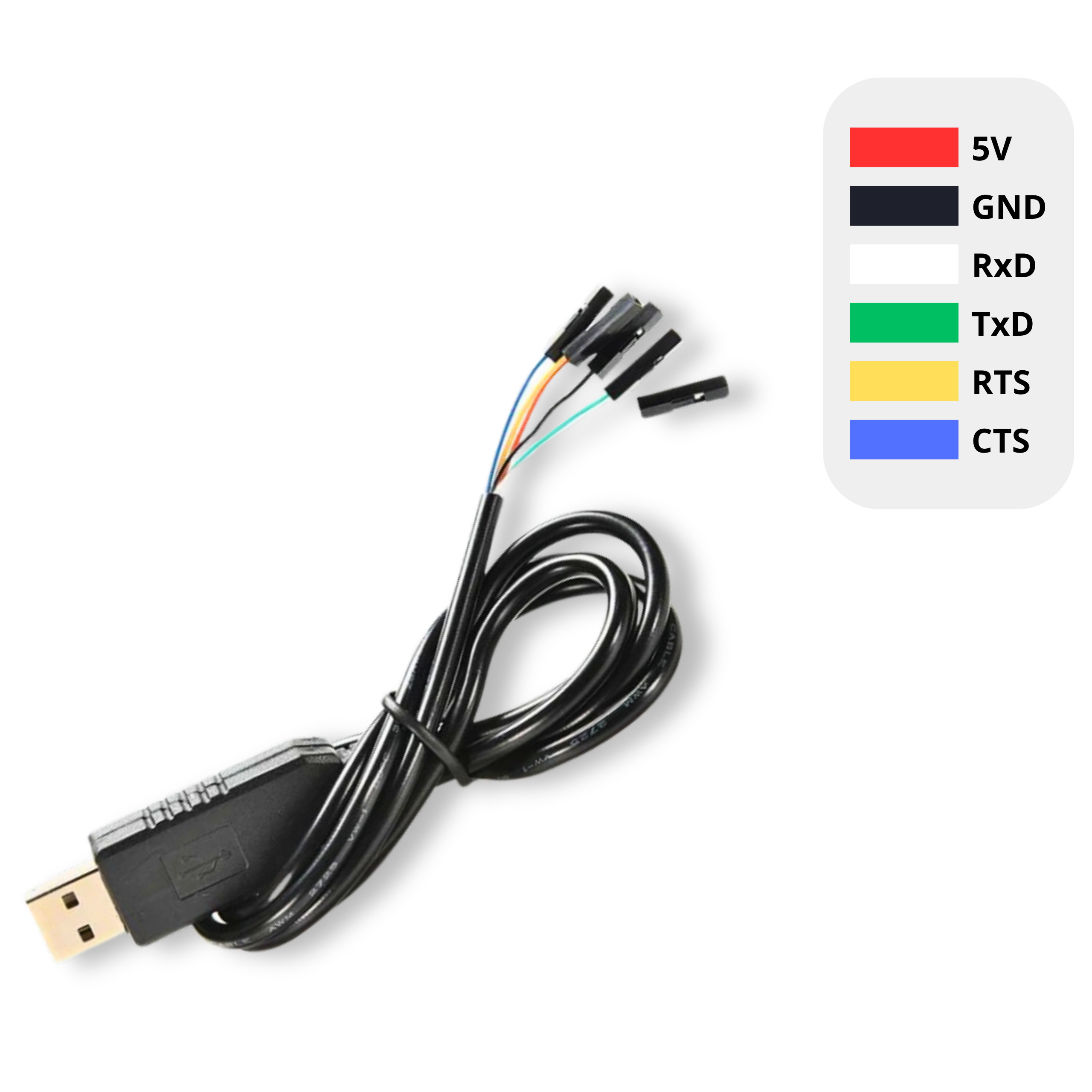

• Signal pins: Vcc 5V, GND, RxD, TxD, RTS, CTS
• OS compatibility: WinXP, Vista, Win7, Win10 (32-bit and 64-bit)
• USB compatibility: USB 1.1, USB 2.0
• Cable length: 1m

Example applications

• Programming microcontrollers and modules (for Arduino, ESP8266, ESP32)
• Serial communication with single-board computers (for Raspberry Pi)
• Uploading firmware to electronic devices
• Diagnostics and debugging of digital circuits with a UART interface
• Reading and writing data from sensors with a serial port

Benefits

• Ready to use - integrated 1m cable removes the need for extra jumper wires
• Broad compatibility - smooth operation with older and newer Windows versions
• Full flow control - RTS and CTS pins enable hardware flow control
• Versatility - USB 1.1 and 2.0 support for connection to almost any PC
• Easy wiring - clearly labeled signal pins simplify integration with your target circuit
