Voltmeter Ammeter 0-100V 0-10A DC 0.28 LED

Availability: brak towaru
Price: €1.93
incl. 23.00% TAX, excl. shipping costs
1.93
quantity pcs

product unavailable

add to wish list
Rating: 0
Vendor: OEM

Description

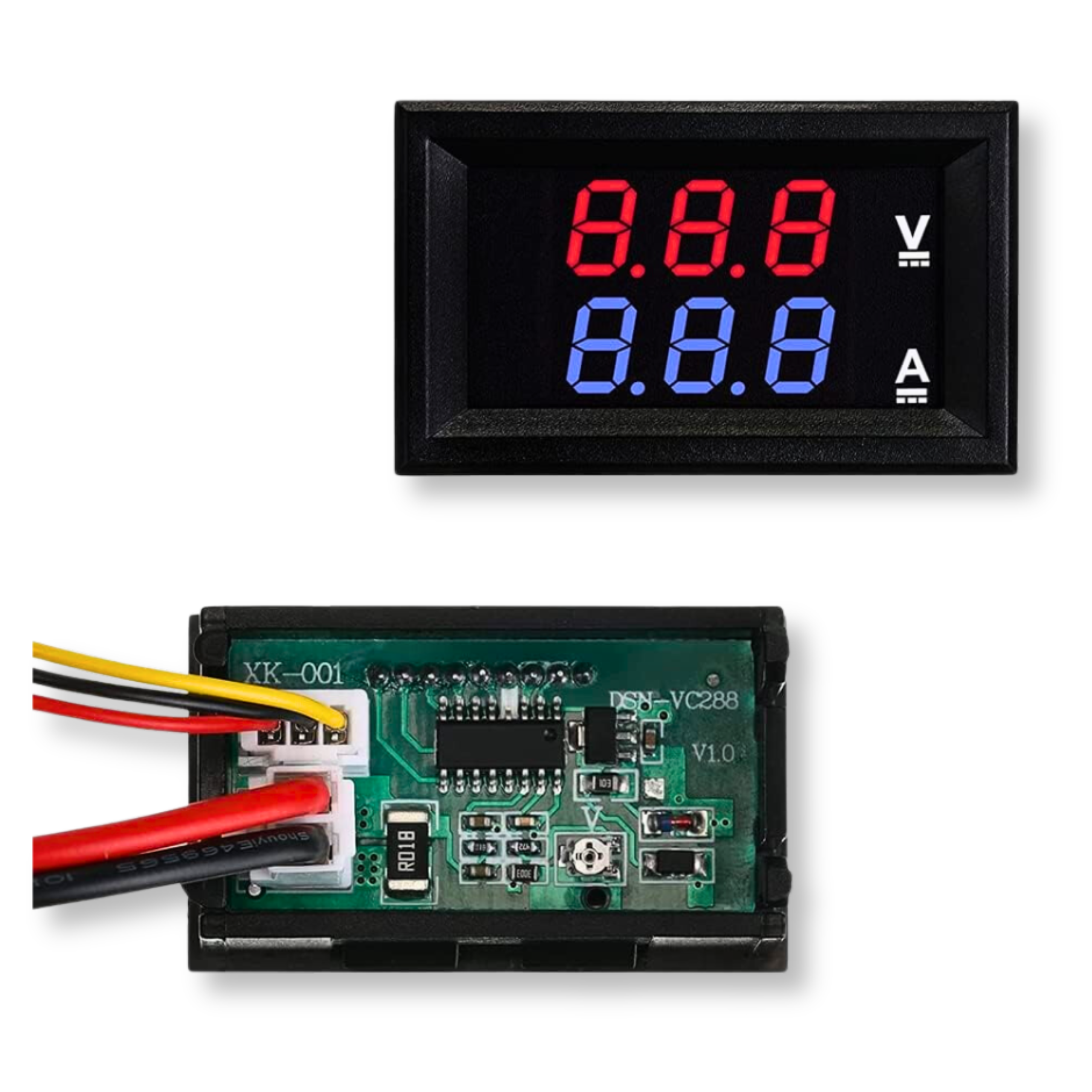

The DC ammeter voltmeter is a digital measuring device equipped with a two-colour 0.28" LED display. The panel module of the ammeter voltmeter offers versatile measurement capabilities. It enables precise measurement of current voltage from 0 to 100V and current intensity from 0 to 10A.

There are two potentiometers on the module board, which are designed to calibrate both the voltmeter and the ammeter. In order to perform a correct calibration, it is necessary to provide a reference voltage and current. Other components of the module are the power and voltage measurement connector and the current measurement connector.

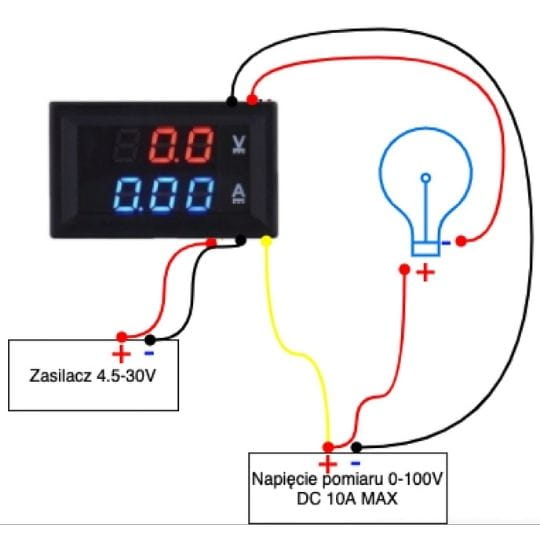

A plus point of the device is that it can be measured using two methods: a common power supply with the load being measured or a separate power supply.


 Specification:.
  • Operating voltage of the meter: 4.5 - 30 V DC
  • Display: 0.28 "two colours:  blue and red
  • measuring range: DC 0 - 100 V,  50A
  • Measuring accuracy: 1% (± 1 digit)
  • Minimum current resolution (A): 0.01A
  • Operating temperature of appliance: -15 to 70 °C
  • Color: Black
  • Dimensions: 48 x 29 x 22 mm

Dimensions to mounting hole: 45 x 26 mm

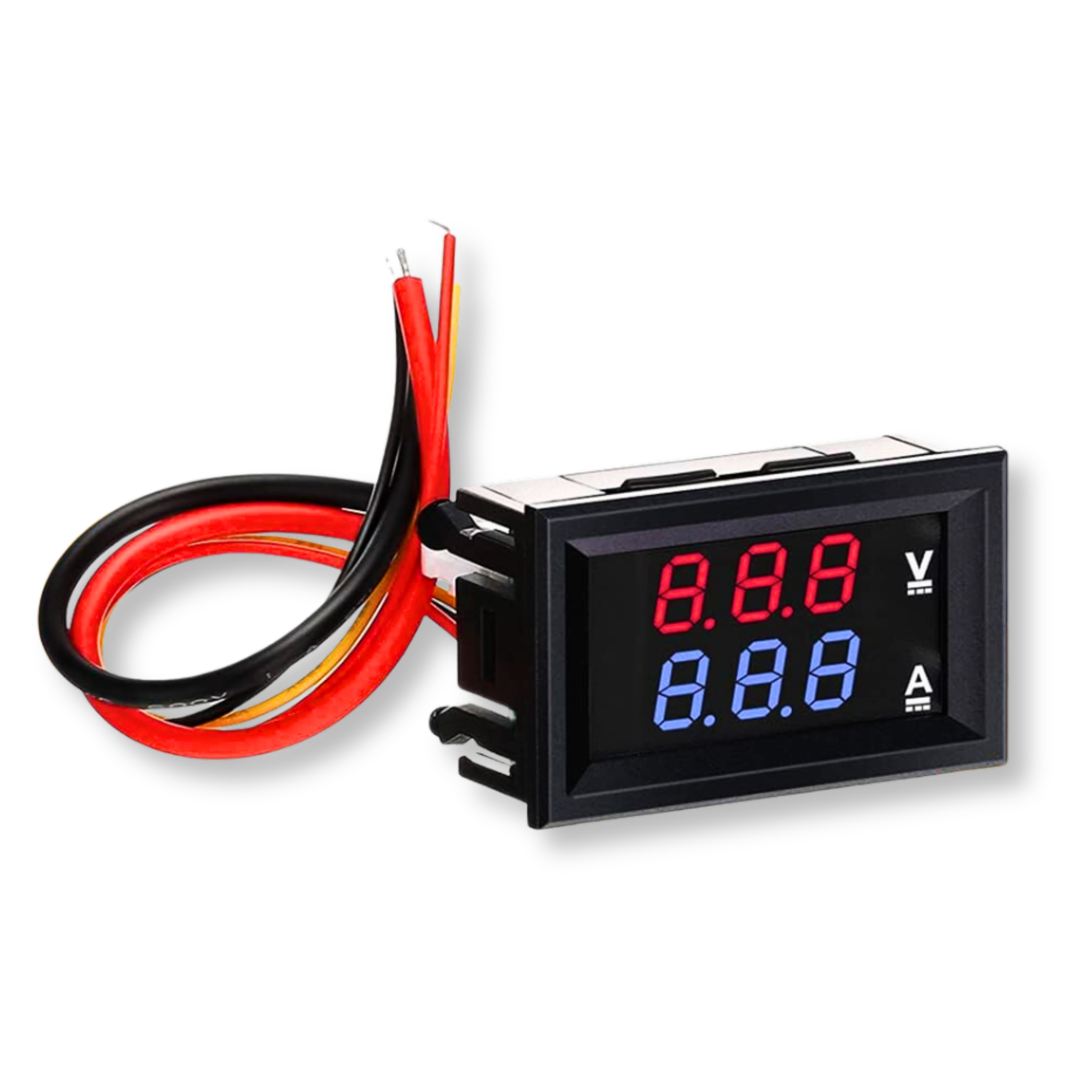

Cables shown in the photos included.

Caution: observe polarity when connecting!

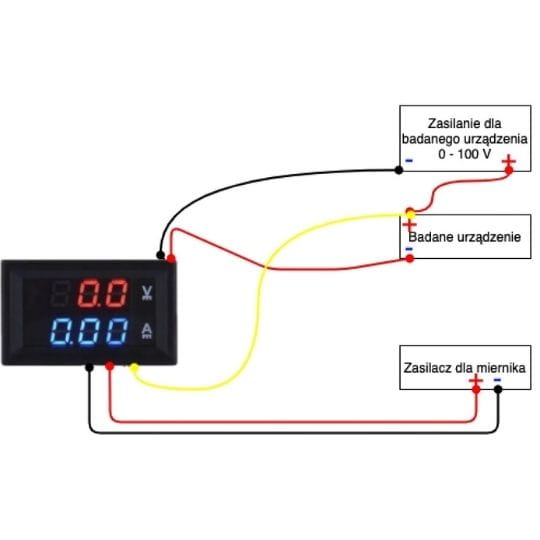

Connection - Version when the receiver is supplied with 3V to 30V
