WeMOS D1 Mini NodeMCU ESP8266-12F ESP-12 CH340 for Arduino Microcontroller

WeMOS D1 Mini ESP8266-12F WiFi Module for Arduino and ESP8266

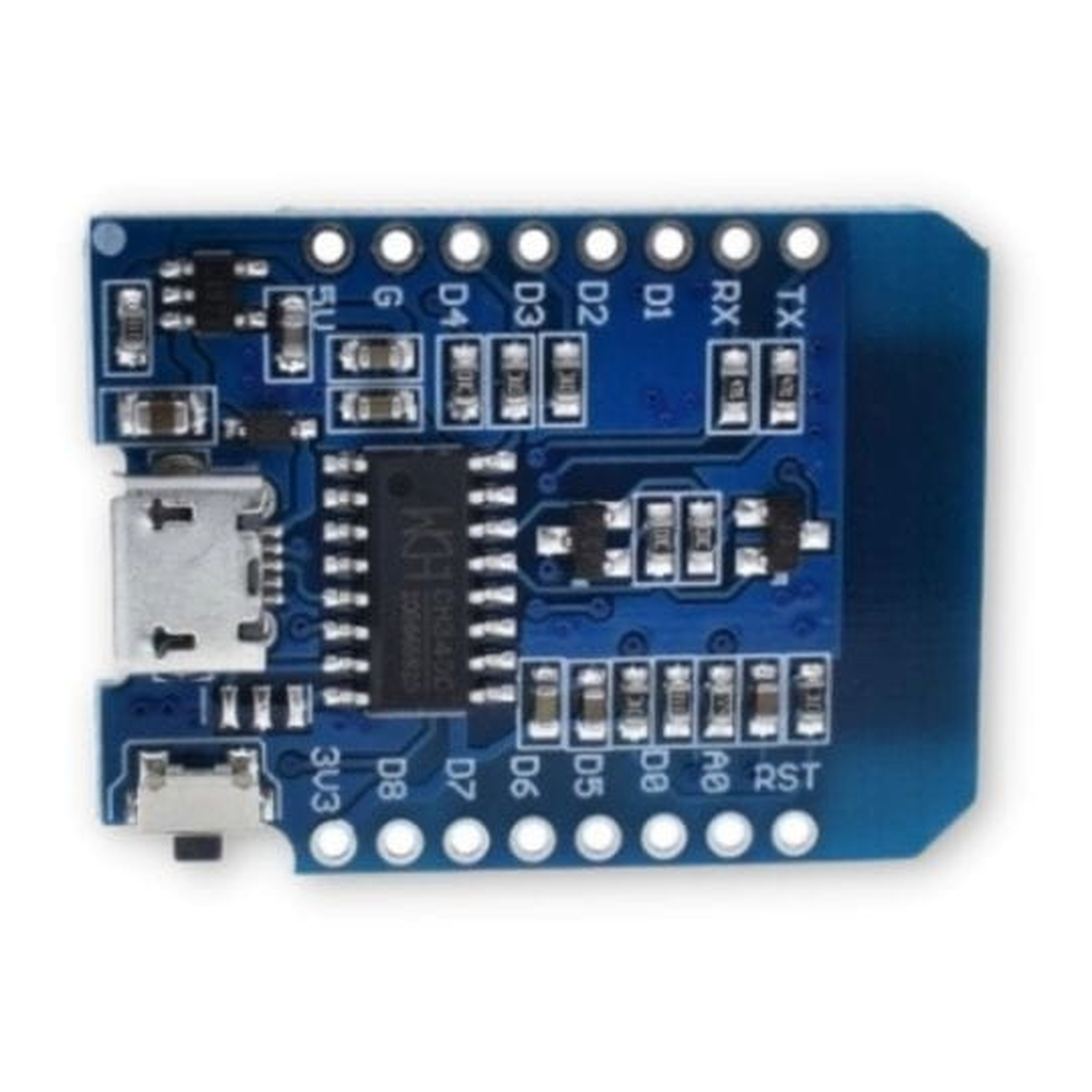

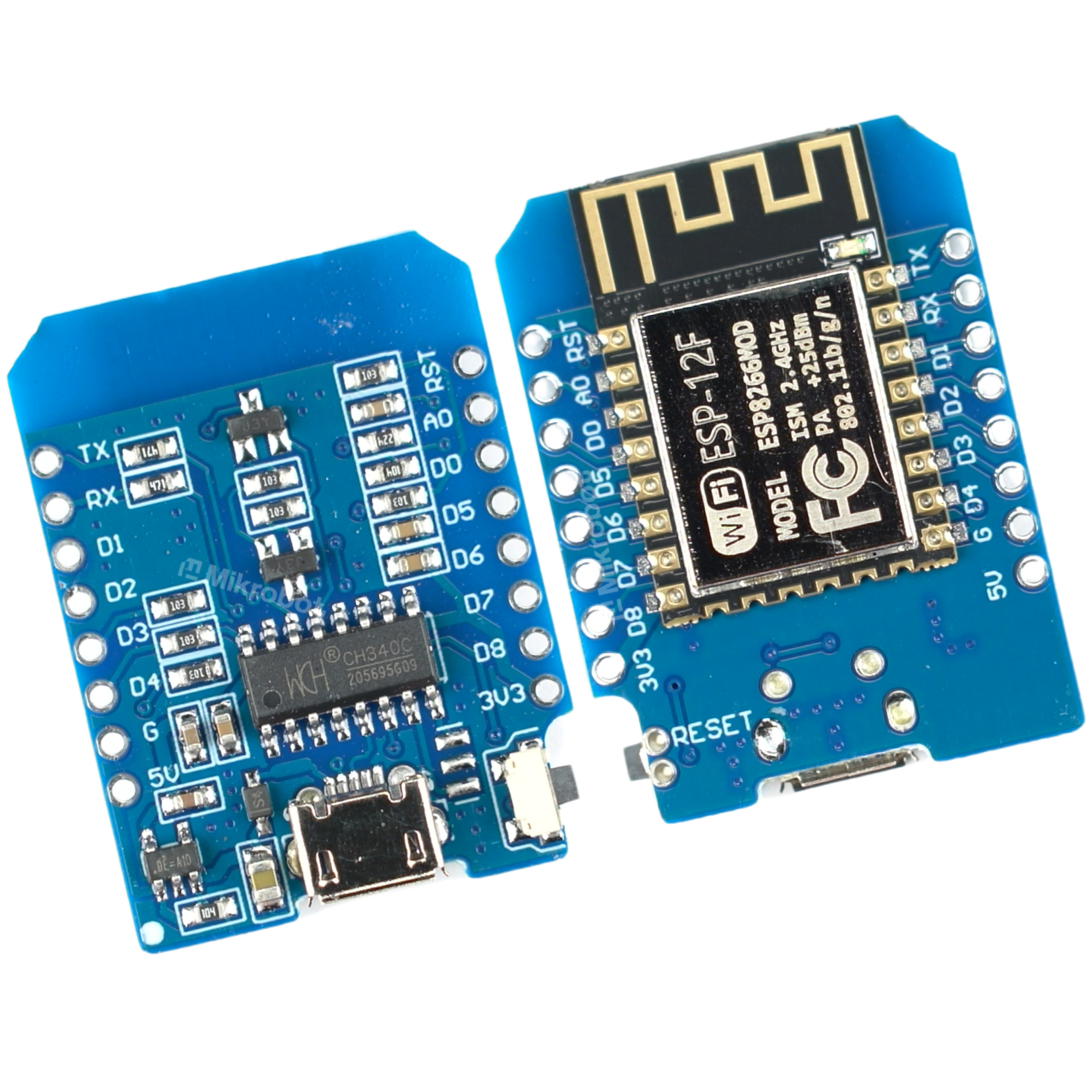

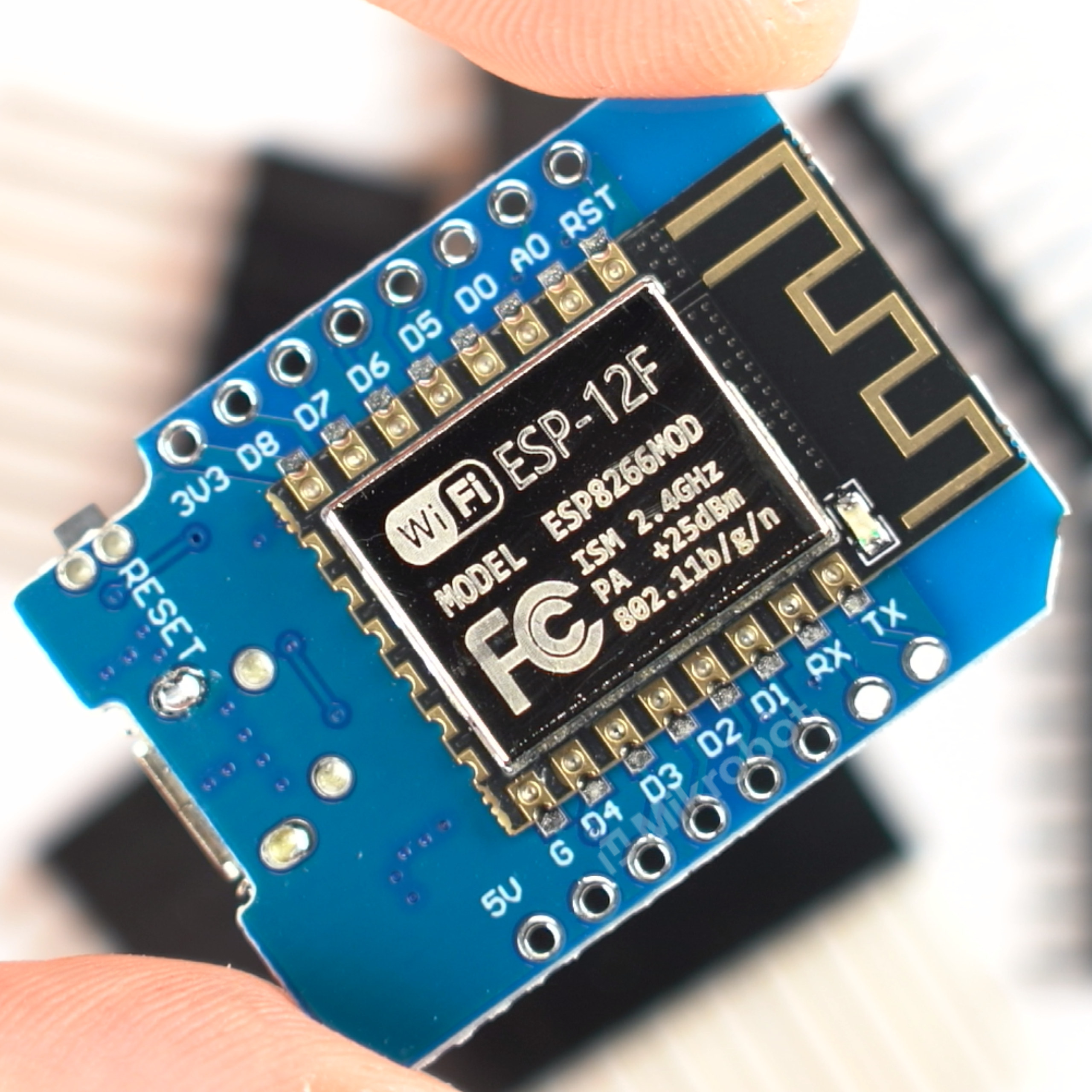

A compact WiFi module based on the ESP8266 chip, fully compatible with the popular Wemos D1 Mini standard. At its core is an integrated ESP8266-12F module equipped with 4 MB Flash memory. Communication with a computer is provided by a built-in CH340 USB-UART converter. The board offers a rich set of pins, including 11 GPIO pins (10 of which support PWM signal), an analog ADC input, and popular communication interfaces: UART, I2C, SPI, 1-Wire. Power and programming are handled via a microUSB connector.

This module is an excellent alternative to original solutions, using a proven processor and memory in the form of a ready-made ESP-12F module. It is an ideal choice for IoT projects requiring reliable wireless communication using the ESP8266 platform. Importantly, the microcontroller can be easily programmed directly through the popular Arduino IDE environment.

Example project on the flashesp website: https://flashesp.com/explore/TaCsc5zDxEft2W3EeUFug

Key Technical Features

• Supply voltage: 3.3V (or 5V via USB port)
• Wi-Fi standard: 802.11 b/g/n
• Network operating modes: AP (Access Point), STA (Standalone), AP+STA
• Supported security protocols: TKIP, WEP, CRC, CCMP, WPA/WPA2, WPS
• Number of digital inputs/outputs (GPIO): 11
• Number of PWM channels: 10
• Number of analog inputs (ADC): 1
• Serial interfaces: UART, SPI, I2C, 1-Wire
• Flash memory: 4MB

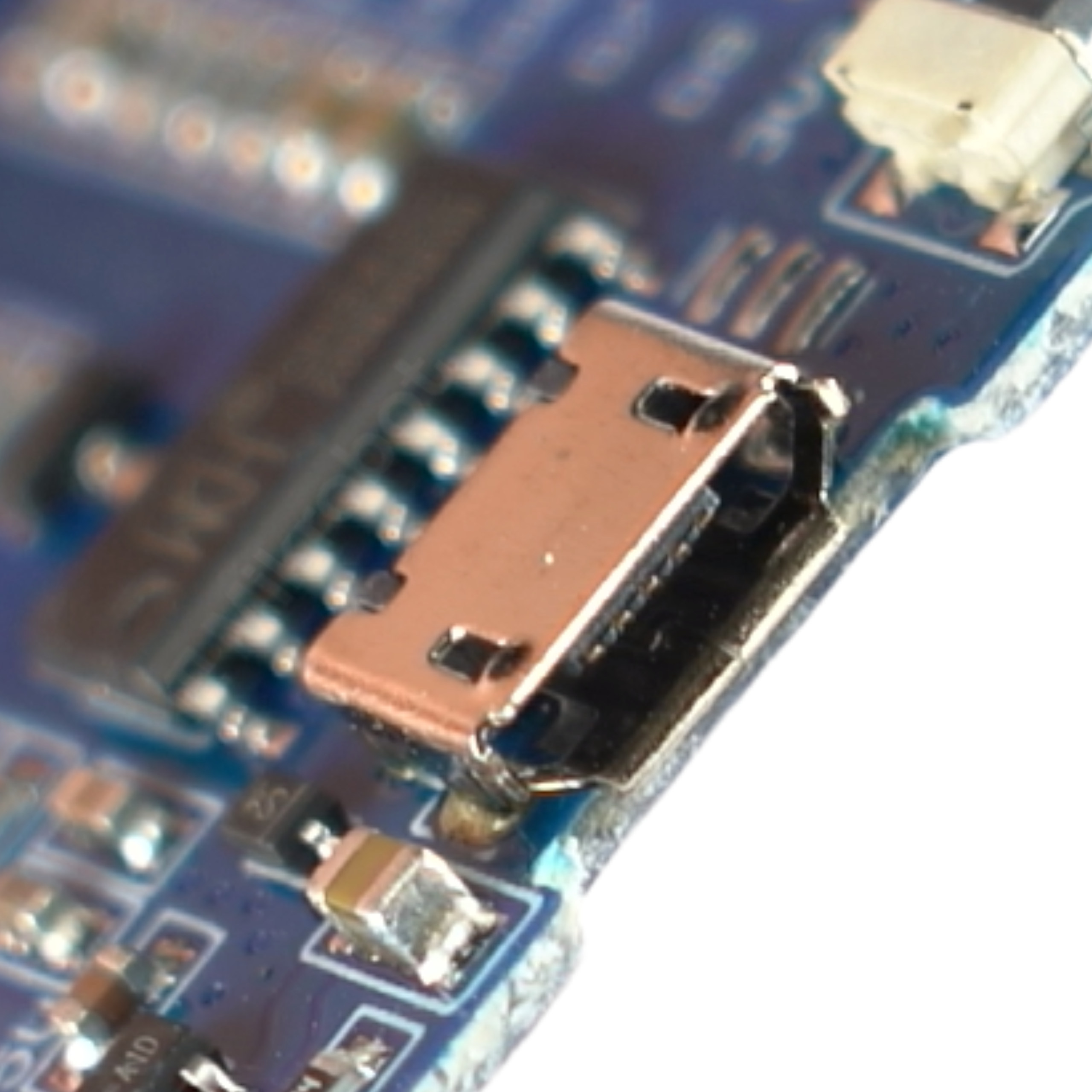

• Communication connector: microUSB
• Additional features: RESET button and built-in PCB antenna
• Physical dimensions: 34mm x 26mm

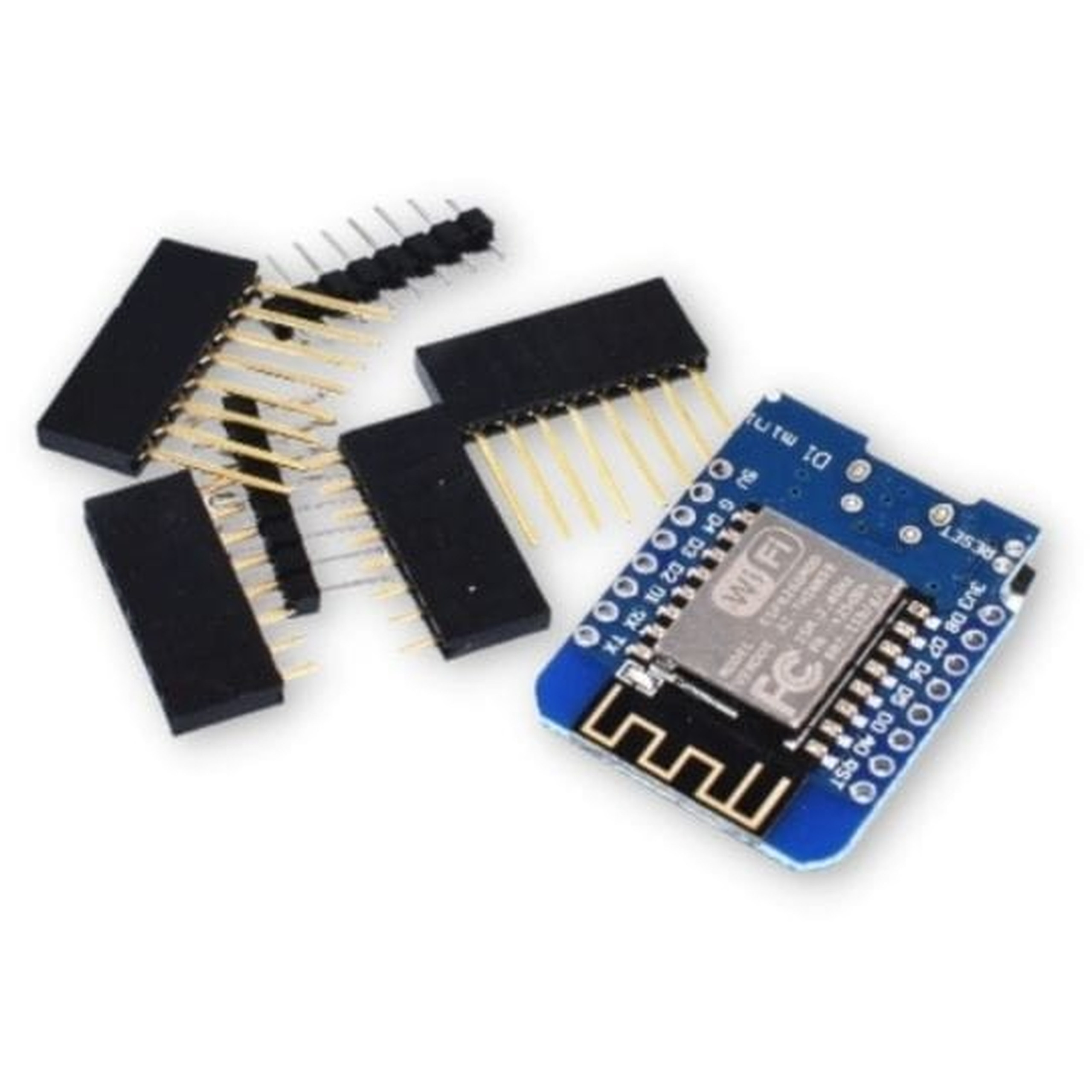

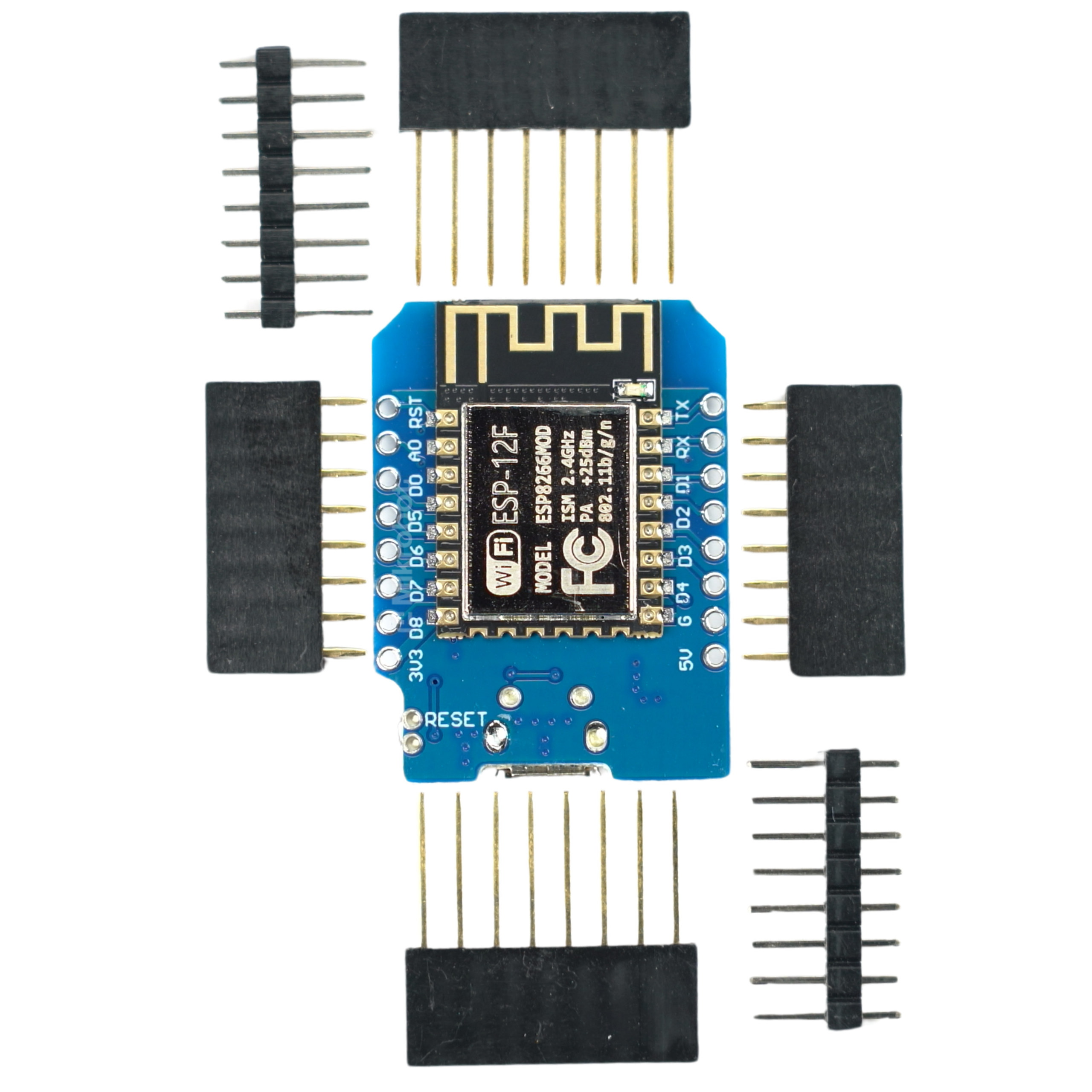

• Connectors included: 2 pcs. male header, 2 pcs. female header, 2 pcs. extended female header

Example Applications

• Smart sockets and switches in Smart Home systems
• Wireless weather stations and environmental sensors
• LED lighting controllers with WiFi communication
• IoT notification and alarm modules
• Robotics and remote control of devices over the local network

Benefits

• Easy programming in the familiar Arduino IDE environment
• Compact dimensions facilitating integration in small enclosures and target assemblies
• High compatibility with existing libraries and projects for ESP8266
• Complete set of connectors included for flexible mounting - solder according to your own needs
• Stable operation thanks to the proven ESP-12F module design and reliable CH340 converter
