White SH1106 1.3 OLED i2C LCD 128*64 bright 5V module for Arduino

White SH1106 1.3 OLED i2C LCD 128x64 bright 5V module for Arduino

1.3" 128x64 white OLED I2C SH1106 display is a high-quality component, ideal for a wide range of electronic applications. Thanks to the advanced SH1106 controller, the module delivers a sharp, bright image in white with minimal power consumption. Compact dimensions and low weight make the display well suited for DIY projects, prototypes, and devices that need a clear, energy-efficient interface. The module is compatible with popular platforms such as Arduino, ESP8266, ESP32, and Raspberry Pi.

Key technical specifications

• Weight: 6.5 g
• Dimensions: 35.4 x 33.5 x 4.3 mm
• Resolution: 128 x 64 pixels
• Supply voltage: 3.3 - 5 V
• Operating temperature: -30°C to 70°C
• Interface type: I2C bus
• Controller: SH1106

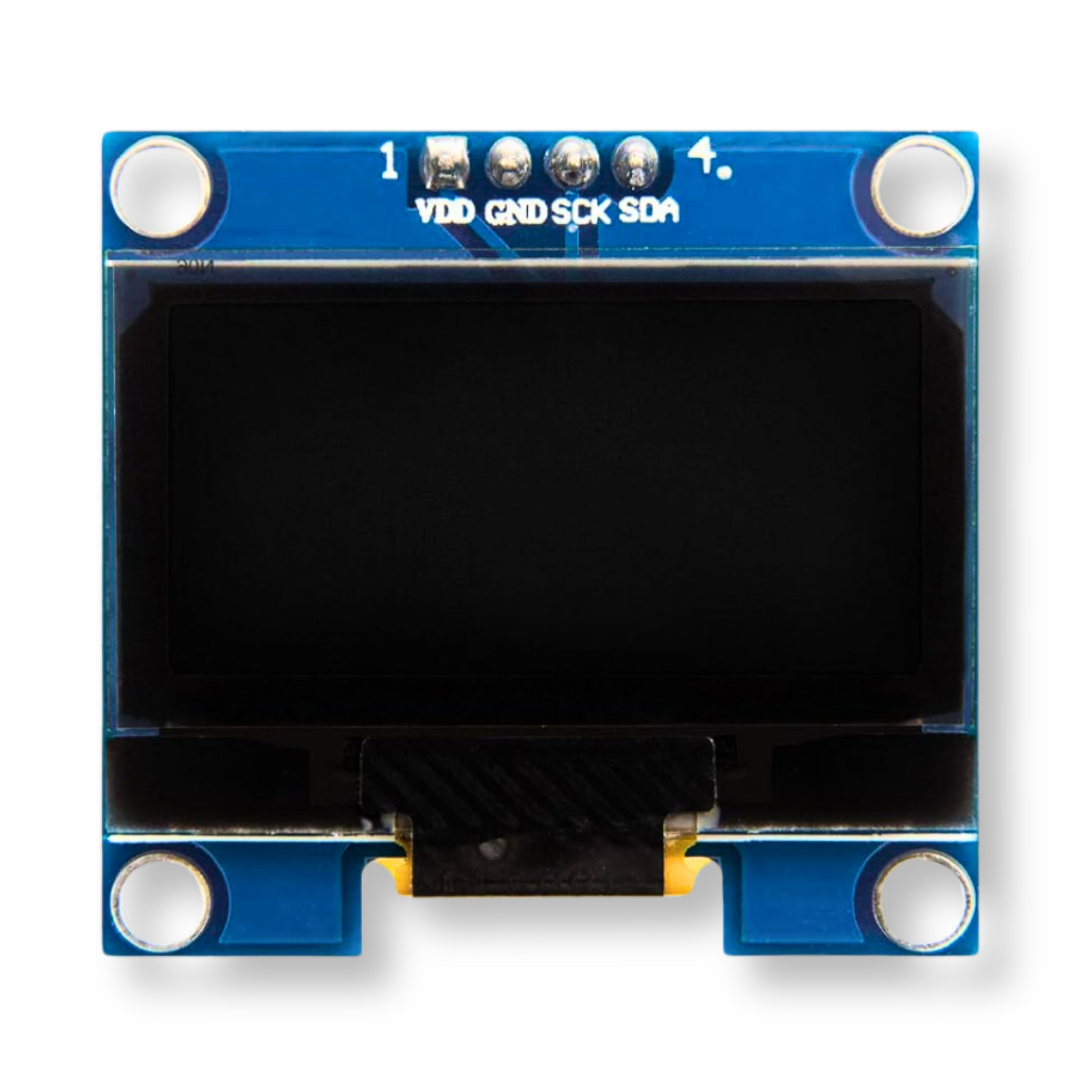

Pin description

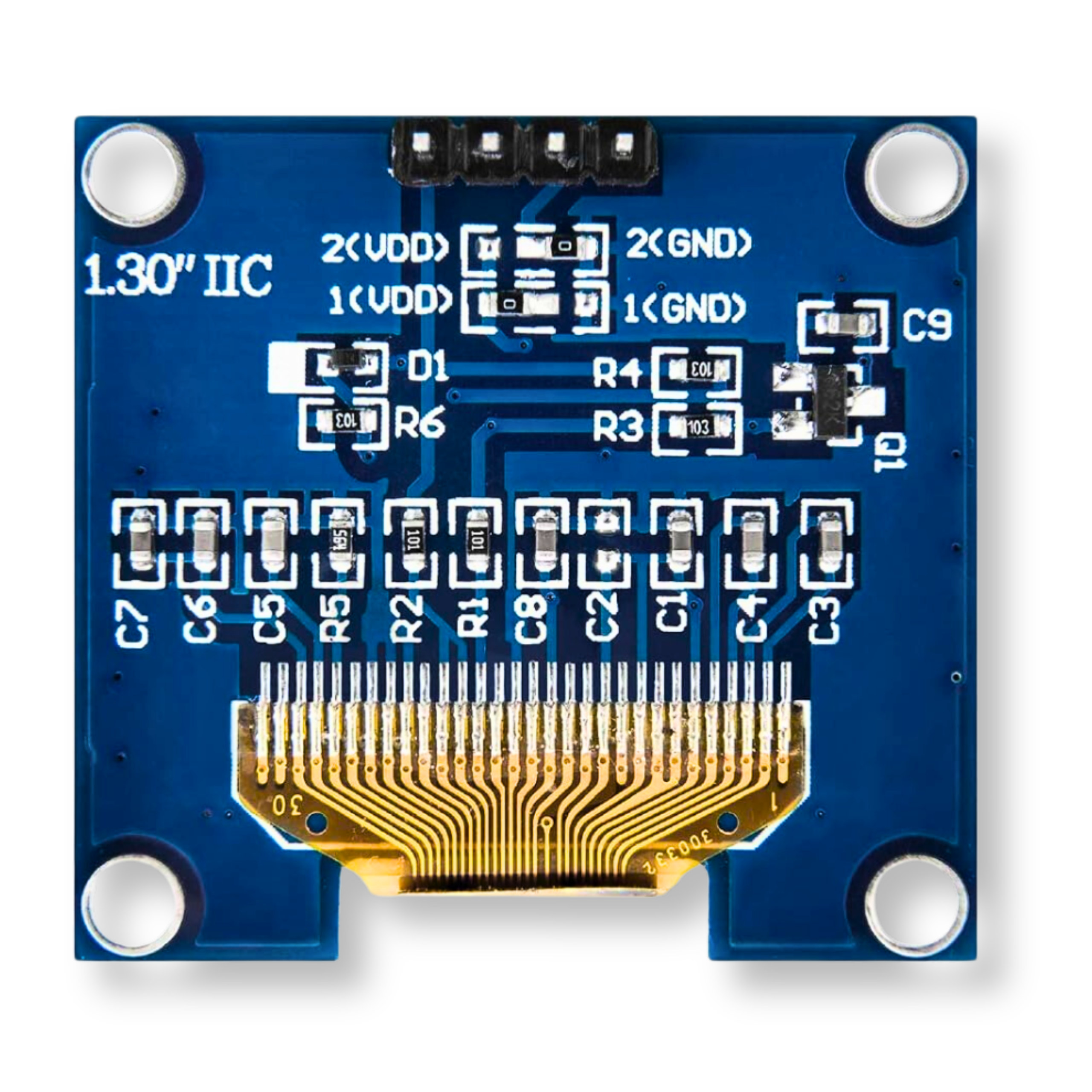

The module has standard pins for quick connection. The polarity of pins 1 and 2 can be changed.

• VCC - power supply
• GND - ground
• SCL - I2C clock line
• SDA - I2C data line

Example applications

• Building miniature weather stations
• Creating user interfaces in DIY projects
• Displaying operating parameters of measuring instruments
• Prototyping embedded systems
• Building custom smartwatches or bicycle computers

Benefits of choosing this module

• High contrast and readability thanks to OLED technology
• Low current consumption, ideal for battery-powered devices
• Simple communication using only two signal lines (I2C)
• Wide supply voltage range (3.3 - 5 V) for easier integration
• Easy to use thanks to the popular SH1106 controller and available libraries
