nRF24L01+ ISM 2.4GHz radio module for wireless Arduino communication

nRF24L01+ ISM 2.4GHz radio module for ESP8266, ESP32, Arduino, Raspberry Pi

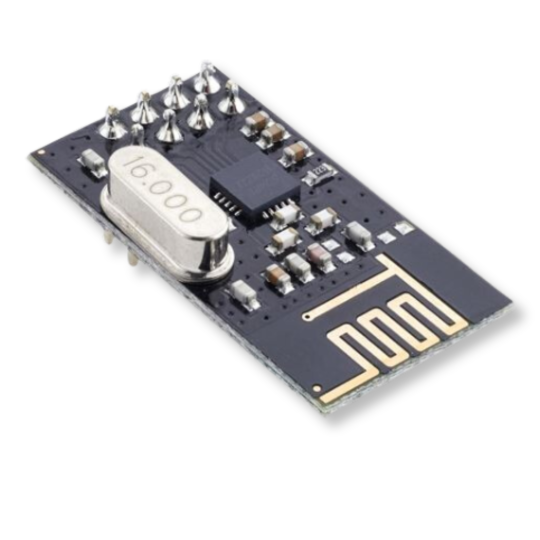

The nRF24L01+ radio module is a compact, high-performance solution for wireless communication in the ISM 2.4 GHz band. Designed for through-hole mounting, it performs well in a wide range of electronic projects, providing reliable and fast data transmission.

Thanks to the advanced nRF24L01+ chipset and built-in PCB antenna, the module offers stable and efficient wireless communication. It is an ideal choice for IoT systems, home automation, and other applications that require dependable data transfer.

Key technical specifications

• Radio chipset: nRF24L01+
• Supply voltage: 1.9 - 3.6 V
• Operating band: ISM 2.4 GHz (no license required)
• Data rate: 2 Mbps / 1 Mbps / 250 kbps
• Current consumption: 11 mA
• Modulation: GFSK
• Communication interface: SPI
• Antenna: built-in PCB
• Dimensions: 30 x 16 mm

Example applications

• Smart home systems and building automation
• Internet of Things (IoT) projects
• Wireless sensor networks and measurement systems
• Remote device control and robotics
• Fast data exchange between microcontrollers

Benefits of choosing the nRF24L01+ module

• Low current consumption (only 11 mA) - ideal for battery-powered devices
• High data transmission speed up to 2 Mbps
• Easy integration with popular platforms thanks to the standard SPI interface
• Compact size (30 x 16 mm) for mounting in small enclosures
• No license required for the licence-free ISM 2.4 GHz band
