ISM-868-H 868MHz Radio Antenna SMA Male 29cm for LoRa Meshtastic Meshcore

ISM-868-H 868MHz Radio Antenna

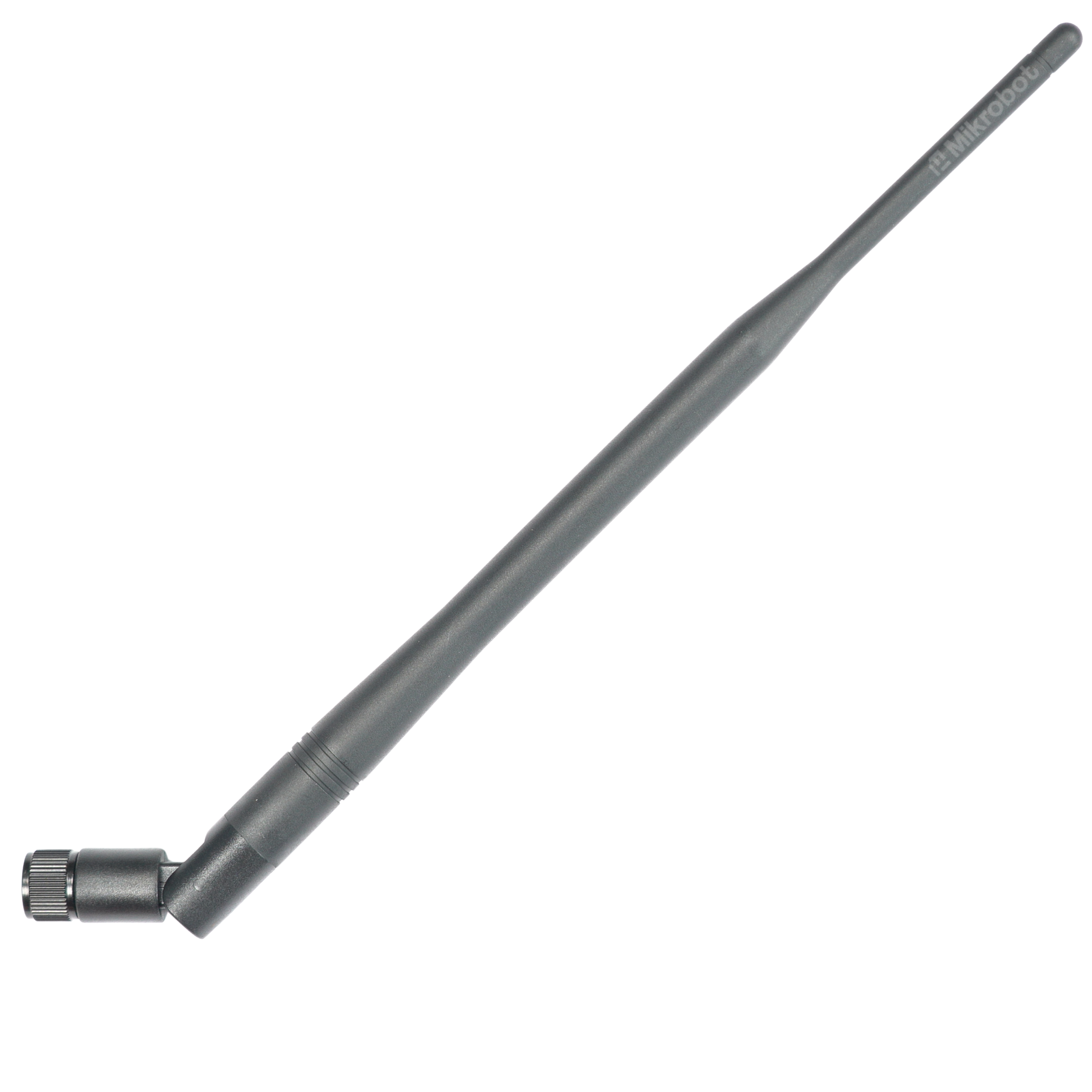

ISM-868-H radio antenna with a total length of 29 cm (active section 27 cm) was designed for operation in the 868 MHz ISM band. Thanks to the built-in hinge, the tilt angle can be easily adjusted, which makes it easier to fit into electronic projects. The antenna has a standard SMA male connector, allowing direct mounting in the device socket or on a magnetic base.

The product works great in DIY projects and IoT systems. The antenna can be successfully connected to ESP8266, ESP32, Arduino, and Raspberry Pi modules.

Key Technical Specifications

• Operating frequency: 868 MHz
• Total length: 29 cm
• Active section length: 27 cm

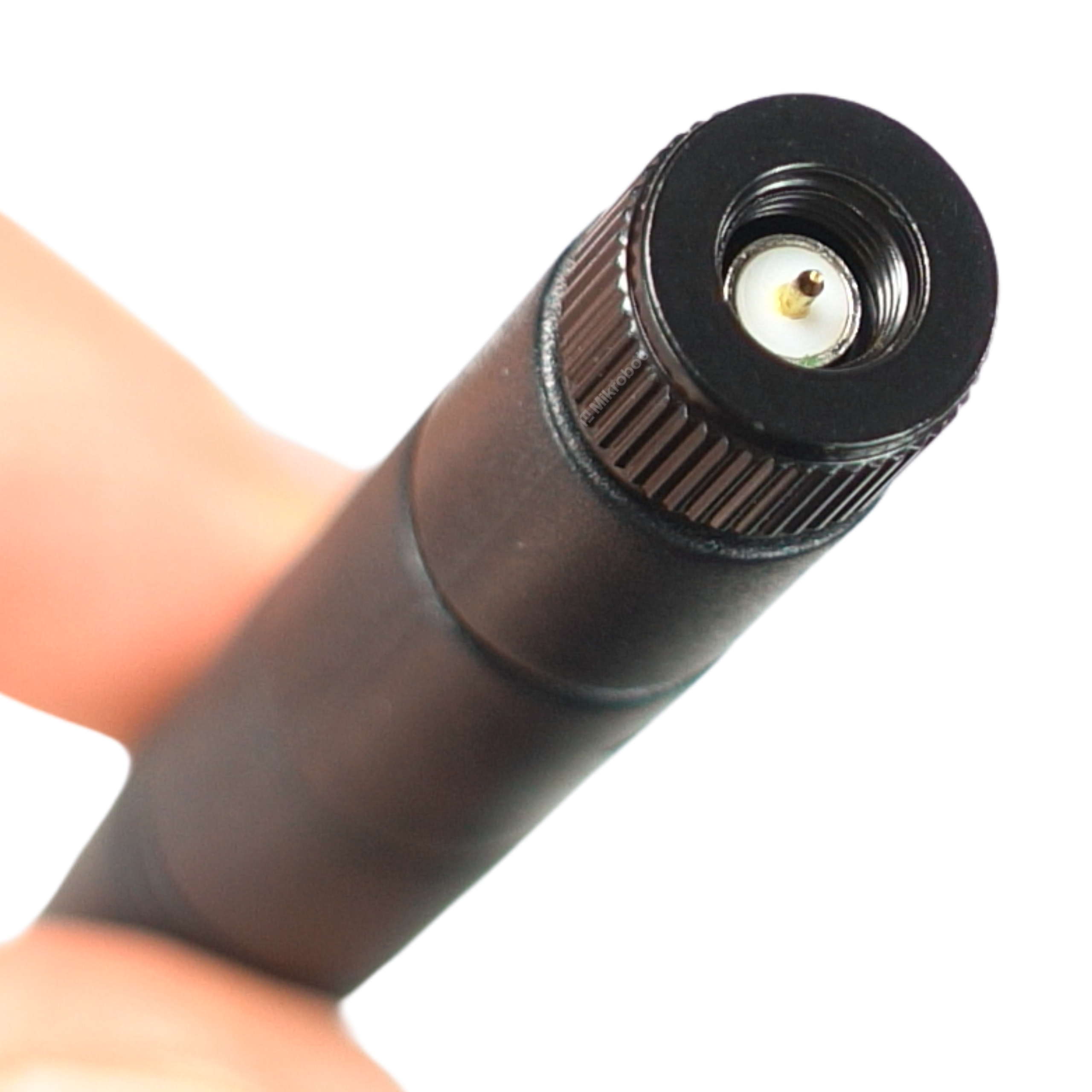

• Connector: SMA male (compatible with SMA female sockets)
• Impedance: 50 Ohm
• Maximum input power: 10 W
• Polarization: vertical
• VSWR: < 2.0 @ 25 MHz / < 1.5 @ 10 MHz

Example Applications

• LoRa, LoRaWAN, and Helium communication systems
• Projects using Meshtastic and Meshcore standards
• Remote reading of data from meters and sensors
• Development terminals (e.g. Lilygo, Heltec)
• RC model control, gates, and building automation

Benefits of Choosing This Antenna

• Universal connectivity - SMA connector fits many popular radio devices and development modules
• Convenient adjustment - integrated hinge allows optimal antenna positioning in space
• Wide compatibility - ideal for long-range, low-power communication systems
• Easy installation - quick mounting without the need for additional adapters for SMA sockets
• High performance - stable operating parameters thanks to low VSWR and solid construction

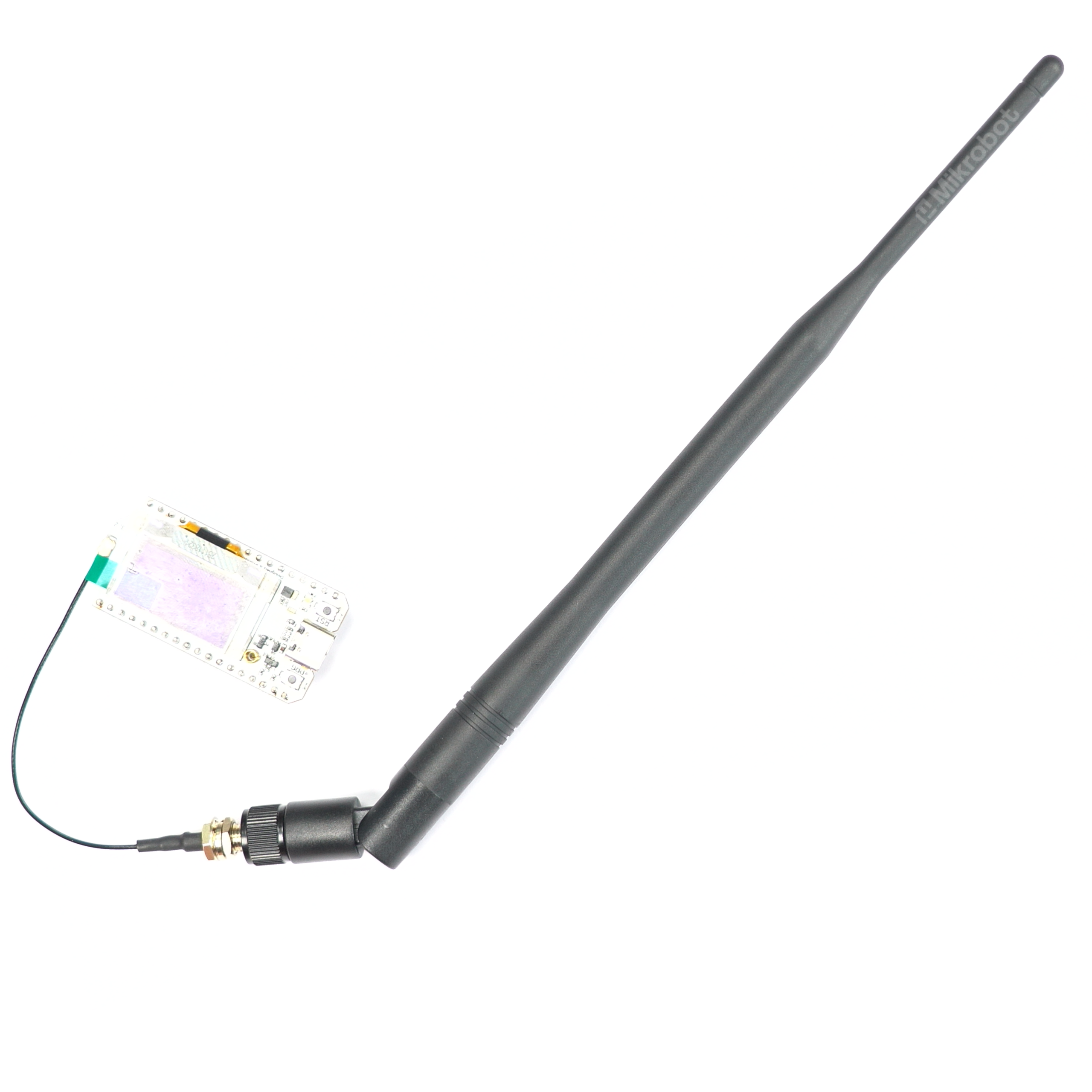

Heltec V3 module is not included in the set.
