Przetwornica ładowarka samochodowa Step-Down 12-24V 5V 5A USB-C Micro USB

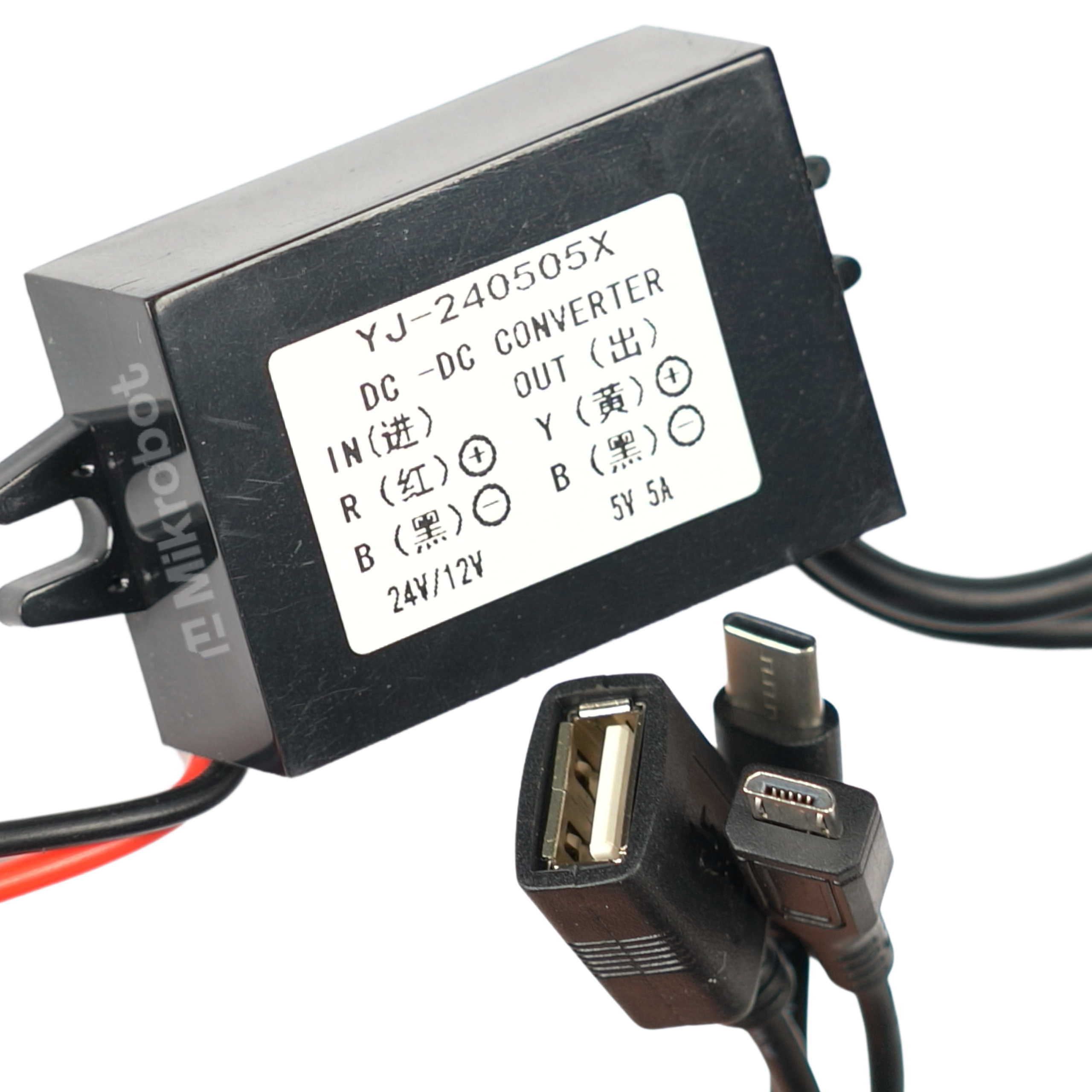

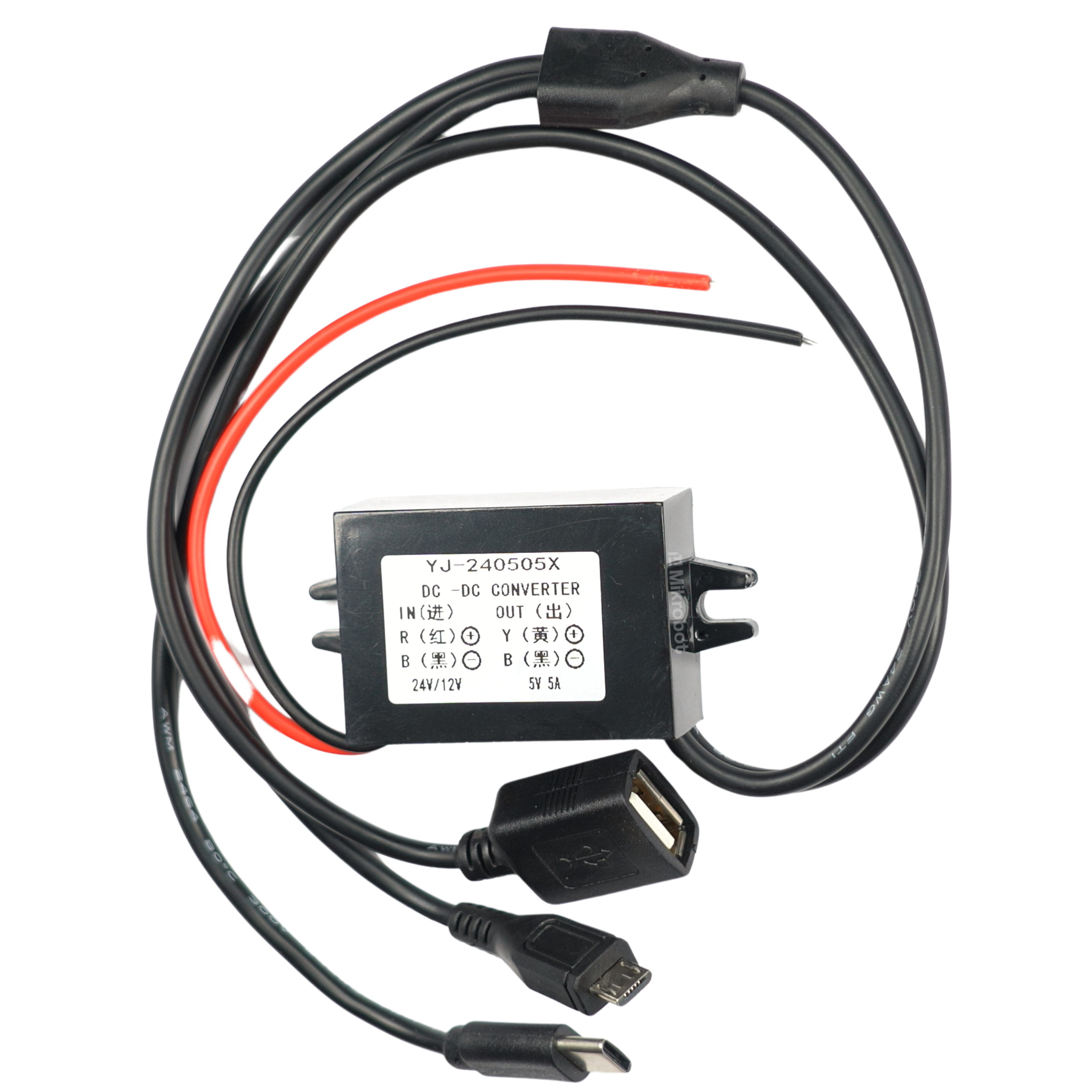

Step-Down Converter with USB-C, Micro USB, and USB ports

A universal step-down converter module designed to power devices requiring 5V from 12V / 24V DC input voltages. This product is ideal for powering popular microcontroller platforms, such as Arduino, Raspberry Pi, ESP8266, and ESP32, as well as standard mobile devices.

Key Technical Features

• DC Input Voltage: 12V / 24V
• DC output voltage: 5V
• Maximum output current: 5A

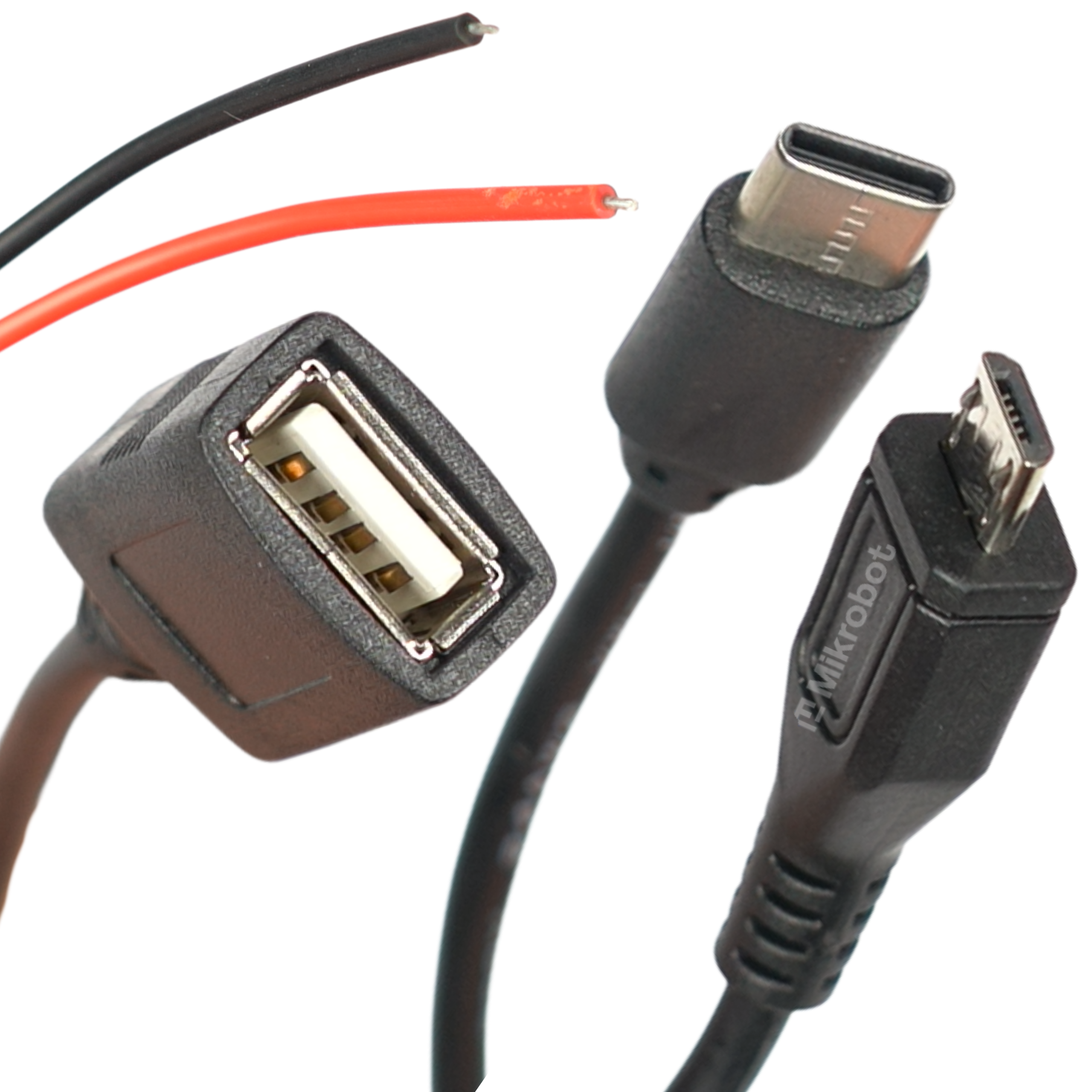

• Output connectors: USB-C plug, Micro USB plug, and USB port
• Housing dimensions: 18 mm x 32 mm x 46 mm (63 mm with mounting brackets)
• Mounting hole spacing: approx. 53 mm
• Power cable length: 13 cm
• Output cable length: 33 cm

Example applications

• Powering electronic circuits and microcontrollers (for Arduino, Raspberry Pi, ESP32, ESP8266)
• Installations in passenger cars (12V)
• Installations in trucks (24V)
• Charging mobile devices: smartphones, tablets, navigation systems, and GPS receivers
• 5V outlet for powering a dashcam
• DIY projects requiring a stable 5V voltage from a higher-voltage power source

Benefits

• The 12V / 24V input voltage allows for flexible adaptation to various power sources.
• The inclusion of three popular connector standards (USB-C, Micro USB, USB port) makes it easy to connect a variety of devices.
• A current capacity of up to 5A enables powering of demanding circuits or multiple devices simultaneously.
• Pre-drilled mounting holes and pre-wired cables significantly simplify and speed up the installation of the module in its final location.
