Kabel USB do programowania krótkofalówki Baofeng UV-5R UV-82 BF-888S Chirp

USB Programming Cable for Radios with Kenwood (K) Connector

Communication cable enabling programming of Baofeng brand radios and other devices equipped with a K (Kenwood) type connector. The product allows configuration of radio settings from a computer using dedicated software. The design is based on the proven PL2303 controller.

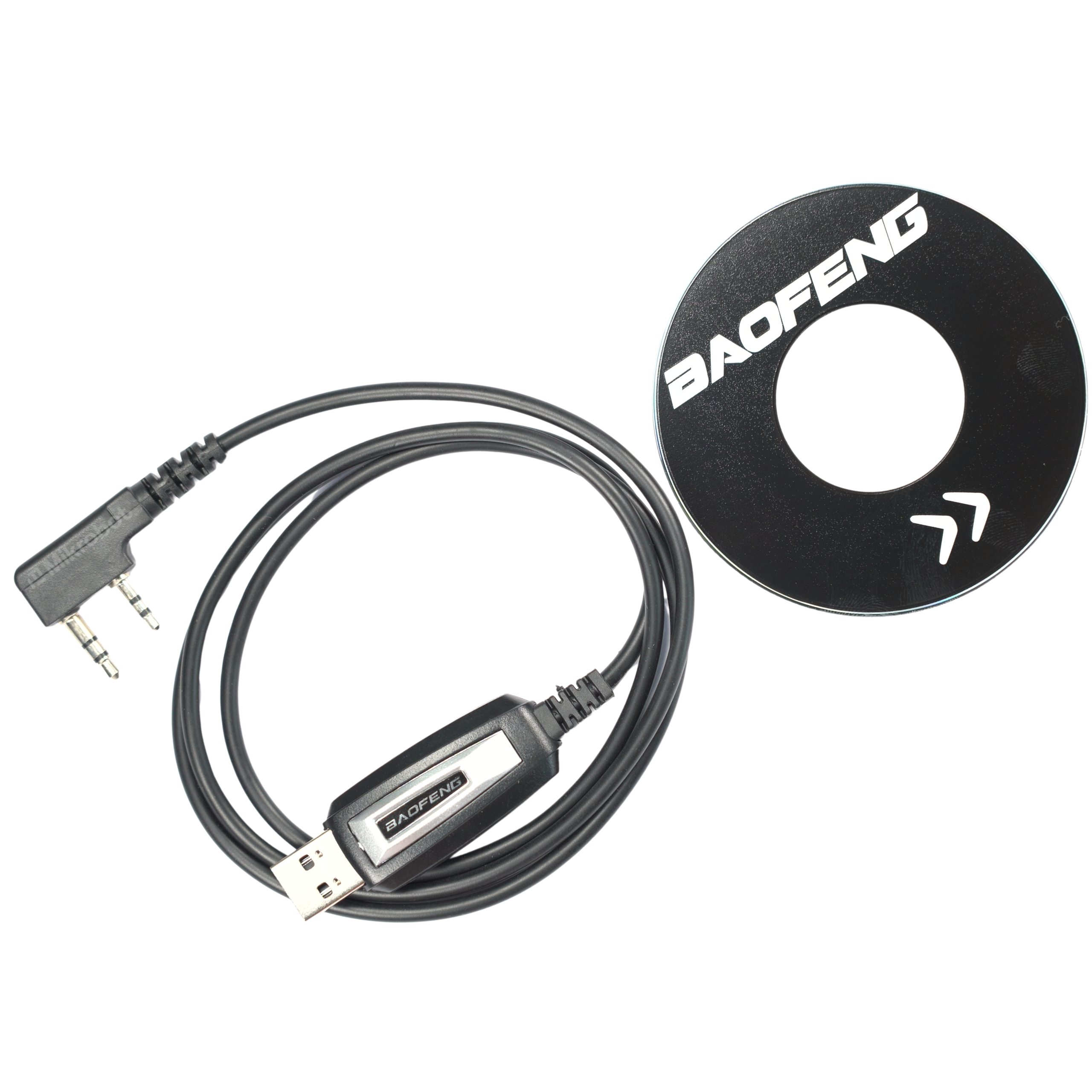

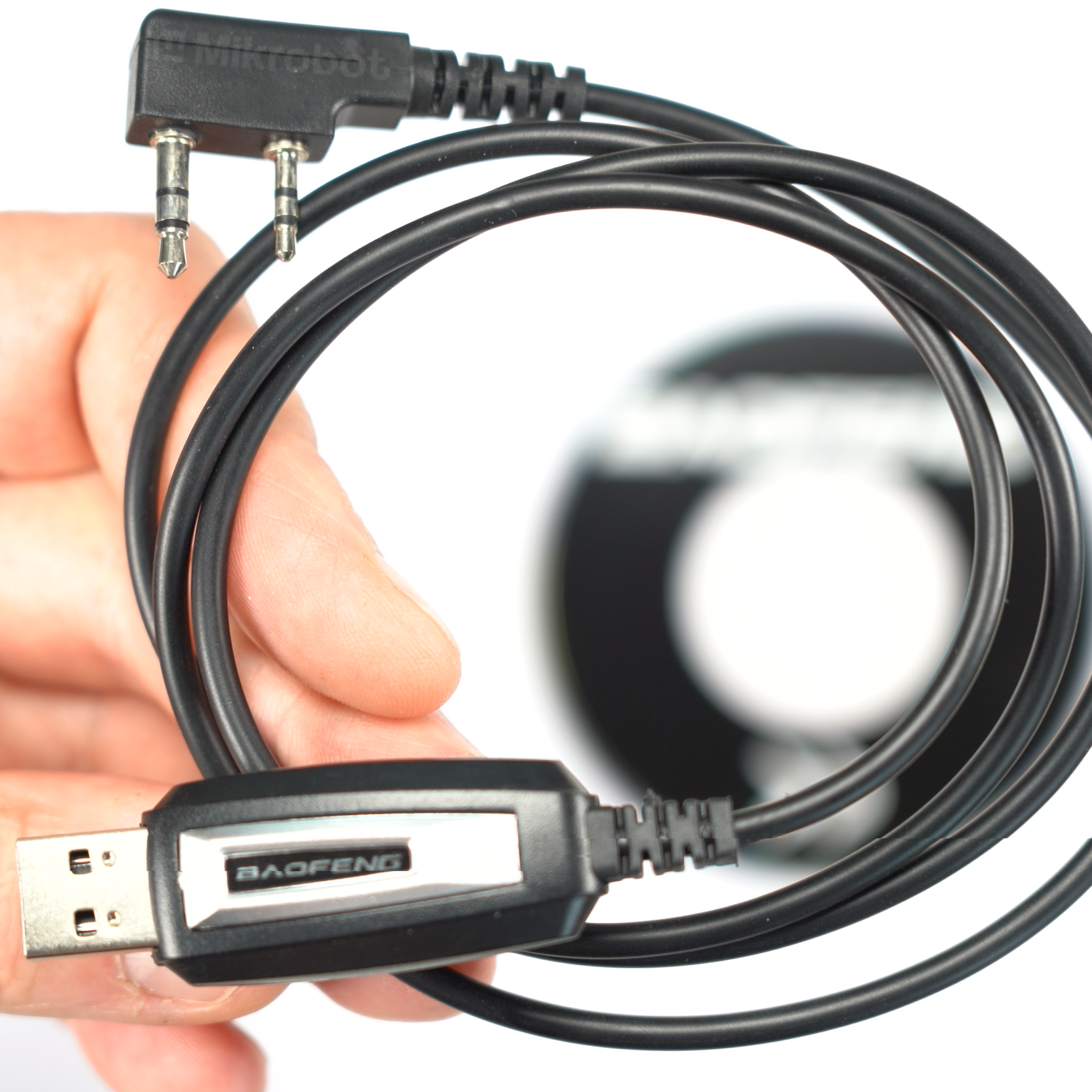

On one end, the cable is terminated with a standard USB plug, while on the other end with two Jack (3-pin) plugs. The set also includes a disc containing the necessary drivers and communication software.

Key Technical Features

• PC Interface: USB
• Radio Connector: K (Kenwood) - two Jack (3-pin) plugs
• Integrated Circuit: PL2303
• Software Compatibility: including Chirp (Polish interface available)
• Package Contents: USB programming cable, disc with drivers and software

Example Applications

• Frequency configuration and channel programming in radios.
• Customization of advanced transceiver function settings.
• Quick cloning of parameters and settings between multiple devices.
• Updating and modifying the radio's control firmware.
• Managing the saved address book and precise CTCSS and DCS tone settings.

Benefits

• Fast and precise radio configuration from a PC.
• Seamless compatibility with the widely used Chirp program.
• Very broad compatibility thanks to the universal K connector implementation.
• Ready to use right out of the box thanks to the included CD.
• Stable, reliable data transmission guaranteed by the PL2303 chip.

Compatibility

The cable works with many radio models equipped with a K type connector, including:

• Baofeng: UV-5R, UV-5RA, UV-5RB, UV-5RC, UV-5RE, UV-5RK, UV-B5, UV-B6, UV-3R Plus, UV-82, UV-82 HP, UV-6, UV-6R, UV-8, UV-8HX, BF-666S, BF-777S, BF-888S, BF-A5, DM-5R (V1, V2), A52, GT, HT, UP, PRO series.
• Kenwood: TH-F6, TH-F7, TH-G71, TH-K2, TH-K4, TK-2100, TK-2101, TK-2102, TK-2107, TK-2118, TK-2160, TK-2201, TK-2202, TK-2206, TK-2207, TK-240, TK-249, TK-250, TK-253, TK-255, TK-260, TK-260G, TK-270, TK-270G, TK-272, TK-272G, TK-273, TK-278, TK-278G, TK-3100, TK-3101, TK-3102, TK-3107, TK-3118, TK-3160, TK-3201, TK-3202, TK-3206, TK-3207, TK-3301, TK-340, TK-349, TK-350, TK-353, TK-355, TK-360, TK-360G, TK-370, TK-370G, TK-372, TK-373, TK-373G, TK-378, TK-378G, TK-430, TK-431.
• HYT: TC-268, TC-268S, TC-270, TC-270S, TC-368, TC-368S, TC-370, TC-370S.
• Relm: RPU416A, RPU499A Plus, RPV516A, RPV599A Plus.
• KST: V6, UV-F89, UV501, K568, K8900, K6900, N8, N6.
• Linton: LT-2288, LT-3288, LT-6288, LT-5288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268, LT-6188.
• PUXING: PX-777, PX-666, PX-328, PX-888, PX-888K, PX-333, PX-325, PX-358, PX-359, PX-728, PX-555, PX-628.
• WEIERWEI: VEV-3288S, VEV-3288D, VEV-V1000, VEV-V16, VEV-3188.
• Wouxun / Surecom: KG-669, KG-669 PLUS, KG-UVD1P, KG-UV9D, KG-UV9D Plus, KG-UV1D, KG-UV2D, KG-UV6D, KG-UV8D, KG-UV8D Plus.
• Quansheng: TG-UV2.
• TYT: TH-UVF1, TH-F5, TH-F8.
• Kanwee: TK-928.
• ZASTONE: ZT-V8A+, ZT-V9, ZT-V68, T-2000.
