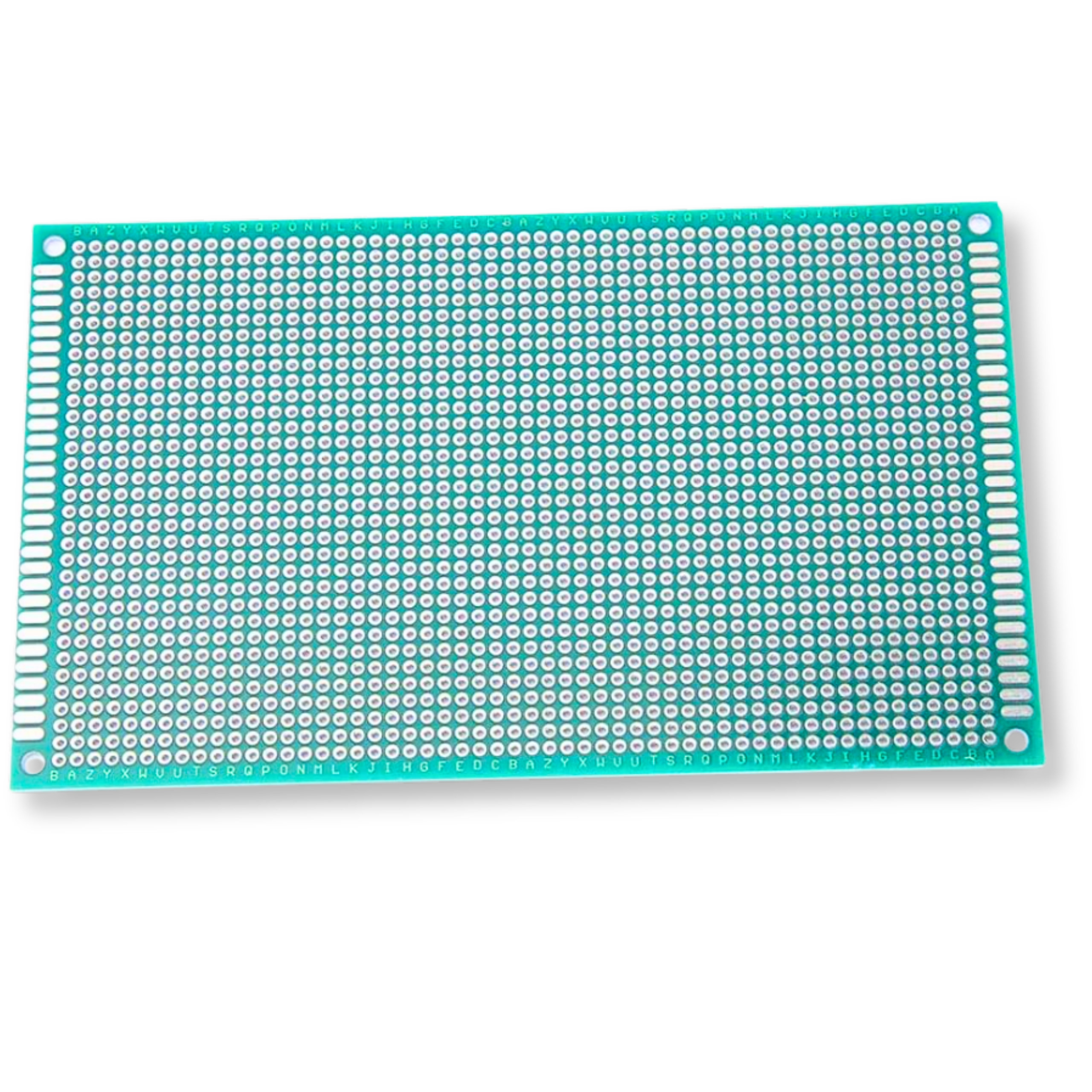

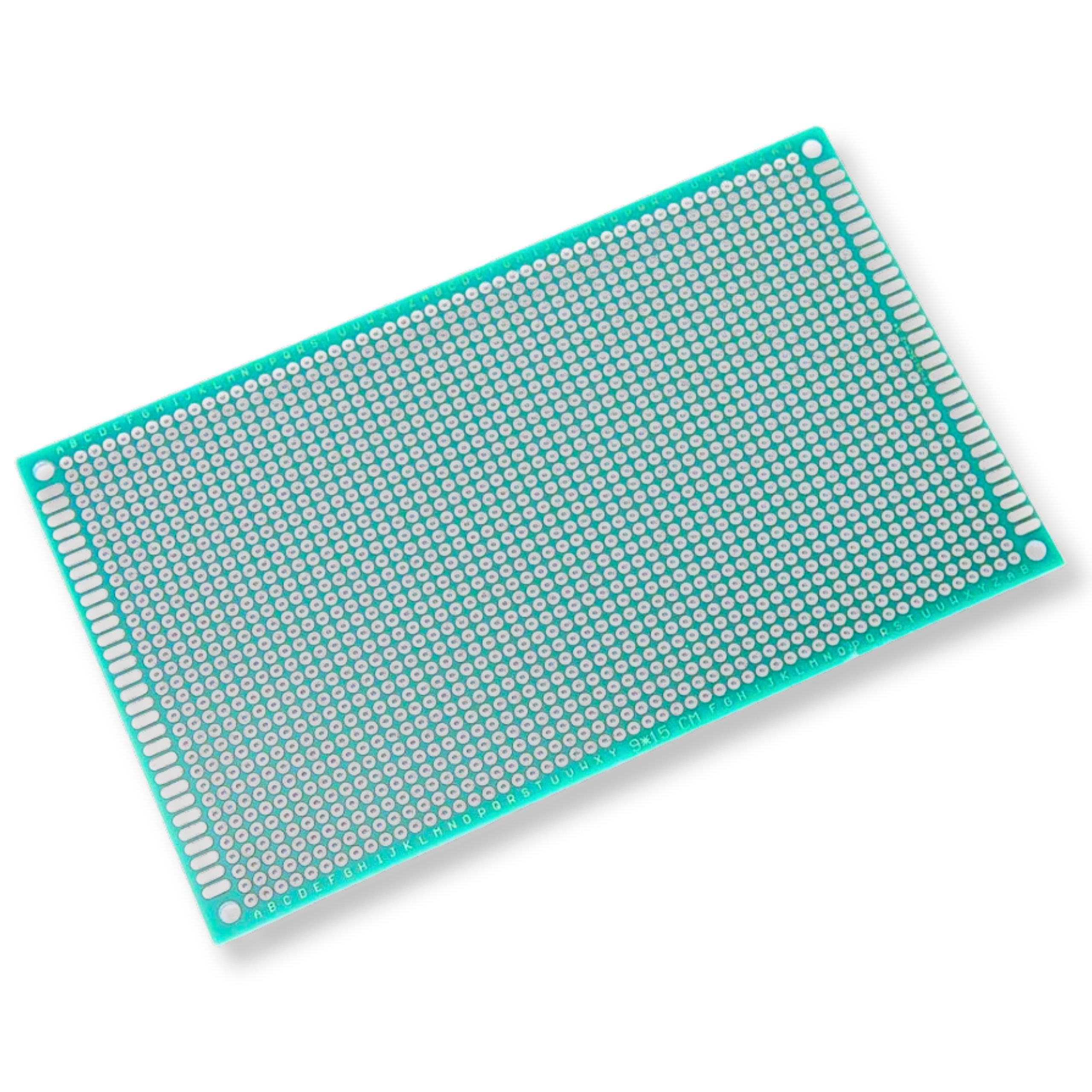

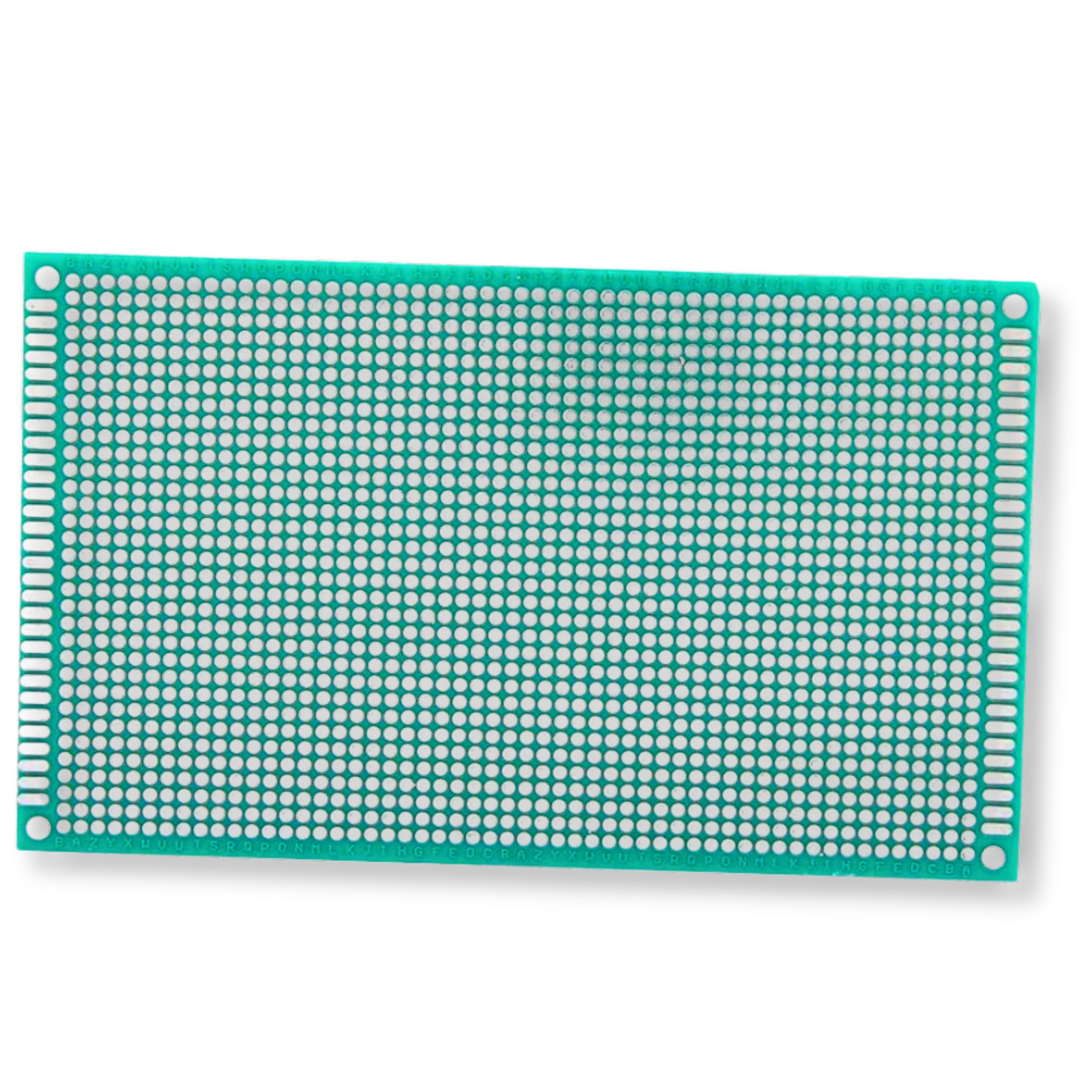

9×15 cm double-sided prototype PCB board, 1782 holes, 2.54 mm pitch

Universal double-sided 9×15 cm prototyping PCB

High-quality, double-sided prototyping board made from durable 1.6 mm laminate. It enables quick and easy assembly and disassembly of a wide range of electronic circuits without having to design and order a dedicated printed circuit board. The product is ideal for building electrical circuits and prototypes using through-hole components on a standard 2.54 mm pitch.

The board is an excellent base for projects using popular platforms: for Arduino, for ESP8266, for ESP32, and for Raspberry Pi.

Key technical specifications

• Width: 90 mm
• Length: 150 mm
• Laminate thickness: 1.6 mm
• Number of holes: 1782 solder pads
• Board type: double-sided
• Mask color: green

Example applications

• Rapid prototyping of electronic circuits before mass production
• Building dedicated expansion modules for Arduino and for Raspberry Pi
• Building custom IoT controllers based on ESP32 and ESP8266 microcontrollers
• Educational projects, learning electronics, and soldering through-hole components
• Testing new electrical circuit ideas in a workshop setting

Benefits of use

• Time savings - ready to use immediately, with no wait for dedicated PCB fabrication
• High durability - solid laminate and double-sided construction provide reliable, stable soldering
• Large working area - 1782 holes give plenty of freedom for component placement
• Full compatibility - standard 2.54 mm pitch suits most ICs, connectors, and header pins
• Design flexibility - components can be desoldered easily so you can change your prototype layout
