ATmega328P CH340 V3.0 Module with USB Type C, Compatible with Arduino NANO + Cable

ATmega328P CH340 V3.0 Module with USB Type C, Compatible with Arduino NANO + Cable

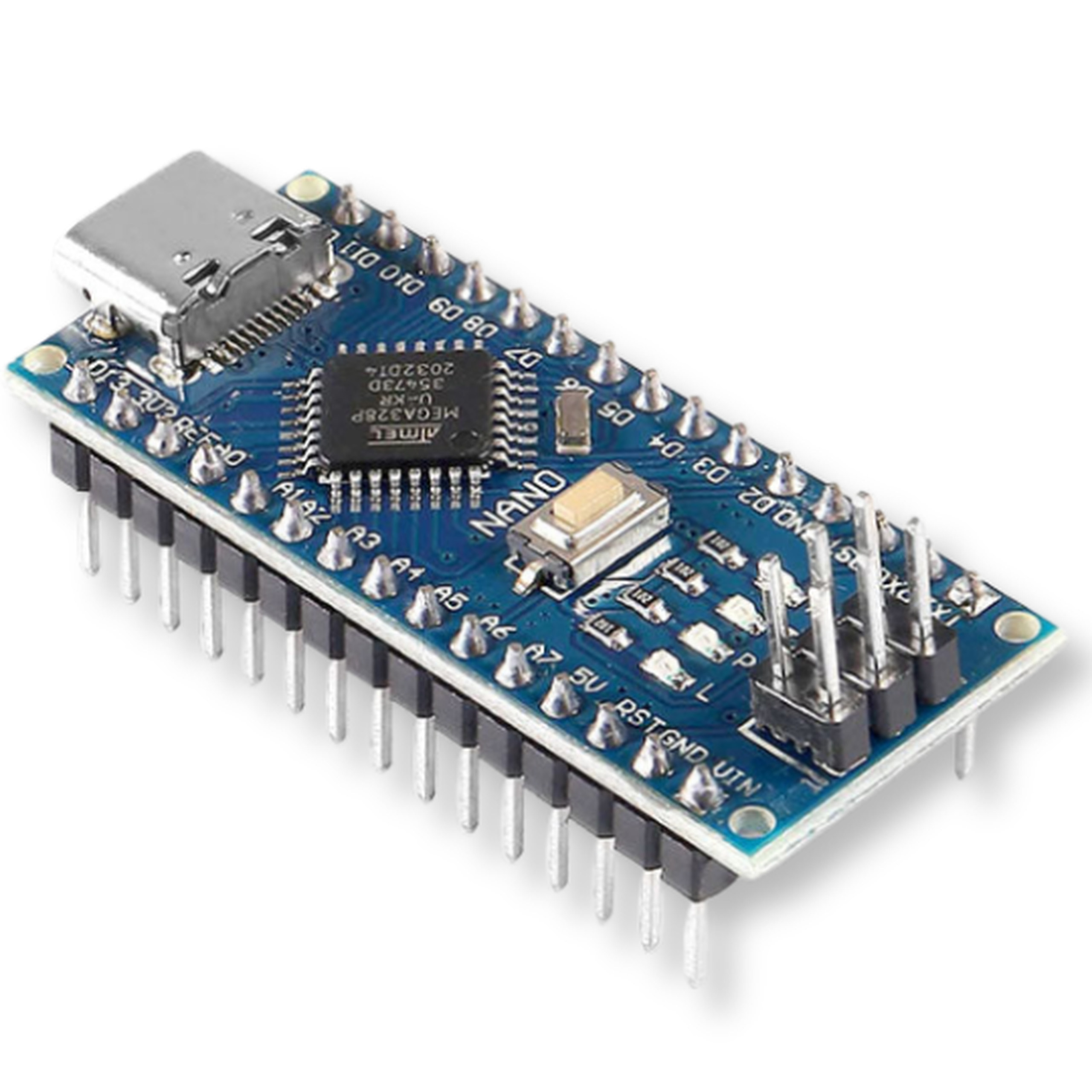

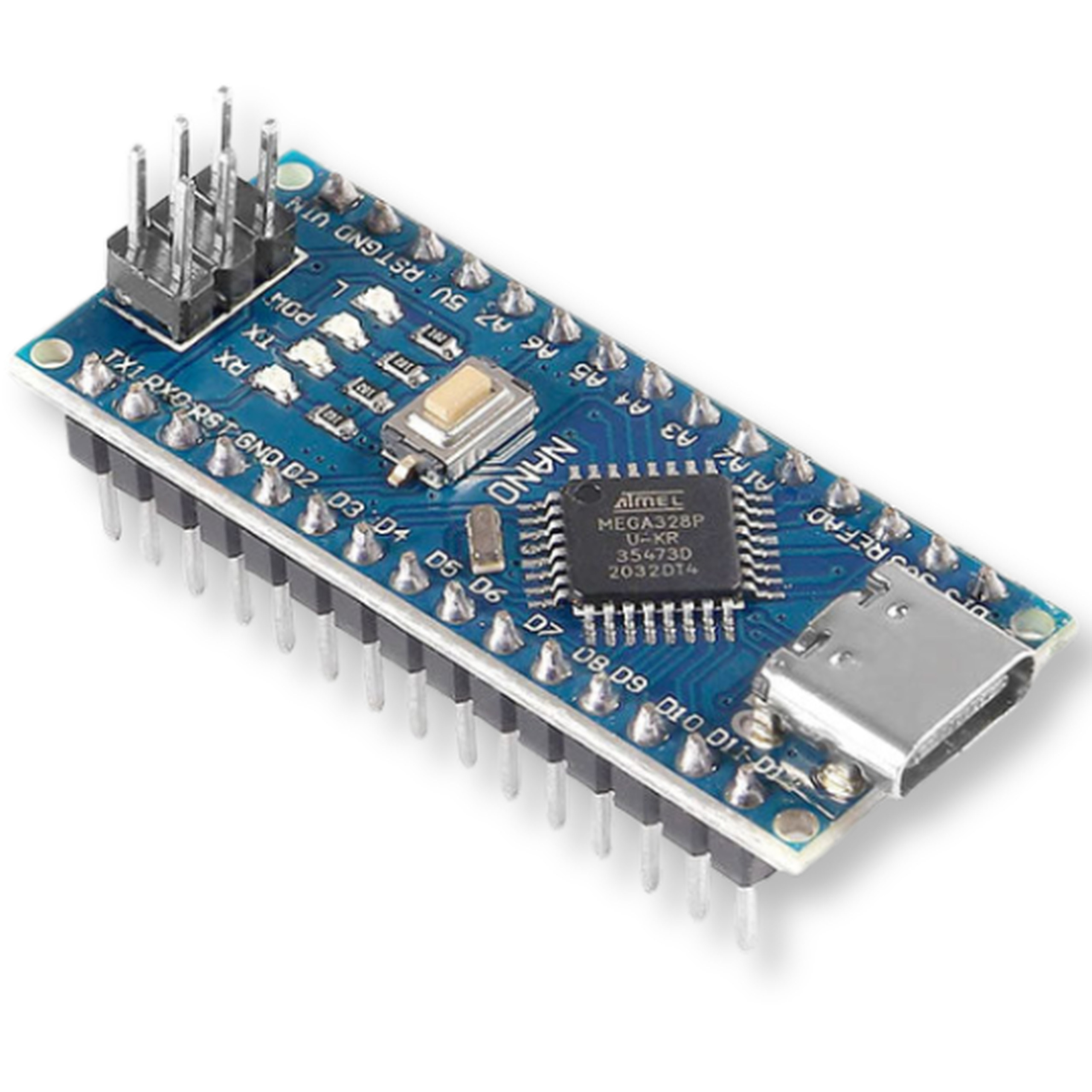

A modern, compact NANO V3.0 module featuring an ATmega328P microcontroller and a convenient USB-C connector. The board is fully compatible with the Arduino platform and uses the reliable CH340 programmer. An integrated voltage regulator allows safe powering of the circuit at voltages higher than 5 V. The included USB-C cable is used for programming and communication with the device. The module comes with factory-soldered pins, which greatly speeds up prototyping.

Key technical specifications

• Supply voltage: 5-12 V
• I/O pin voltage: 5 V
• Bootloader: installed as on Arduino Nano, works with Arduino IDE version 1.8 and above
• Microcontroller: ATmega328P
• Maximum clock frequency: 16 MHz
• SRAM memory: 2 kB
• Flash memory: 32 kB (including 4 kB for bootloader)
• EEPROM memory: 1 kB
• I/O ports: 14
• PWM outputs: 6
• Analog inputs: 8 ADC channels
• Serial interfaces: UART, SPI, I2C
• Connector: USB-C
• Dimensions: 43 x 18 mm
• Header pins: soldered to the board

Example applications

• Building home automation systems and IoT sensors
• Creating weather stations and measurement circuits
• Designing educational robots and motor controllers
• Rapid prototyping of electronic circuits on breadboards
• Controlling LED lighting and driving displays

Benefits

• Ready to use immediately: soldered header pins eliminate the need for soldering yourself
• Easy to use: modern USB-C connector makes it easy to connect the module to a computer
• Broad compatibility: seamless integration and programming in the popular Arduino IDE
• Complete solution: included USB-C cable lets you start working right out of the box
• Space-saving: compact board size allows mounting in miniature projects

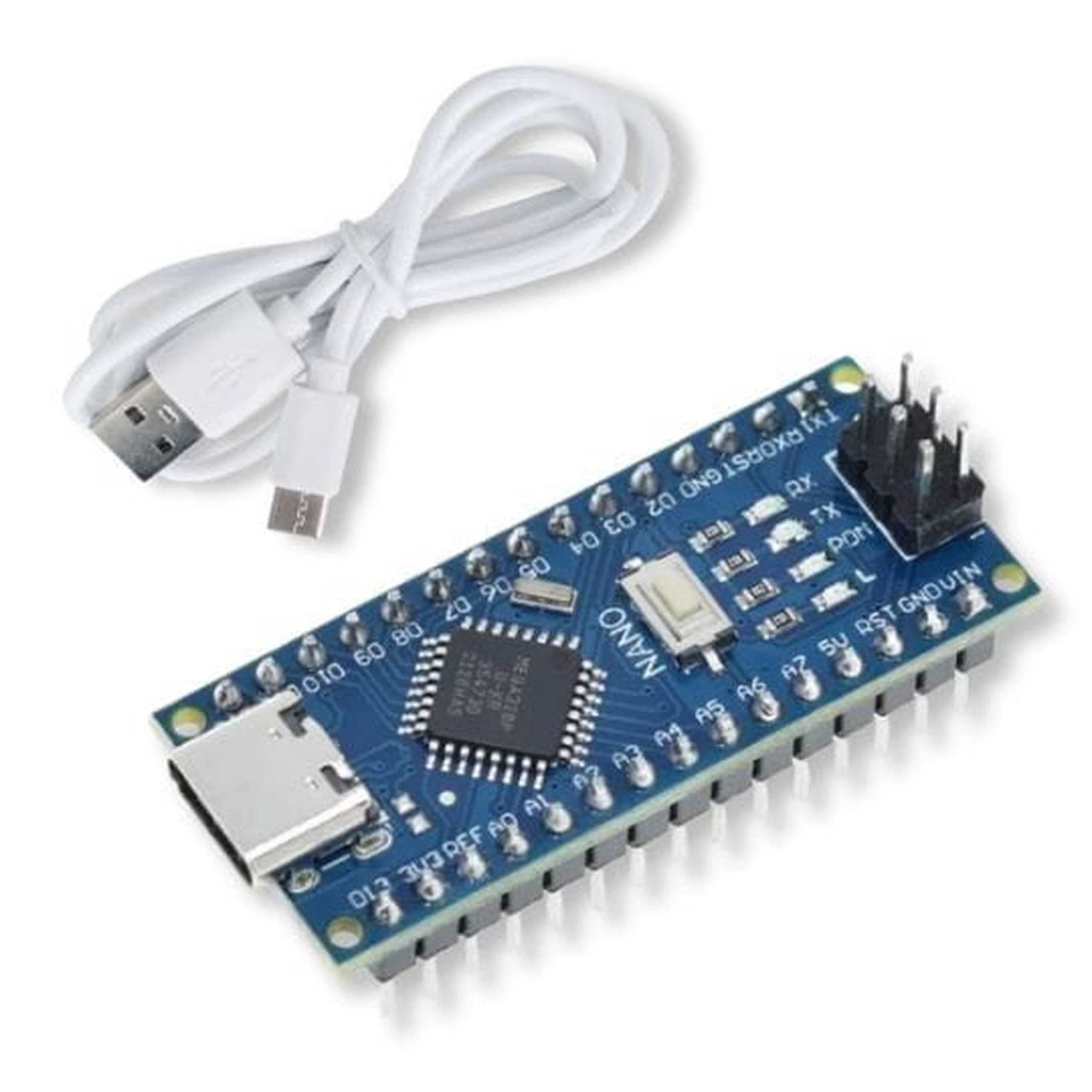

Package contents

• 1x Pre-soldered ATmega328P CH340 V3.0 module with USB Type C, compatible with Arduino NANO
• 1x USB-C cable 30 cm
