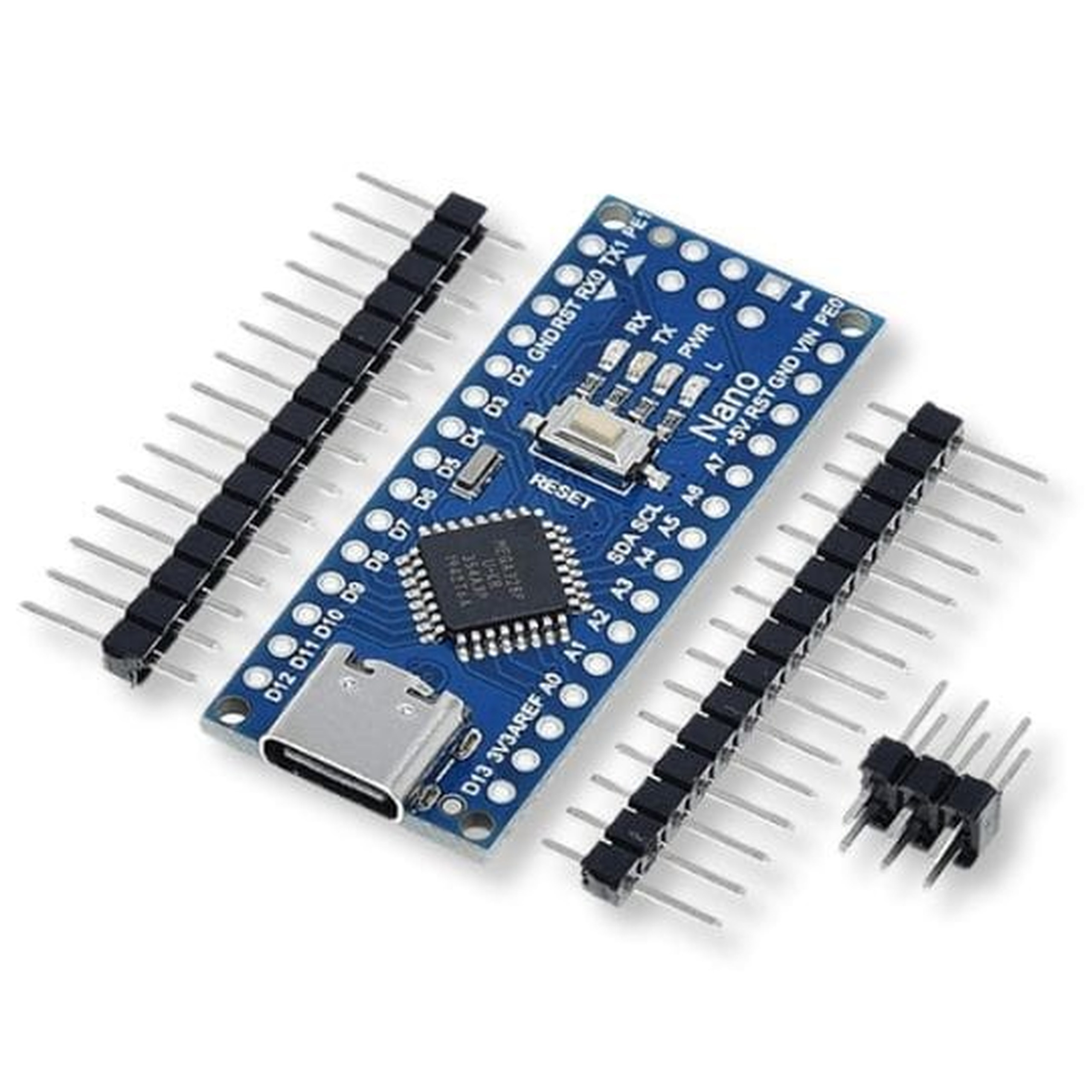

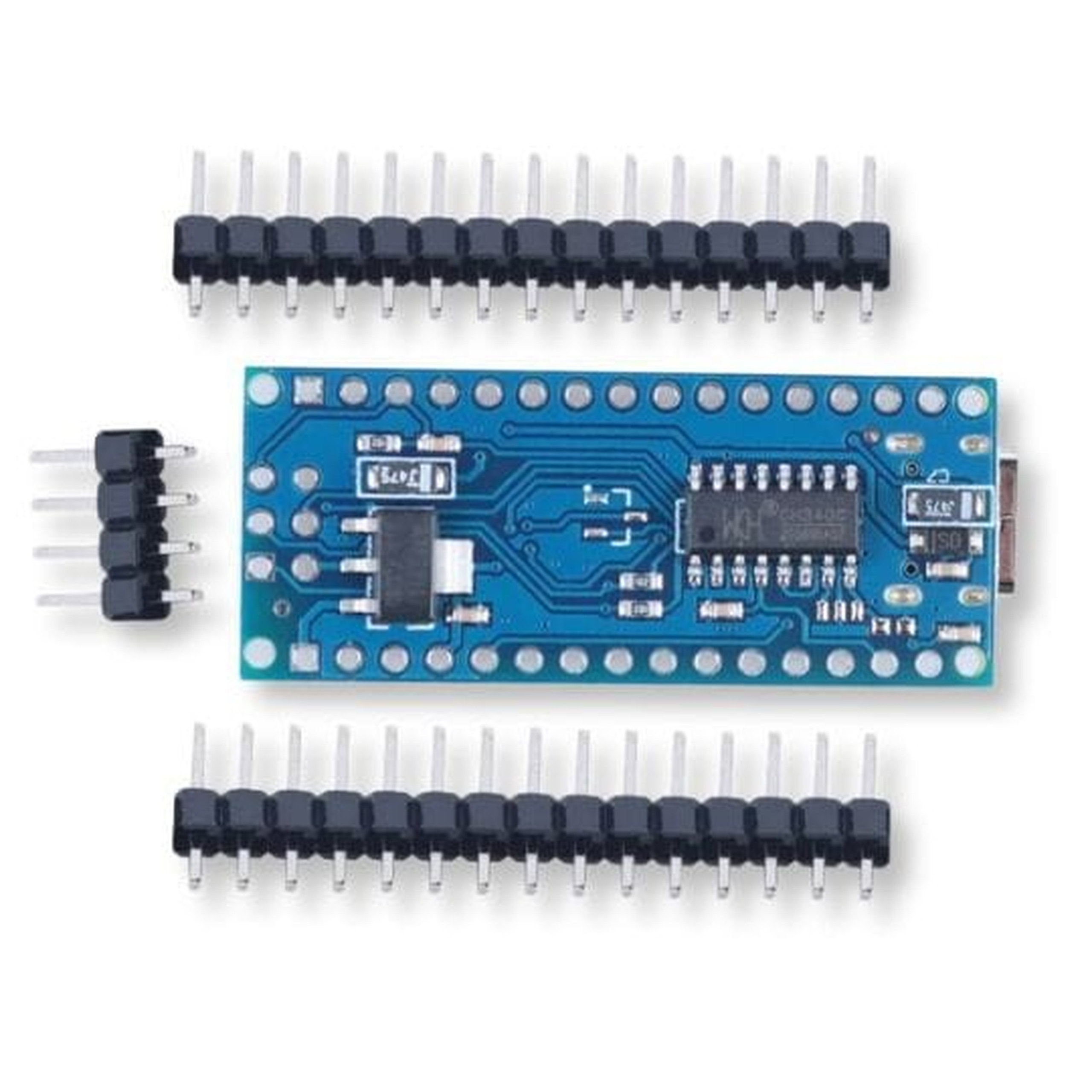

ATmega328P CH340G V3.0 module with USB Type-C, compatible with Arduino NANO
0
Description
Product description: ATmega328P CH340G V3.0 module with USB Type-C for Arduino
A modern NANO V3.0 module in a compact form factor, featuring an ATmega328P microcontroller and a modern USB-C connector. The board is fully compatible with the Arduino environment and boards (Nano version). It uses the popular and reliable CH340G programmer as a USB-UART converter. The board has an integrated voltage regulator, allowing it to be powered from a voltage higher than 5 V. A standard USB-C cable is required for programming and communication with the device.
Key technical features
The board offers a rich set of communication interfaces, including UART, SPI, and I2C. It provides 14 I/O pins, of which 6 are PWM outputs, plus 8 analog inputs with a built-in A/D converter. The heart of the system is a microcontroller clocked at 16 MHz, with 32 kB Flash memory and 2 kB SRAM. The kit includes pin header connectors for self-soldering.
Technical specification
- Supply voltage: 5-12 V
- I/O pin logic voltage: 5 V
- Bootloader: installed from Arduino Nano, works with Arduino IDE version 1.8 and newer
- Microcontroller: ATmega328P
- Maximum clock frequency: 16 MHz
- SRAM memory: 2 kB
- Flash memory: 32 kB (including 4 kB for bootloader)
- EEPROM memory: 1 kB
- I/O ports: 14
- PWM outputs: 6
- Analog inputs: 8 A/D converter channels
- Serial interfaces: UART, SPI, I2C
- Communication connector: USB-C
- Board dimensions: 43 x 18 mm
- Accessories: pin headers for soldering to the board
Benefits of choosing this module
- Easy connection: a modern, reversible USB-C connector simplifies programming and powering the board.
- Full compatibility: trouble-free operation in the popular Arduino IDE development environment.
- Compact size: at 43 x 18 mm, it fits projects with very limited space.
- Flexible powering: the built-in regulator allows safe connection of supply voltage across a wide 5-12 V range.
- Reliable operation: the proven ATmega328P microcontroller and stable CH340G communication chip.
Example applications
- Home automation: building lighting controllers, blinds, and simple Smart Home elements.
- Hobby robotics: small mobile robots, obstacle avoidance or line following.
- Weather stations: reading and processing data from temperature, humidity, and pressure sensors.
- Educational projects: learning microcontroller programming and digital electronics basics.
- Device prototyping: quickly building and testing new electronic circuits on breadboards.
