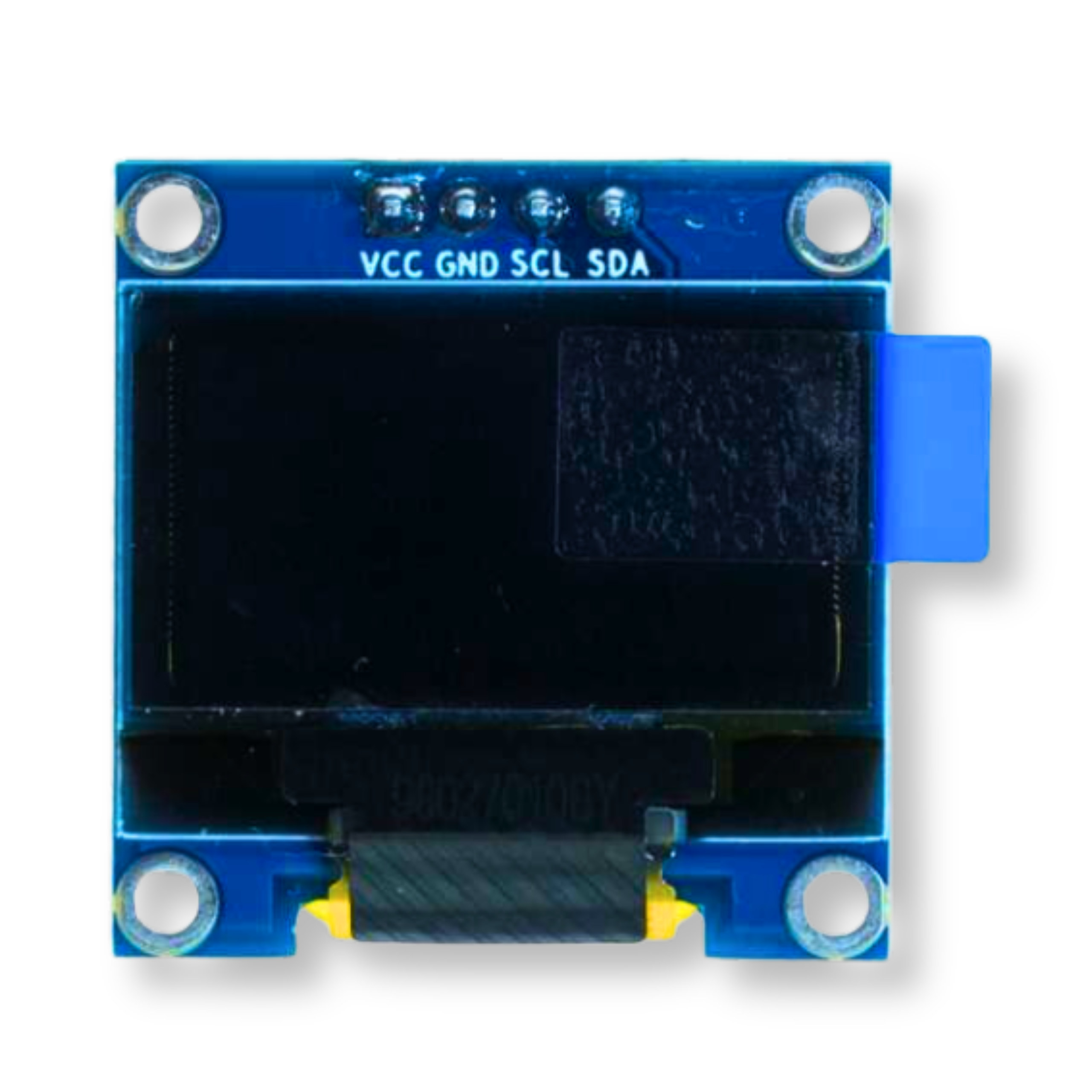

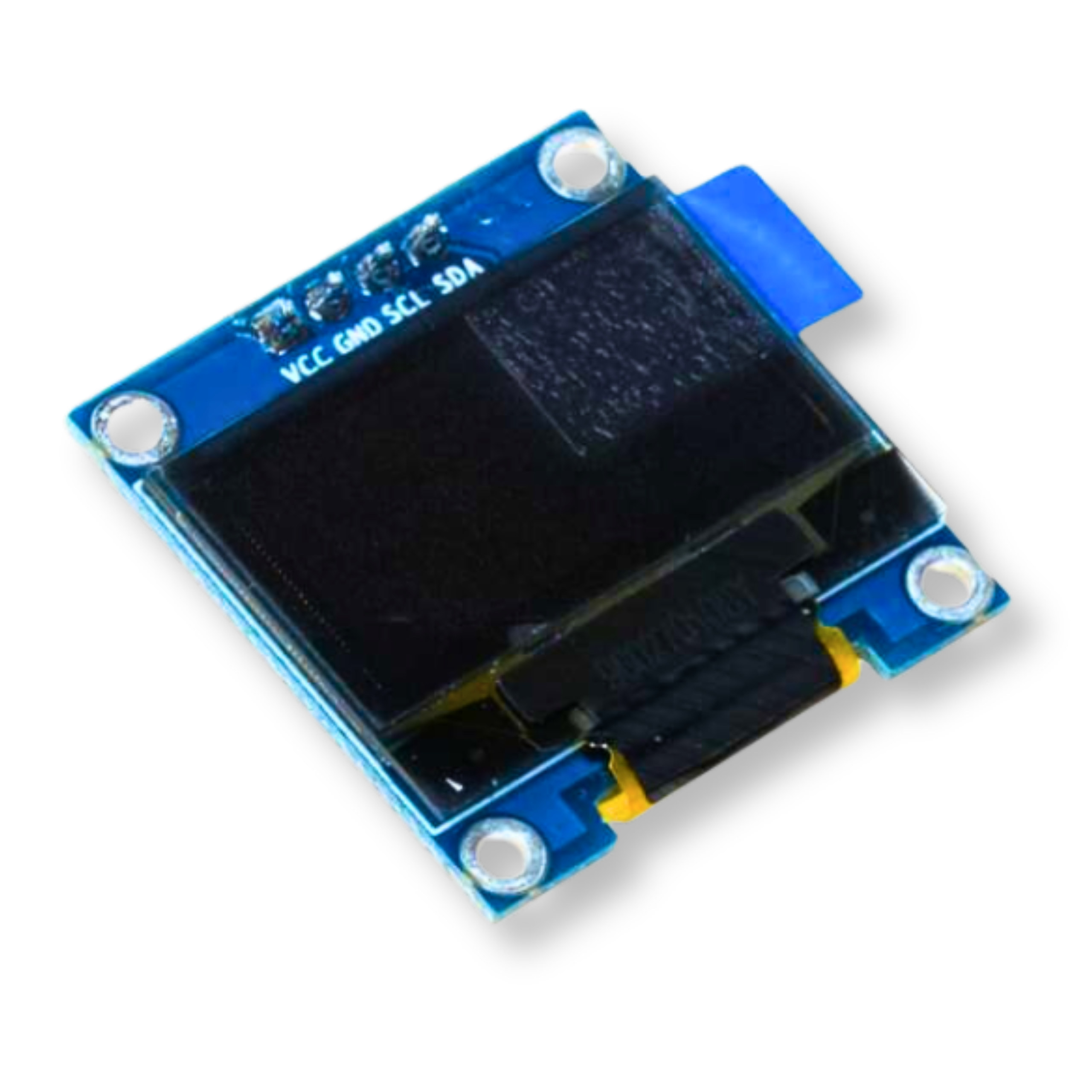

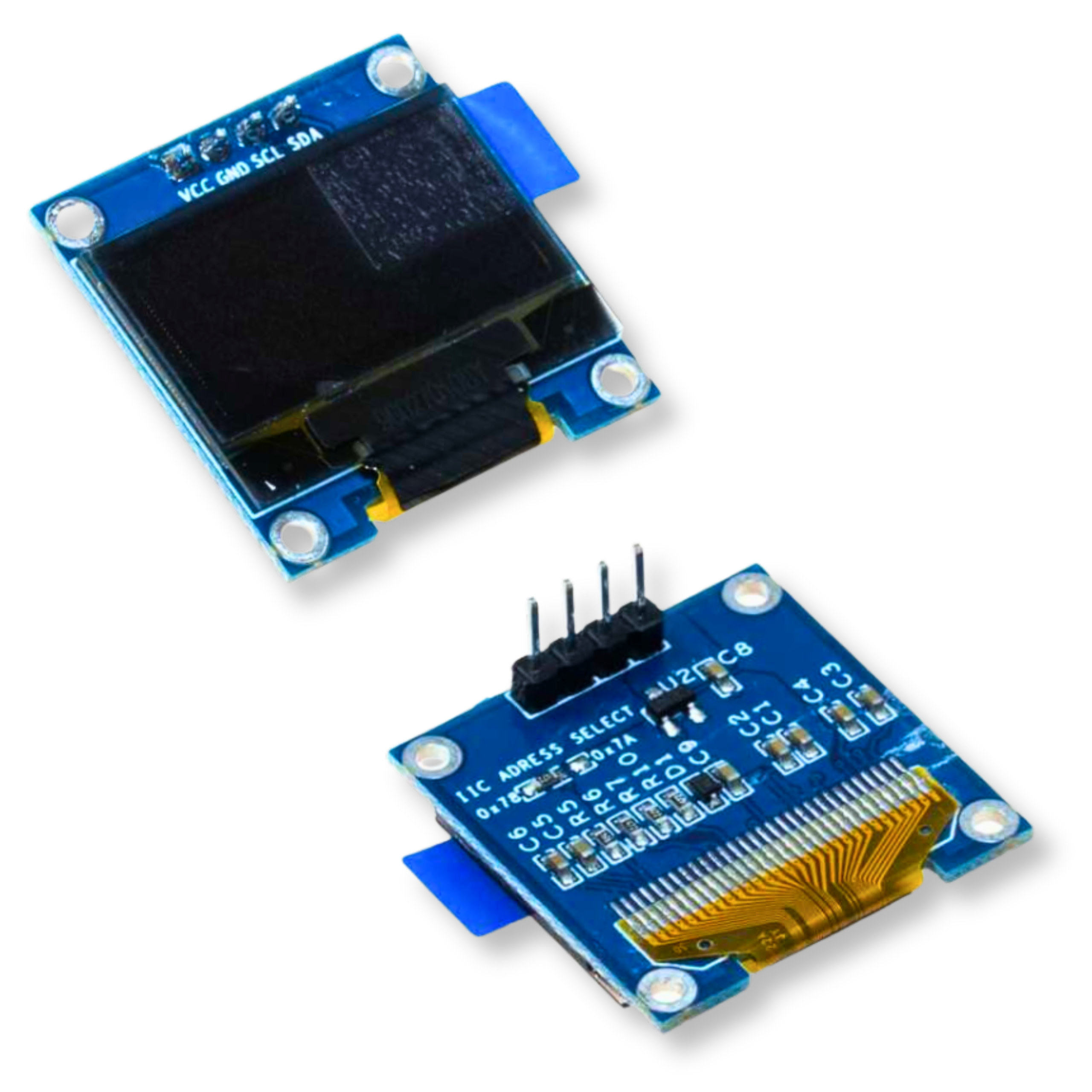

Blue 0.96" OLED display I2C 3-5V SSD1306 128*64 px bright for Arduino

Blue 0.96" OLED display I2C 3-5V SSD1306 128*64 px bright for Arduino

The OLED display features high brightness and contrast, ensuring excellent readability in all conditions. Thanks to a wide viewing angle (over 160°), on-screen information is readable from different perspectives. It is an ideal component for a variety of electronics projects, including use with microcontrollers such as Arduino, ESP8266, ESP32, and Raspberry Pi.

Key technical specifications

• Operating voltage: 3.3 V to 5.0 V
• Driver: SSD1306
• Interface: I2C
• Display type: OLED
• Diagonal: 0.96"
• Resolution: 128 x 64 px
• Display colour: blue
• Viewing angle: over 160°
• Operating temperature: -20°C to 70°C
• Connectors: pin header - 2.64 mm pitch
• Dimensions: 28 x 27 mm

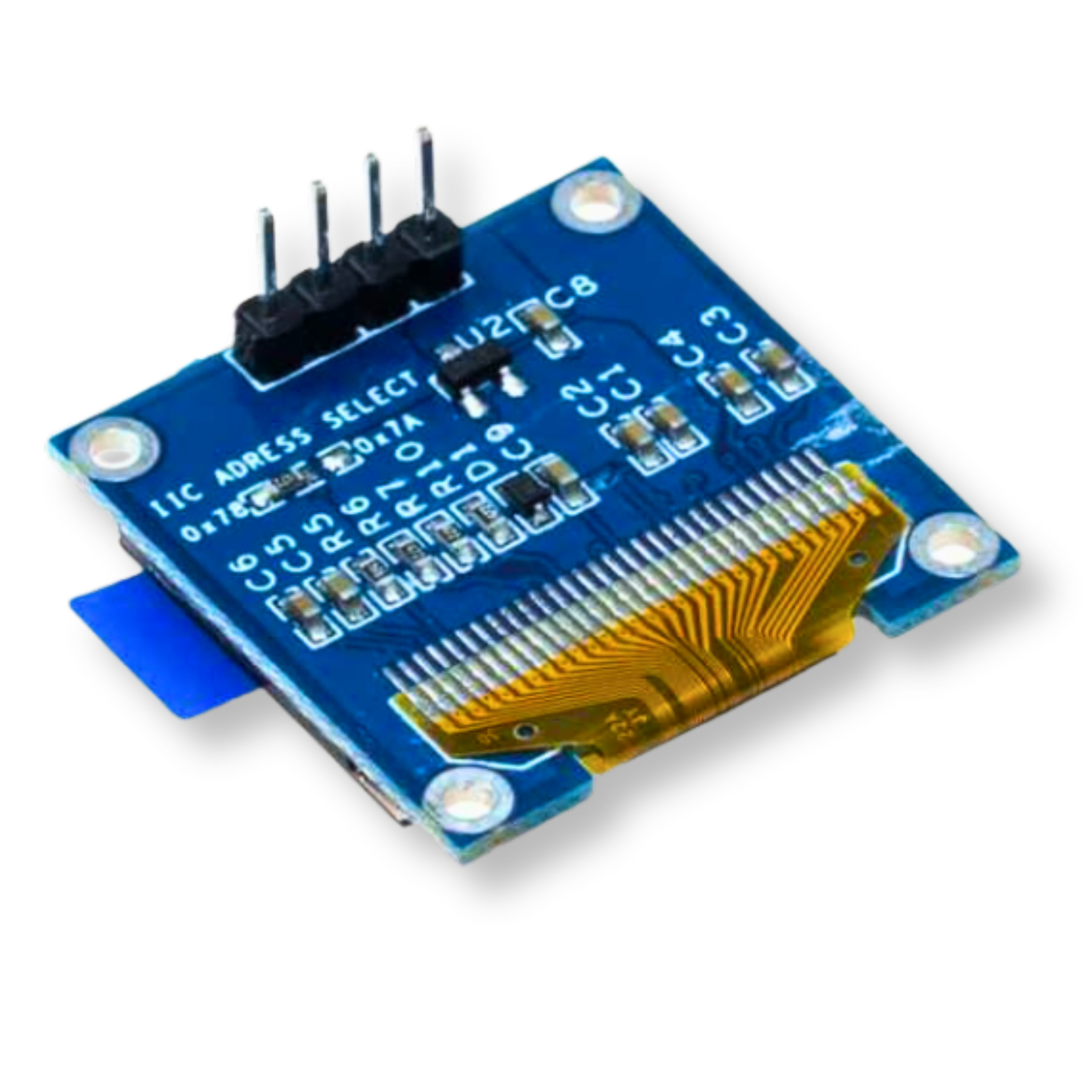

The display address may vary depending on the batch received. Usually it is 0x3C or 0x3D, or 0x78 or 0x7A. In practice, this does not matter unless you are already using those addresses elsewhere.

Example applications

• Visualising sensor data in weather stations
• User interfaces in Smart Home devices
• Information displays in robotics projects
• Miniature retro game consoles
• Displaying operating parameters in monitoring systems

Benefits

• High contrast for excellent readability even in bright environments
• Wide viewing angle allowing reading from almost any perspective
• Low power consumption ideal for battery-powered devices
• Compact dimensions for easy integration in small enclosures
• Easy to use thanks to the popular I2C interface and wide library support
