ESP-01s ESP8266 module with ESP8266EX chip, WiFi for Arduino TCP UDP HTTP
Availability:
duża ilość
Dispatched within:
1 day
Rating:
5
5
Vendor:
OEM
Description
ESP-01s WiFi module with ESP8266EX chip for Arduino

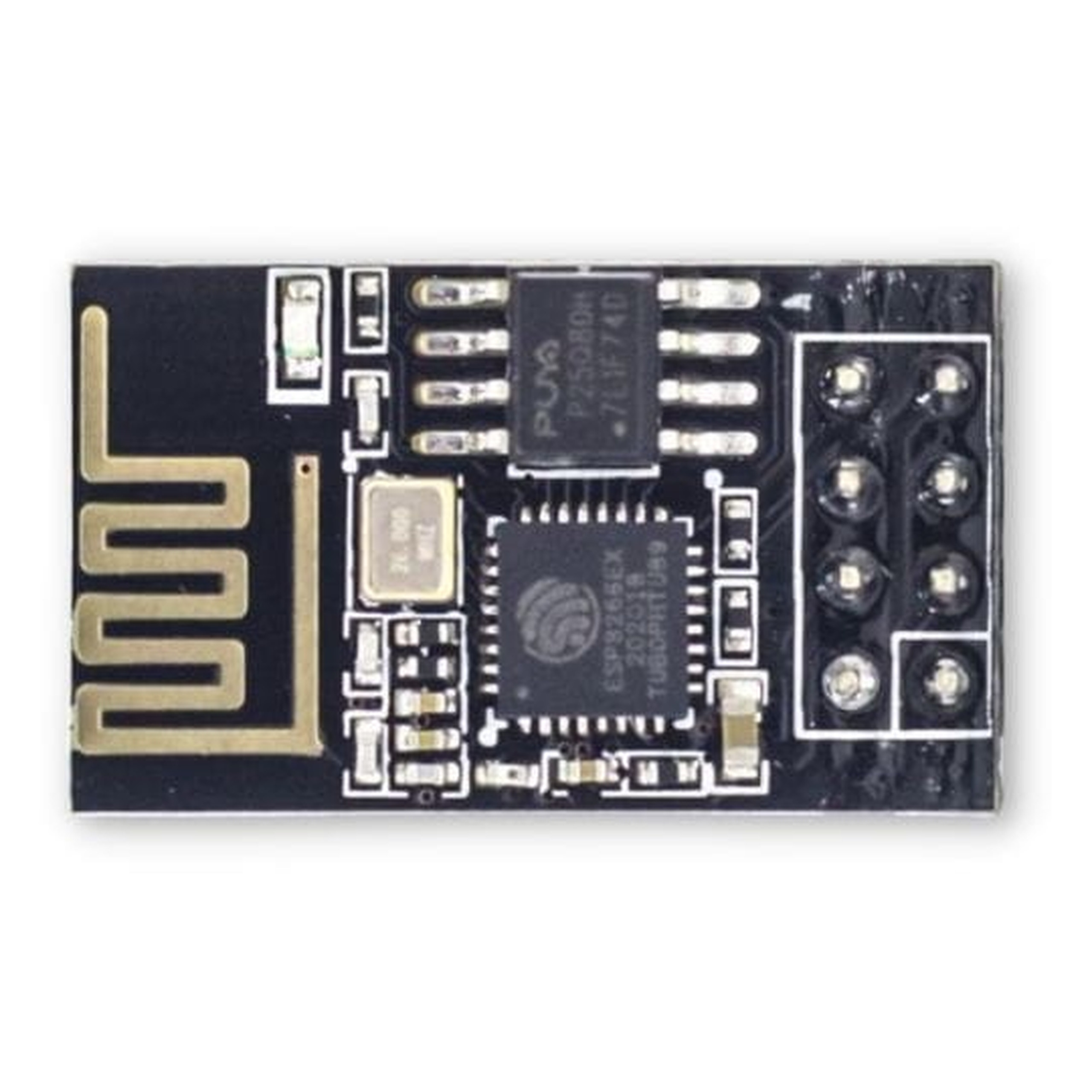

A compact ESP-01S microcontroller module featuring the ESP8266EX chip and built-in WiFi connectivity. The ESP-01S version is an improved iteration of the popular ESP-01 module.
The key change is the integration of pull-up resistors on the RST and CS lines. This eliminates the need for external components when programming the chip. Operating stability has also been improved and wireless communication range slightly increased.

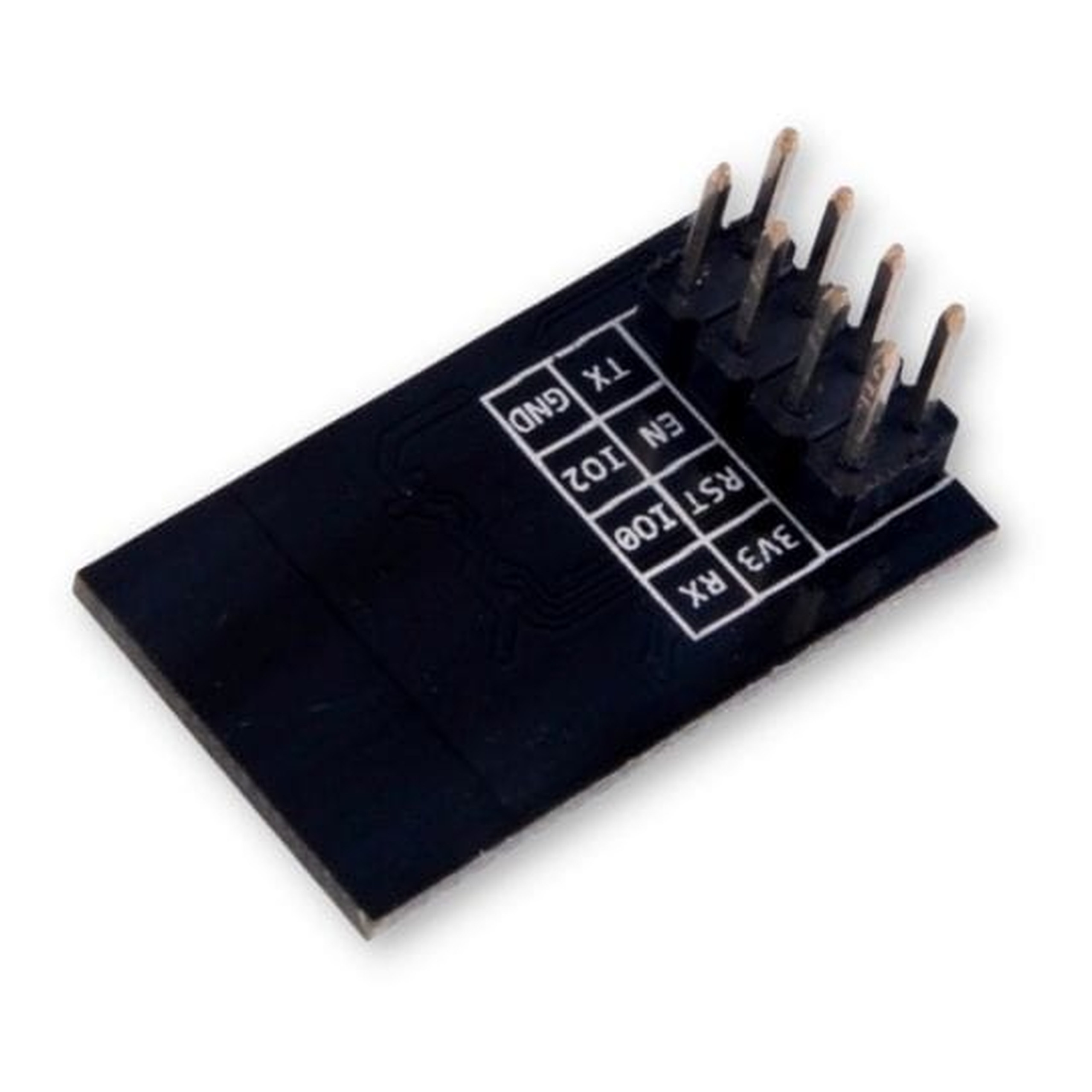

The board is based on Espressif’s ESP8266EX, which offers 1 MB of Flash memory. At its core is a 32-bit RISC Tensilica L106 processor clocked at 160 MHz. For convenience, the bottom of the PCB carries a clear pinout legend.
The module can be programmed using the Lua scripting language, Arduino IDE, or AT commands.
Key technical specifications
- Processor: ESP8266EX Tensilica L106 32-bit 160 MHz
- Supply voltage: 3.3 V
- Current consumption: approximately 80 mA
- FLASH memory: 1 MB
- Built-in PCB antenna
- WiFi standard: 802.11 b/g/n
- Network security: WPA/WPA2
- WiFi modes: AP (Access Point), STA (Standalone), and AP+STA
- Supported protocols: IPv4, TCP/UDP/HTTP
- Operating temperature: from -40 °C to 125 °C
- Available GPIO pins: 2
- UART interface for communication with an external microcontroller or programming
- Pin pitch: 2.54 mm
- Dimensions: 25 x 16 mm
Example applications
- Simple home automation (Smart Home) controllers for Arduino
- Wireless temperature and humidity sensors
- WiFi communication modules for microcontroller boards
- Remote relays controlled over the local network
- Compact HTTP servers for collecting data from sensors
Benefits
- No need for external pull-up resistors thanks to the improved design
- Increased operating stability and better WiFi range compared to the older ESP-01
- Broad programming options-from Arduino IDE to AT commands
- Compact size for easy integration in small projects
- Ready-to-use built-in PCB antenna, so no external antennas are required
