ESP8266 NodeMCU V2 CP2102 WiFi ESP-12E microcontroller for Arduino ESP32 LUA
0
Description

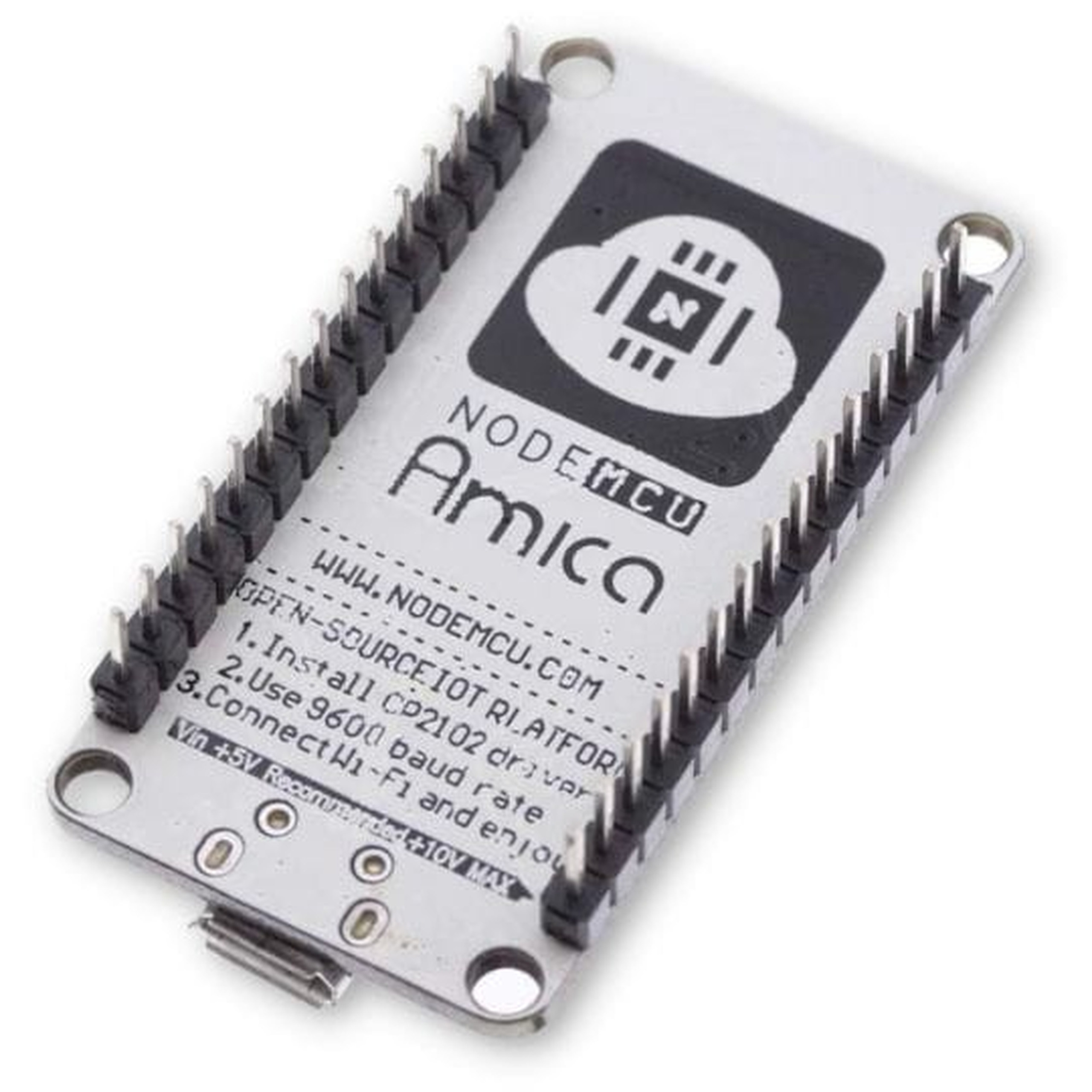

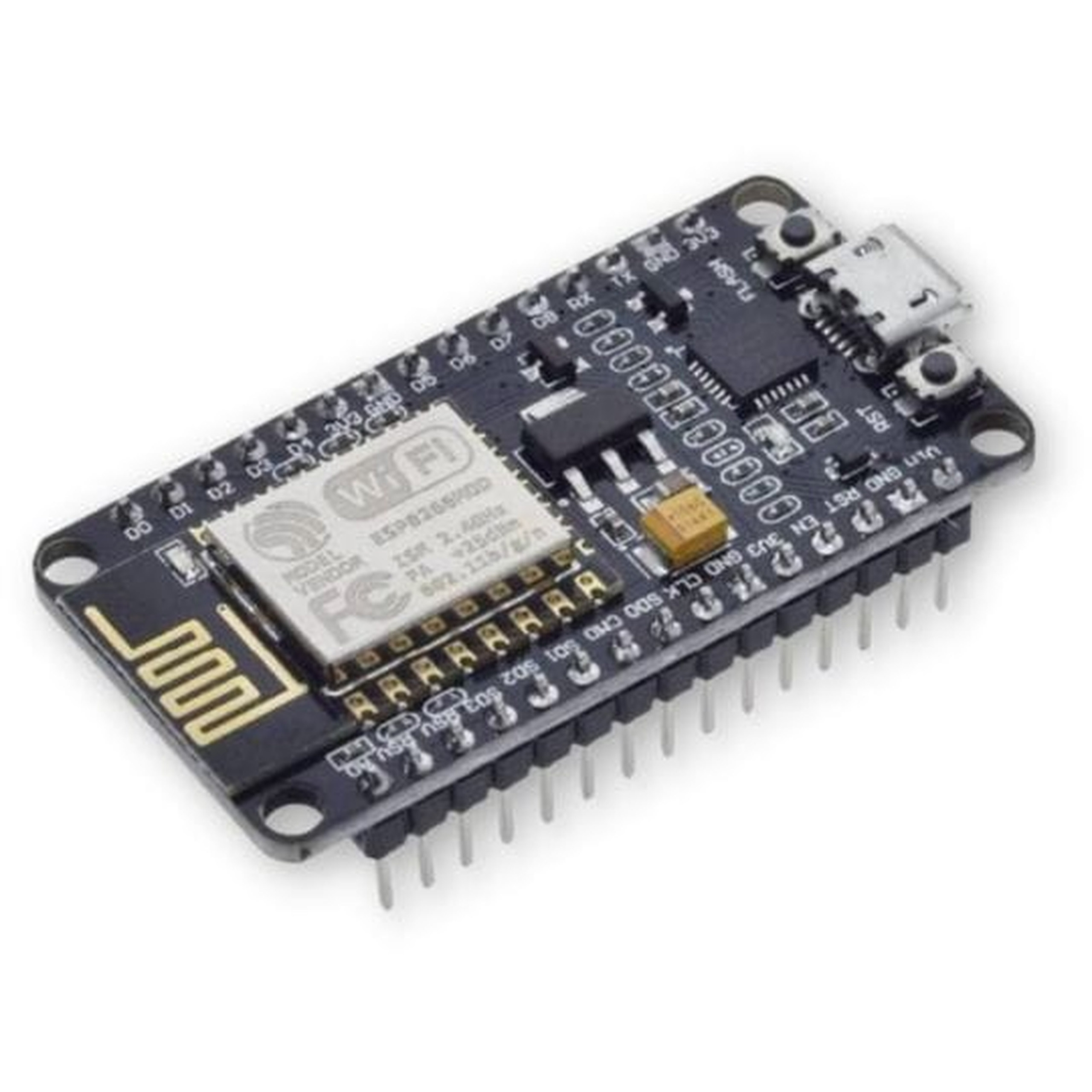

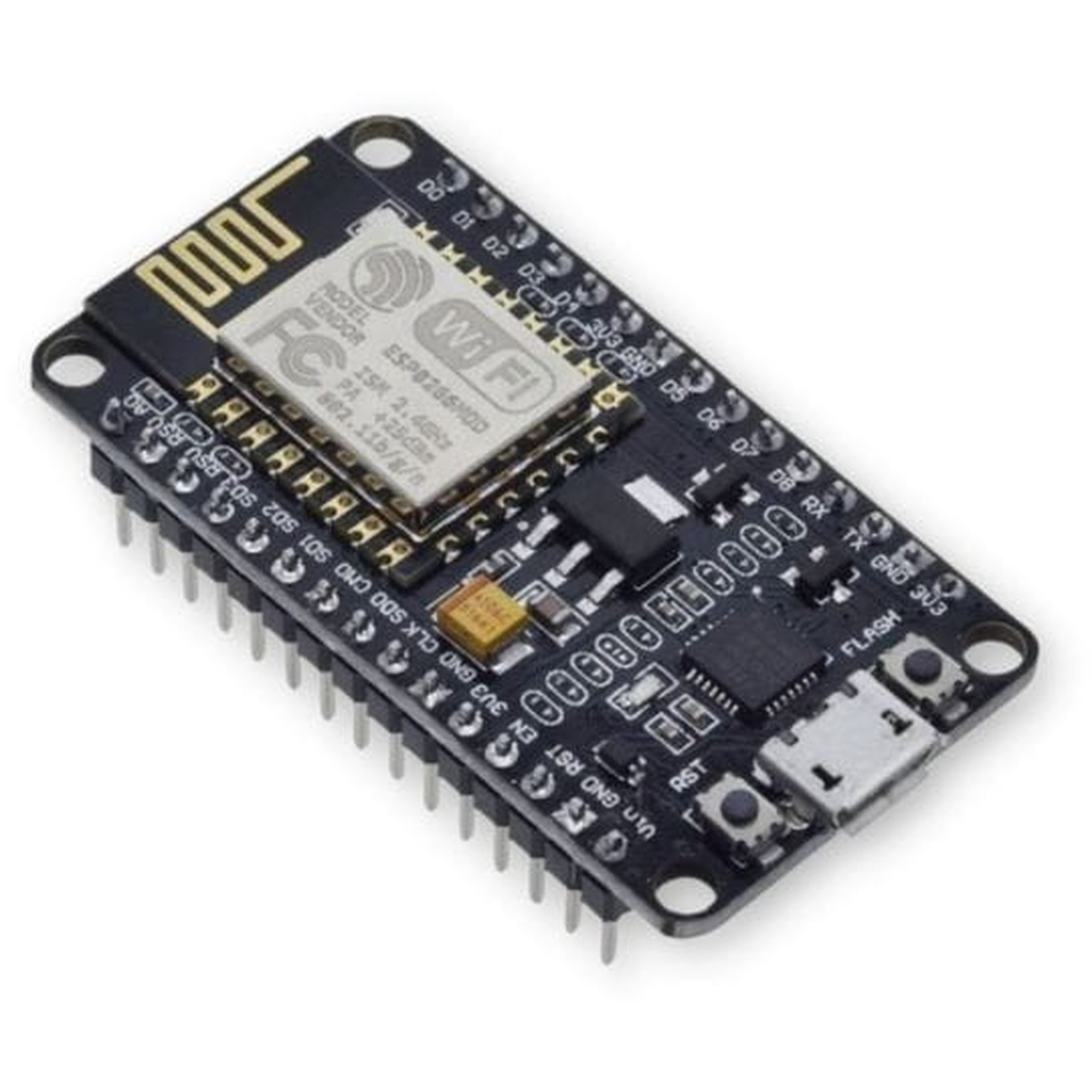

ESP8266 NodeMCU V2 CP2102 WiFi Microcontroller for Arduino
ESP8266 NodeMCU V2 CP2102 WiFi microcontroller is a versatile device recommended for IoT projects and hobby electronics.
With 16 GPIO pins, 1-Wire bus, I2C, an analog-to-digital converter, and a built-in PCB antenna, it offers rich capabilities for a wide range of applications.
The board integrates a USB-UART CP2102 converter, which enables easy programming in the Arduino IDE.
Users can also program the module in MicroPython or Lua, offering even more flexibility in choosing a programming language.
One of the microcontroller’s key features is the ability to program it over WiFi, eliminating the need for a constant connection to a computer. This greatly simplifies developing and testing applications in real-world conditions.
The V2 version of the ESP8266 NodeMCU microcontroller stands out for its board size compared to the V3 model. Its width allows convenient placement on 400 or 830 tie-point breadboards, leaving one row of holes free on each side.
Key technical specifications
- Module based on: ESP8266
- FLASH memory: 4 MB
- SRAM memory: 64 kB
- Converter: USB-UART CP2102
- Voltage regulator: 3.3V
- 16 GPIO: 1 x Analog ADC input, 1 x UART, 1 x SPI, 1 x I2C
- Connector: microUSB
- Antenna: PCB
- WiFi: 2.4 GHz
- Pin pitch: 2.54 mm
- Header spacing: 28 mm
- Dimensions: 49.5 mm x 26 mm x 12 mm
Example applications
- Smart home and building automation
- Weather stations and wireless environmental sensors
- Remote control of relays and LED lighting
- Internet of Things (IoT) projects with cloud connectivity
- Education and learning to program in the Arduino IDE
Benefits
- Fast and easy prototyping thanks to the built-in USB-UART converter
- Convenient mounting on standard breadboards without blocking pins
- Wireless (OTA) programming over WiFi
- Strong community support and broad availability of libraries for Arduino and MicroPython
- Compact dimensions suitable for integration in small enclosures
