EZP2019+ EEPROM FLASH BIOS programmer kit with clip + 6 adapters + USB
Availability:
średnia ilość
Dispatched within:
1 day
Rating:
5
5
Vendor:
OEM
Description
EZP2019+ EEPROM FLASH BIOS programmer kit with clip and adapters

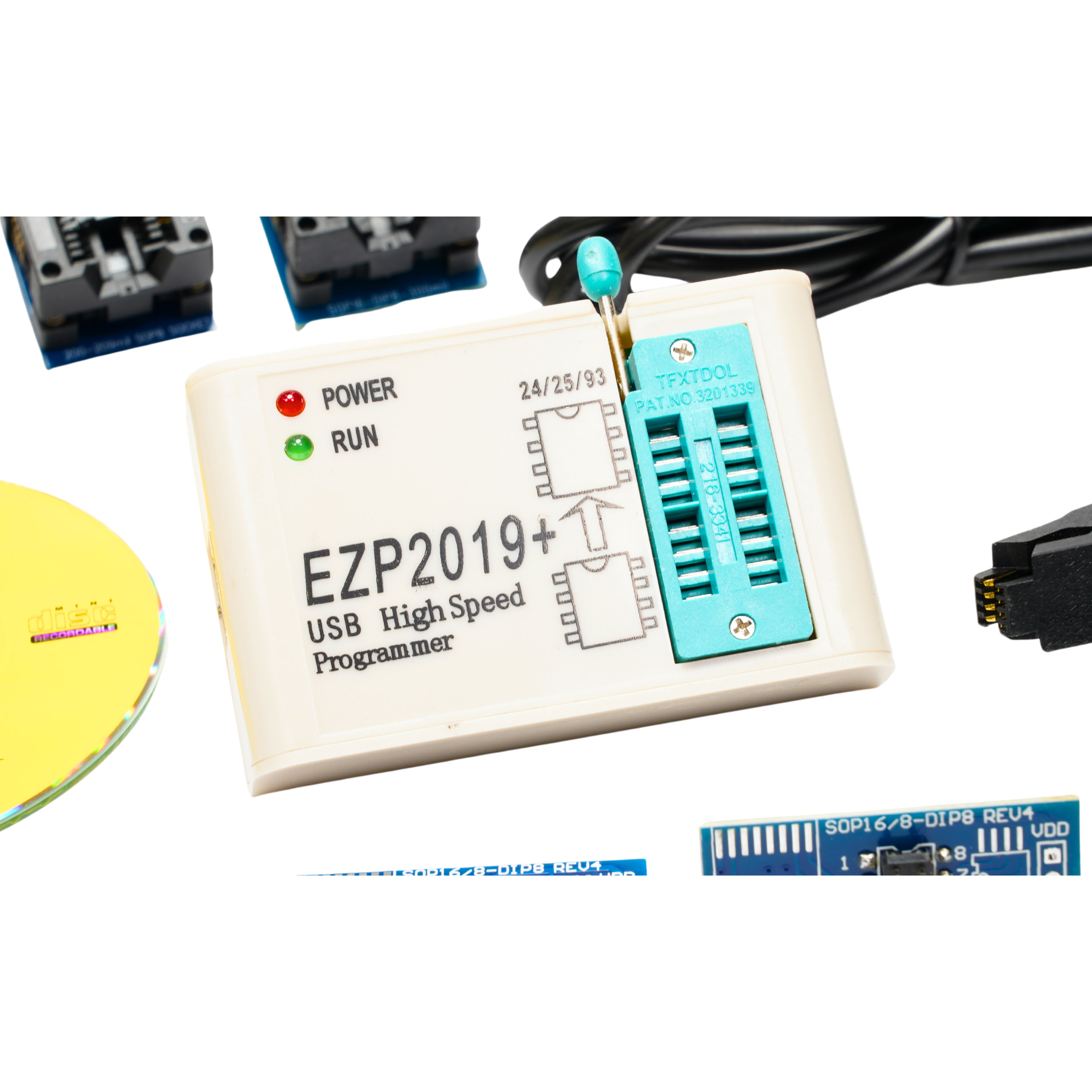

The EZP2019+ programmer with a ZIF-16 socket is a universal USB tool for programming EEPROM and 24, 25 and 93 series FLASH memory. The device supports serial memories via SPI and I2C interfaces, ensuring broad compatibility with various chip types. The kit includes adapters for working with chips powered at 5V, 3.3V and 1.8V.
With the included clip, you can program memory directly on the board without desoldering the chip. Remember not to power the motherboard during the process-the programmer will supply the appropriate voltage on its own. The device features automatic memory type recognition and operating voltage detection, which significantly speeds up use.
Key technical specifications
- Supported memory series: 24XXX (EEPROM), 25XXX (FLASH/EEPROM), 93XXX (automotive EEPROM)
- Communication interfaces: SPI, I2C
- Supported voltages: 5V, 3.3V, 1.8V (via a dedicated buffered adapter)
- Socket: ZIF-16
- PC connection: USB port
- Automatic detection: chip and operating voltage recognition
Example applications
- Programming BIOS chips in desktop and laptop computers
- Repair and modification of AirBag and immobilizer controllers
- Correction and programming of automotive instrument clusters
- Reading and writing memory in consumer electronics and home appliances
- Building and repairing microcontroller-based projects-great for ESP8266, ESP32, Arduino, and Raspberry Pi
Benefits
- Time savings: in-circuit programming with a clip without desoldering
- Safety: automatic voltage selection and chip recognition reduce the risk of damage
- Versatility: a rich set of adapters supports SOP8, SOP16, SOIC8 and DIP8 packages
- Completeness: kit ready to use straight out of the box, includes necessary cables and software
- Support for newer chips: the dedicated 1.8V adapter enables programming modern low-voltage memories

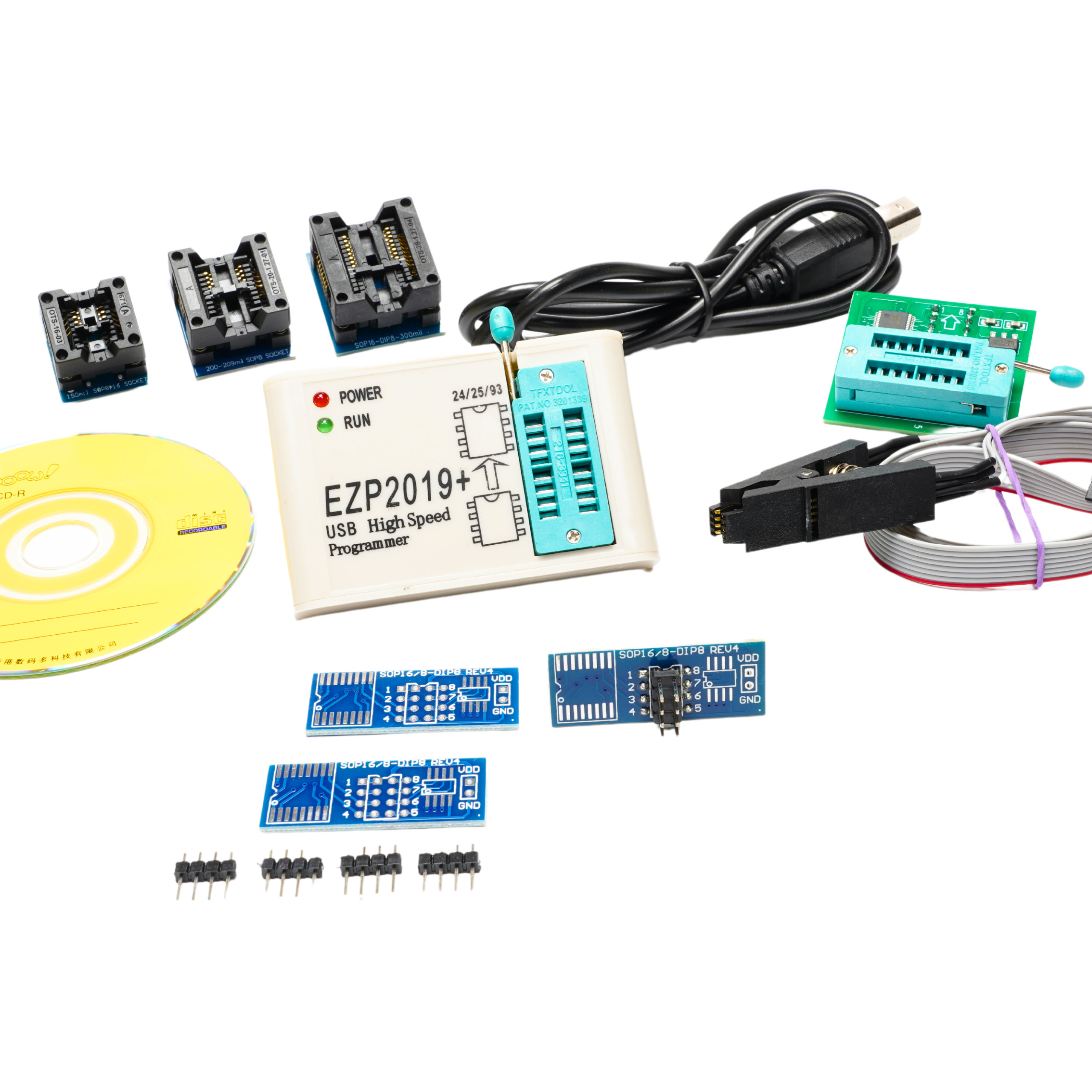

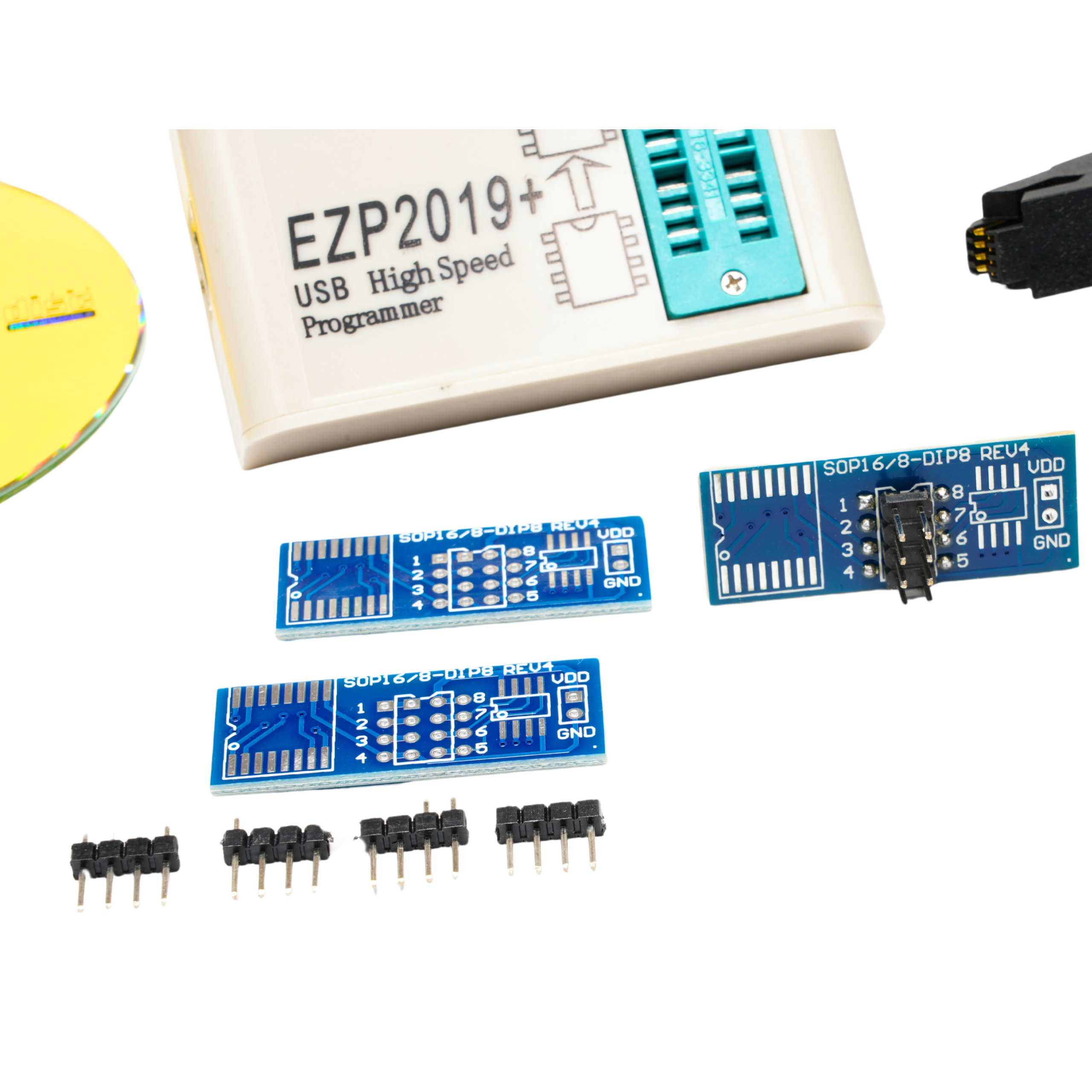

Kit contents
- EZP2019+ programmer with ZIF-16 socket
- In-circuit programming clip for soldered chips (SO8, SOP8, SOIC8)
- 1.8V adapter for low-voltage memories

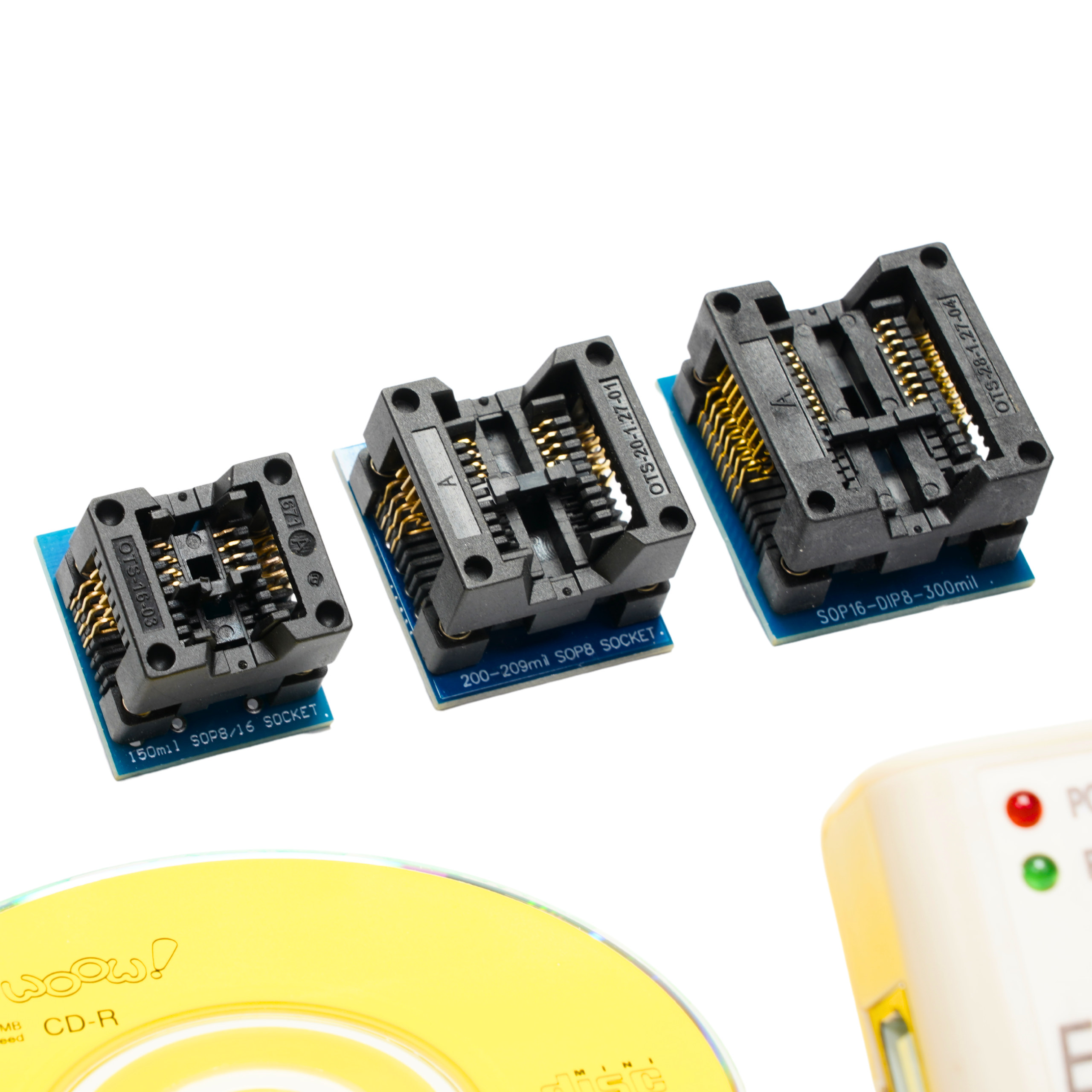

- SO16 / SOP16 adapter: 300mil to DIP8
- SO8 / SOP8 adapter: 200-209mil to DIP8
- SO8 / SOP8 adapter: 150mil to DIP8
- 2x solderable adapter for SOP8, SOP16, SOIC8 packages
- 1x pre-soldered adapter for SOP8, SOP16, SOIC8 packages
- 2x adapters for connecting the clip
- 4x pins: 4x Goldpin each
- USB cable
- Software CD
