Prototype PCB board 3x7 cm double-sided 340 holes printed 2.54 mm

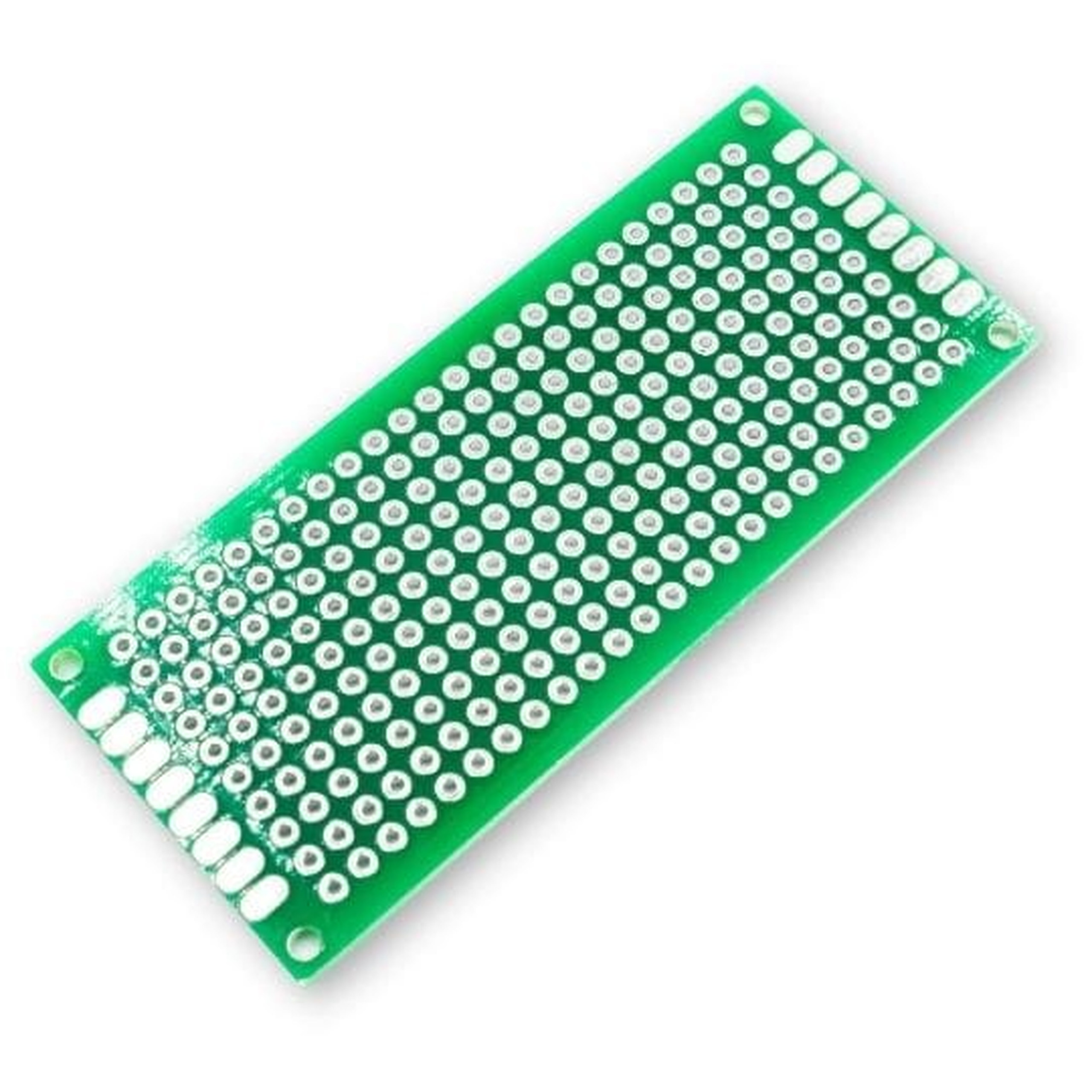

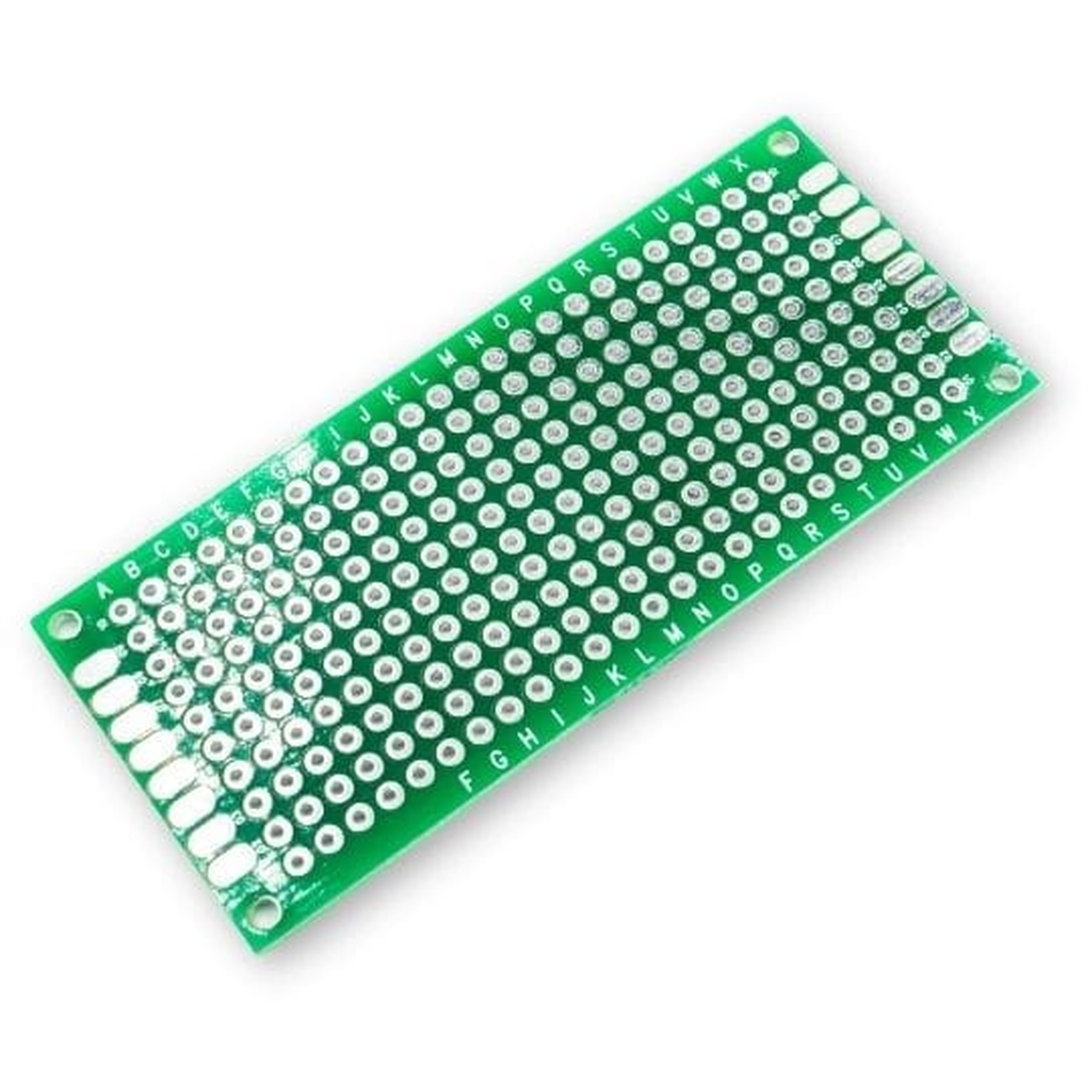

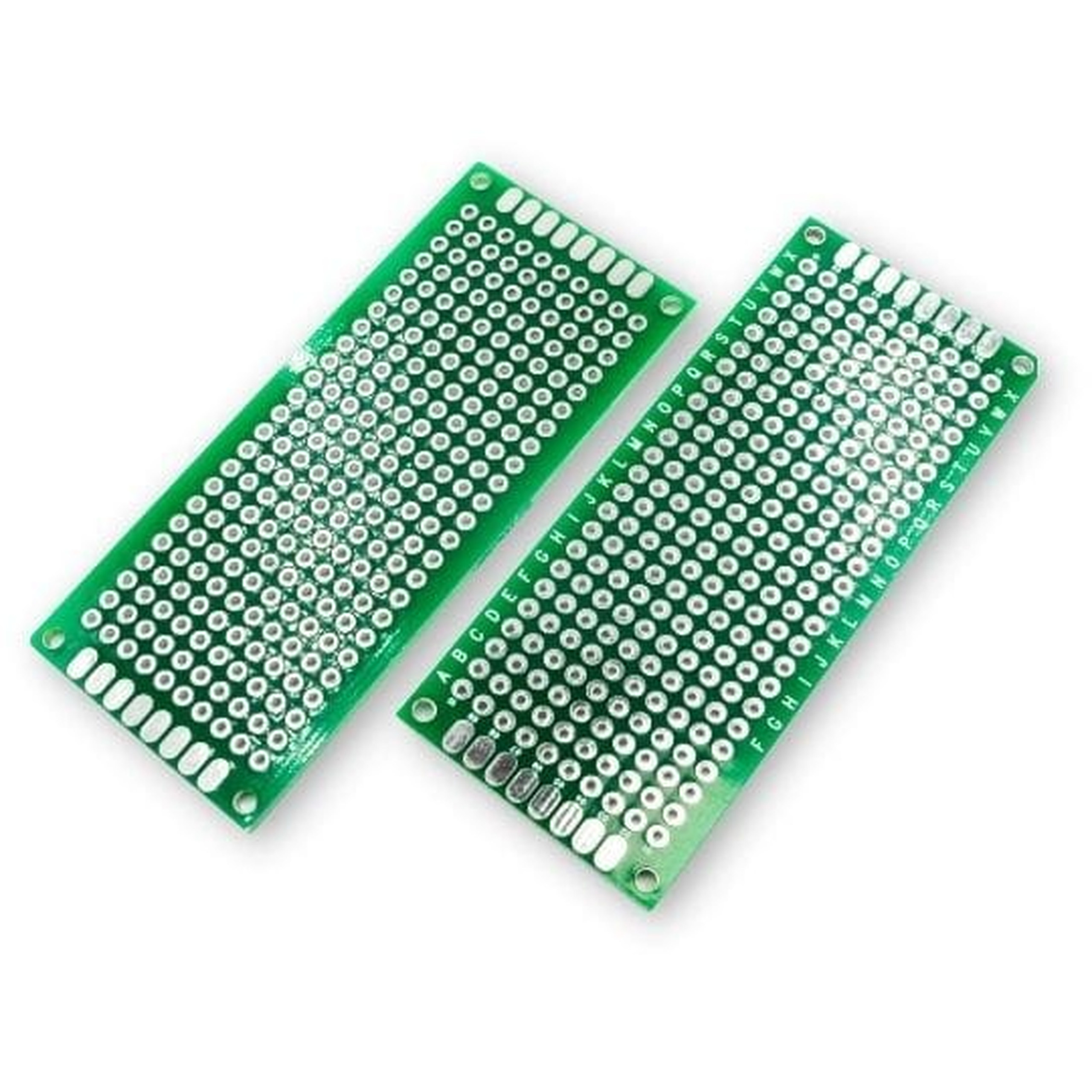

Universal double-sided PCB prototype board 3x7 cm

High-quality double-sided universal board made of solid laminate with a thickness of 1.6 mm. It allows for quick and convenient assembly and disassembly of any electronic circuits without the need for designing, etching, or ordering dedicated printed circuits. It is an excellent solution for creating electrical and electronic circuits as well as prototypes using through-hole technology (THT) components. The board is ideal for projects using platforms such as Arduino, Raspberry Pi, ESP8266, and ESP32. All offered boards come in a professional green color.

Key technical features

• Width: 3 cm
• Length: 7 cm
• Laminate thickness: 1.6 mm
• Number of holes: 340 pads (10 x 34)
• Hole pitch: 2.54 mm
• Type: Double-sided (plated-through holes)

Example applications

• Rapid prototyping of electronic circuits before ordering a dedicated PCB
• Building expansion modules for Arduino or Raspberry Pi
• Creating custom control systems based on ESP32 and ESP8266 microcontrollers
• Assembly and testing of circuits with through-hole (THT) components
• Repair and modification of existing electronic devices

Benefits

• Time-saving - no need to design and etch your own boards
• Reusability - easy disassembly and corrections of soldered components
• High durability - solid 1.6 mm thick laminate prevents bending
• Versatility - standard 2.54 mm pitch fits most components
• Reliable connections - double-sided hole metallization facilitates professional soldering

Single-sided boards and other sizes are available in other auctions.
