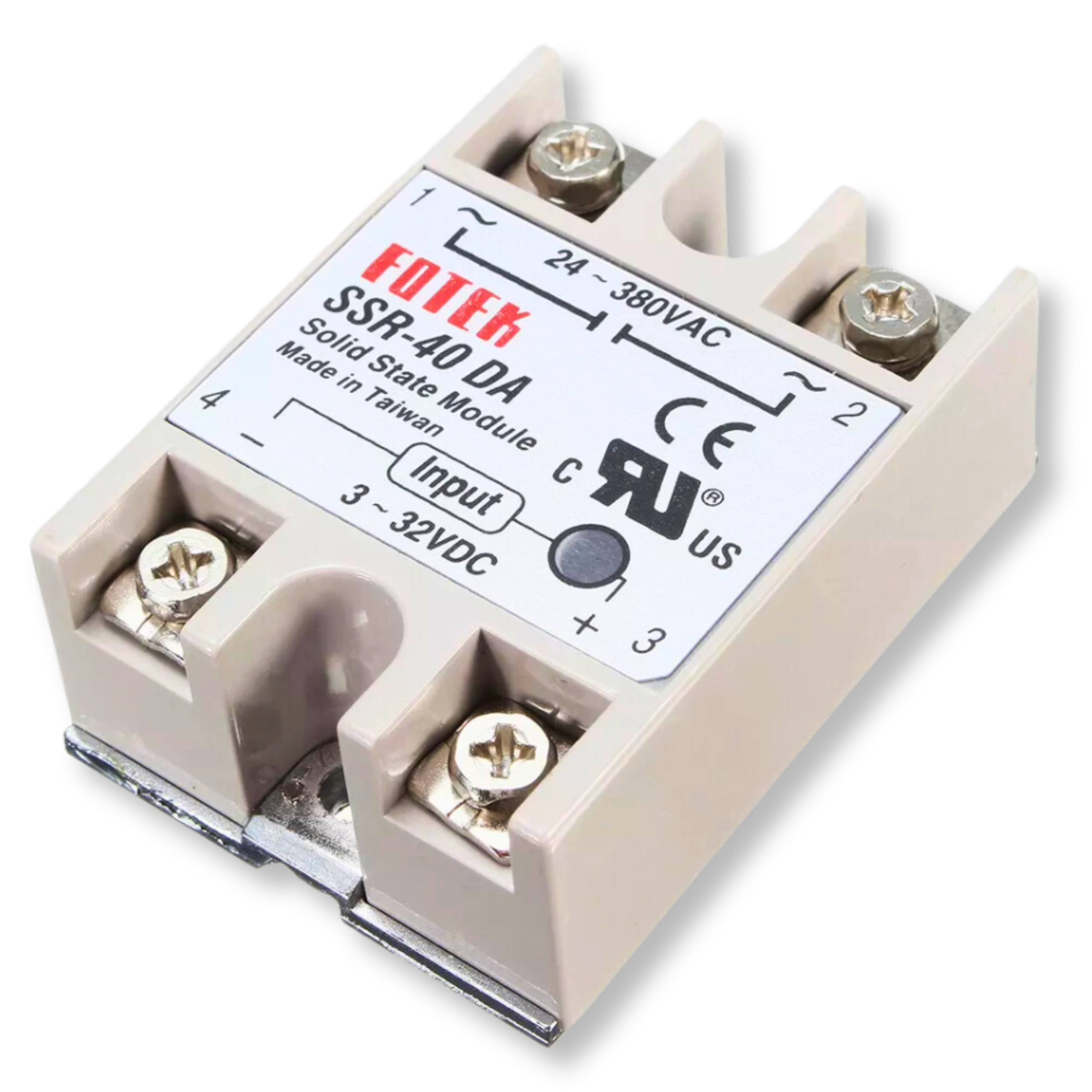

SSR relay 40DA 24-380V 40A controlled 24-380V AC semiconductor module
0
Description
The SSR-40DA solid-state relay is a reliable module designed to control current over a wide voltage range from 24V to 380V AC. Thanks to its non-contact design, the SSR-40DA is spark-proof, making it ideal for wet conditions. The maximum current rating is 40A, making it an excellent choice for switching heavy loads and high-power loads.
The relay operates without the need for mechanical components, ensuring long life and enabling high-frequency current switching. To guarantee trouble-free operation at high powers, we recommend the use of a dedicated heatsink, which effectively dissipates heat and further extends the life of the device.
Specifications:
- Operating voltage: 24V to 380V AC
- Maximum current: 40A
- Control voltage (logic): 3V to 32V DC
- Response time: less than 10ms
- Dimensions: 64mm x 45mm x 22mm
The use of the SSR-40DA solid-state relay ensures safe, quiet and efficient switching even in harsh environments.
