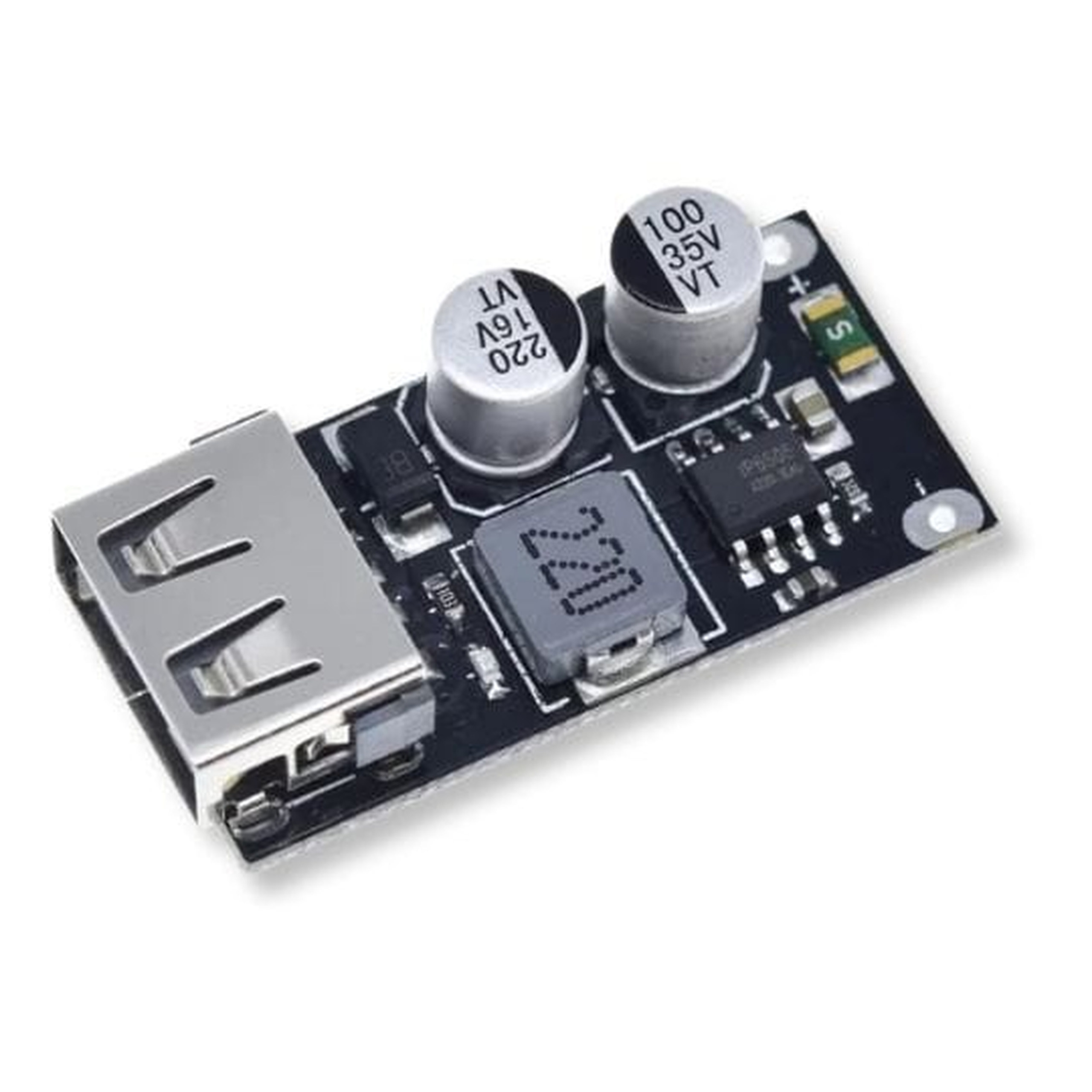

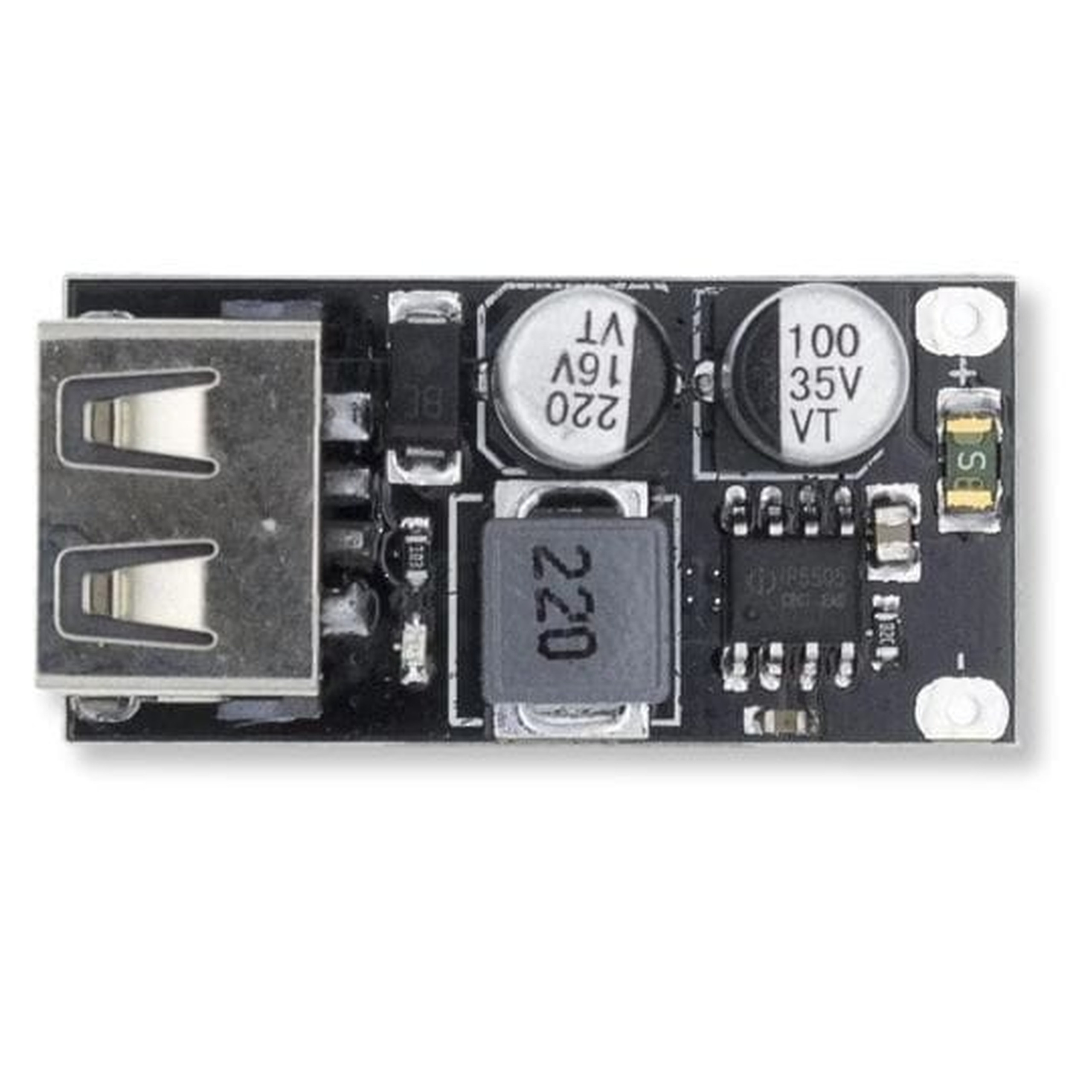

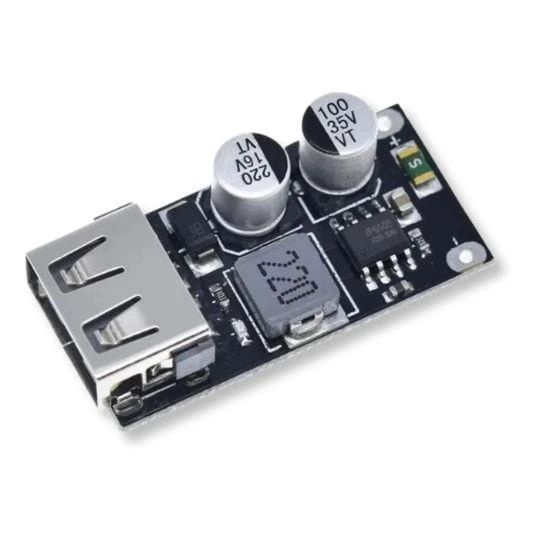

USB QC 3.0 Quick Charge Charger 6-32V to 5V 24W Fast Charging
0
Description
USB QC 3.0 Quick Charge Charger 6-32V to 5V 24W Fast Charging
A compact, efficient step-down charger module compatible with major fast charging standards. It operates from an input voltage of 6-32V, providing a stable default output of 5V. When a fast-charge-capable device is connected, the module automatically adjusts the output voltage in the range of 3V to 12V.
The heart of the converter is the advanced IP6505 controller, which automatically selects the correct charging parameters. When the connected smartphone supports Quick Charge, the circuit immediately enables fast charging mode. Maximum output power is 24W.
Key technical specifications
- Step-Down DC-DC converter based on the IP6505 IC
- Input voltage: 6 - 32V
- Output voltage: default 5V, QuickCharge 2.0/3.0 support from 3 - 12V
- Maximum output power: 24W
- Connectors: USB type A output, through-hole solder pads input

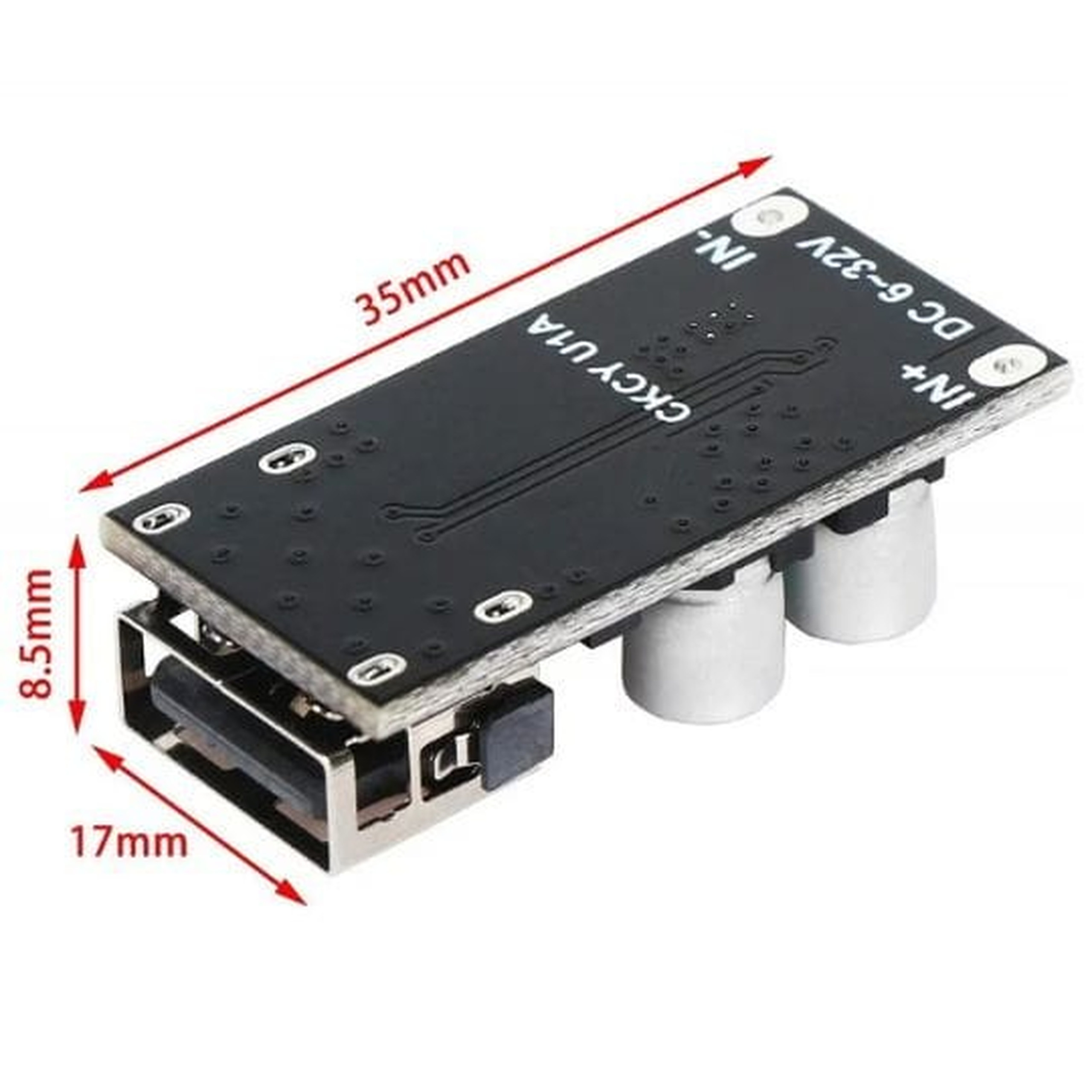

- Module dimensions: 35 x 19 x 9 mm
Protection and supported standards
The module includes a comprehensive protection system, including an input fuse. It provides input overvoltage and overcurrent protection and output overcurrent and short-circuit protection, ensuring safe operation and protection against overheating.

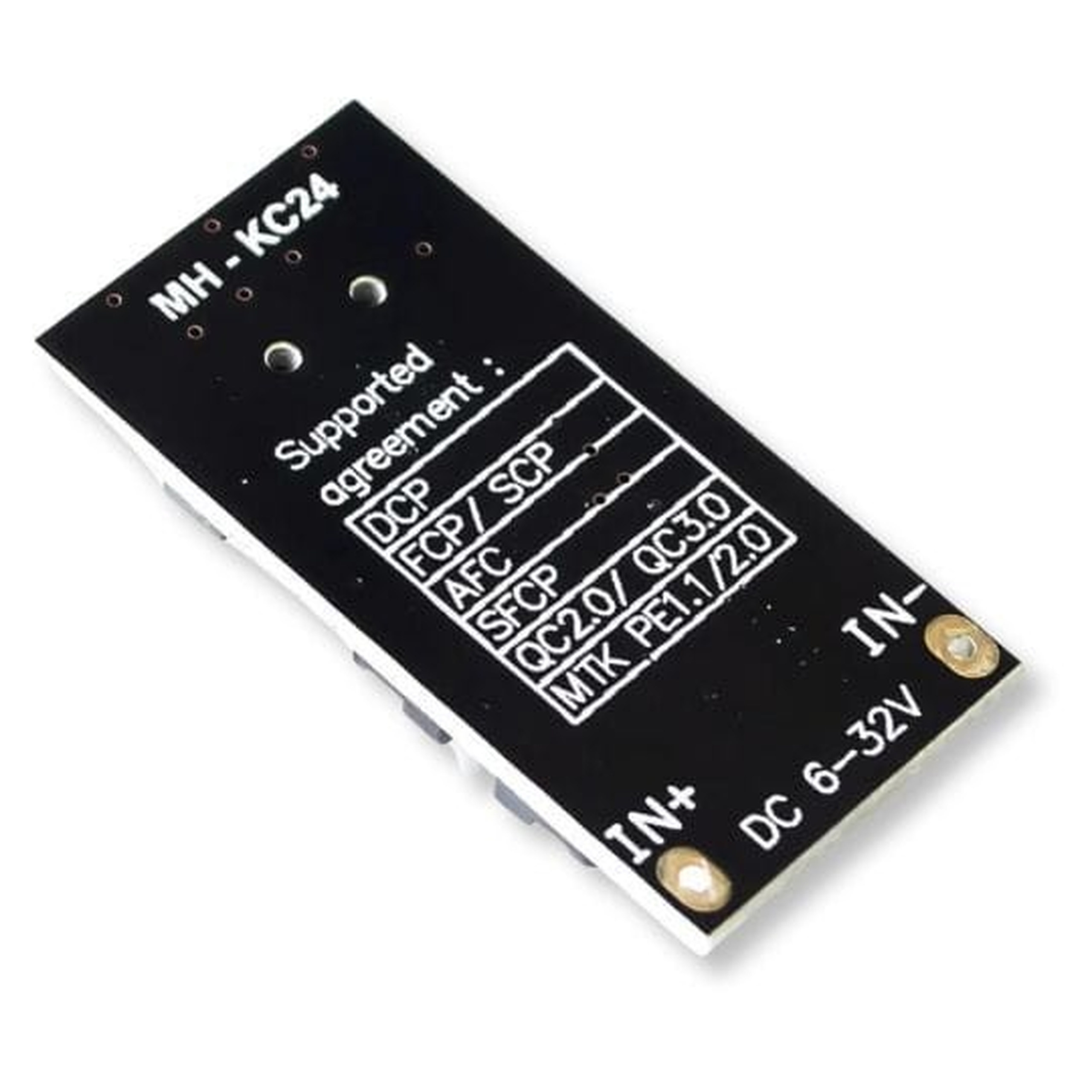

The IP6505 supports the most popular fast charging standards:
- Qualcomm Quick Charge 2.0 and 3.0
- DCP, BC1.2 and Apple and Samsung standards
- Huawei Fast Charge Protocol (FCP/SCP) and Adaptive Fast Charging (AFC)
- Spreadtrum Fast Charge Protocol (SFCP)
- MediaTek Pump Express 1.1 and 2.0 (PE1.1/PE2.0)
Example applications
- Fast car charger powered from the vehicle electrical system
- Building a high-performance power bank using Li-Ion battery packs
- Power systems working with solar panels
- Upgrading older power supplies with USB fast charging
- DIY projects requiring stable 5V from a higher input voltage
Benefits
- Automatic adjustment of voltage and charging parameters to the connected device
- Wide input voltage range (6-32V) for powering from many sources
- High 24W output power for shorter mobile device charging times
- Compact size for easy mounting in small enclosures and projects
- Built-in protections for both the module and the charged devices
