White 0.91 OLED I2C 3-5V LCD 128×32 bright display for Arduino Raspberry

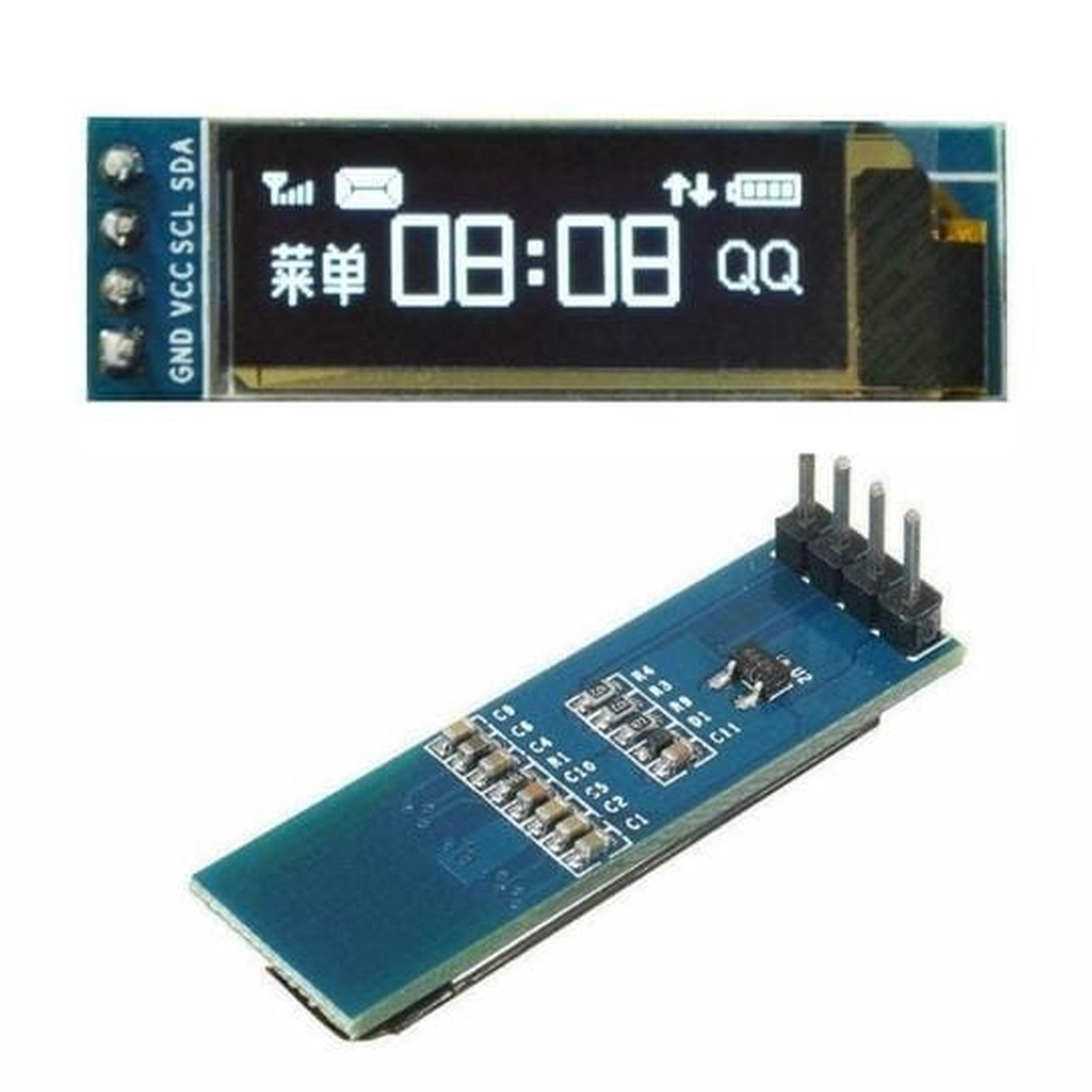

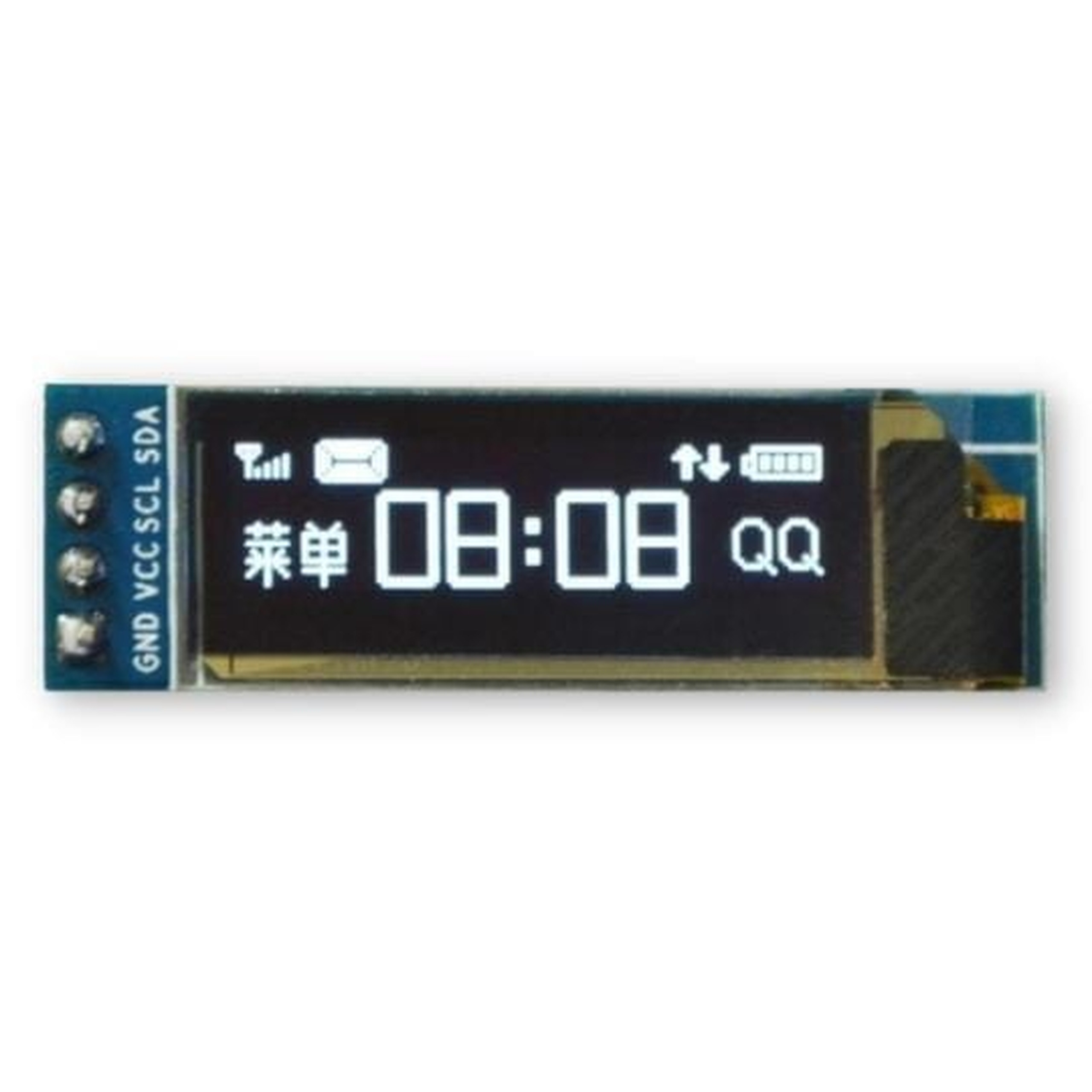

Product description: White 0.91" I2C OLED display

A compact white OLED display with a 0.91 inch diagonal and 128x32 pixel resolution. The module is based on the SSD1306 controller. The screen has low power consumption, up to a maximum of 0.08 W, making it an energy-efficient solution. Communication with the microcontroller takes place via the I2C interface. The module is powered from 3.3 V to 5 V. The product is compatible with popular platforms - Arduino, Raspberry Pi, ESP8266, and ESP32.

The display is fitted with goldpin and PH2.0 connectors, which provides flexible wiring options. The PCB dimensions are 38 mm x 12 mm, making it ideal for small projects. It has a wide viewing angle, greater than 160 degrees. The OLED display is a suitable solution for projects that need a small, sharp, and energy-efficient screen.

Key technical specifications

• Supply voltage: 3.3 V - 5 V
• Display type: OLED
• Display color: white
• Screen diagonal: 0.91"
• Resolution: 128x32 pixels
• Communication: I2C
• Power consumption: maximum 0.08 W
• Controller: SSD1306
• Connectors: goldpin and PH2.0
• PCB dimensions: 38 mm x 12 mm
• Viewing angle: greater than 160 degrees

Example applications

• Miniature weather stations and environmental parameter monitors
• Compact wearable devices and activity monitors
• User interfaces in Smart Home modules
• Status displays in DIY and robotics projects
• Portable measuring instruments and testers

Benefits

• High contrast thanks to OLED technology, delivering a sharp image without a backlight
• Simple communication via the I2C bus, requiring only two signal wires
• Versatile power supply (3.3 V - 5 V) allowing direct use with many microcontrollers
• Low current draw enabling use in battery-powered applications
• Compact size making integration easier in space-constrained projects
