White SSD1327 1.5" OLED i2C 3-5V display with 256-level grey scale
Availability:
brak towaru
Rating:
0
0
Vendor:
OEM
Description

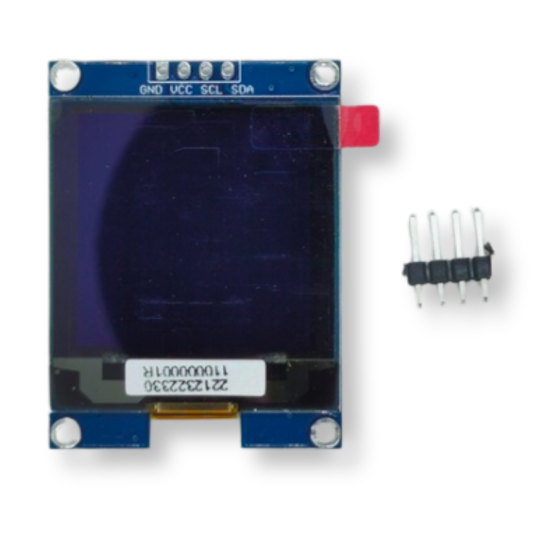

The SSD1327 1.5" OLED Display with Grey Scale is an advanced display module with a resolution of 128 x 128 pixels, ideal for a variety of electronic projects. Using the SSD1327 controller, the display offers a 16-degree grey scale, providing exceptional image quality and a wide viewing angle.
Specification:
- Power supply voltage of module: 3.3V / 5V
- Control circuit: SSD1327
- Module interface: I2C
- Display colour: white
- Resolution: 128 x 128 pixels
- Grey scale: 16 degrees
- Built-in display buffer: SRAM 128 x 128 x 4 bits
- PCB size: 34.3 mm x 48.5 mm x 1.6 mm
- Size of display alone: 45.5 x 34.3 mm
- Angle of vision: greater than 160°
- option: possibility to set the contrast with 256 levels
- Operating temperature: -40°C to 85°C

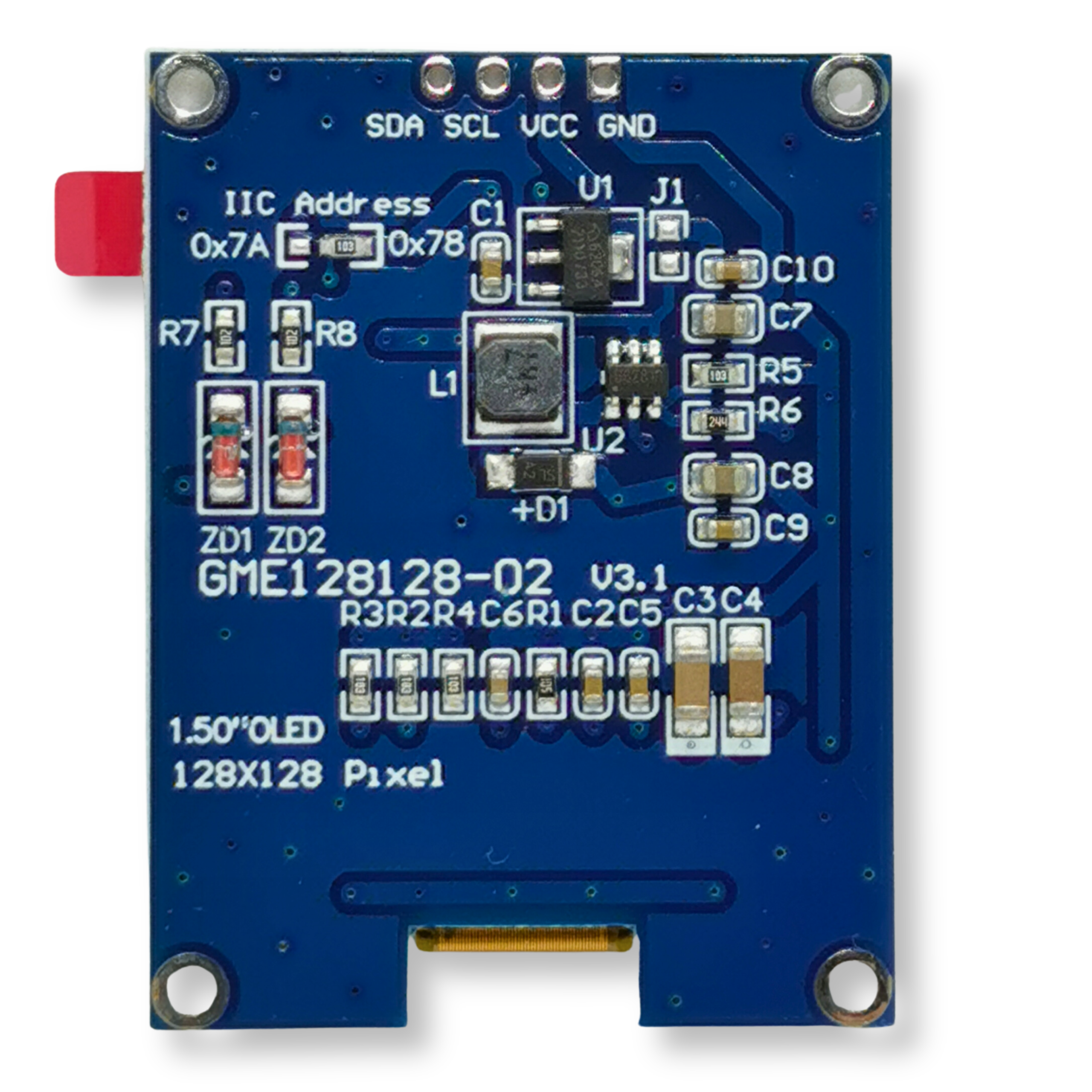

Pin definitions:
- VCC: 3.3V or 5V power supply
- GND: ground
- SCL: I2C bus clock
- SDA: I2C bus data
This OLED display is ideal for advanced applications where high image quality and energy efficiency are important. With a wide operating temperature range and the ability to fine-tune the contrast, it is the ideal choice for demanding users.
