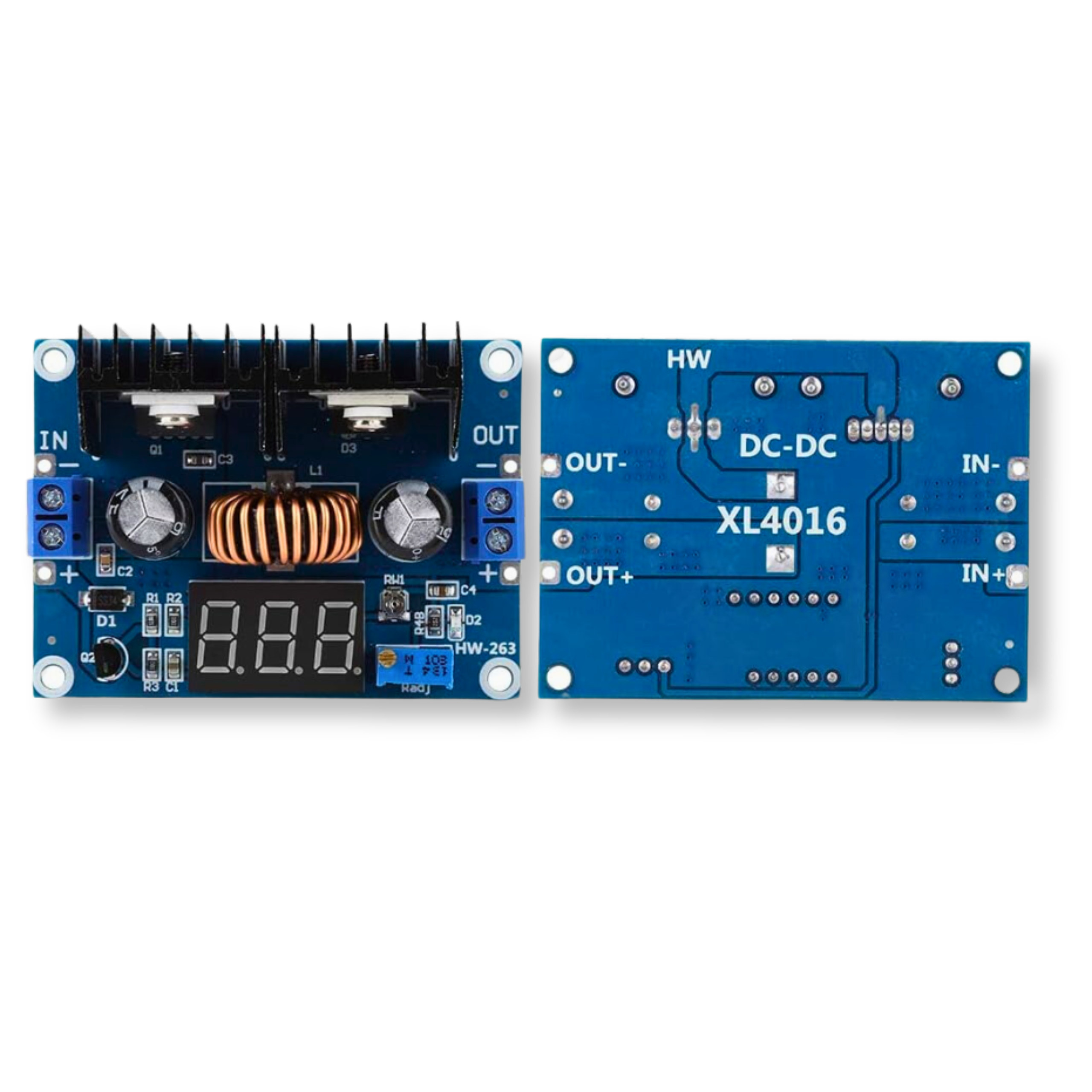

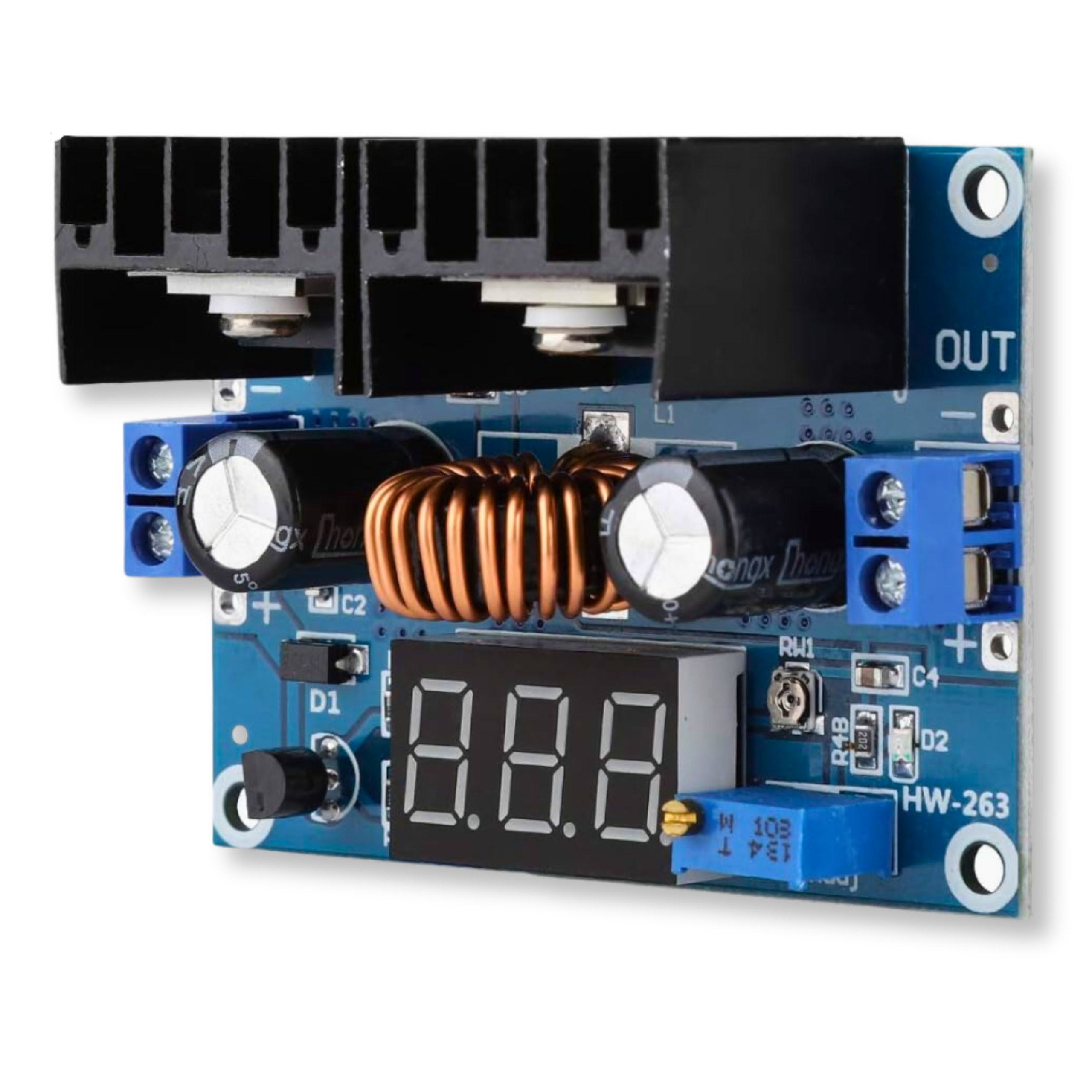

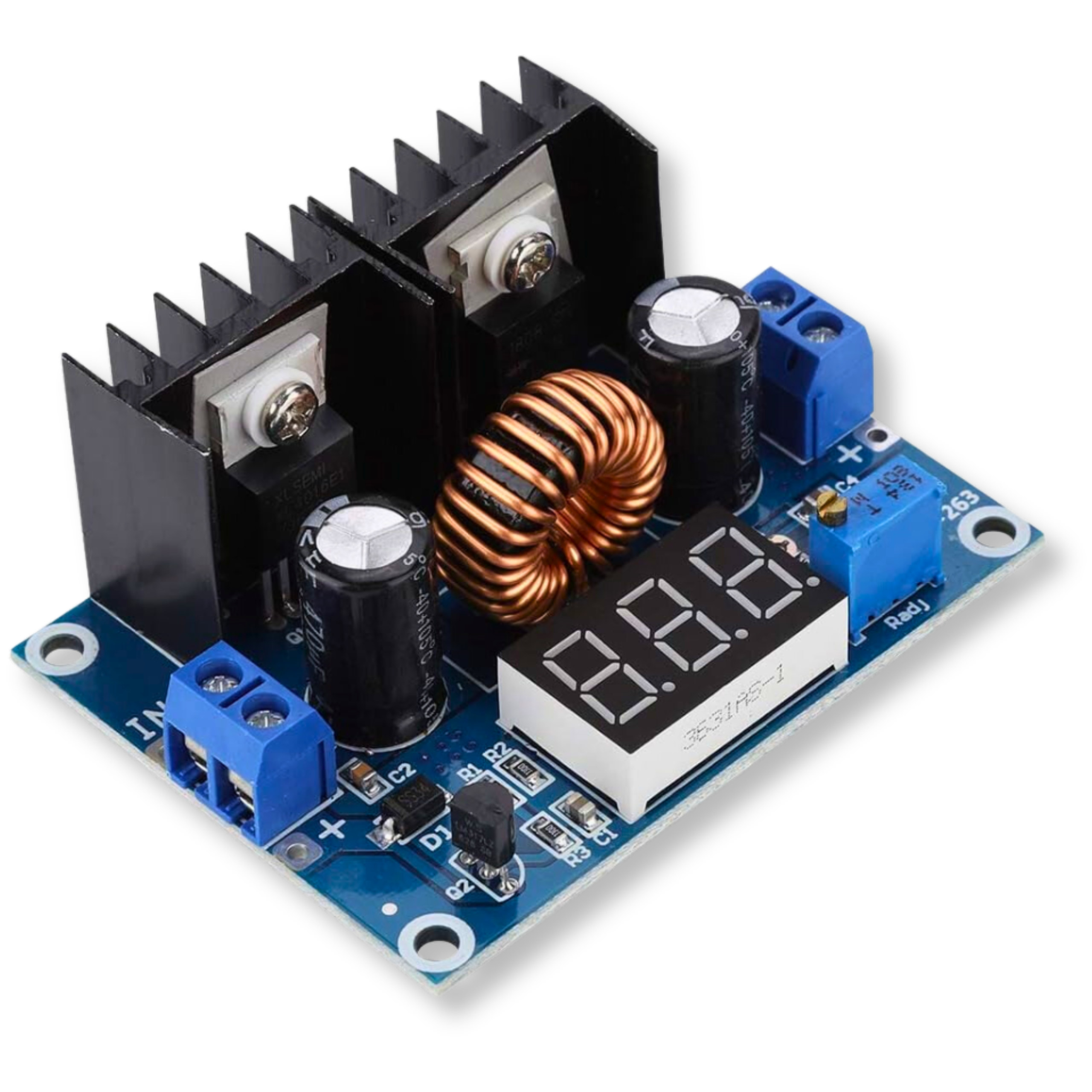

XL4016 DC-DC Step-Down 1.25-36V 8A Buck Converter + Display

XL4016 DC-DC Step-Down 1.25-36V 8A Buck Converter + Display for Arduino, ESP32, ESP8266, Raspberry Pi

XL4016 step-down converter is a high-performance device for stepping down DC voltage. The module features a clear display and allows smooth adjustment of the output voltage over a wide range from 1.25V to 36V. The device supports current up to 8A. Thanks to a large heatsink, the converter provides effective cooling, which significantly improves its efficiency and operating stability.

Built-in protection guards the circuit against reverse polarity connection, making the module fully safe to use. This protection is implemented with a Schottky diode, which effectively prevents damage to the electronics if power is connected incorrectly.

Key technical specifications

• Converter type: Step-Down (buck)
• Input voltage: 5V - 40V DC
• Output voltage: 1.25V - 36V DC
• Maximum current: 8A (5A recommended without additional cooling)
• Module dimensions: 70mm x 48mm x 28mm
• Additional equipment: Integrated output voltage display

Example applications

• Powering microcontroller boards such as Arduino, ESP32, ESP8266, and Raspberry Pi
• Building bench/lab power supplies with voltage regulation
• Powering LED strips and modules that require stable voltage
• Stepping down voltage in automotive and photovoltaic installations
• Powering DC motors in robotics projects

Benefits of choosing this module

• Circuit safety thanks to built-in reverse polarity protection
• Easy parameter monitoring with the integrated voltage display
• High current capability for demanding projects
• Stable operation ensured by the factory-fitted large heatsink
• Versatile use thanks to the wide output voltage adjustment range
