Adapter HAT AI! PCIe to Raspberry Pi 5 on Google Coral Edge from Pineberry Pi

Availability: brak towaru
Price: €18.63
incl. 23% TAX, excl. shipping costs
18.63
quantity pcs

product unavailable

add to wish list
Rating: 0
Vendor: Pineberry Pi

Description

Hat Ai! is an innovative module designed for Raspberry Pi 5 users that breaks new ground in machine learning by integrating with Google's Coral Edge TPU. The device has been specifically designed to work with the Raspberry Pi 5, offering seamless integration. Hat Ai! supports the Coral TPU in M.2 format with an E-key interface, allowing the advanced machine learning capabilities of the Coral TPU to be used in conjunction with the versatility of the Raspberry Pi 5.

The module maintains compatibility with the PCIe x1 interface, supporting Gen2 and Gen3 standards for high performance and reliability. In addition, the Hat Ai! is equipped with an LED indicator for power monitoring and a dedicated I2C EEPROM.

Because the module is mounted underneath the Raspberry Pi, it does not block access to the GPIO, similar to the HatDrive! Bottom. The Hat Ai! also uses high-quality electronic components and a durable 4-layer PCB to ensure long-lasting and stable operation.

Everything you need for a quick and easy installation of the Coral TPU is included, including dedicated PCIe FPC tape, spacers, M2.5 screws and an M.2 card mounting spacer.Hat Ai! is ideal for those who want to harness the potential of machine learning in their Raspberry Pi 5 projects.

Product designed in Poland.

Specification:

  • Specially designed for Raspberry Pi 5: Dedicated for the latest Raspberry Pi 5 minicomputer
  • Mounting under Raspberry Pi: Hat Ai! does not block access to GPIOs, nor does HatDrive! Bottom
  • Compatibility with Coral TPU: Supports Coral TPU in M.2 format with E-key interface
  • PCIe x1 interface support: Compatibility with PCIe x1 interface, support for Gen2 and Gen3 standards
  • LED indicator: Equipped with one LED to monitor power input
  • M.2 compliant power system: Integrated voltage regulator delivering up to 3A for 3.3V rail, compliant with M.2 standard (NGFF)
  • Easy mounting of Edge TPU: Fast and secure mounting of Coral TPU M.2 (2230) thanks to specially designed metal bracket
  • Friendly PCB markings: Clearly labelled PCBs for ease of installation and use

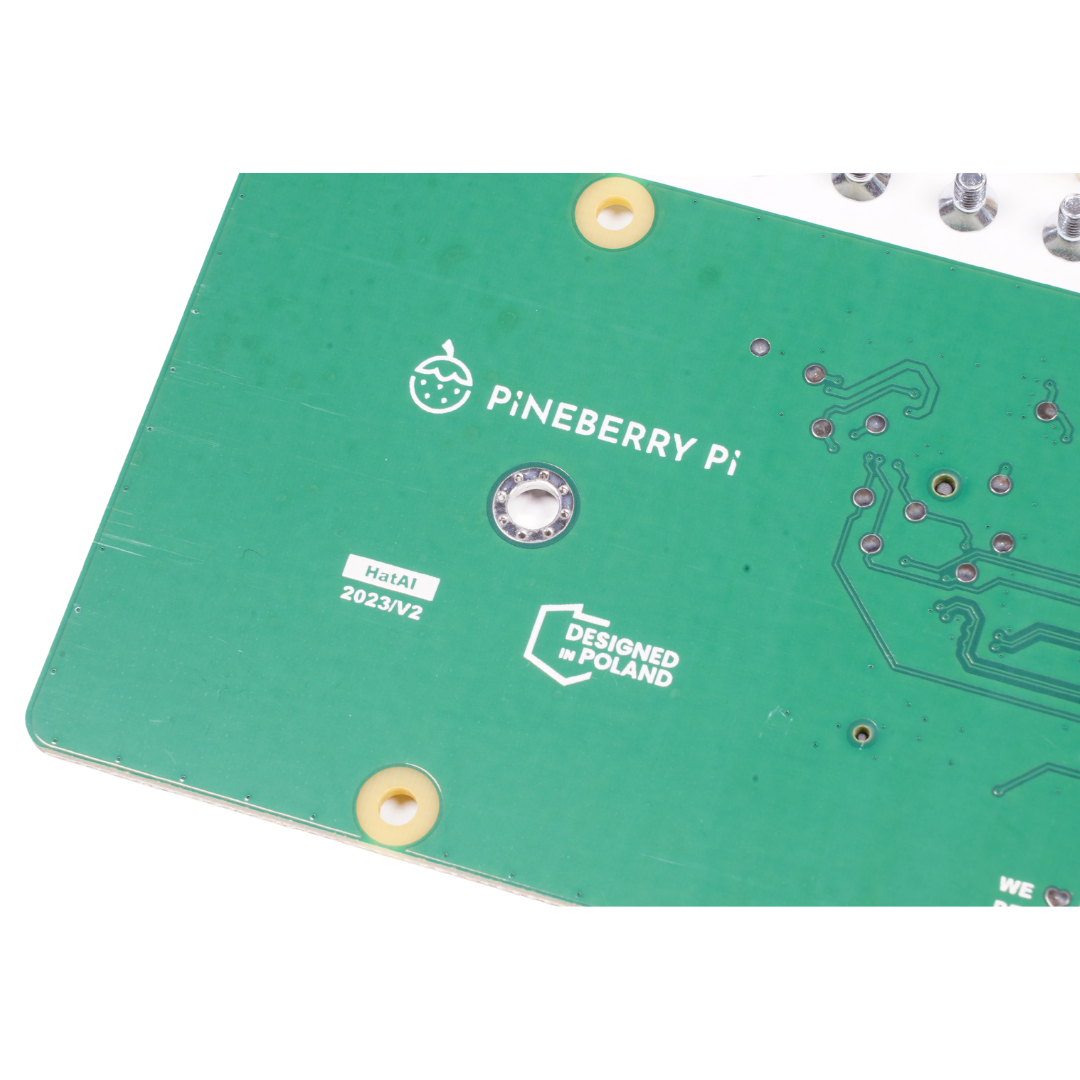

  • High-quality components: Built with premium electronic components and a durable 4-layer PCB

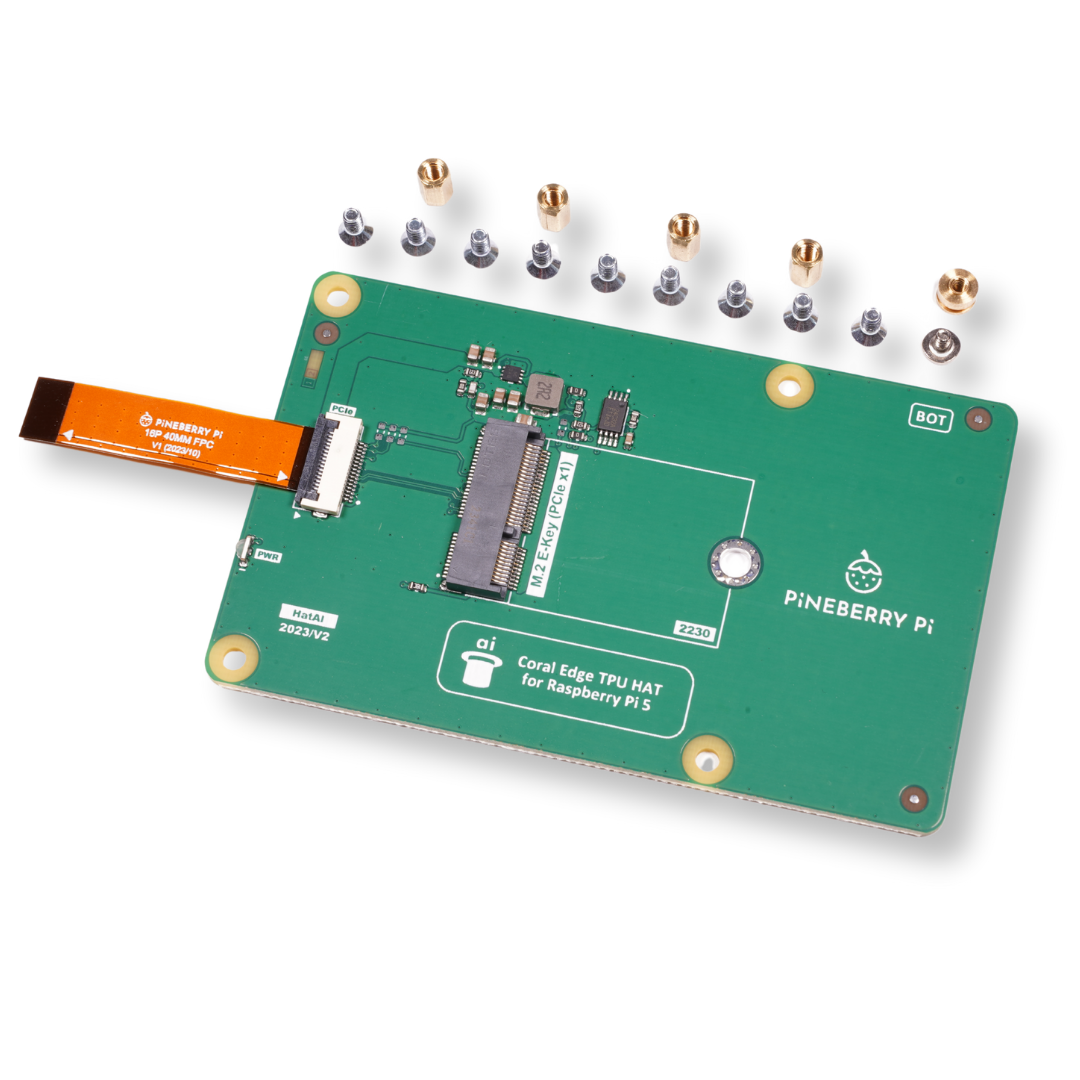

  • Complete accessory kit: Includes dedicated FPC PCIe tape, spacers, M2.5 screws and spacer for secure M.2 card mounting

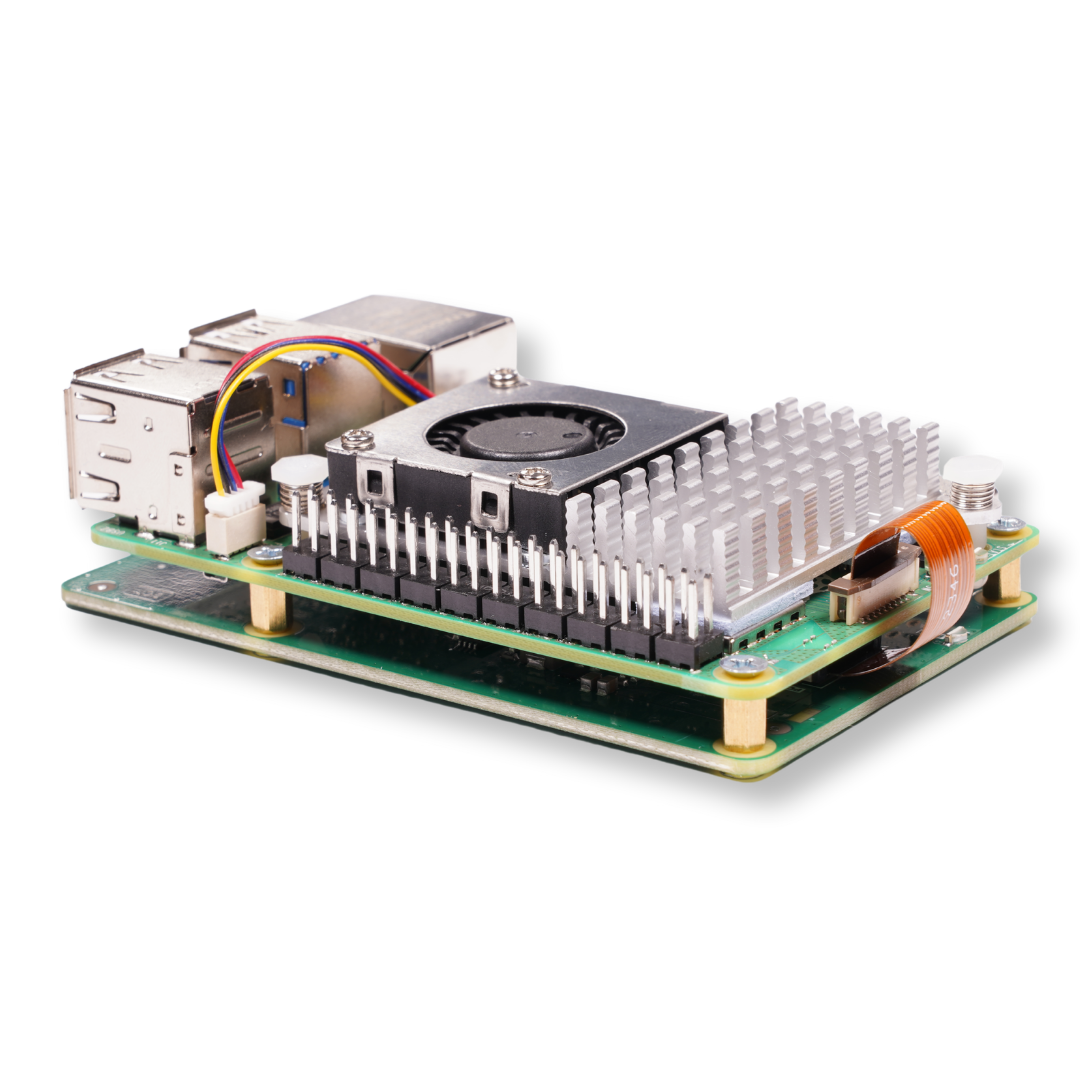

The Raspberry Pi 5 shown in the photos and the fan are not included.
