WIFI ESP8266 Module + NodeMCU V3 Arduino WIFI IoT MicroUSB CH340 for ESP32
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description

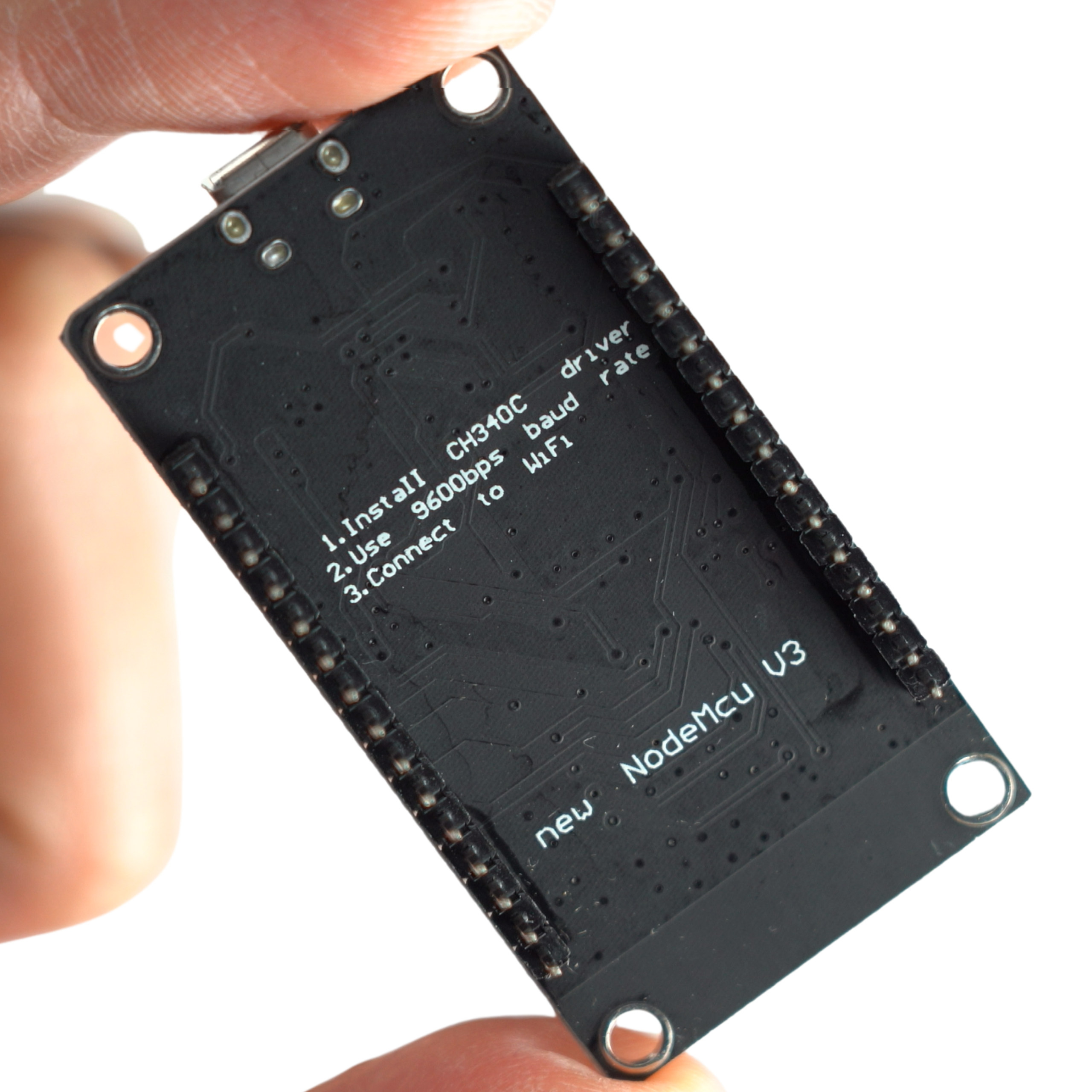

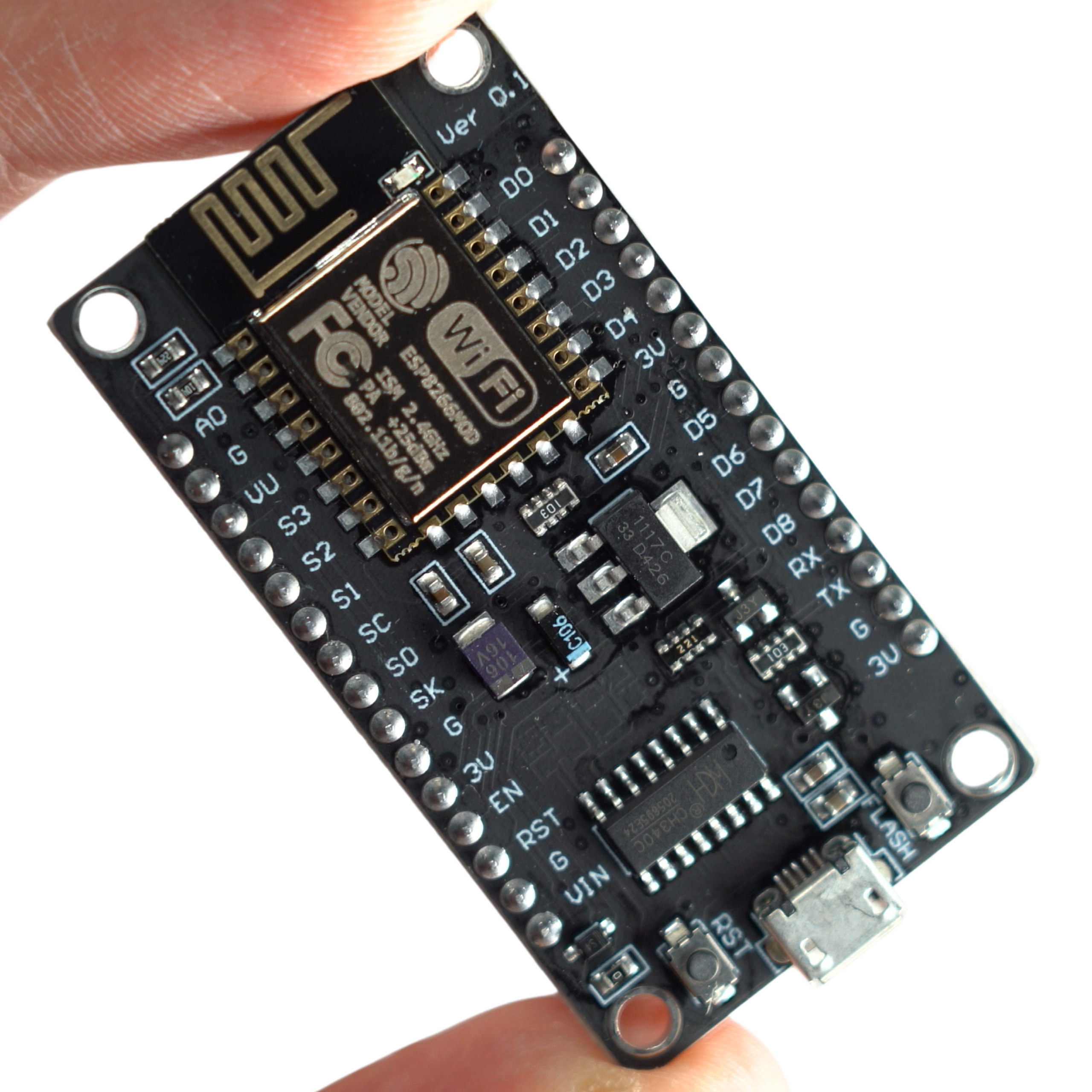

WIFI ESP8266 NodeMCU V3 Module
Wi-Fi module based on the high-performance ESP8266 chip (compatible with: Arduino, ESP32, Raspberry Pi). The chip includes 10 GPIO pins, a 1-Wire bus, I2C, an analog-to-digital converter, and a built-in PCB antenna. The board features a USB-UART CH340 or FT232 converter for straightforward programming with Arduino IDE or PlatformIO. The module can also be programmed in MicroPython, and firmware can be updated over Wi-Fi without having to connect to a computer every time.
Key technical specifications
- Module based on the ESP8266 chip
- 10 GPIO - each can operate as PWM, I2C, or 1-Wire
- Built-in microUSB connector
- USB-UART CH340 or FT232 converter
- Built-in PCB antenna
- Wi-Fi communication: 2.4 GHz
- Flash memory: 4 MB
- Pin pitch: 2.54 mm
- Connector spacing: 28 mm
- Dimensions: 58 x 30 mm
Example applications
- Building automation systems (Domoticz, Home Assistant, Openhab)
- Temperature monitoring stations with DS18B20 or BMP280 sensors and OLED displays
- Internet of Things (IoT) projects using the ThingSpeak platform
- Educational cryptocurrency miners such as DuinoCoin
- Network security testing tools such as Deauther
Benefits
- Easy programming thanks to the built-in USB-UART converter
- Broad compatibility with popular development environments
- Wireless firmware upload capability
- Rich set of communication interfaces in a compact footprint
- Ready for Smart Home systems and HomeKit (via Homebridge)
First-time setup troubleshooting
- Ensure drivers for the CH340 or FT232 chip are installed.
- Check that the USB cable used to connect the microcontroller carries data lines.
- Verify that ESP8266 libraries are correctly installed in Arduino IDE.
The module is new, unused, and factory sealed. A dedicated microcontroller enclosure is also available in our offer.
