Adapter ESP32D 38pin 25.5mm ARK Terminal Shield zaciski śrubowe DevKitC-v4

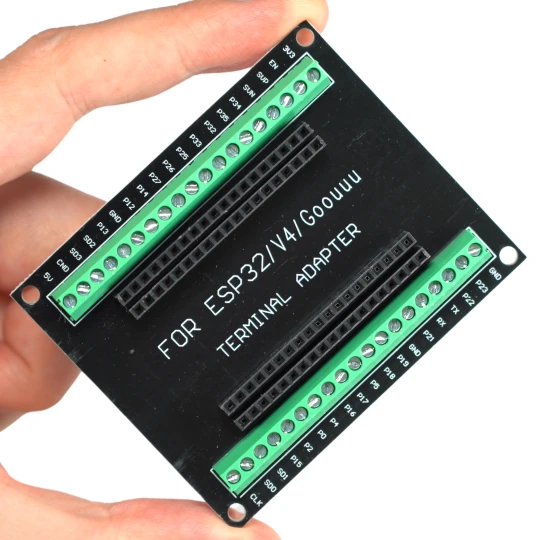

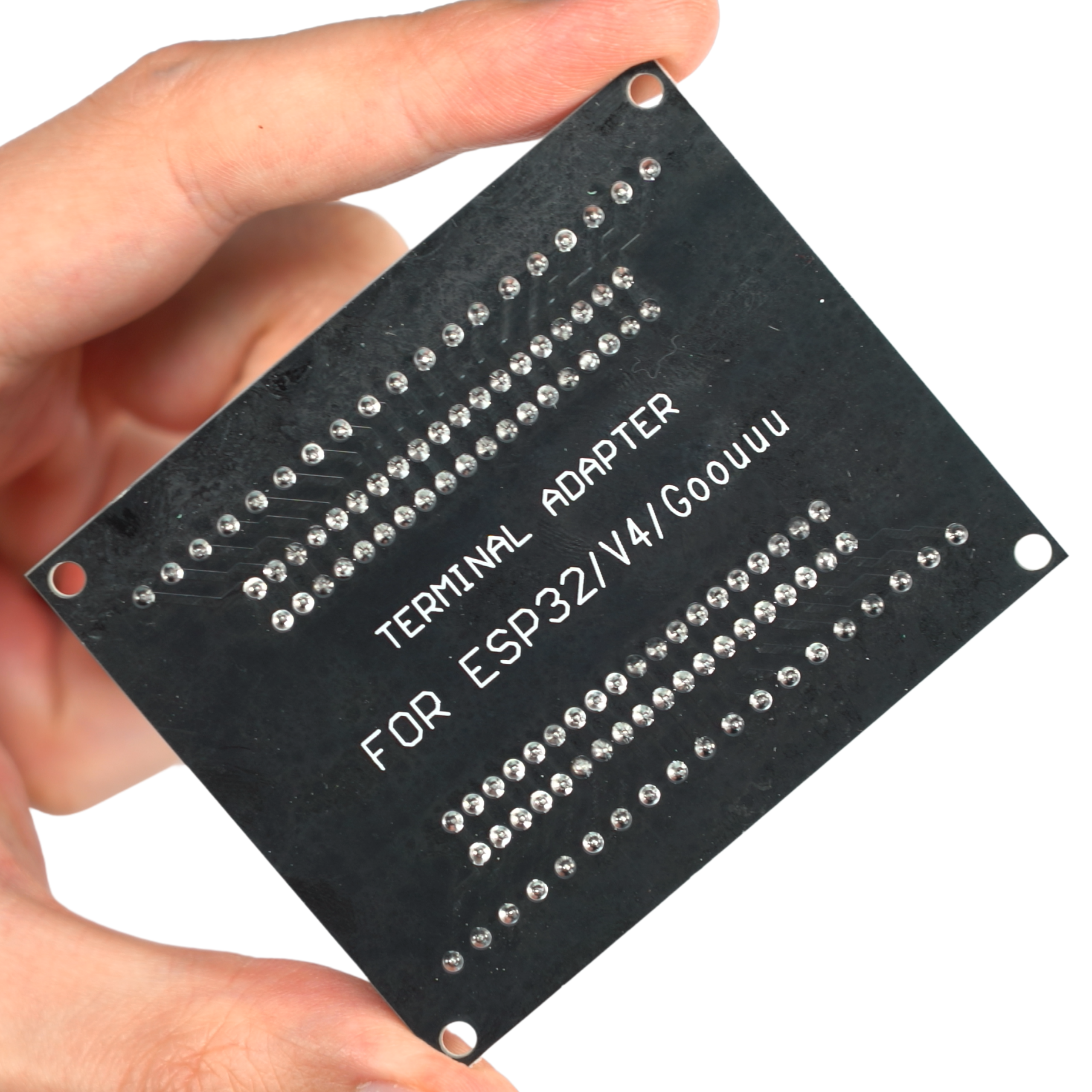

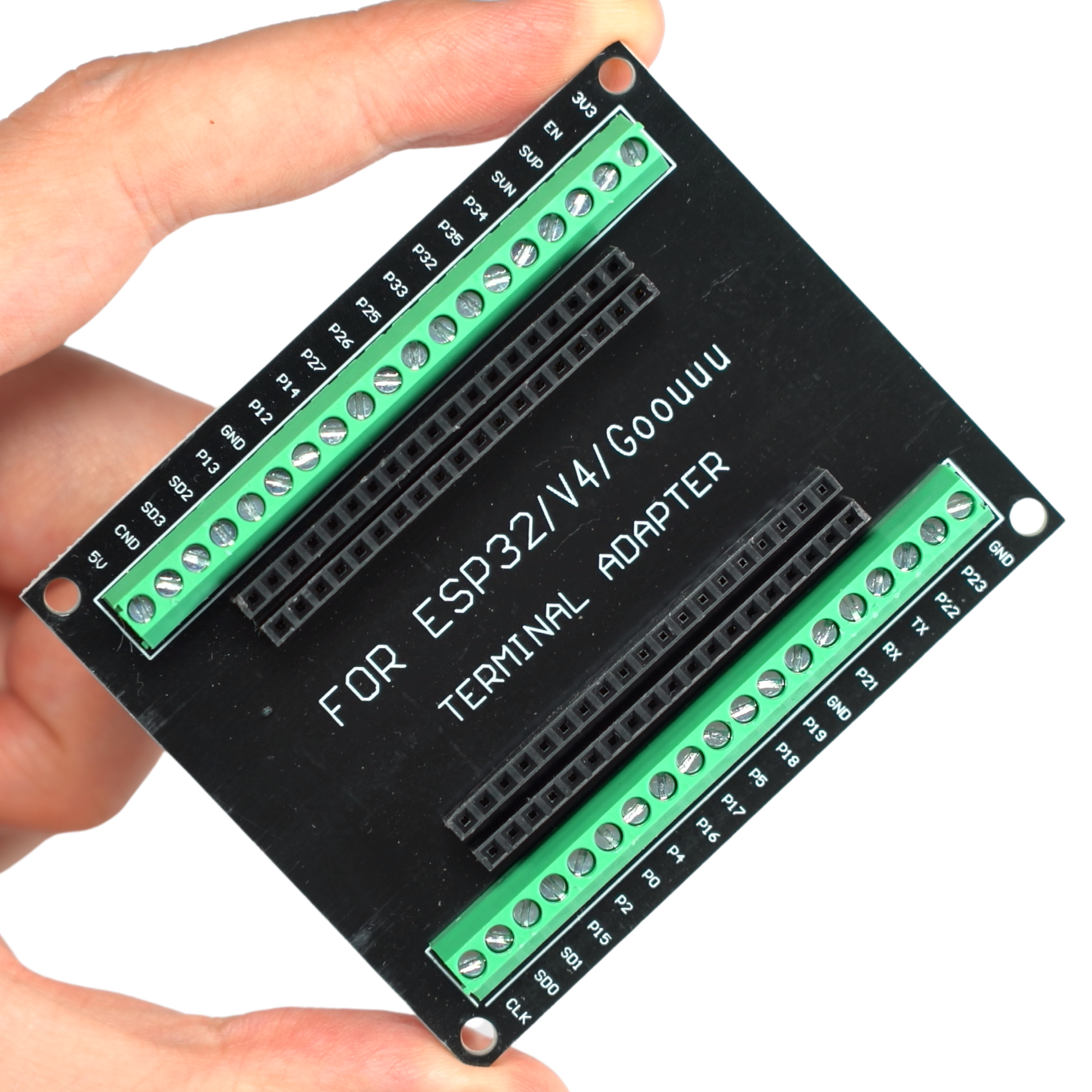

ARK Terminal Shield Adapter for ESP32 DevKitC v4

The ESP32 Terminal Adapter V4 hardware expansion designed for development boards with 38-pin pinout and 25.5 mm row spacing. The board enables stable connection between the microcontroller and external components, greatly simplifying mounting, debugging, and monitoring of systems under development. The adapter is an excellent solution for ESP32, speeding up work on embedded systems and data-exchange applications.

Key technical features

• Compatibility with boards in the 38-pin standard and 25.5 mm spacing
• Dedicated support for ESP32-DevKitC v4 modules (including ESP32-WROOM-32D and ESP32-WROOM-32U)
• Dual breakout for each microcontroller pin
• ARK screw terminals for reliable, durable wire fastening
• Goldpin headers for quick testing and connecting female connectors

Example applications

• Prototyping wireless devices and IoT network nodes
• Assembly workstations for building automation systems
• Motor control circuits with direct insertion of power wires
• Electronics labs requiring stable measurement connections
• Devices collecting and analyzing sensor data in real time

Benefits

• Elimination of unreliable connections typical of standard breadboards
• Easier diagnostic work thanks to straightforward access to every signal on the base board
• Ability to build a permanent installation while plugging in temporary test probes
• High mechanical safety of the circuit thanks to solid screw terminals

Modules are manufactured in two solder mask colour variants-the colour variant shipped is random and does not affect full compliance with the product’s technical specification.
