Lakier izolacyjny do płytek drukowanych z pędzelkiem PCB PVB 60 50 ml

Insulating varnish PVB 60 - 50 ml

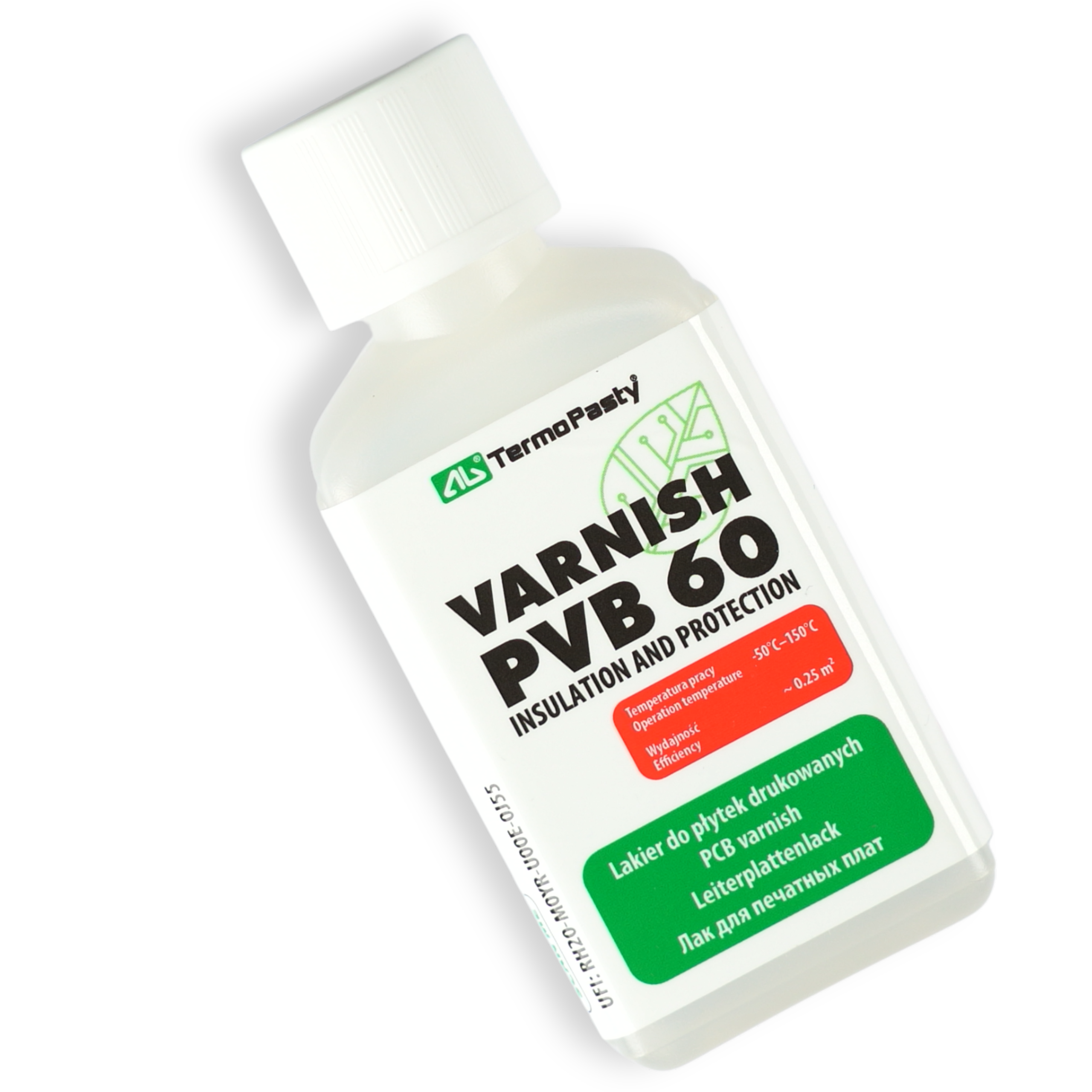

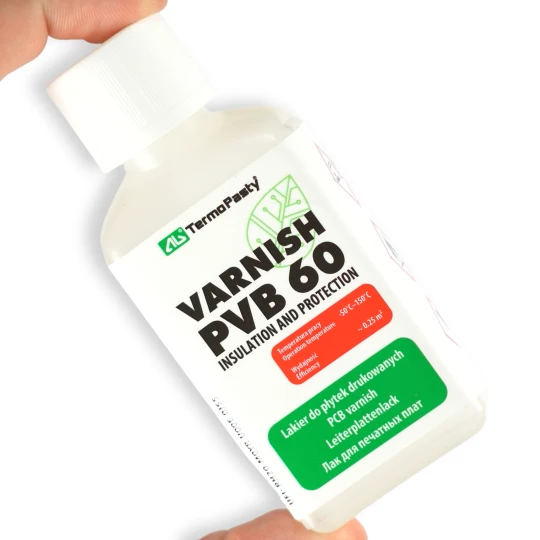

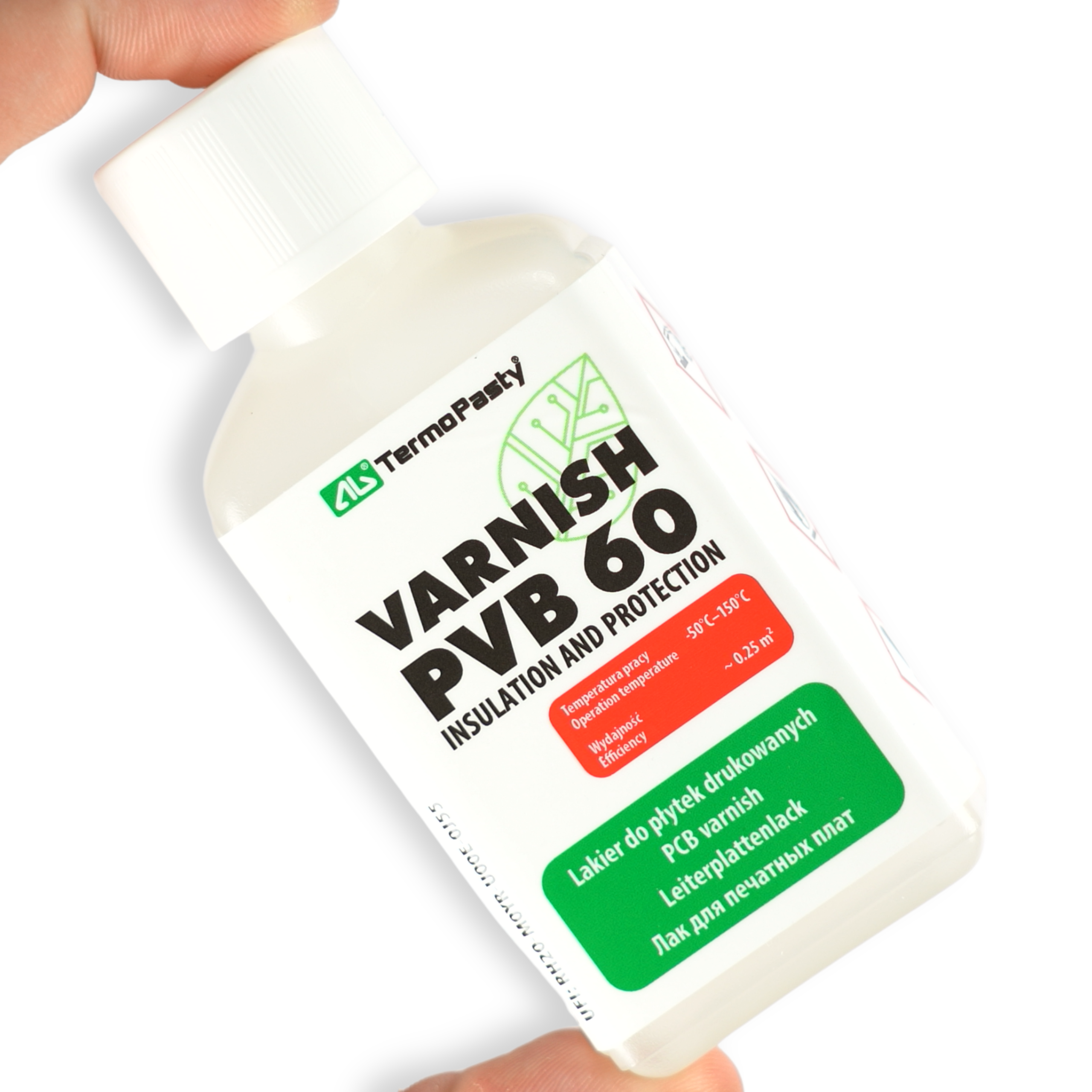

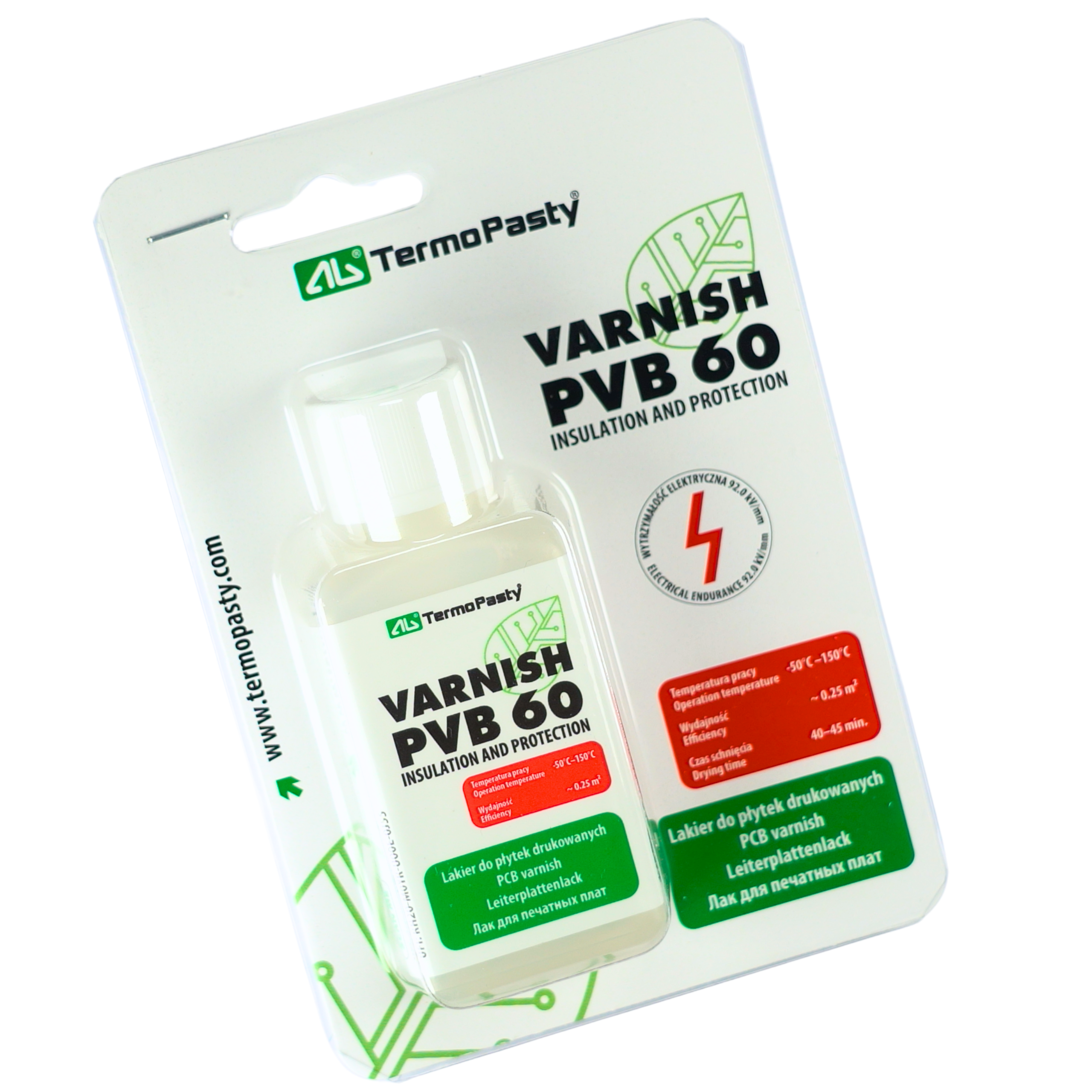

Universal varnish for printed circuit boards (PCB) from AG Termopasty with a capacity of 50 ml. After application, the product forms a fast-drying, transparent and flexible PVB coating with very good insulating properties. The product effectively protects electronic circuits and other components against corrosion and the harmful effects of external factors. The set includes a brush that makes precise application easier.

Key features and technical parameters

• Capacity: 50 ml
• Packaging type: Bottle
• Equipment: Brush included
• Coating type: Fast-drying, transparent and flexible PVB protective layer
• Operating temperature: from -50°C to +150°C
• Application temperature: from -40°C to 60°C
• Flash point: 380°C
• Excellent adhesion: Adheres well to metal, plastic and wood surfaces
• Chemical resistance: Protection against diluted acids, alkalis, moisture, oxidation, dust and chemical contaminants
• Service properties: Soldering possible directly through the applied varnish layer

Benefits of using the product

Protecting circuits with dedicated electronic chemistry significantly increases the reliability of designed devices. The product provides a proven protective barrier for sensitive components.

• Effective insulation - prevents stray currents, short circuits, sparking and corona discharges, and also reduces breakdowns between traces.
• High anti-corrosion protection - protects components operating in adverse weather conditions.
• Coating durability - the varnish does not lose its transparency or flexibility even after a long time.
• Versatile and convenient application - the included brush enables fast and convenient application, and in production runs the varnish can be applied by brush, dipping or spraying (with the option of thinning with a dedicated thinner if the mixture is too viscous).
• Time savings during service repairs - no need to mechanically remove or wash off the coating before repair soldering.

Example applications and storage

PVB 60 insulating varnish is essential equipment for electronics workshops, repair services and production facilities.

• Protecting finished printed circuit boards (PCBs) against moisture condensation and dust.
• Protection of electronic modules installed outdoors or in unheated enclosures.
• Insulation of exposed solder joints in industrial equipment exposed to dust and chemical agents.
• Protecting contacts, connectors and microcontroller pins against the formation of corrosion spots.
• Coating regenerated copper traces to restore the factory insulating layer after repair.

Storage: The product must be properly protected during storage, as the varnish is susceptible to the crosslinking process.
