Adapter do Arduino Nano V3.0 podstawka bazowa moduł rozszerzeń goldpin

Expansion module for Arduino Nano V3.0

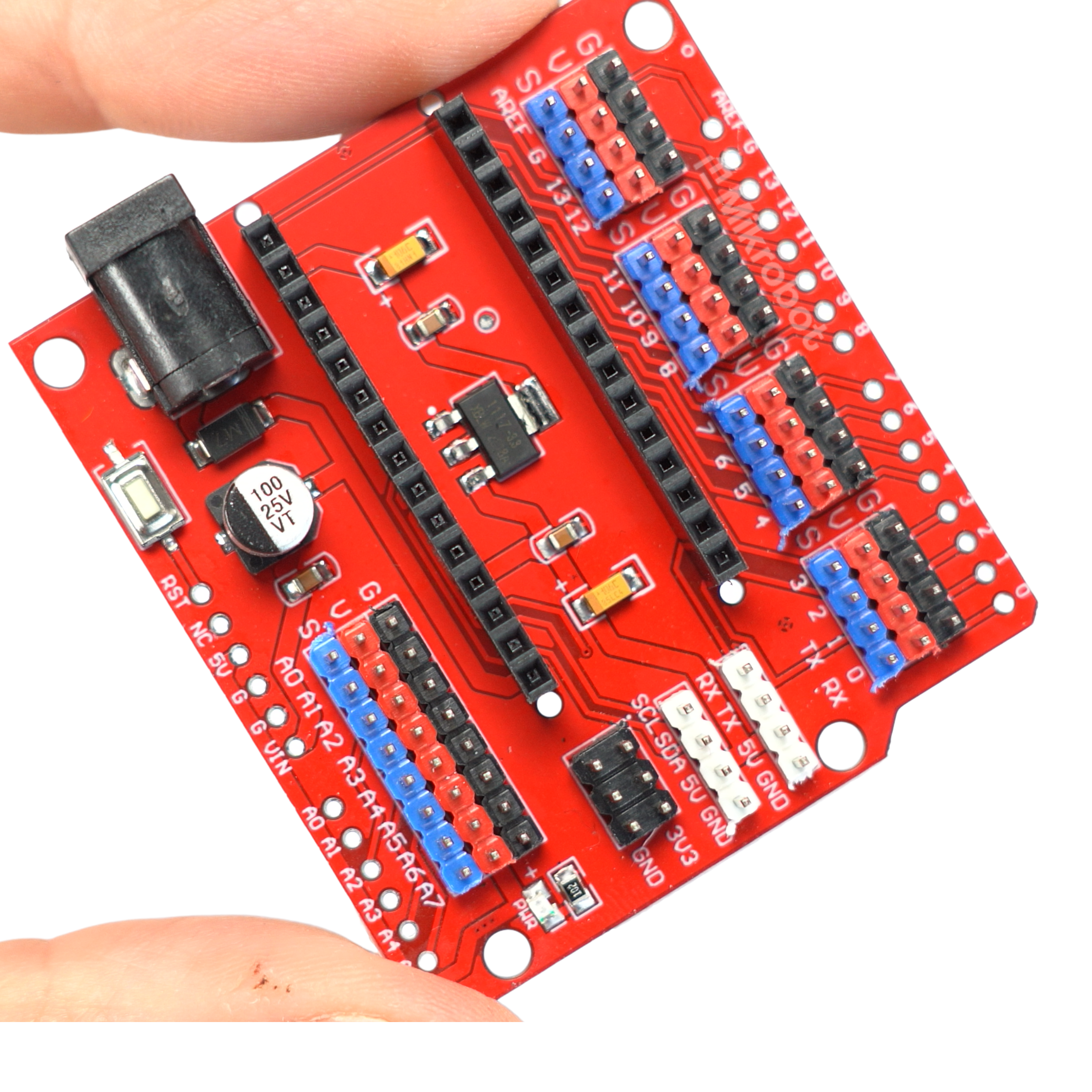

A base adapter designed for Arduino Nano V3.0 that greatly simplifies prototyping and building electronic circuits. The board allows hassle-free connection of additional components, sensors, and modules via standard goldpin connectors, eliminating the need for soldering. The module includes extra power and voltage regulation features, which are essential when building more advanced systems.

Key technical features

The expansion board was designed for maximum usefulness. Integrated connectors and power circuits make working with the microcontroller much faster and better organized.

• Compatibility: dedicated for Arduino Nano V3.0

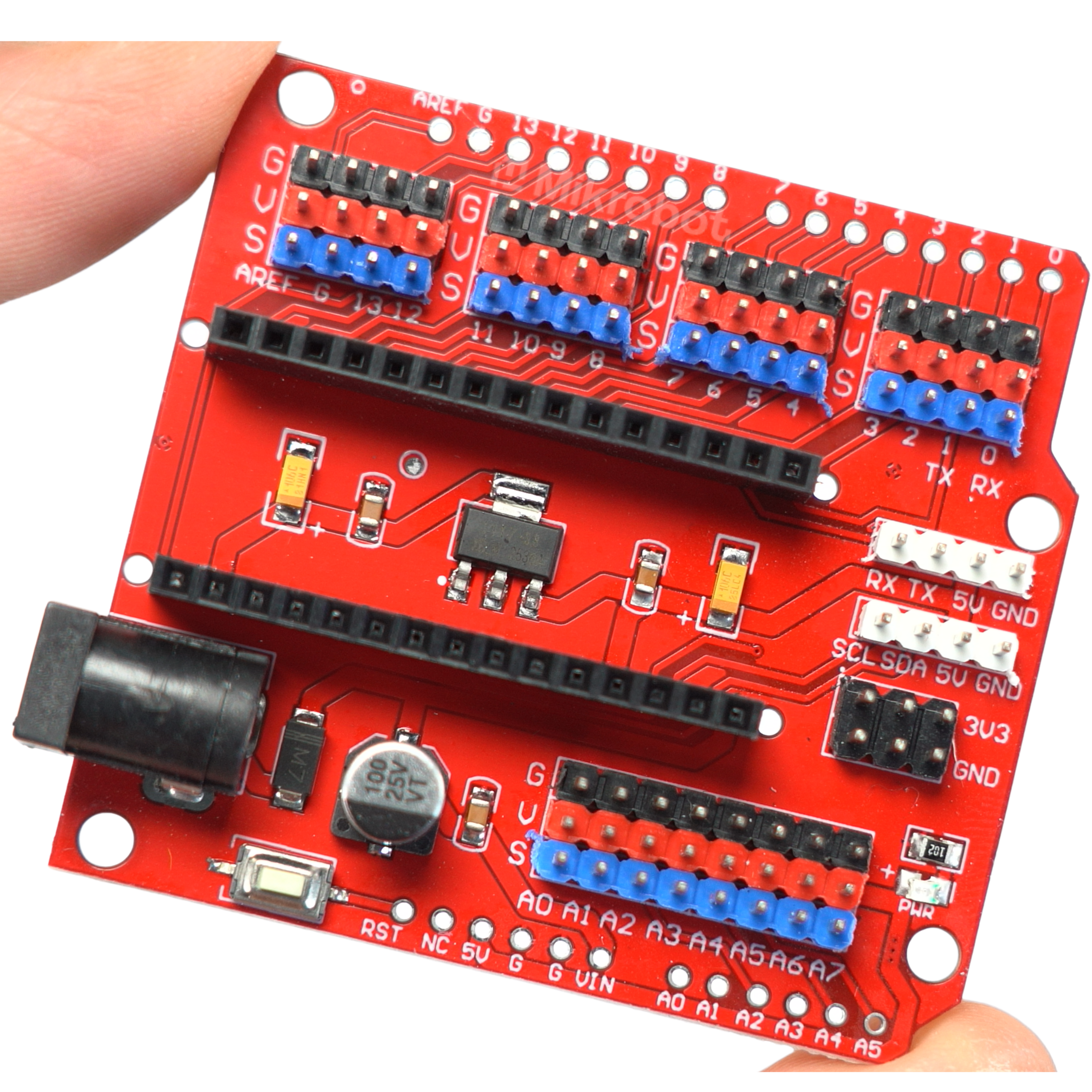

• Goldpin connectors: pinouts aligned with the microcontroller pins, each pin routed to at least two connectors

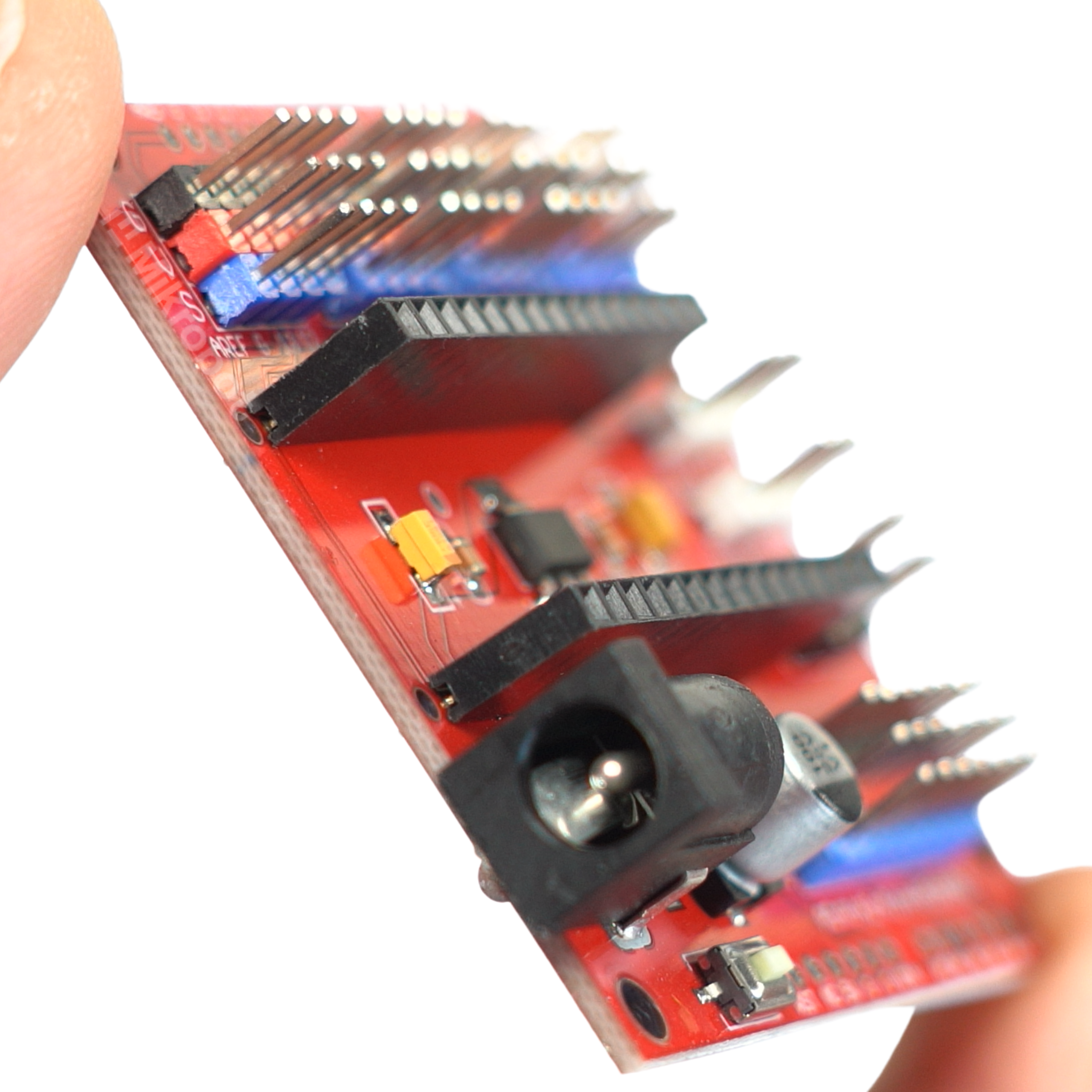

• Power: dedicated connectors for attaching an external power source
• Voltage regulator: built-in circuitry providing stable power for the microcontroller and attached peripherals, protecting against voltage fluctuations
• Communication interfaces: additional connectors routed for the I2C and UART buses
• Power pins: multiple GND and VCC pins that simplify power distribution
• Mounting: integrated mounting holes for secure attachment to an enclosure or larger base board

Benefits of using the adapter

Using a dedicated base board solves many common problems encountered when building electronic circuits on breadboards. It delivers more stable connections and better wire organization.

• Quick, hassle-free plugging and unplugging of components without a soldering iron
• Improved circuit reliability thanks to the built-in voltage regulator
• Easier testing and troubleshooting thanks to dual breakout for each pin
• Convenient power distribution to many modules at once via numerous VCC and GND pins
• Safe operation when powered from batteries or unstable sources

Example applications

Thanks to its versatility, the adapter is widely used across electronics and programming-from simple circuits to advanced embedded systems.

• Prototyping and testing electronic circuits in lab conditions
• Building nodes in IoT (Internet of Things) systems using many sensors
• Constructing controllers for robotics projects
• Creating hubs and actuator modules in home automation systems
• Educational projects that require frequent changes to the wiring layout
