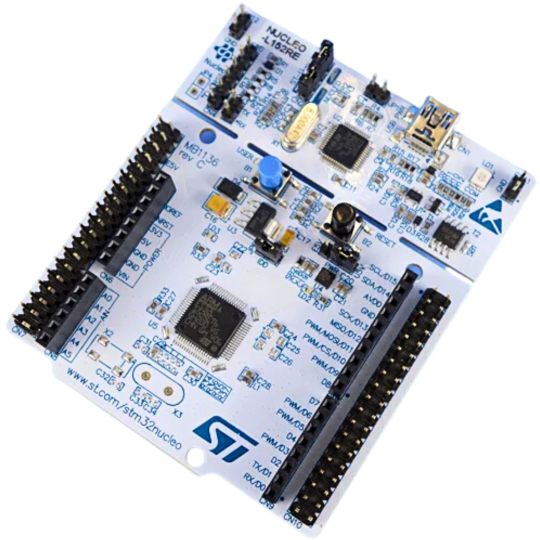

ARM Cortex M3 STM32 Nucleo-64 evaluation board NUCLEO-L152RE STM32L152RE

The Nucleo kit is ideal for advanced projects using the 32-bit ARM Cortex core. It is compatible with a variety of Arduino overlays and supports the mbed.org online compiler system for versatility and ease of integration into popular development environments such as Keil, IAR or GCC compiler-based environments. The Nucleo kit is an excellent choice for developers and hobbyists looking for the flexibility to complete a variety of electronic projects.

Product specifications:

• Microcontroller: STM32L152RET6, Ultra Low Power
• Core: ARM Cortex M3, 32-bit
• Clock frequency: 32 MHz
• Flash memory: 512 kB
• RAM: 80 kB
• ADC: 12-bit, 40-channel
• DAC: 12-bit, 2-channel
• Number of timers: 11
• LCD controller: built-in, supports up to 8x40 segments
• Interfaces: 5x USART, 3x SPI (16Mbit/s), 2x I2C, SDIO, USB Full Speed
• Connectors: Compatible with Arduino Uno Rev3 and STMicroelectronics Morpho pins for expansion.
• Debugger: ST-Link/V2 built-in, can operate as stand-alone device with SWD output
• Power supply: possible via USB connection
• LED indicators: 3 (power, communication, user indication)
• Buttons: 2 (RESET, user)
• USB interfaces: Virtual COM port, mass storage, programming/debugging port
• Compatibility: The module is compatible with the mbed system (mbed.org) and supported by environments such as IAR, Keil and platforms based on the GCC compiler.
