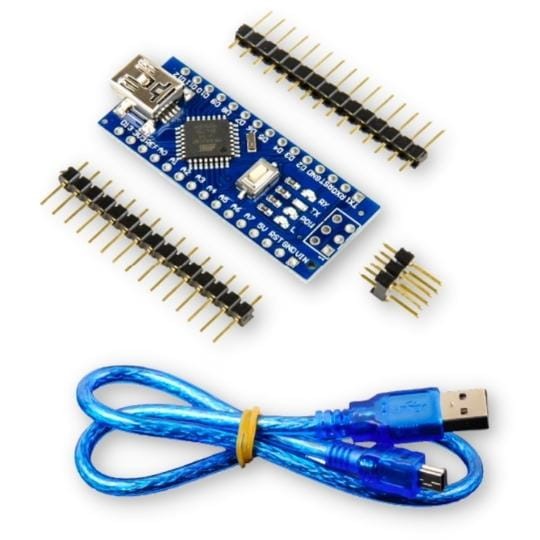

Arduino Nano V3.0 ATmega328P clone CH340 with cable
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description
The Arduino Nano v3.0 ATmega328P CH340 clone is a module compatible with the original Arduino Nano chip..
It has a built-in ATmega328P microcontroller, which can be programmed in the Arduino IDE environment, and a CH340 module allowing direct connection to a USB computer.
The board is equipped with 14 digital inputs/outputs, of which 6 can be used as PWM outputs. The clocking is 16 MHz.
The board also features: a built-in miniUSB connector, a RESET button and anISP connector.
The Arduino Nano v3.0 ATmega328P CH340 clone is sold in a unsoldered version. A USB cable is included.
After connecting the module to the computer, remember to select the Arduino Nano board in the Arduino IDE environment.
Specification:
- Power supply voltage: 5V-12V
- Operating voltage: 5V
- It has a bootloader compatible with the Arduino Nano
- Microcontroller: ATmega328P
- Clock frequency: 16MHz
- Flash memory: 32 kB
- SRAM: 2kB
- E EEPROM memory: 1kB
- Input/output ports: 14
- Pins PWM: 6
- ADC pins: 8
- Pin pattern: 2.54mm
- Serial interfaces: UART, SPI, I2C
- Connector: miniUSB type B socket
- Dimensions: 43 mm x 18 mm
