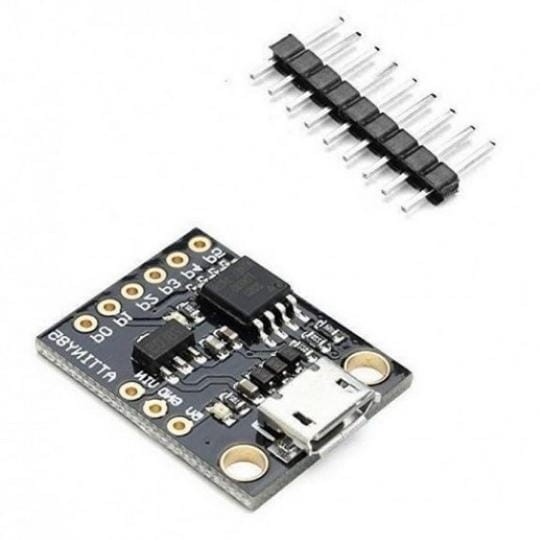

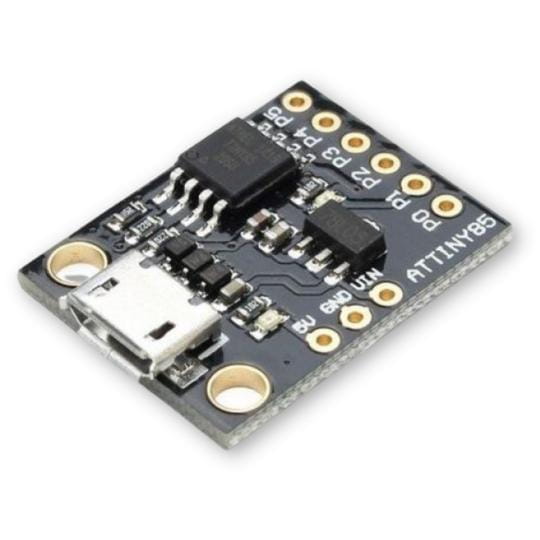

Microcontroller module Digispark ATTINY85 Micro USB
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description
The compact module withAtTiny85 microcontroller is designed for projects with a limited number of leads.
Equipped with 8kb Flash memory and 6 I/O ports, it facilitates advanced functions.
It has a MicroUSB connector and is compatible with theArduino IDE.
Powered by 5V directly or from 7V to 35V (thanks to the built-in 5 V / 500 mA regulator)..
It supportsI2C and SPI interfaces and its clocking is 16MHz.
It is fitted with 2.1 mm diameter mounting holes. Its dimensions are 21 mm x 18 mm.
The kit includes a9-pin goldpin connector and two LEDs: one from the power supply and one for the user (connected to pin 1).
This compact solution provides versatility and performance for a variety of electronic applications.
Specification:
- Power supply voltage: from MicroUSB port or external source 5V or Vin 7V - 35V DC
- Microcontroller: AtTiny85
- Flash memory: 8kb
- Tactation: 16MHz
- Compatibility: USB bootloader programmable in Arduino IDE environment
- Two LEDs: power and for user, connected to pin 1
- Digital I/O ports: 6
- Interfaces: I2C and SPI
- Mounting holes: 2.1 mm diameter
- Dimensions: 21x18 mm
- Included: 9-pin goldpin connector
