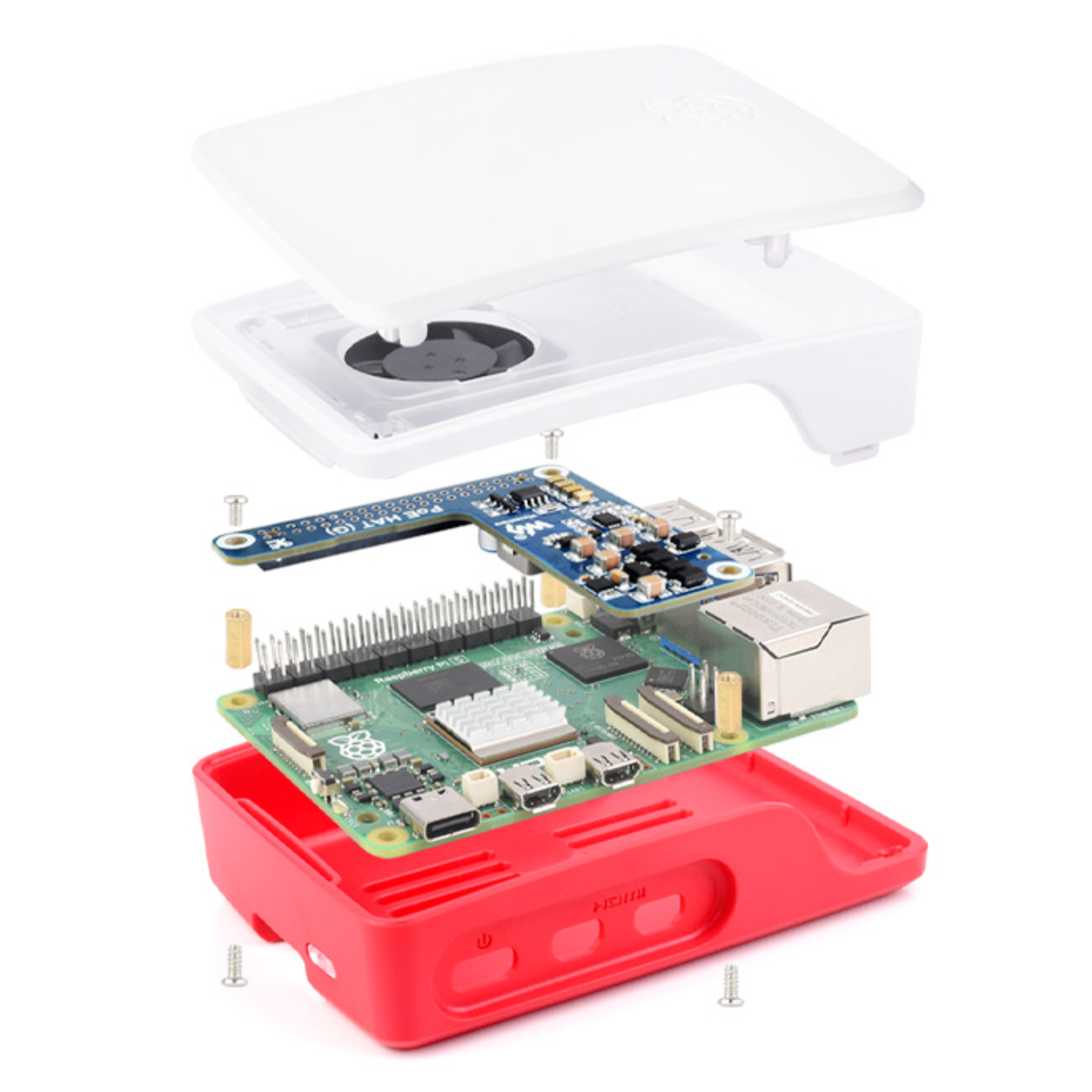

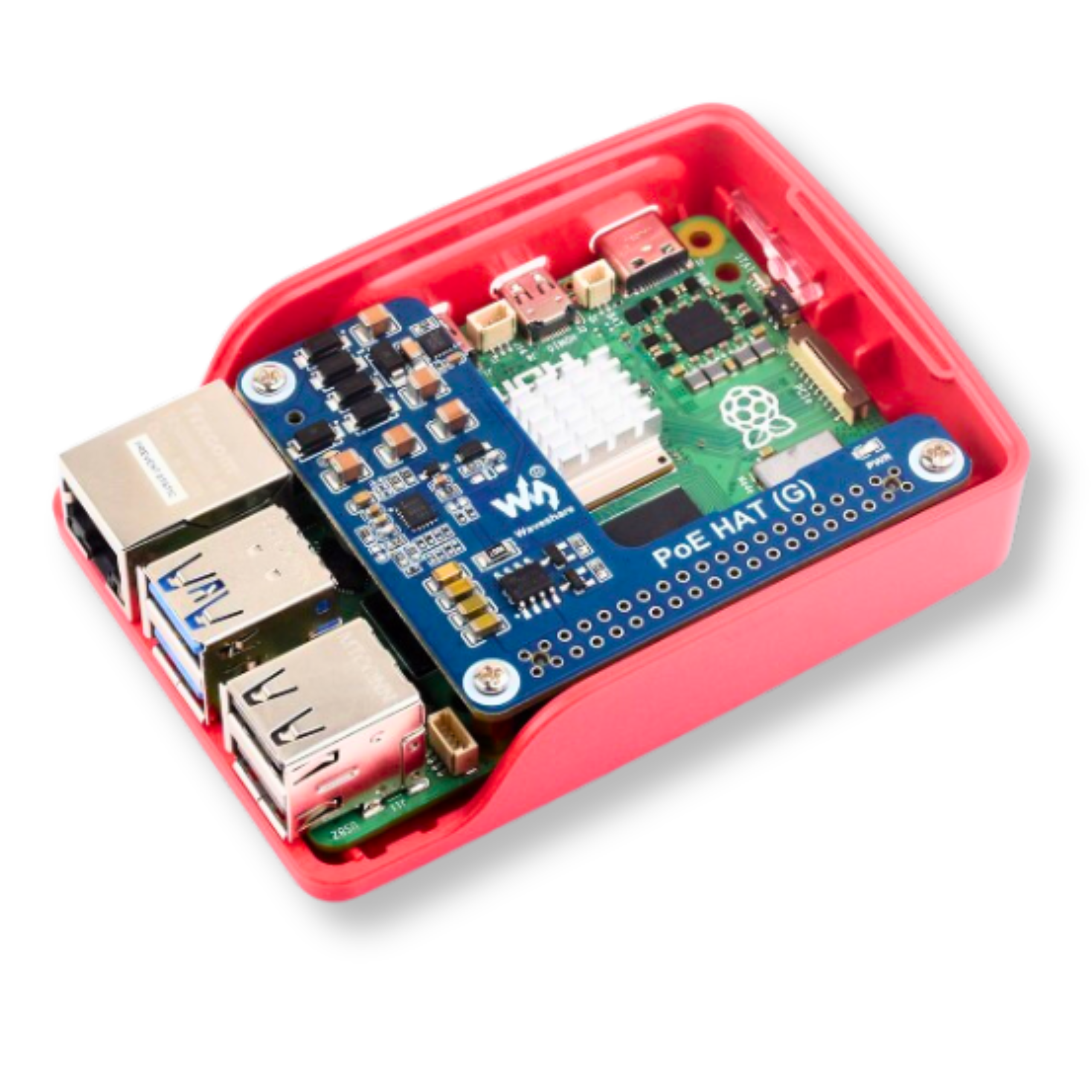

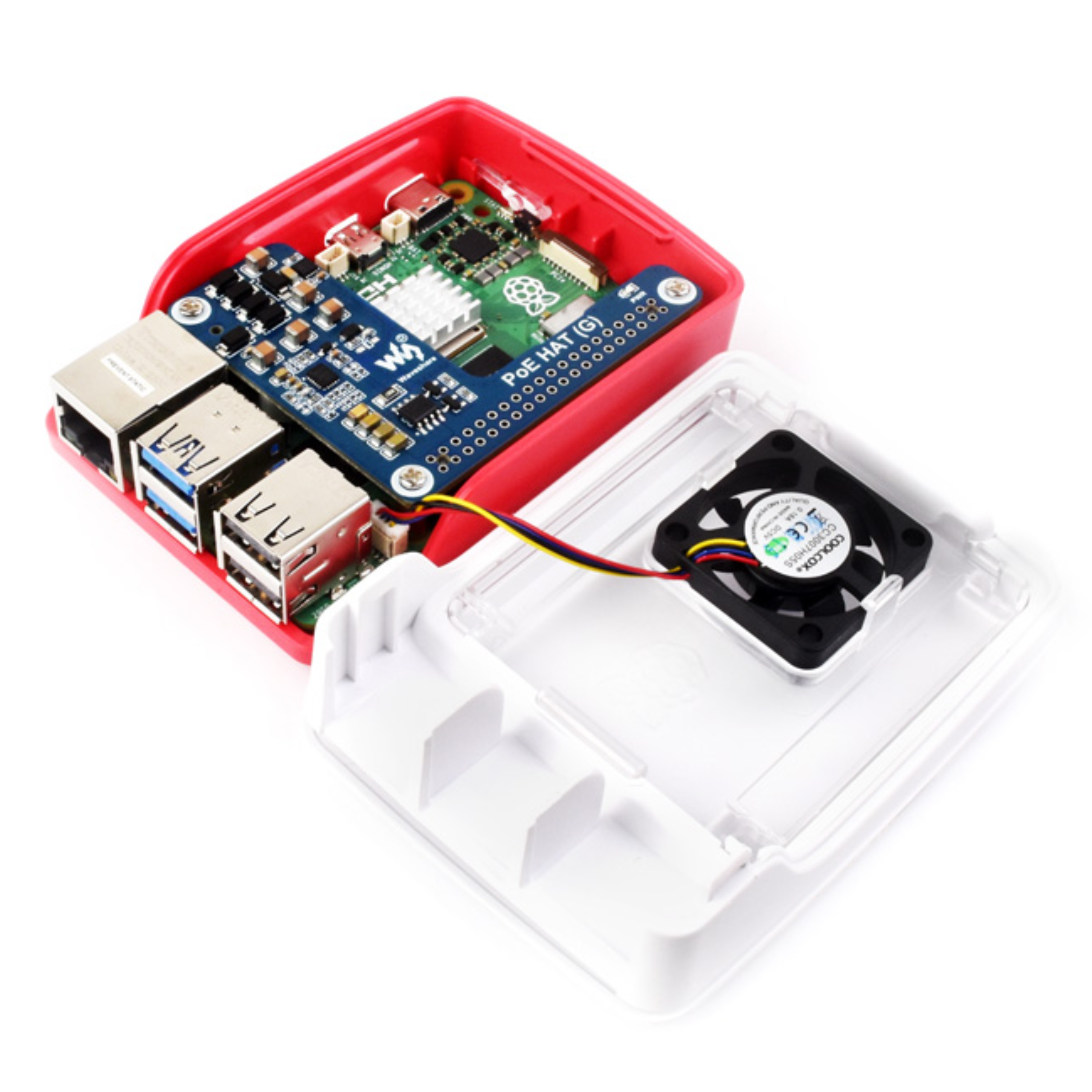

PoE (G) HAT cap for Raspberry Pi 5 compatible with the official enclosure
Availability:
brak towaru
Rating:
0
0
Vendor:
Waveshare
Description

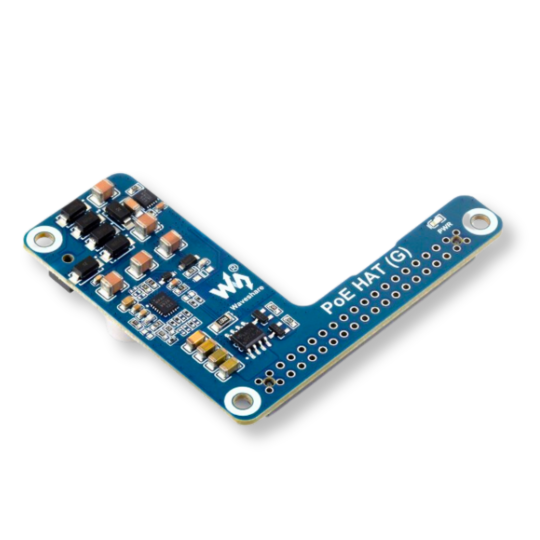

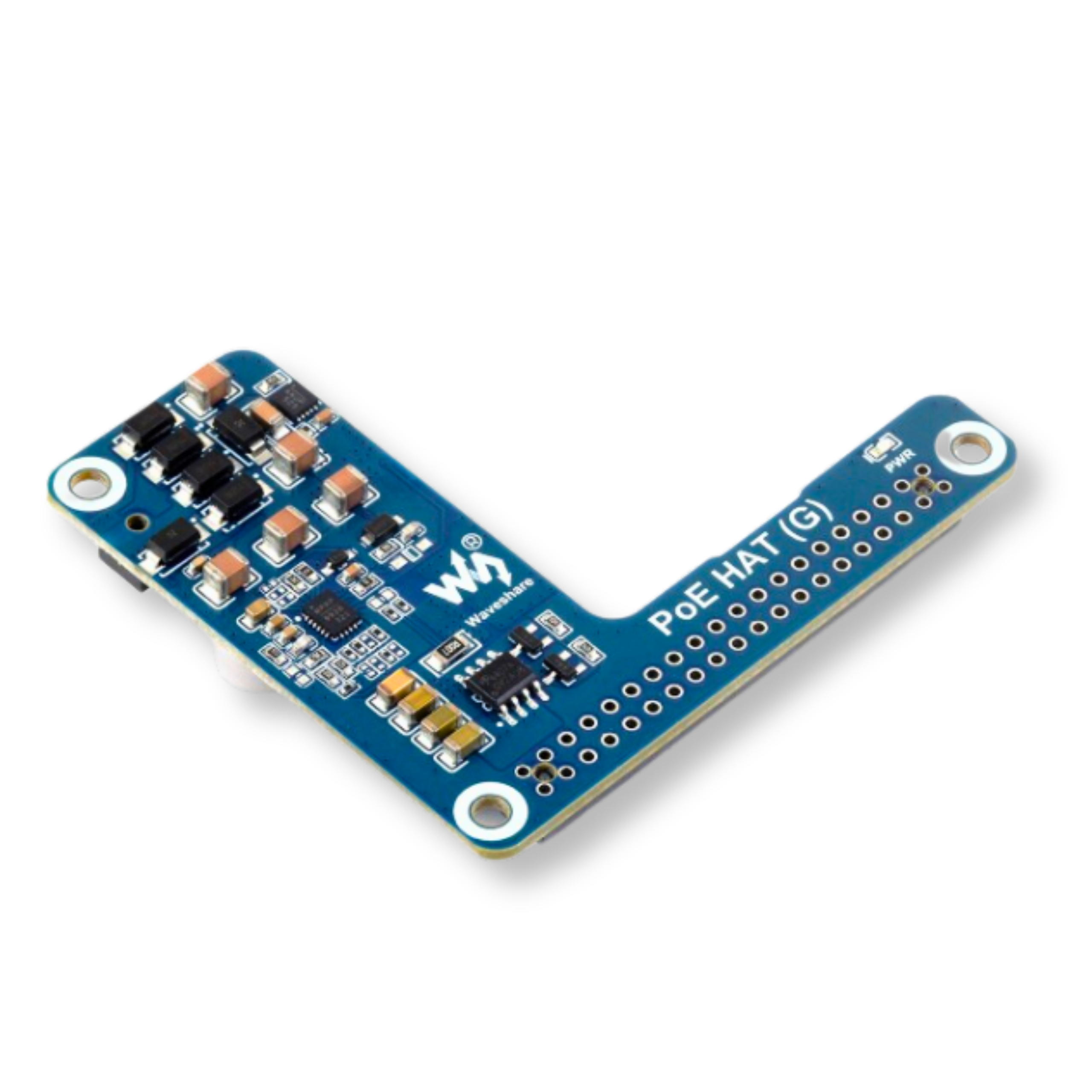

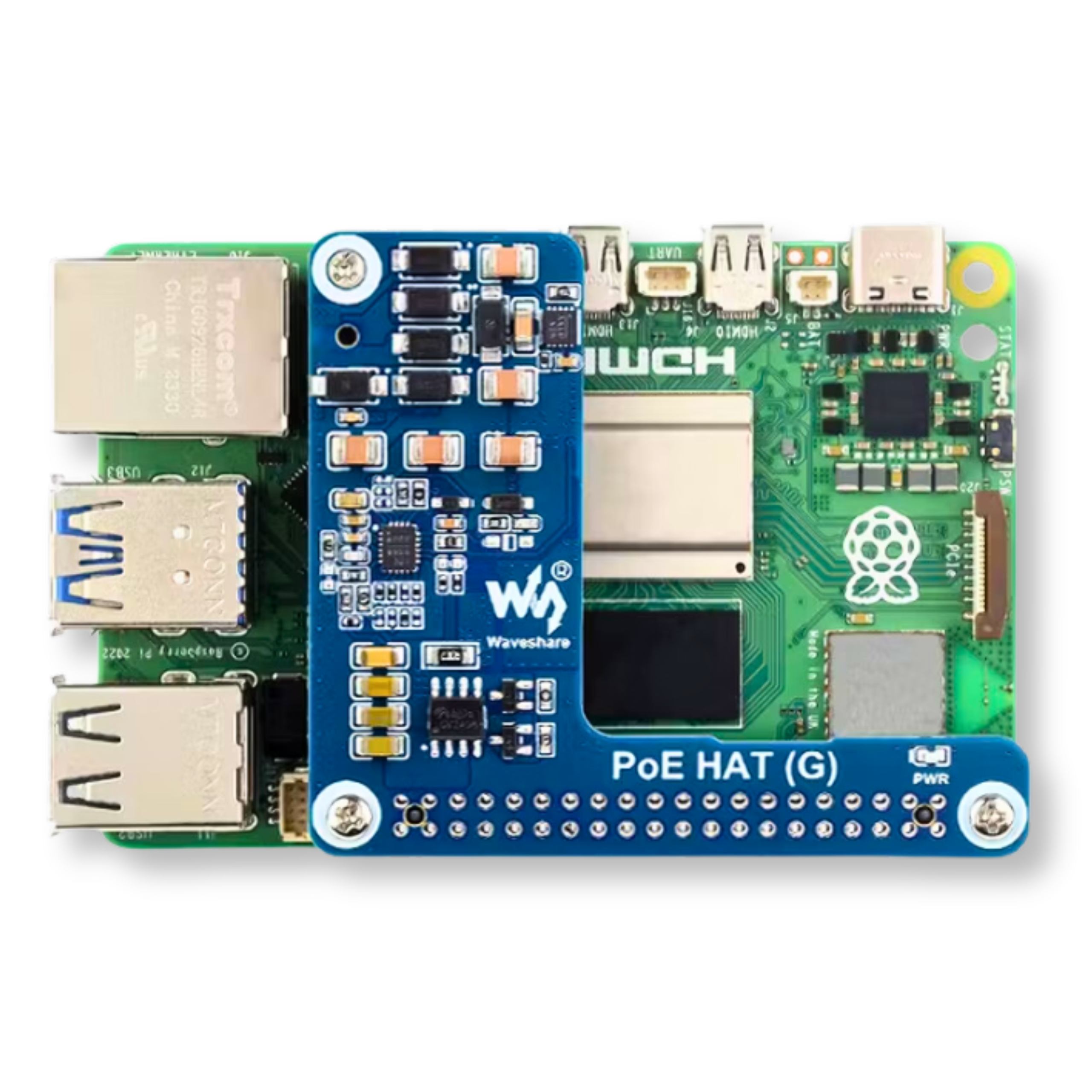

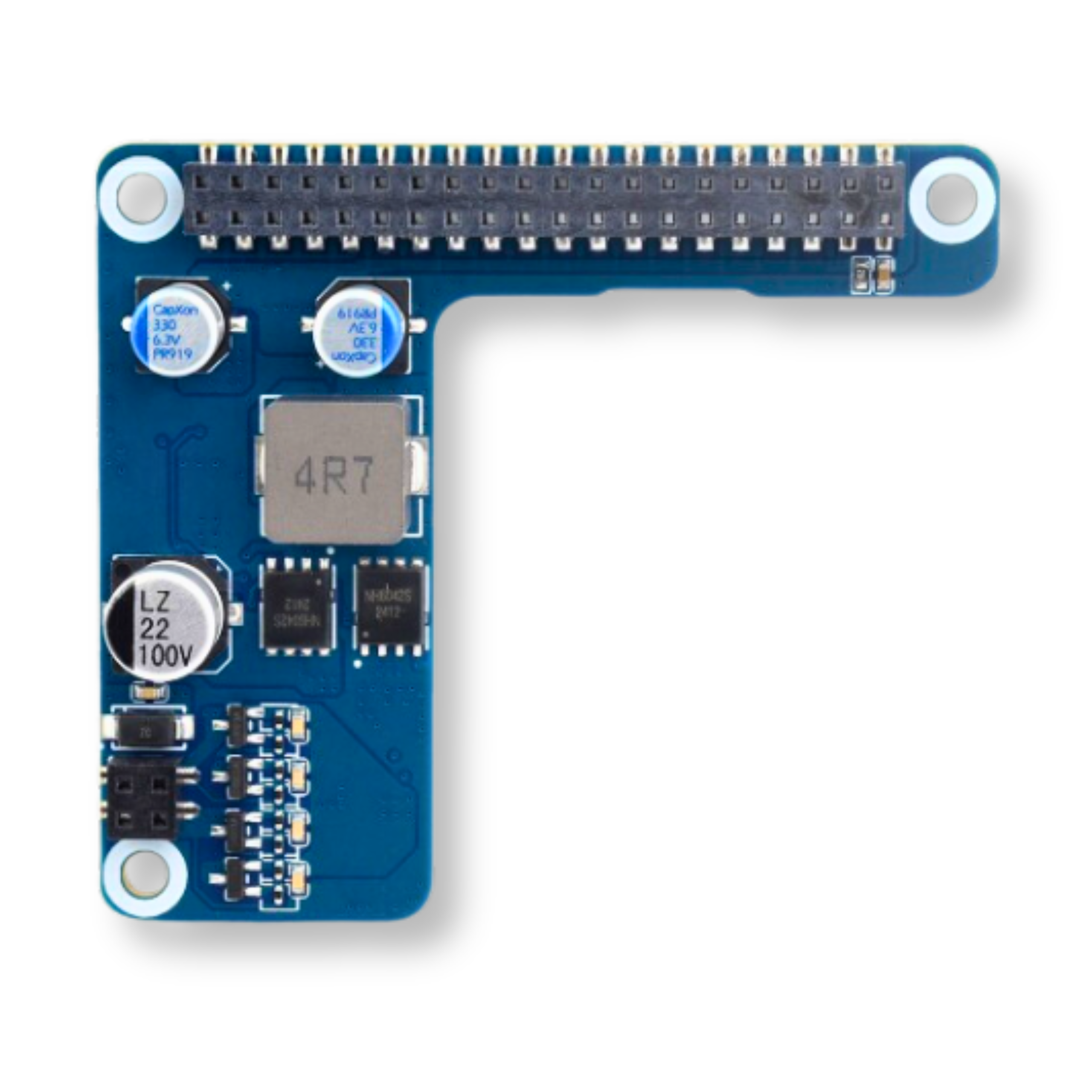

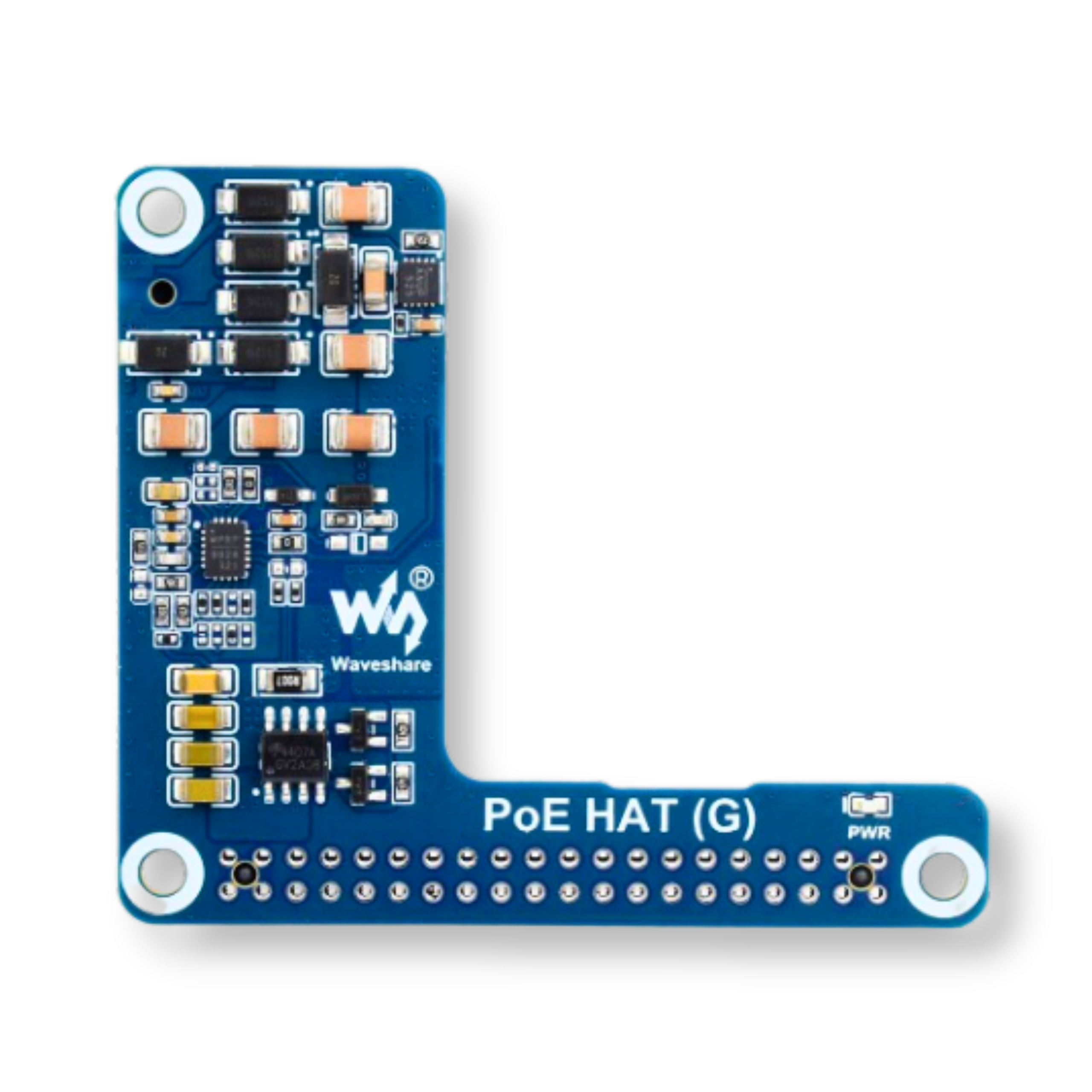

The PoE HAT (G) is an advanced extension for the Raspberry Pi 5 that allows the device to be powered and networked simultaneously via a single Ethernet cable. Compatible with IEEE 802.3af/at standards, this HAT allows the Raspberry Pi to be conveniently powered without the need for additional power cables, simplifying installation and minimising cabling.
The PoE HAT (G) module is equipped with a standard 40-pin GPIO connector, which provides 5V up to 5A power directly to the Raspberry Pi for stable operation. Using an original IC solution, the module provides reliable and stable PoE power performance. The switch-mode power supply (SMPS) with its non-isolated design guarantees compactness and ease of installation.
Specifications:
- PoE power input: 38V ~ 57V DC
- Power output (via GPIO connector): 5V 5A (max.)
- Dimensions: 56.5 × 64.98 mm
- Network standard: IEEE 802.3af/at PoE
