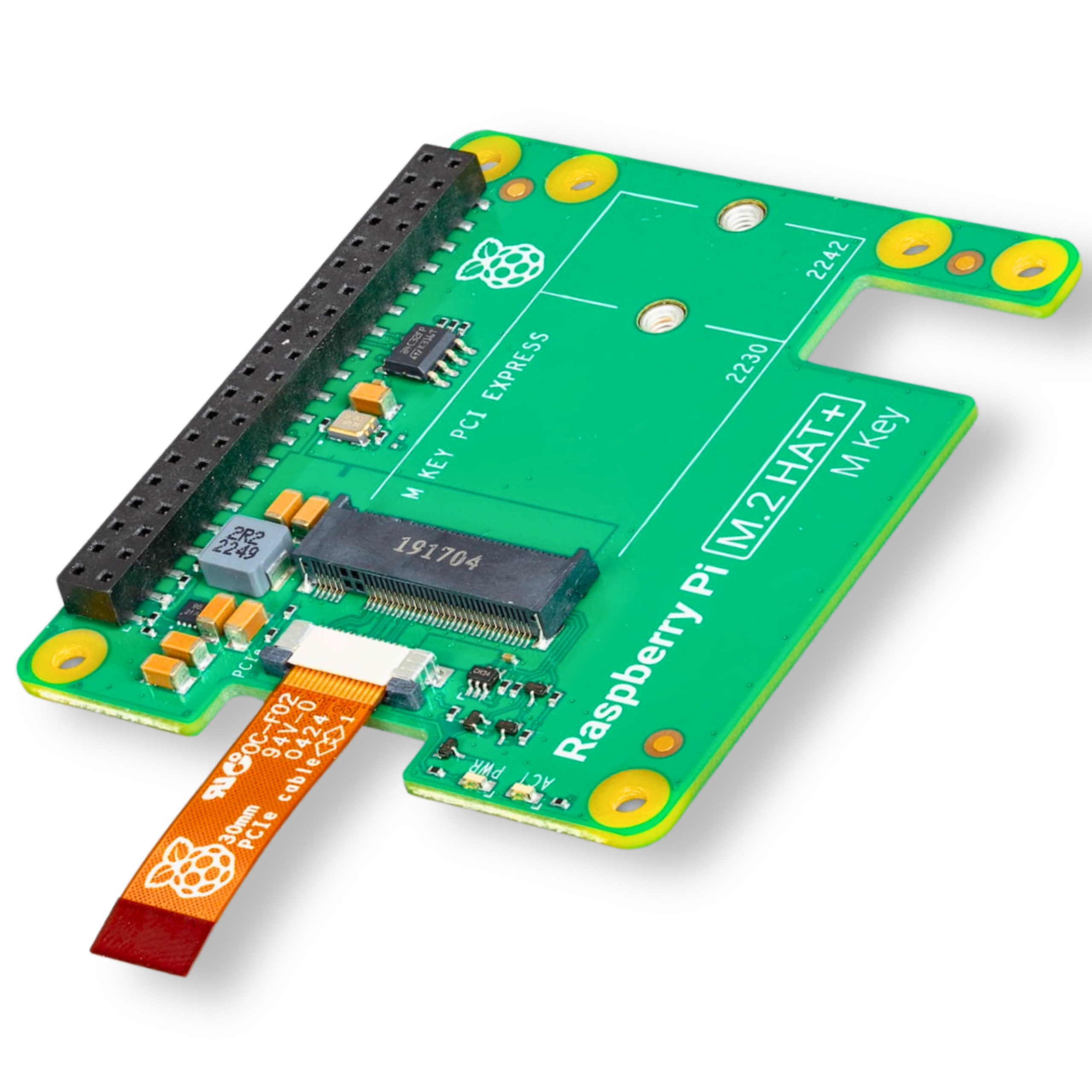

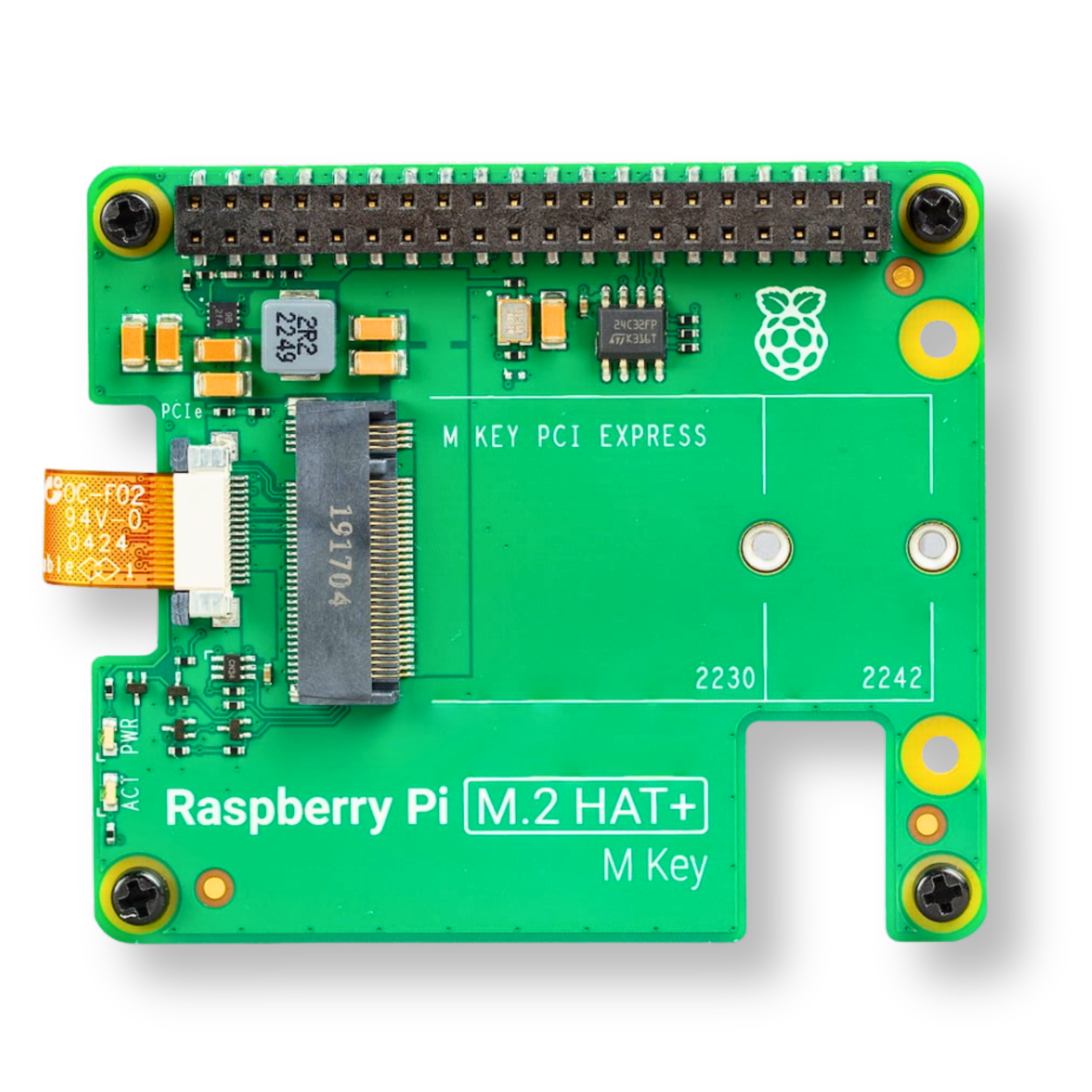

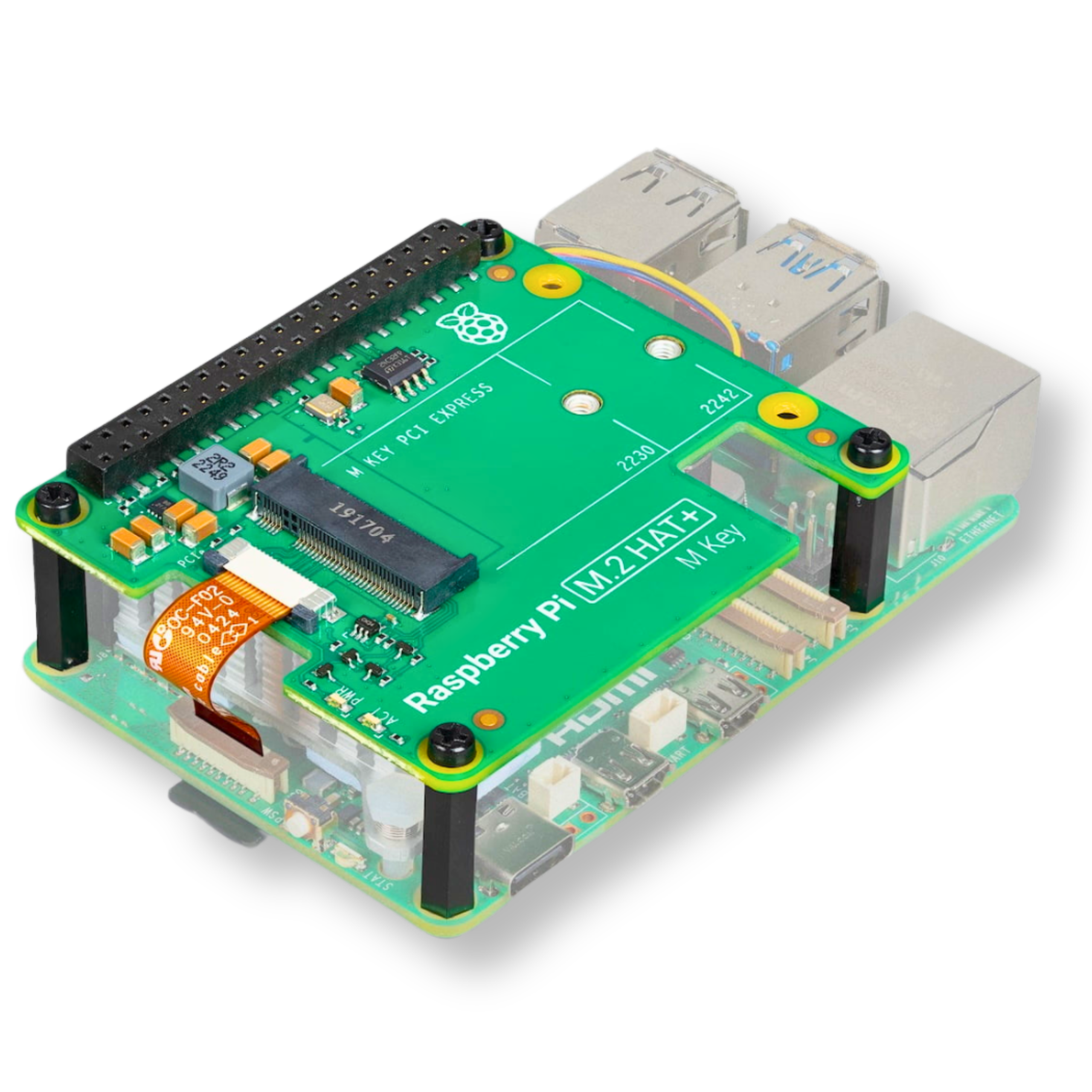

Raspberry Pi M.2 HAT+ adapter overlay for NVMe drives and M.2 accessories
Availability:
brak towaru
Rating:
0
0
Vendor:
Raspberry Pi
Description
The Raspberry Pi M.2 HAT+ allows M.2 peripherals, such as NVMe drives and AI accelerators, to connect to the PCIe 2.0 interface on the Raspberry Pi 5, providing high-speed data transferup to 500 MB/s. The cap acts as an adapter, converting the 16-pin 0.5mm FPC connector to standard M.2, supporting formats 2230 and 2242 with M key. The adapter can supply up to 3 A of current to connectedM.2 devices. The Raspberry Pi M.2 HAT+ is automatically detected by the latest Raspberry Pi software/firmware. A 16mm connector and spacers are included to allow use with the Raspberry Pi (Active Cooler). The Raspberry Pi M.2 HAT+ is ideal forRaspberry Pi 5 users who want to expand their system with high-speed NVMe drives or AI accelerators.
Specification:
- Power supply: PCIe 2.0 connector / GPIO Raspberry Pi 5
- Maximum data transfer rate: up to 500 MB/s
- Maximum current for M.2 devices: 3 A
- Supported formats: 2230, 2242
- Dimensions: 65 x 56.5 mm
The kit includes:
- Raspberry Pi M.2 HAT+
- FPC ribbon cable
- GPIO 40-pin connector with 16 mm pins;
- all screws necessary for assembly
