Raspberry Pi Pico W - RP2040 32 Bit ARM Cortex M0+
0
Description

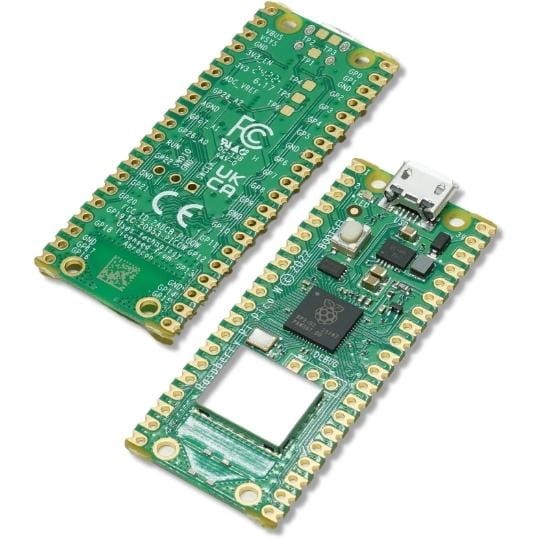

Raspberry Pi Pico W, featuring a RP2040 microcontroller and CYW43439 WIFI chip.
The microcontroller is equipped with a dual-core ARM Cortex M0+ processor clocked at 133 MHz, 2 MB of Flash memory and 246 kB of SRAM.
The W version of the Raspberry Pi Pico, features primarily a chip that allows wireless communication with IEEE 802.11 b/g/n WiFi.
The 26 GPIO pins, allow a myriad of modules to be controlled and the built-in sensor, to measure temperature.
The Raspberry Pi Pico W can be programmed in MicroPython and C/C++, via the microUSB connector.
Specifications:
- The chip: Raspberry Pi RP2040
- Core: ARM Cortex-M0+ Dual-Core 133 MHz
- WiFi communication chip: CYW43439
- WiFi standard: 2.4 GHz IEEE 802.11 b/g/n
- Connector: microUSB
- Supply voltage: 5 V (USB)
- Flash memory: 2 MB
- SRAM: 264 kB

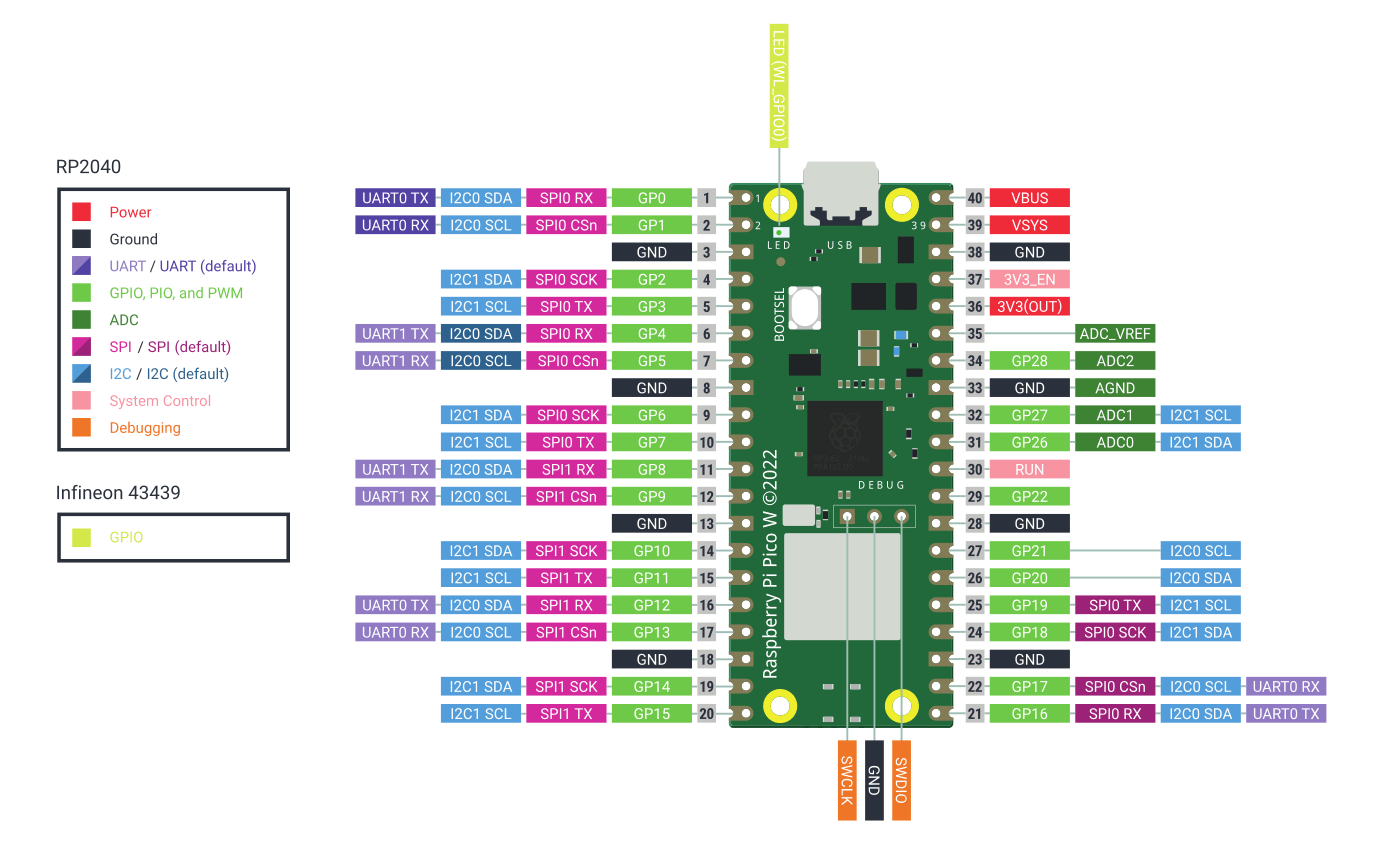

- Number of leads: 40-pin / 23 digital GPIO + 3 ADC pins
- Interfaces: 2x I2C, 2x UART, 2x SPI, up to 16 PWM channels!
- Dimensions: 51 x 21 x 4 mm
