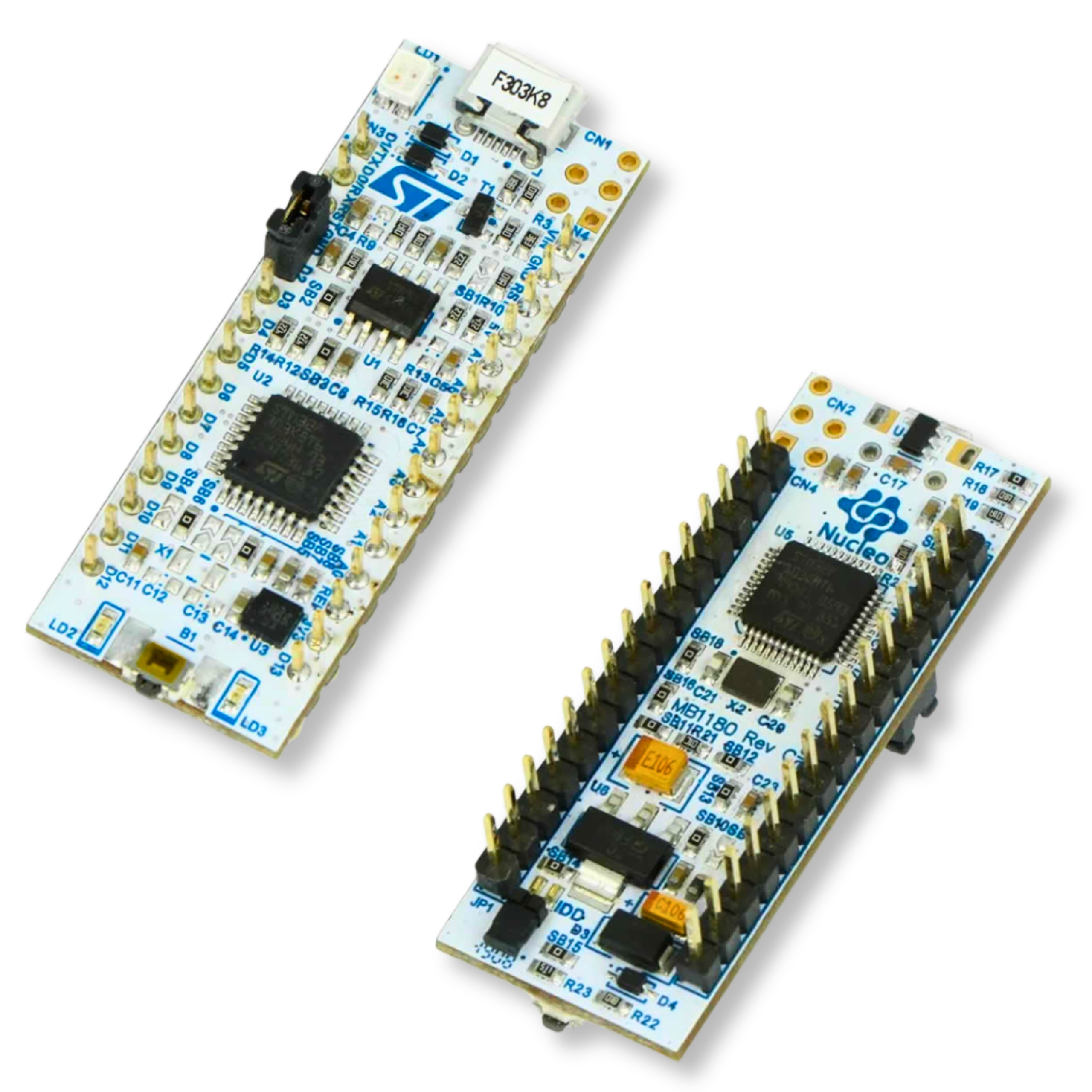

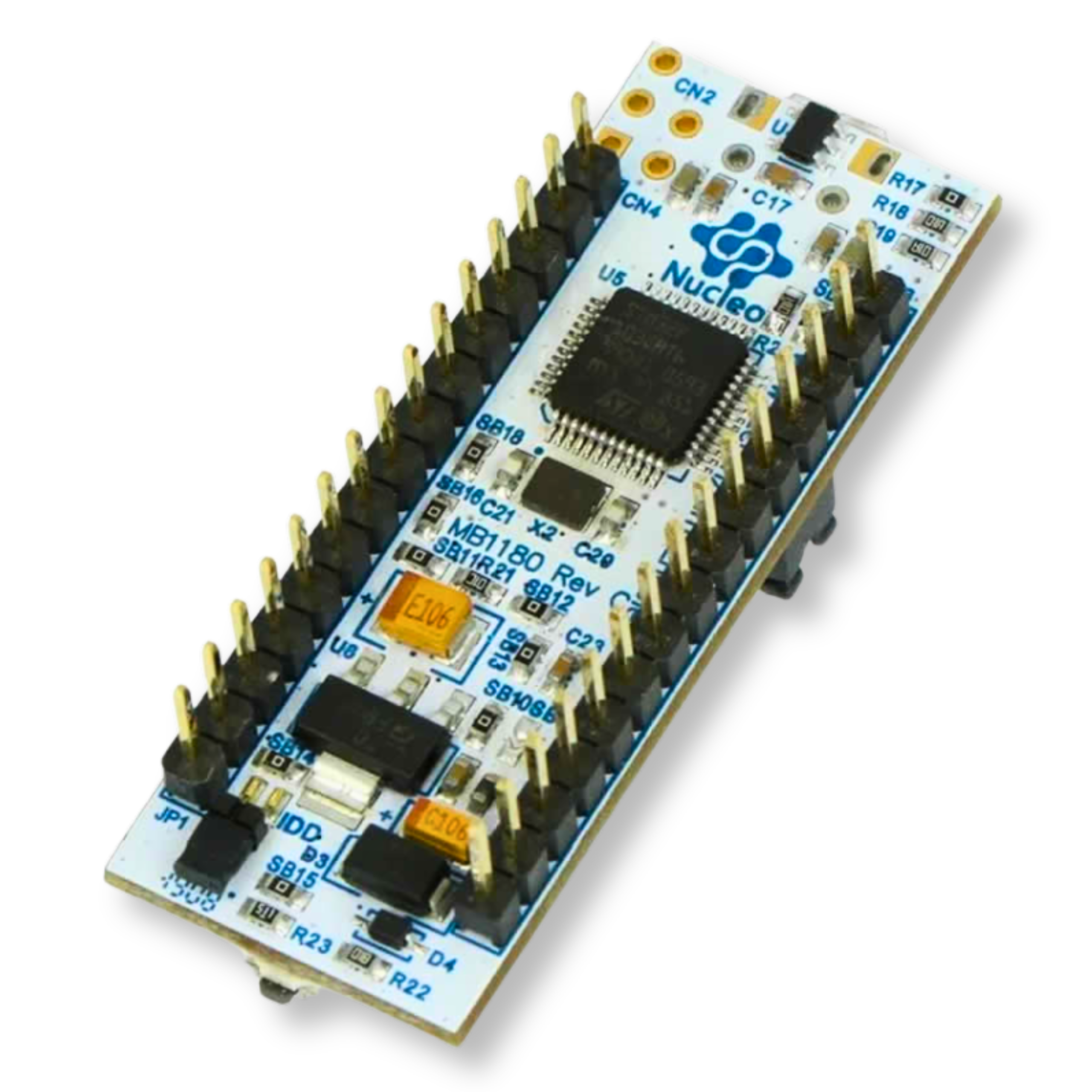

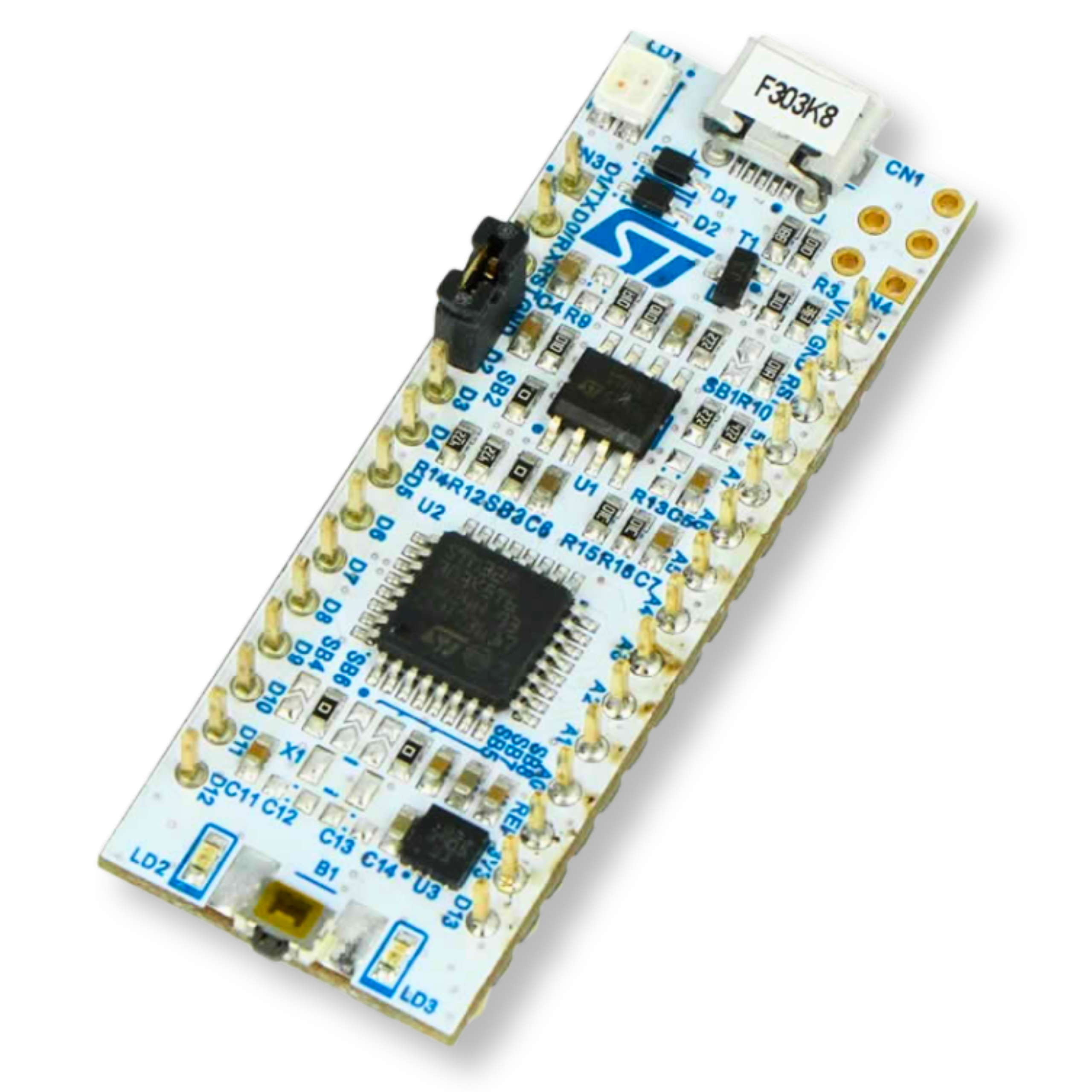

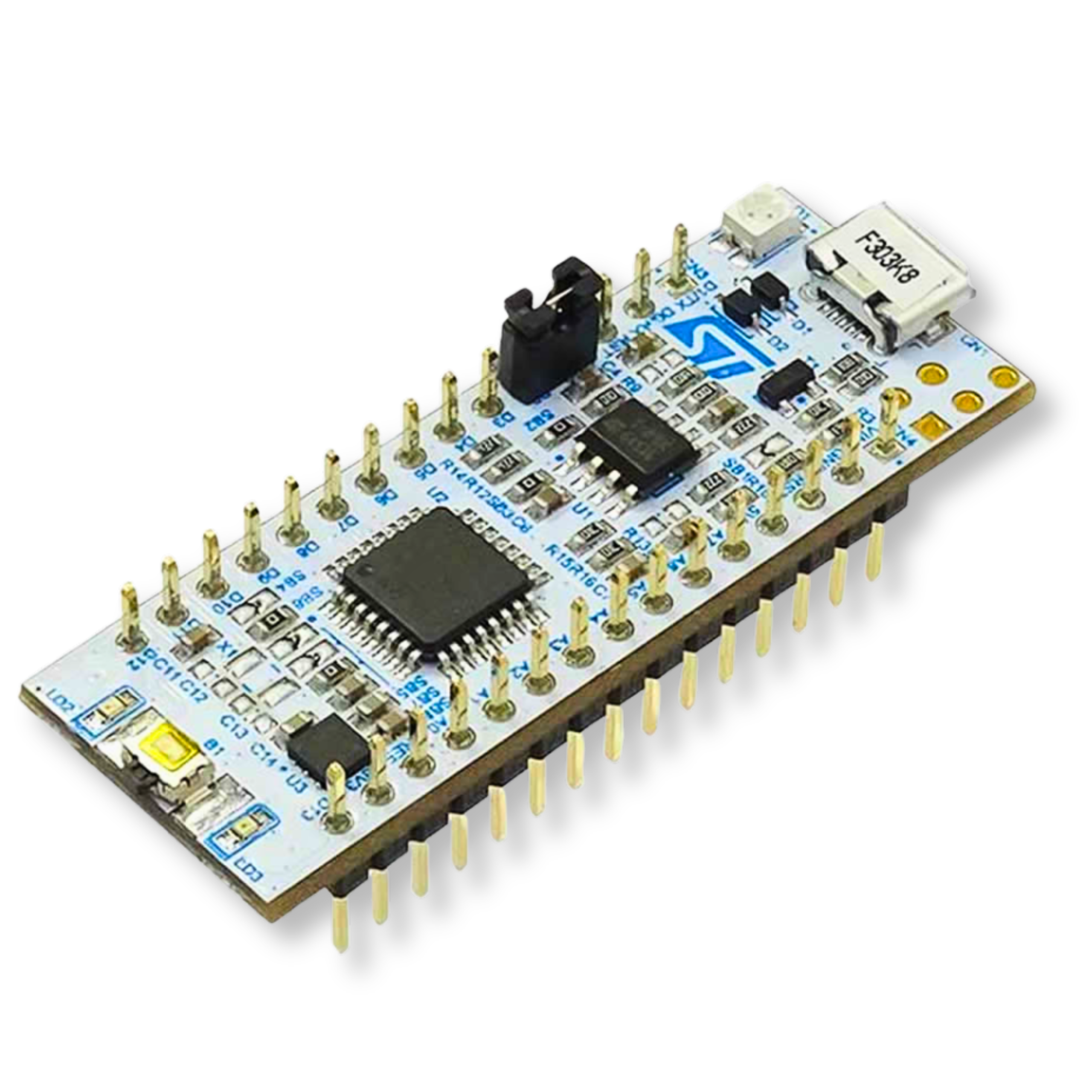

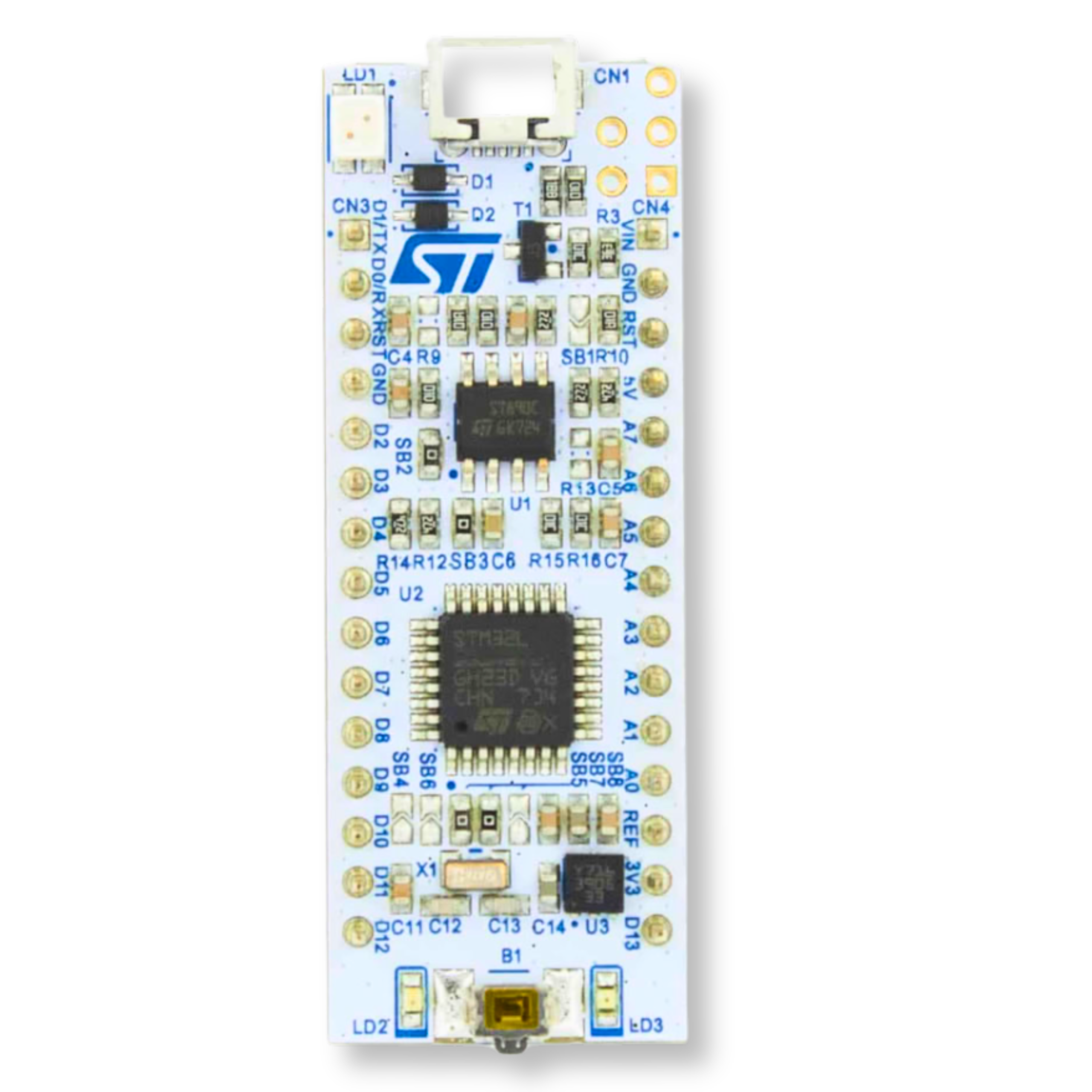

STM32 NUCLEO-F303K8 microcontroller STM32F303K8T6 ARM Cortex-M4 mbed 32 bit

The STM32F303K8T6 Developer Kit is an advanced tool created by ST Microelectronics, dedicated to developers and engineers who want to quickly develop applications that leverage the strengths of the STM32F303K8T6 microcontroller. This versatile module features a Cortex-M4 core with an FPU for fast data processing at a maximum clock rate of 72 MHz.

Kit specification:

1. STM32F303K8T6 microcontroller:

   • Core: Cortex-M4 with FPU
   • Maximum clocking: 72 MHz
   • Flash memory: 64 kB
   • SRAM: 12 kB + additional 4 kB CCM RAM
   • DMA: 7 channels
   • Communication interfaces: 1 x CAN, 1 x I2C, 1 x SPI, 2 x USART
   • 2 x ADC with conversion time of 0.20 μs, up to 21 channels, selectable resolution of 12 to 6 bits, conversion range 0 to 3.6 V
   • 3 x 12-bit DAC
   • 3 x analogue comparator
   • 1 x operational amplifier
   • 11 timers, including 1 x RTC, 1 x SysTick, 2 x Watchdog
   • CRC function

2. Built-in ST-Link V2 programmer/debugger:

   • Micro USB connector
   • Can operate as a separate programmer with SWD output

3. Power supply:

   • Via micro USB
   • From an external 5V or 3.3V power source

4. LEDs:

   • USB communication
   • Power supply
   • User light

5. Reset button

6. Compatibility:

   • Board compatible with the ARM mbed platform for easy integration and application development

The kit is ideal for developers looking for a powerful and versatile solution for rapid prototyping and development of advanced applications across a range of technology domains.
