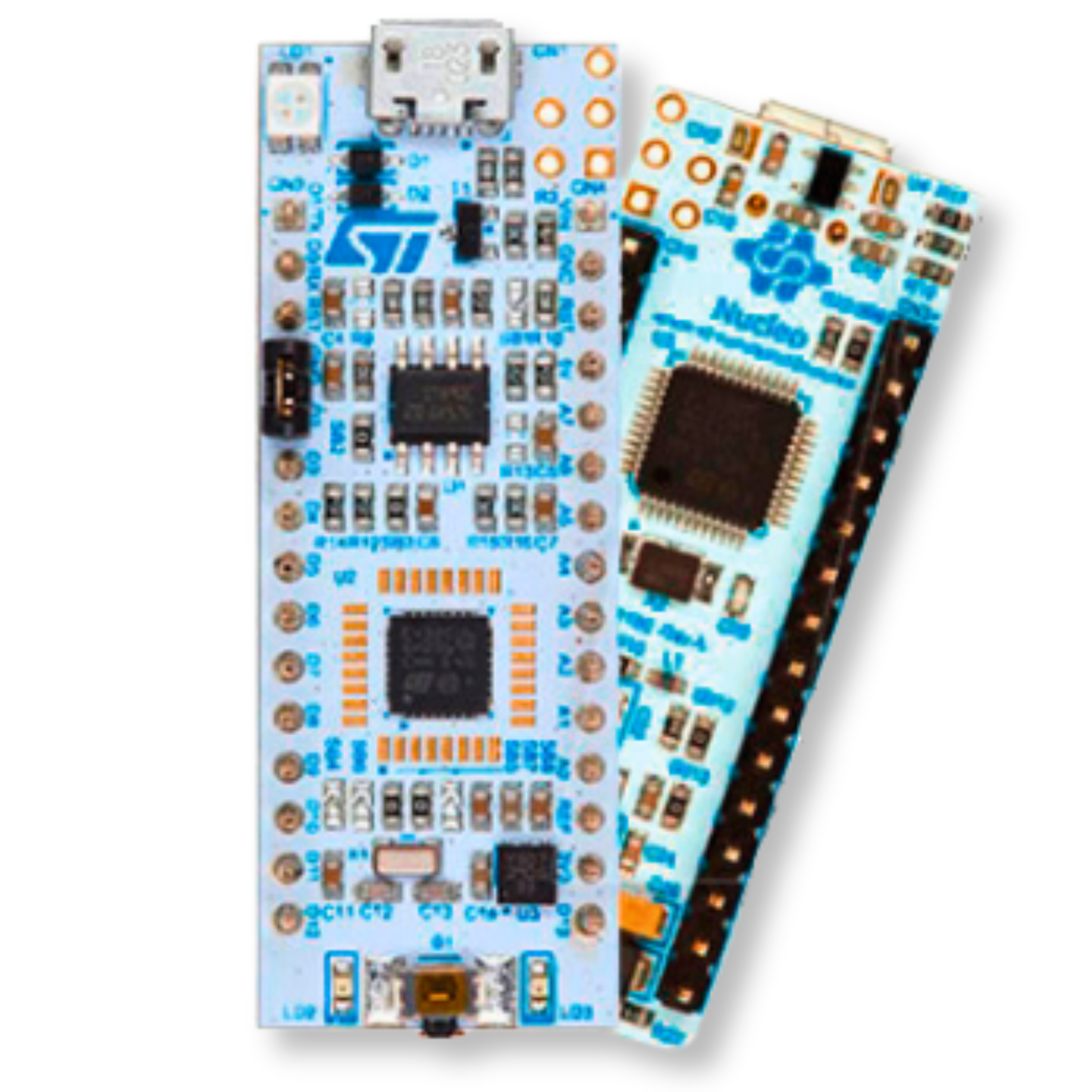

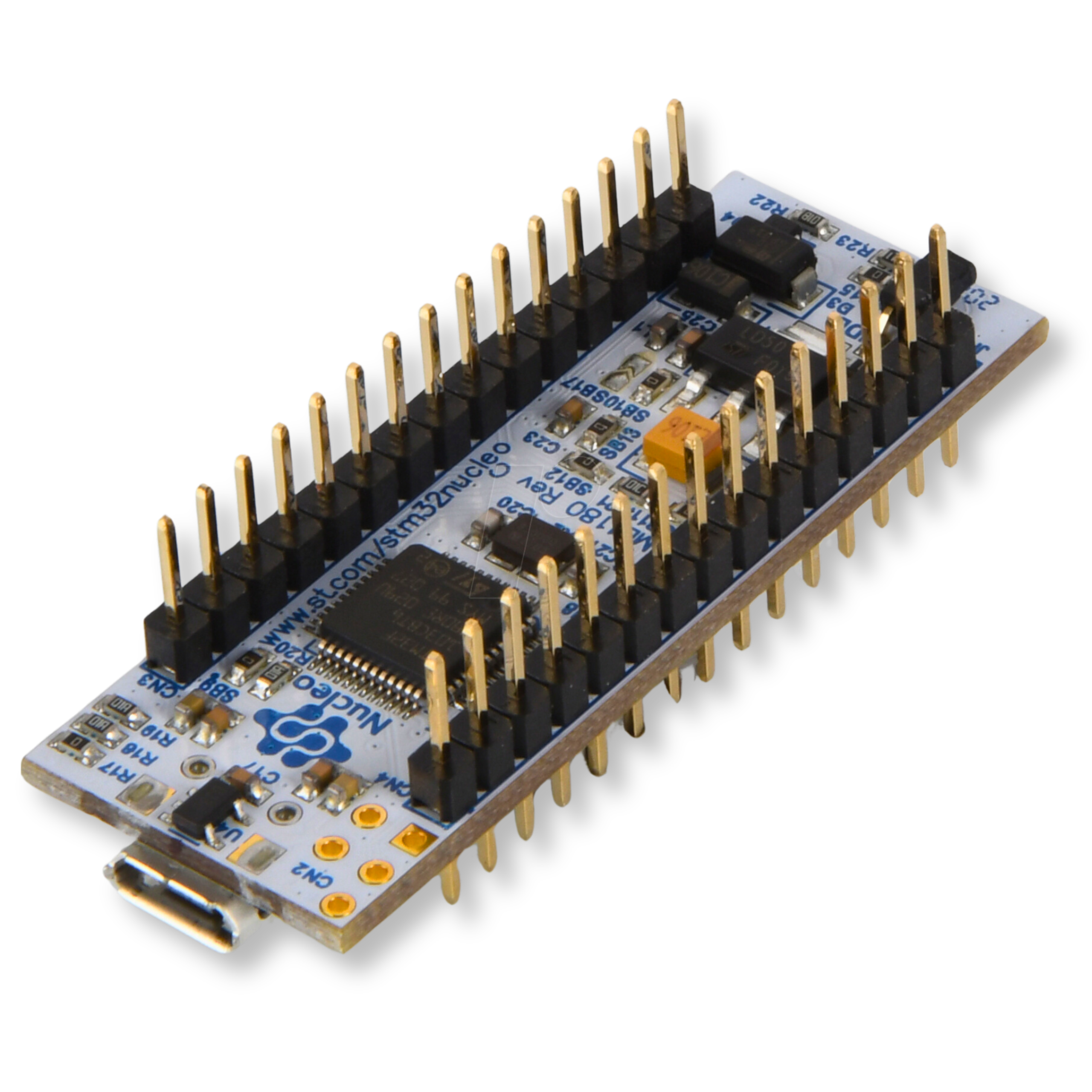

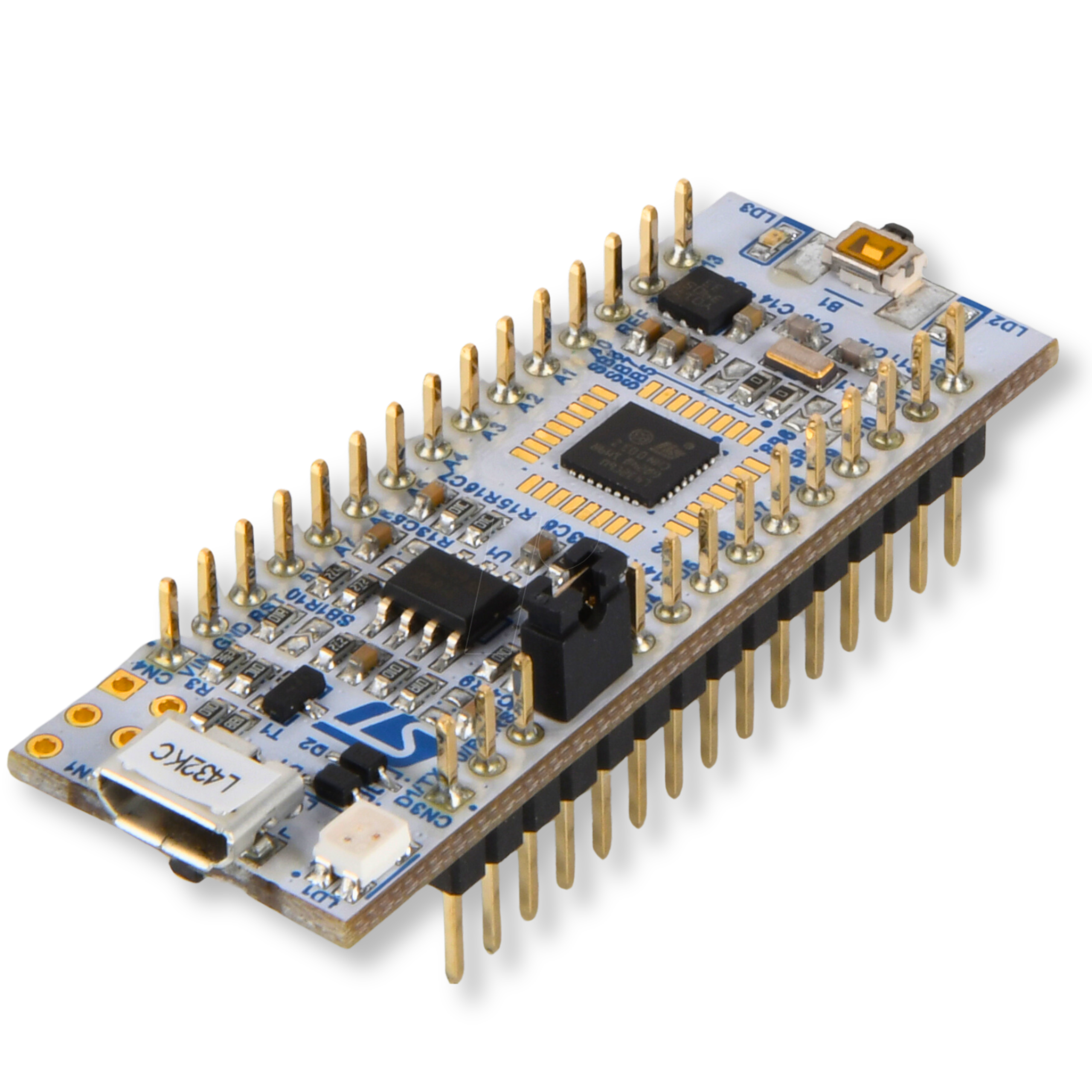

STM32 NUCLEO-L432KC STM32L432KCU6 CORTEX-M4 NUCLEO-32 embedded programmer

The kit also includes an embedded ST-Link V2 programmer/debugger with micro USB connector, which can function as a standalone programmer with SWD output. Power for the kit is possible either through the micro USB port or from an external 5 V or 3.3 V power source, providing flexibility for different experimental conditions.

Additionally, the kit features three LEDs to indicate USB communication, power and user status and a reset button for easy use and programming. The board is compatible with the ARM mbed platform, enabling rapid application development and integration with existing ARM mbed libraries and community.

The kit provides an excellent base for learning and experimenting with microcontrollers, providing users with rich opportunities to expand and create advanced projects.

Kit specification:

1. STM32L432KCU6 microcontroller:

   • Core: Cortex-M4
   • Clocking: max. 80 MHz
   • Flash memory: 256 kB
   • SRAM: 64 kB
   • DMA: 14 channels
   • Communication interfaces:
     • 1 x CAN, 2 x I2C, 2 x SPI, 1 x Quad SPI
     • 3 x UART/USART, 1 x LPUART
     • 1 x SAI, 1 x SWPMI, 1 x IRTIM, 1 x USB
     .
   • Analogue interfaces:
     • 1 x ADC 16 bit, 2 x DAC 12 bit
     • 1 x Operational Amplifier, 2 x Ultra Low-Power Comparator
   • Timers:
     • 1 x 32-bit (4 channels), 1 x 16-bit (6 PWM channels)
     • 1 x 16-bit (2 channels), 1 x 16-bit (1 channel)
     • 2 x Basic Timer, 2 x Low-Power Timer
     • 1 x RTC, 1 x SysTick
   • Other functions: RNG, CRC

2. Built-in ST-Link V2 programmer/debugger:

   • Connector: micro USB
   • Features: Can operate as a separate programmer with SWD output

3. Power supply:

   • Sources: micro USB or external 5 V or 3.3 V source

4. LED indicators:

   • USB communication
   • Power supply
   • User light

5. Button: Reset

6. Compatibility: ARM mbed compatible board
