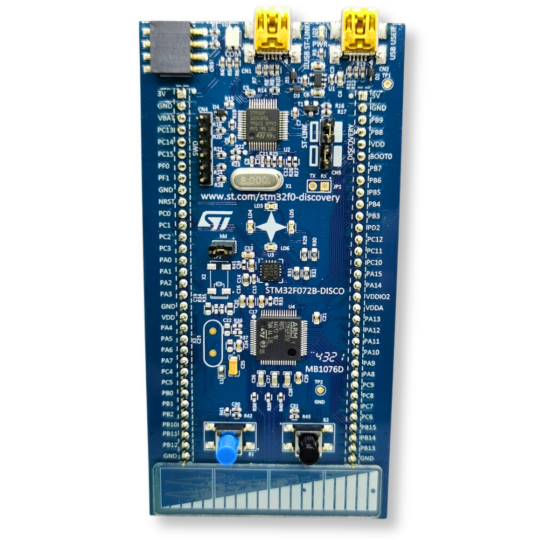

STM32F072 Discovery kit STM32 ARM Cortex-M0 microcontroller with gyroscope
Availability:
brak towaru
Rating:
0
0
Vendor:
STMicroelectronics
Description
The development kit, based on the STM32F072RBT6 microcontroller with Cortex-M0 core, includes a 3-axis gyroscope and a linear capacitive sensor strip with four buttons on the board. It is also equipped with a programmer/debugger ST-LINK/V2 for easy programming and application diagnosis.
Developer kit specification:
-
STM32F072RBT6 microcontroller:
- Core: Cortex M0
- Core clocking: 48 MHz
- Flash memory: 128 kB
- SRAM: 16 kB
- Enclosure: LQFP64
- Timers: 16-bit and 32-bit, Watchdog, SysTick
- Interfaces: 2x I2C, 2x I2S, 2x SPI, 4x USART, 1x CAN, 1x HDMI-CEC
-
ST-Link/V2 programmer integrated on board
-
Power supply:
- Via mini USB connector
- From an external source: 5V/3.3V
-
3-axis gyroscope: L3GD20
-
Linear capacitive sensor strip or 4 touch-sensitive buttons
-
Six LEDs:
- LD1: USB communication
- LD2: power supply
- LD3, LD4, LD5, LD6: at the user's disposal
-
Buttons:
- User
- Reset
-
User accessible mini USB connector
-
Soldered goldpin leads for I/O ports
This kit is ideal for design and prototyping with the advanced features of the STM32F072RBT6 microcontroller, providing a wide range of configuration and expansion options.
