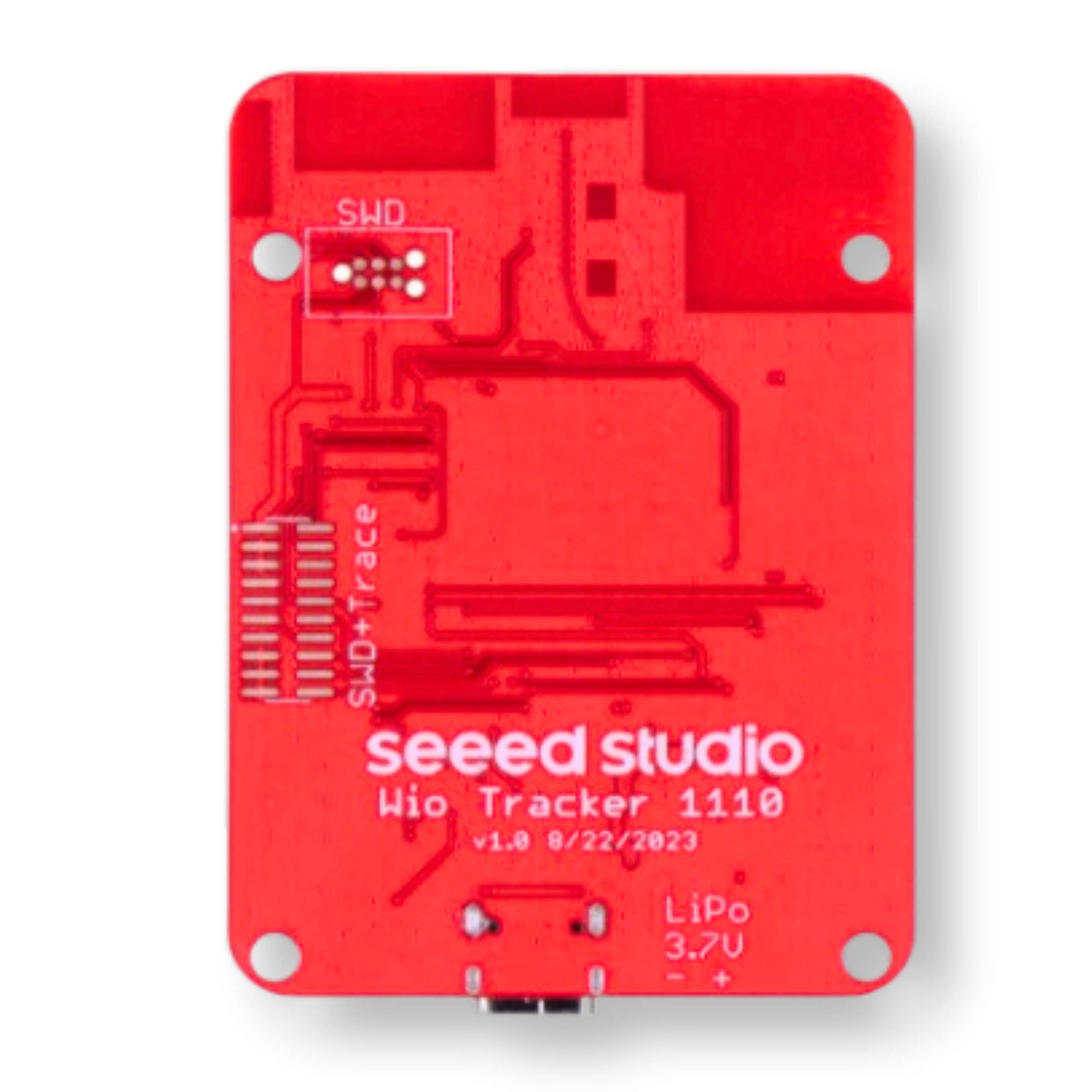

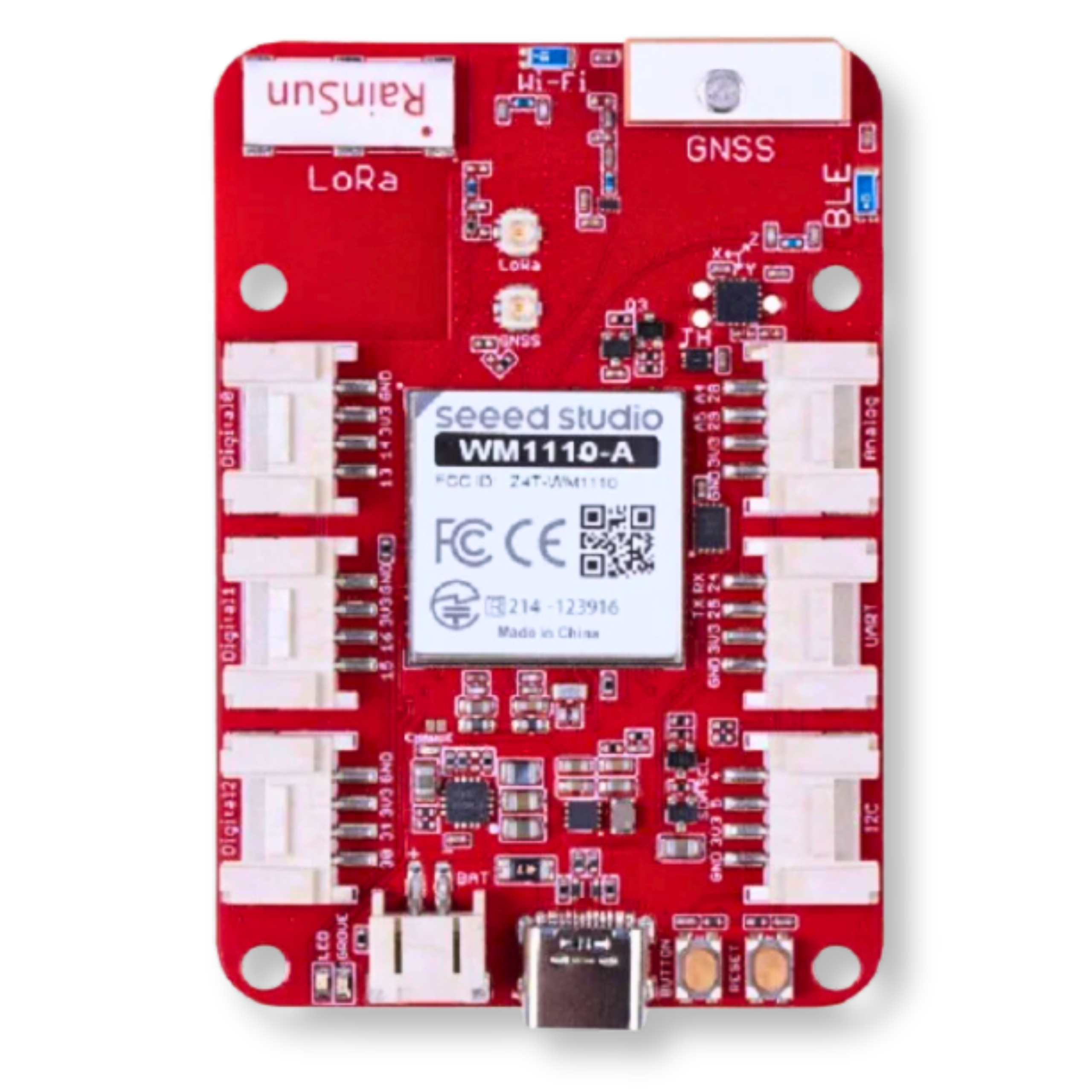

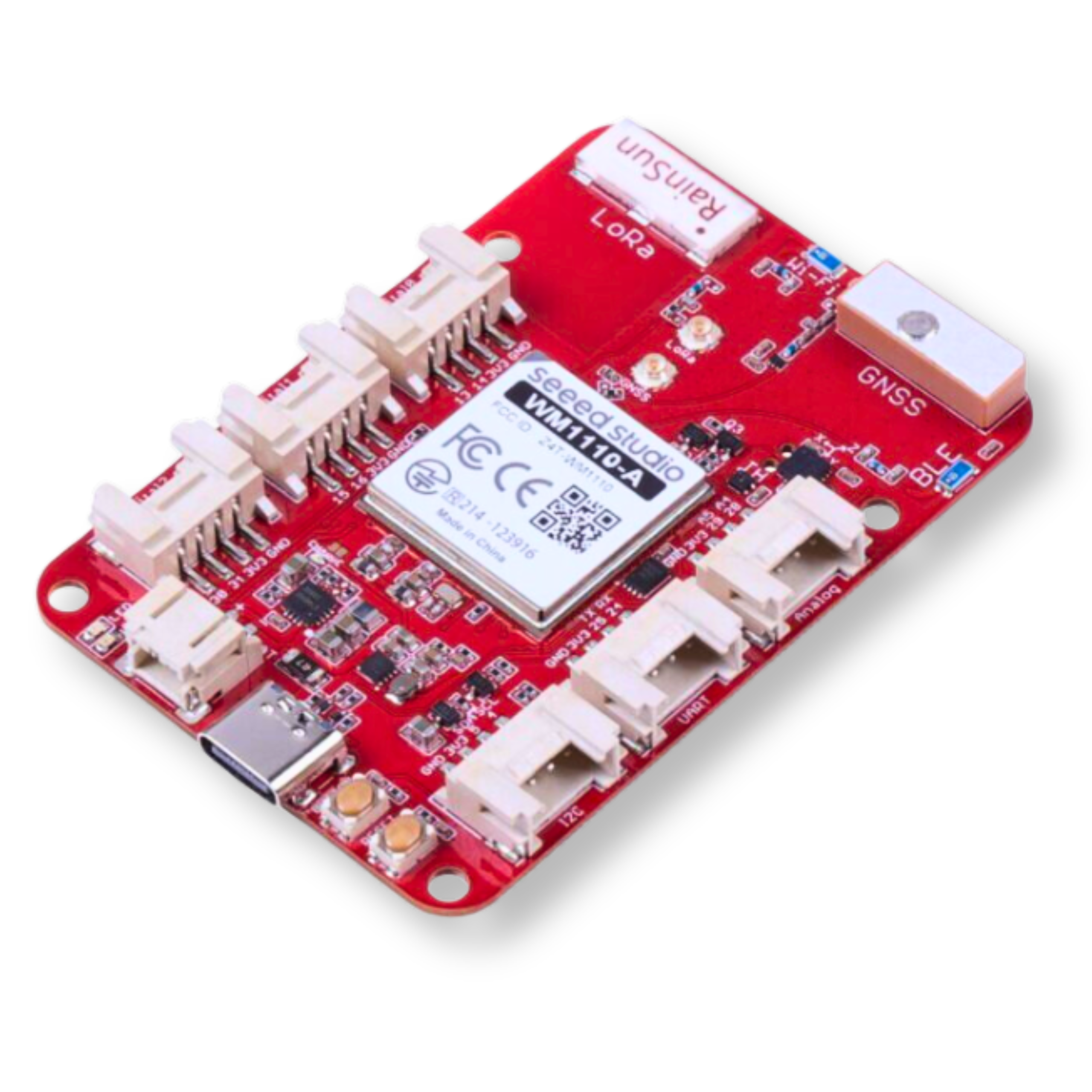

Wio Tracker 1110 Dev Board development board from Seeedstudio LoRa GNSS WiFi

The Wio Tracker 1110 Dev Board is an advanced development board based on the Wio-WM1110 module that integrates Semtech 's LoRa relay and universal radio for geolocation. It is a user-friendly development platform for LoRa-based tracking.

With its compact size and rich Grove interfaces, the Wio Tracker 1110 Dev Board is easy to deploy with built-in antennas. It supports the Arduino development environment and the LoRaWAN® protocol stack, making it ideal for IoT tracking projects.

Key features:

• • Powered by Nordic nRF52840 and Semtech LR1110 chipsets
  • Offers multiple connectivity options including: LoRa®, GNSS (GPS/BeiDou), Bluetooth, Wi-Fi Sniffer
  • Supports over 300 Seeed Grove sensors, making it highly adaptable to a variety of tracking and monitoring needs.
  • Built-in sensors for temperature, humidity and a 3-axis accelerometer, enable the collection of a wide range of environmental and motion data.
  • Completely open platform: Take advantage of the extensive open-source ecosystem for LR1110 and nRF52840 chips to discover endless application possibilities.
  • Compatible with the Arduino IDE, providing ease of programming and a familiar environment for developers.

Technical specifications:

• • • LoRaWAN® protocol: V1.0.4
    • Frequency plan: 863~928MHz
    • Positioning technology: GNSS (GPS/BeiDou), WiFi Sniffer
    • Range: 2~10km (depending on antenna and environment)
    • Bluetooth 5.3 (Nordic nRF52840)
    • Interfaces: USB type C, GNSS and LoRa antenna connectors, Grove (ADC, I2C, UART)
    • Built-in sensors: SHT41 (temperature and humidity sensor), LIS3DHTR (3-axis accelerometer)

Kit contents:

• • 1x Wio Tracker 1110 Dev Board
  • 1x Plastic box
